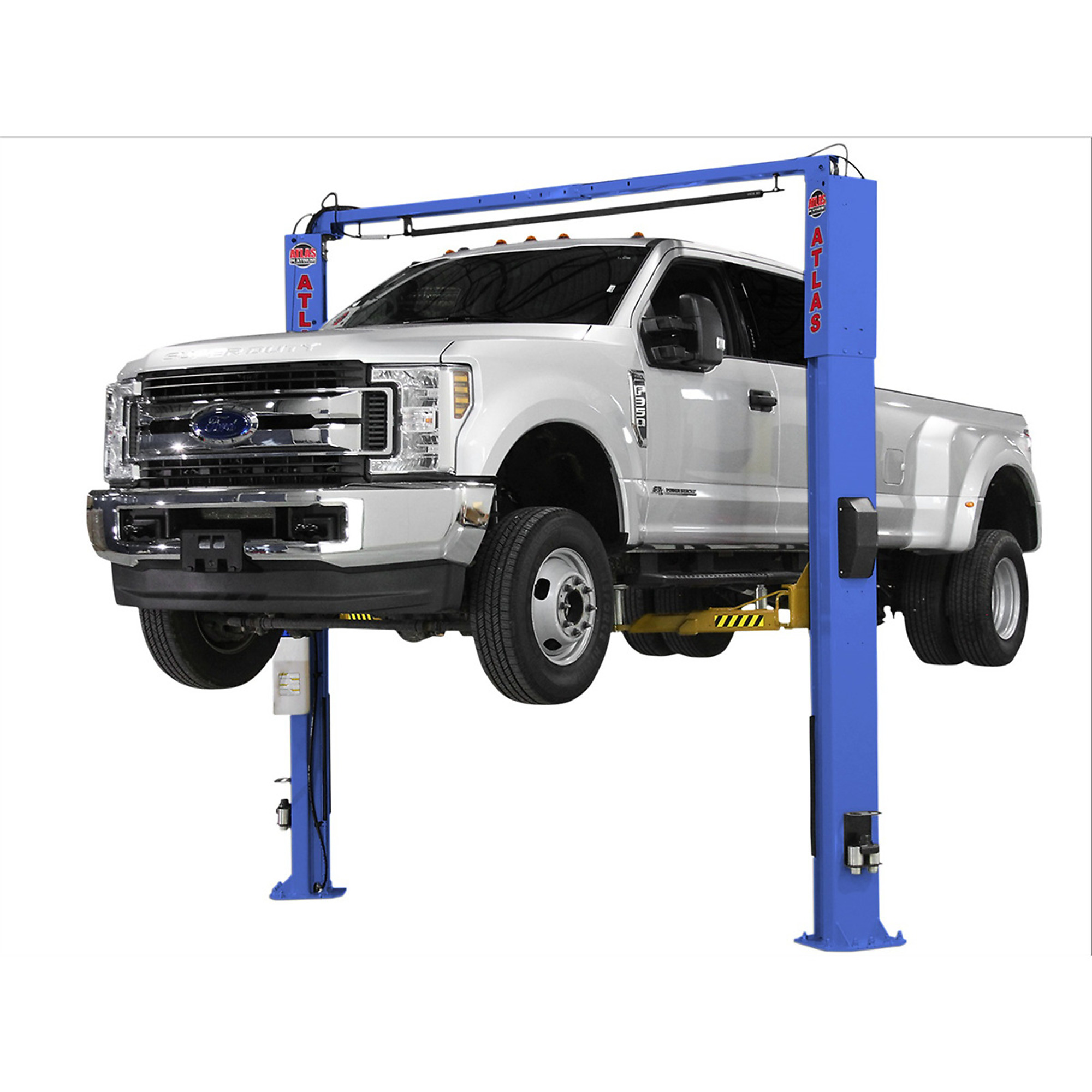

Atlas Automotive Equipment PVL10 Platinum 2-Post Commercial Grade Vehicle Overhead Lift, 12’6” Minimum Ceiling Height, ALI Certified, 10,000lb Capacity, Double “S” bend Columns, ALLY Power Unit

Item# 7066934
Atlas Automotive Equipment PVL10 Platinum 2-Post Commercial Grade Vehicle Overhead Lift, 12’6” Minimum Ceiling Height, ALI Certified, 10,000lb Capacity, Double “S” bend Columns, ALLY Power Unit

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Atlas Automotive Equipment PVL10 Platinum 2-Post Commercial Grade Vehicle Overhead Lift, 12’6” Minimum Ceiling Height, ALI Certified, 10,000lb Capacity, Double “S” bend Columns, ALLY Power Unit

Click or Tap image to Zoom

$5449.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

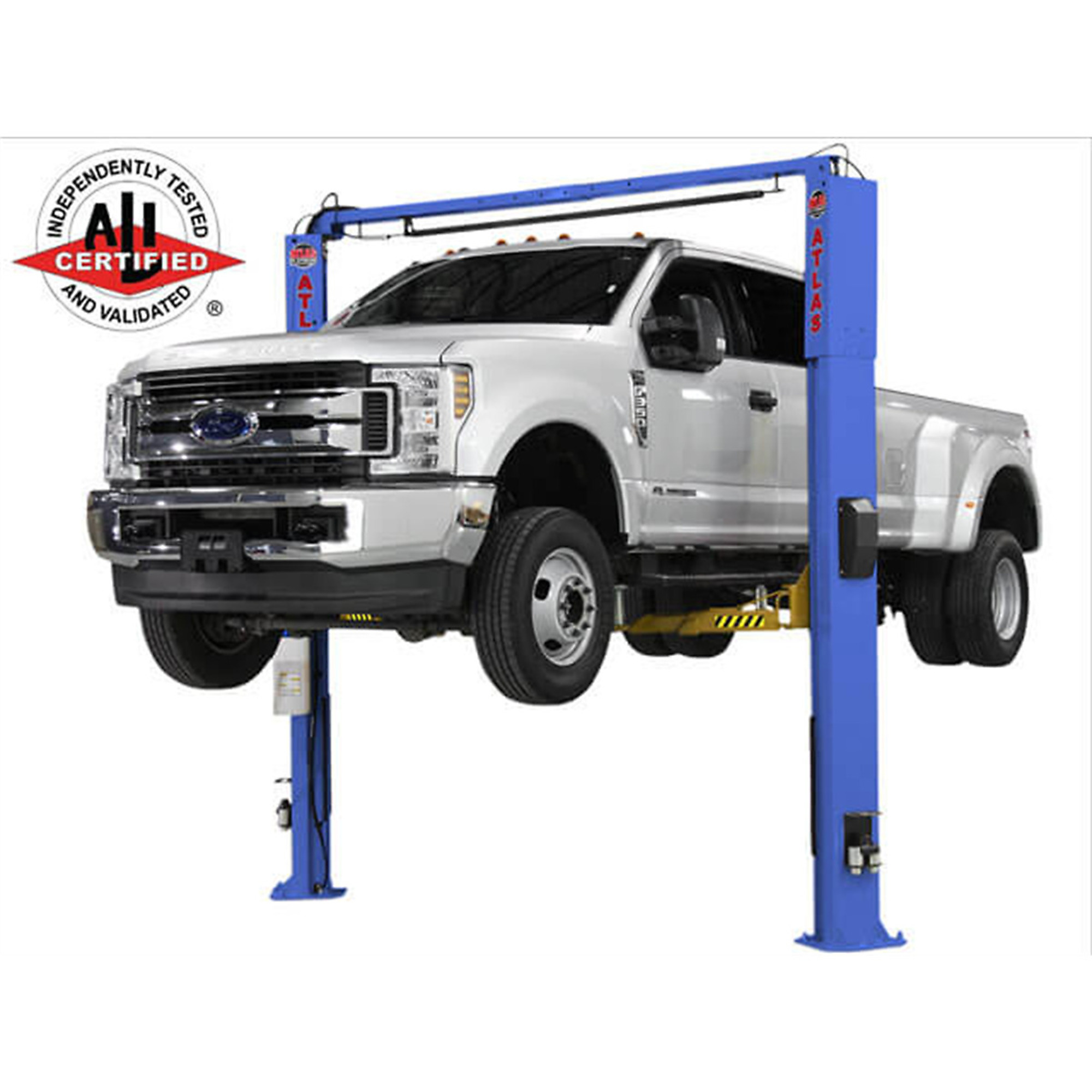

  • ALI CERTIFIED FOR PROFESSIONAL USE: The Atlas Platinum PVL10 2-Post Lift is ALI certified and boasts a 10,000 lb. capacity, designed specifically for commercial-grade operations, ensuring unmatched reliability and performance
  • REVOLUTIONARY DOUBLE "S" COLUMN DESIGN: Engineered with a patent-protected Double "S" column design, this lift enhances column strength and stability, making it a popular choice among professionals worldwide

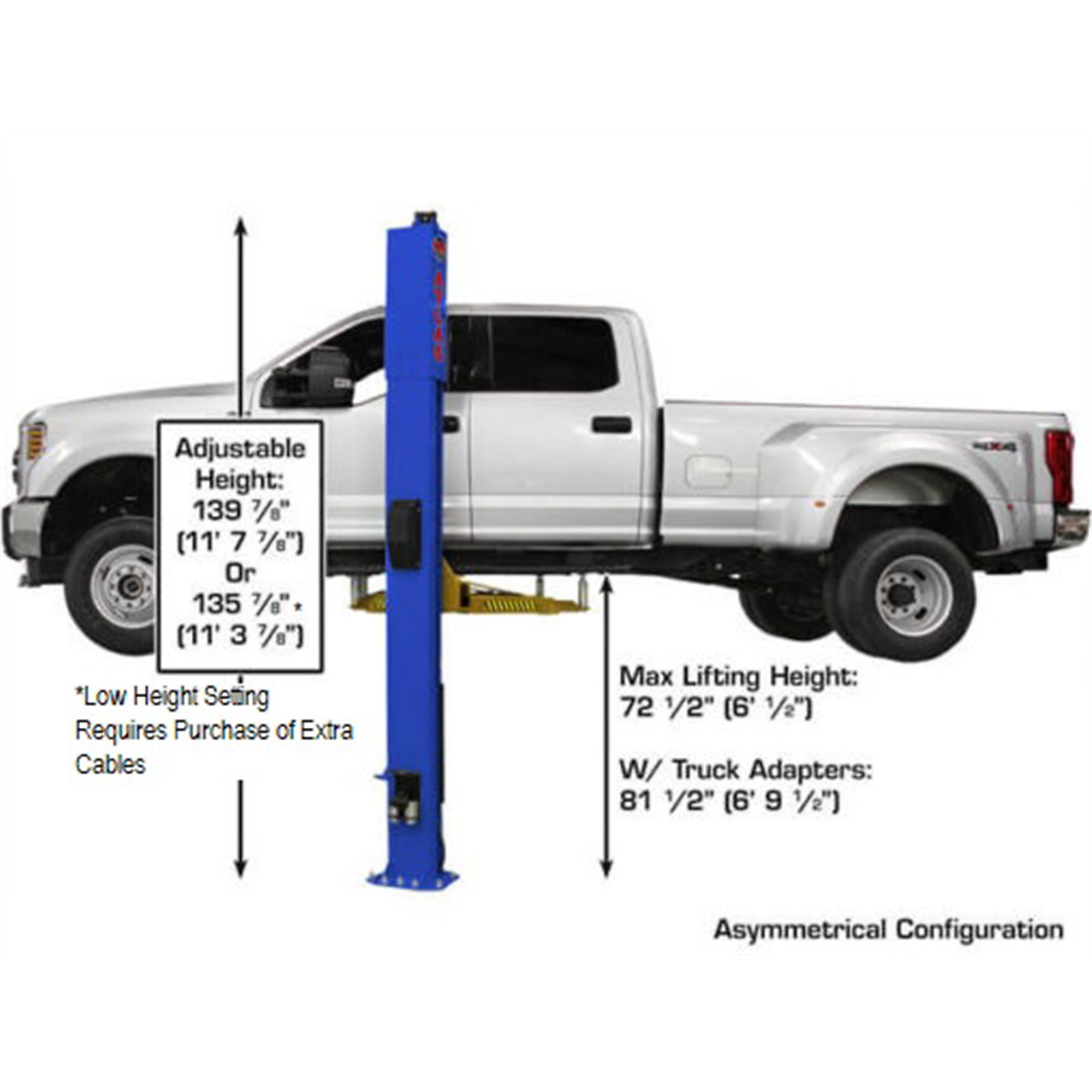

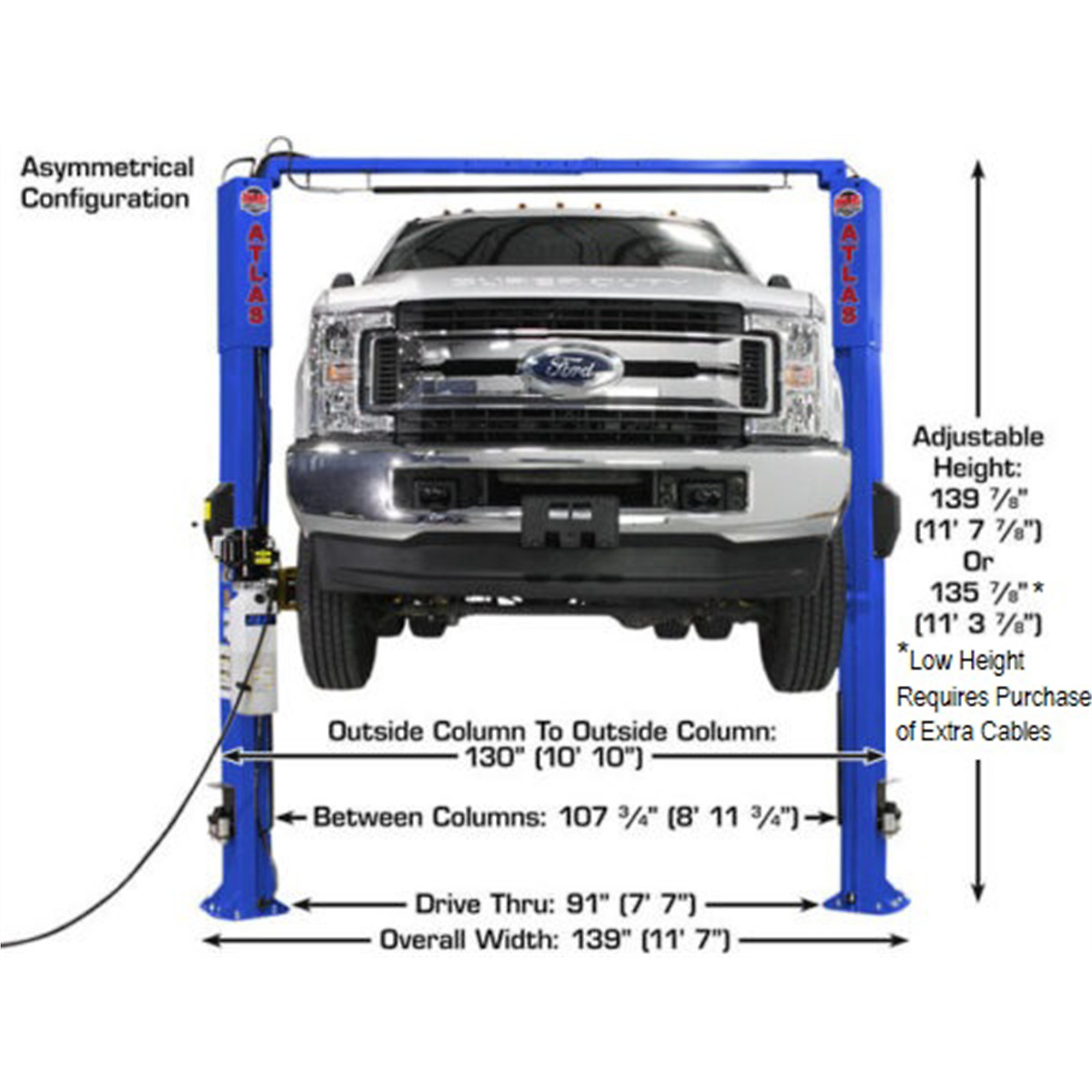

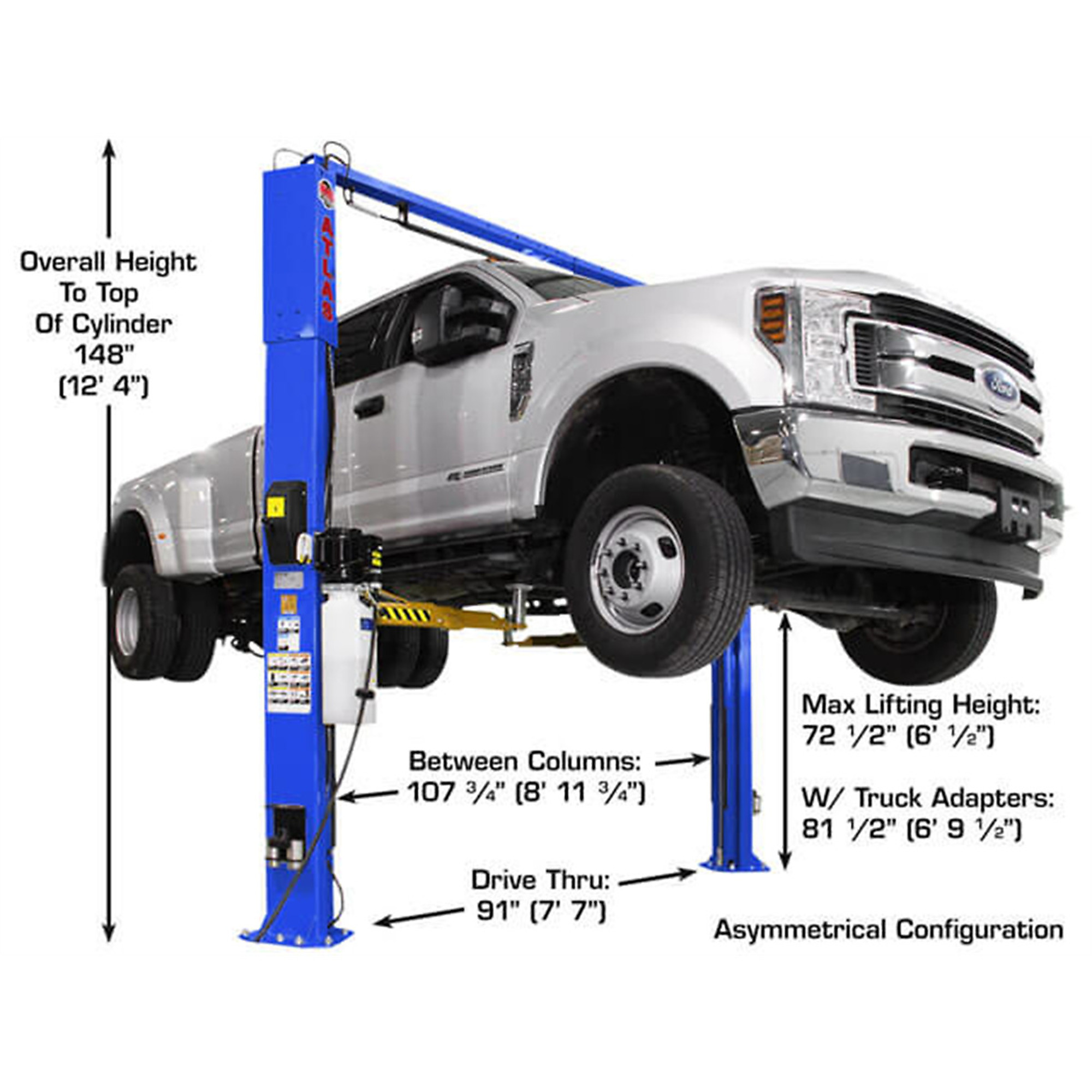

  • FLEXIBLE CONFIGURATION OPTIONS: Install the lift with symmetric or asymmetric columns to accommodate various vehicle types. Symmetric installation offers wider access for trucks, while asymmetric enhances car door access
  • PREMIUM HYDRAULIC POWER UNIT: Equipped with the ALLY Hydraulic AL2850 Power Unit, certified for electrical compliance. It promises consistent torque with less heat generation, backed by a two-year warranty
  • COMPLETE ACCESSORY KIT: Features three-stage front arms, double screw adapters with extensions, padded carriages, rubber column guards, and a free 8-piece truck adapter set, providing comprehensive lifting capabilities

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Atlas Platinum PVL10 is a 2-post 10,000 lb. capacity ALI Certified commercial grade lift designed with the professional shop in mind. The Platinum PVL10 was engineered and built to offer a commercial grade above ground lift to those customers who have “fallen in love” with the reliability offered by the Double S column design and symmetric columns. Tens of thousands of above ground lifts incorporating the Double S column design have been sold worldwide over the past two decades. The Double S column design was so revolutionary, that it was protected by a patent. That patent has now expired. The Atlas Platinum PVL10 can be installed with the columns positioned symmetrically or asymmetrically. When the columns are installed in an asymmetric configuration exiting and entering the vehicle is easier and reduces the chance or getting dings or scratches in the door. When the columns are installed in a symmetric configuration the width between the columns is wider, allowing wider trucks and SUVs to use the lifts with ease. Both column configurations offer easy vehicle access and superior vehicle lift point support due to the three stage front arm design. The Atlas Platinum PVL10 features three (3) stage telescoping front arms, double screw rubber/metal adapters with truck height extensions, protective rubber pads mounted to the carriage, rubber column guards, and a price that cannot be matched. This product also features an ALLY Hydraulic AL2850 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power uni

What's Included

    (1) Item

Features + Benefits

  • ALI CERTIFIED FOR PROFESSIONAL USE: The Atlas Platinum PVL10 2-Post Lift is ALI certified and boasts a 10,000 lb. capacity, designed specifically for commercial-grade operations, ensuring unmatched reliability and performance
  • REVOLUTIONARY DOUBLE "S" COLUMN DESIGN: Engineered with a patent-protected Double "S" column design, this lift enhances column strength and stability, making it a popular choice among professionals worldwide
  • FLEXIBLE CONFIGURATION OPTIONS: Install the lift with symmetric or asymmetric columns to accommodate various vehicle types. Symmetric installation offers wider access for trucks, while asymmetric enhances car door access
  • PREMIUM HYDRAULIC POWER UNIT: Equipped with the ALLY Hydraulic AL2850 Power Unit, certified for electrical compliance. It promises consistent torque with less heat generation, backed by a two-year warranty
  • COMPLETE ACCESSORY KIT: Features three-stage front arms, double screw adapters with extensions, padded carriages, rubber column guards, and a free 8-piece truck adapter set, providing comprehensive lifting capabilities

Key Specs

AttributeSpecification

item#

7066934

Brand

Atlas

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1850.0 LB

Capacity

10,000 lb

Max. Rise

6.5 ft
AttributeSpecification

Horsepower

0 HP

Motor Phase

Single-phase

Volts

220

Product Weight

1850.0000 lb

Dimensions L x W x H (in.)

115.0 x 38.0 x 22.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All Atlas Two-Post Lifts

Specifications

Specifications
Atlas Automotive Equipment PVL10 Platinum 2-Post Commercial Grade Vehicle Overhead Lift, 12’6” Minimum Ceiling Height, ALI Certified, 10,000lb Capacity, Double “S” bend Columns, ALLY Power Unit
Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX
Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 12,000-Lb. Capacity, Model# TP12KC-D
Ideal 2-Post Bi-Symmetric Vehicle Lift, 10,000-Lb. Capacity, Model# TP10KAC-DX
Capacity
Same

10,000 lb

9,000 lb

12,000 lb

10,000 lb

Max. Rise
Same

6.5 ft

6 ft

6 ft

5.9 ft

Horsepower
Same

0 HP

1 HP

2 HP

1 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Product Weight
Same

1850.0000 lb

1,370 lb

3,000 lb

1,705 lb

Dimensions L x W x H (in.)
Same

115.0 x 38.0 x 22.0 in

-

-

-

Locking Position (qty.)
Same

-

14

1

10
