Atlas Automotive Equipment OHX10000X 2-Post Commercial Grade Overhead Vehicle Lift, 13’ Minimum Ceiling Height, 10,000lb, Clear Floor, Extra Tall/Wide, Symmetric Arms, Single Point Lock Release

Item# 7067259
Atlas Automotive Equipment OHX10000X 2-Post Commercial Grade Overhead Vehicle Lift, 13’ Minimum Ceiling Height, 10,000lb, Clear Floor, Extra Tall/Wide, Symmetric Arms, Single Point Lock Release

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Atlas Automotive Equipment OHX10000X 2-Post Commercial Grade Overhead Vehicle Lift, 13’ Minimum Ceiling Height, 10,000lb, Clear Floor, Extra Tall/Wide, Symmetric Arms, Single Point Lock Release

Click or Tap image to Zoom

$4849.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • POWERFUL LIFTING CAPACITY: The Atlas OHX10000X boasts a robust 10,000 lb. capacity, ideal for commercial repair facilities and dedicated home users, accommodating vehicles like one-ton diesel dually with ease

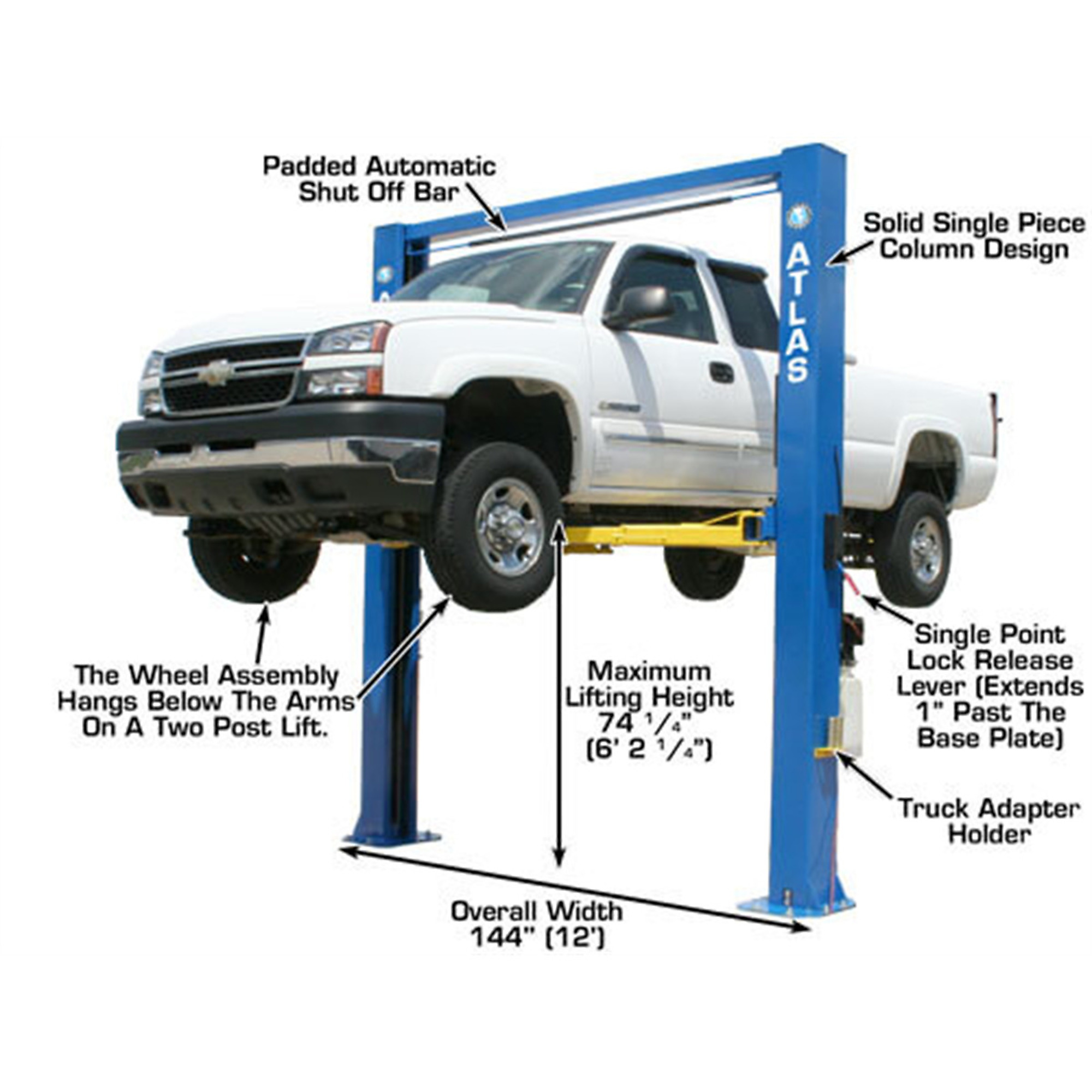

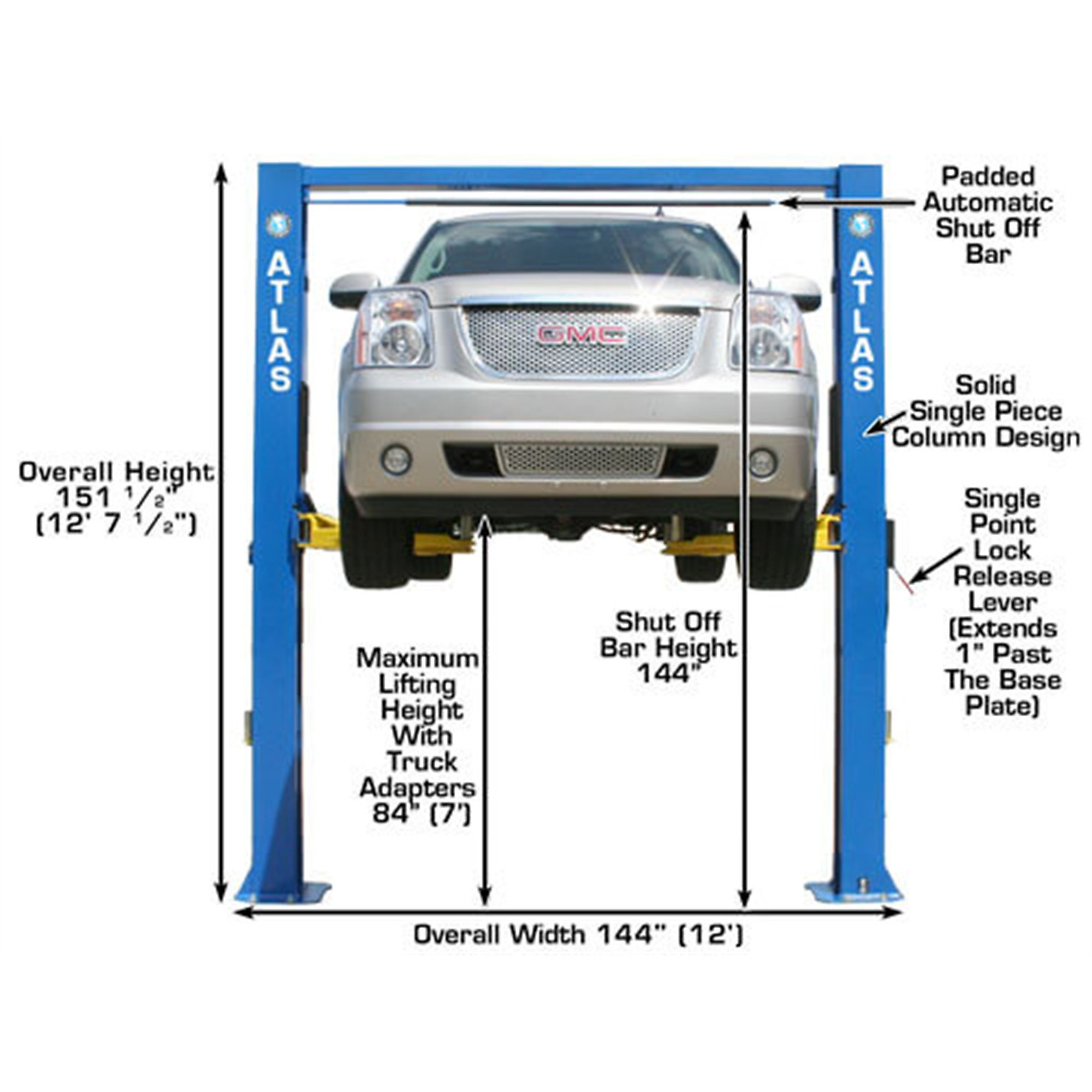

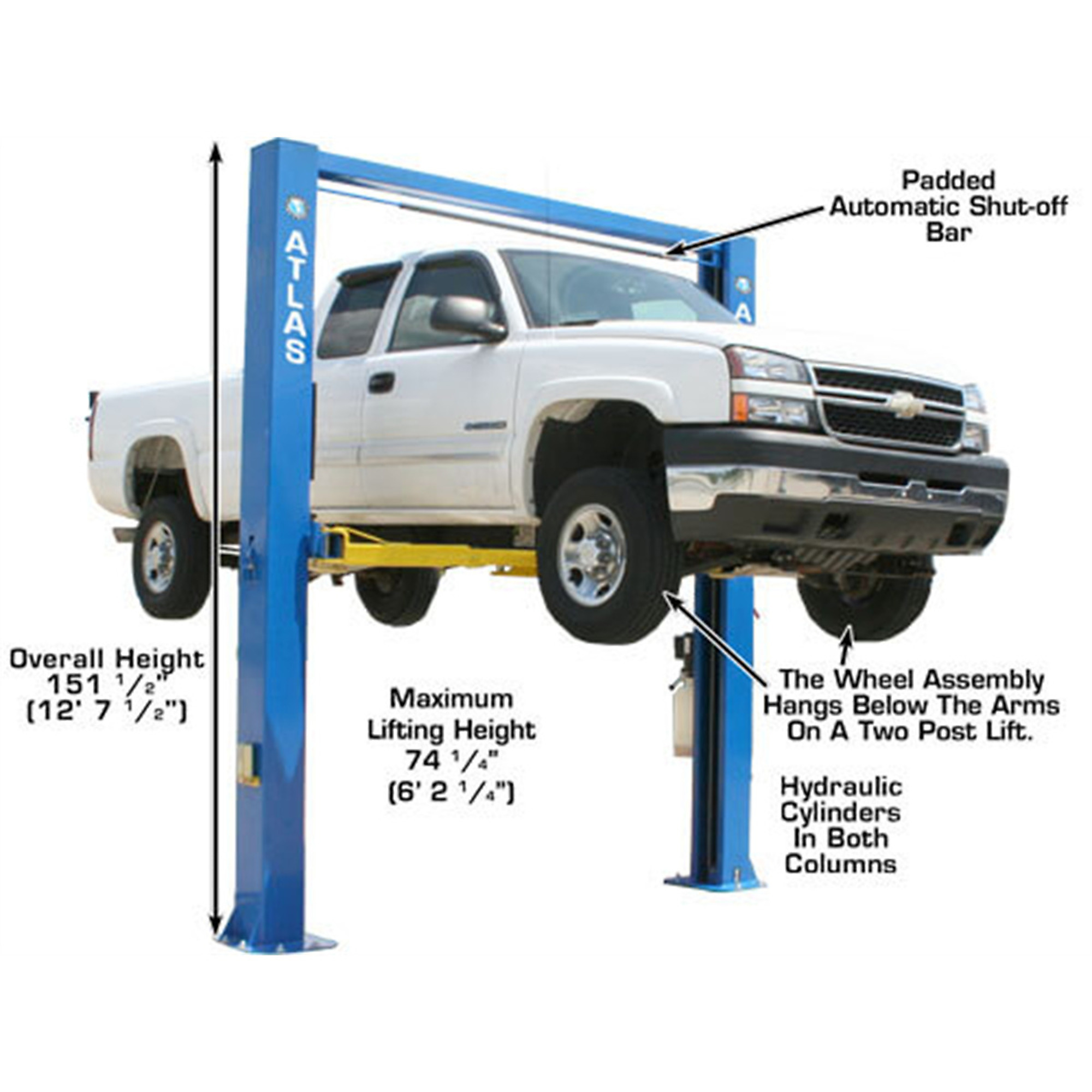

  • EXTRA TALL AND WIDE DESIGN: Engineered for versatility, the extra height and width between columns allow for a wide range of vehicles. Taller operators benefit from increased lifting height, lifting vehicles 3 inches higher than standard lifts
  • ENGINEERED FOR STABILITY AND STRENGTH: Features a single piece 12' 7" formed column and extra-long carriage, providing maximum strength. Symmetric arms and dual direct-drive cylinders ensure stable and reliable lifting operations
  • USER-FRIENDLY SAFETY FEATURES: Equipped with automatic arm restraints, rubber-covered carriages, and a "padded" shut-off bar to protect vehicles. A single point lock release ensures safety and ease of use
  • COMPLETE INSTALLATION KIT AND ACCESSORIES: Includes a free 12-piece truck adapter set and mounting hardware, making the OHX10000X a comprehensive and ready-to-use solution for all heavy-duty lifting needs

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Atlas OHX10000X two post commercial grade above ground lift is the perfect choice for those large commercial repair facilities or the “Mr. Homeowner” who demand the highest quality at the absolute best price. The Atlas OHX10X is a TRUE 10,000 lb. capacity two post lift that offers a great value to the customer. Due to the drive through width, arm length and arm style the Atlas OHX10000X was engineered and manufactured to lift a wide range of vehicles, specifically longer wheel based vehicles such as a one-ton diesel dually. Extra lifting height and extra width between the columns allows the operator to work on varied sizes of vehicles and offers a “fudge factor” of about 6in. when “driving through” to another part of the building or lifting the van or “ladder truck”. If you are over 6ft. 1in., the Atlas OHX10X has longer cylinders which allow the vehicle to be “lifted” about 3in. higher than many other lifts. The Atlas OHX10X incorporates a single piece 12ft. 7in. formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 10,000 lb. vehicle. The single piece columns require the customer to have a ceiling of at least 13ft. to stand the column.

What's Included

    (1) Item

Features + Benefits

  • POWERFUL LIFTING CAPACITY: The Atlas OHX10000X boasts a robust 10,000 lb. capacity, ideal for commercial repair facilities and dedicated home users, accommodating vehicles like one-ton diesel dually with ease
  • EXTRA TALL AND WIDE DESIGN: Engineered for versatility, the extra height and width between columns allow for a wide range of vehicles. Taller operators benefit from increased lifting height, lifting vehicles 3 inches higher than standard lifts
  • ENGINEERED FOR STABILITY AND STRENGTH: Features a single piece 12' 7" formed column and extra-long carriage, providing maximum strength. Symmetric arms and dual direct-drive cylinders ensure stable and reliable lifting operations
  • USER-FRIENDLY SAFETY FEATURES: Equipped with automatic arm restraints, rubber-covered carriages, and a "padded" shut-off bar to protect vehicles. A single point lock release ensures safety and ease of use
  • COMPLETE INSTALLATION KIT AND ACCESSORIES: Includes a free 12-piece truck adapter set and mounting hardware, making the OHX10000X a comprehensive and ready-to-use solution for all heavy-duty lifting needs

Key Specs

AttributeSpecification

item#

7067259

Brand

Atlas

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1665.0 LB

Capacity

10,000 lb

Max. Rise

6 ft
AttributeSpecification

Horsepower

3 HP

Motor Phase

Single-phase

Volts

220

Product Weight

1665.0000 lb

Dimensions L x W x H (in.)

154.0 x 43.0 x 23.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All Atlas Two-Post Lifts

Specifications

Specifications
Atlas Automotive Equipment OHX10000X 2-Post Commercial Grade Overhead Vehicle Lift, 13’ Minimum Ceiling Height, 10,000lb, Clear Floor, Extra Tall/Wide, Symmetric Arms, Single Point Lock Release
Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX
Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 12,000-Lb. Capacity, Model# TP12KC-D
Ideal 2-Post Bi-Symmetric Vehicle Lift, 10,000-Lb. Capacity, Model# TP10KAC-DX
Capacity
Same

10,000 lb

9,000 lb

12,000 lb

10,000 lb

Max. Rise
Same

6 ft

6 ft

6 ft

5.9 ft

Horsepower
Same

3 HP

1 HP

2 HP

1 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Product Weight
Same

1665.0000 lb

1,370 lb

3,000 lb

1,705 lb

Dimensions L x W x H (in.)
Same

154.0 x 43.0 x 23.0 in

-

-

-

Locking Position (qty.)
Same

-

14

1

10
