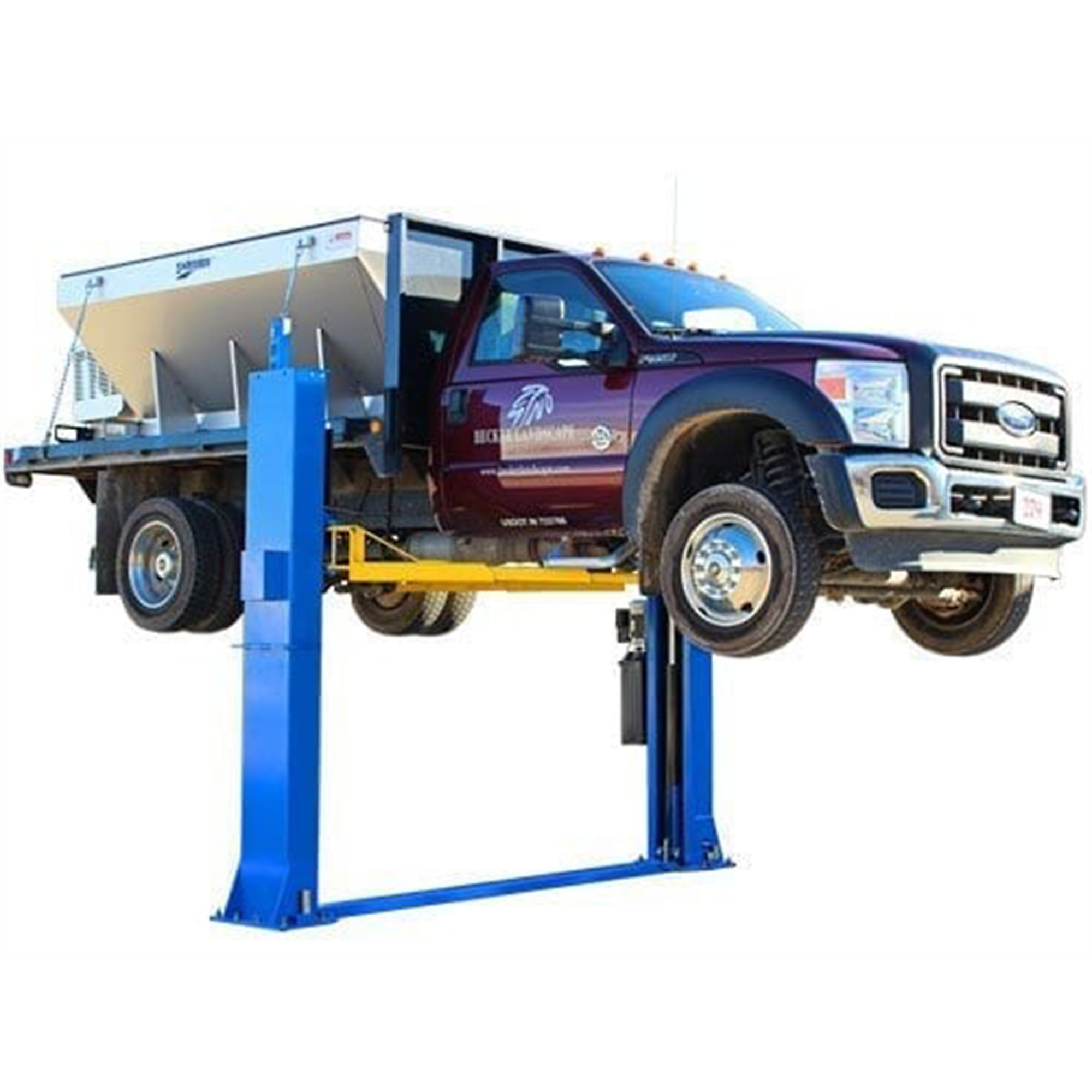

Atlas Automotive Equipment BP12000X 2-Post Commercial Grade Vehicle Lift, Baseplate, Open-top Style, 10’4” Minimum Ceiling Height, 12,000lb Capacity, 3-Stage Symmetric Arms, For Low Ceiling Garage Use

Item# 7067195
Atlas Automotive Equipment BP12000X 2-Post Commercial Grade Vehicle Lift, Baseplate, Open-top Style, 10’4” Minimum Ceiling Height, 12,000lb Capacity, 3-Stage Symmetric Arms, For Low Ceiling Garage Use

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Atlas Automotive Equipment BP12000X 2-Post Commercial Grade Vehicle Lift, Baseplate, Open-top Style, 10’4” Minimum Ceiling Height, 12,000lb Capacity, 3-Stage Symmetric Arms, For Low Ceiling Garage Use

Click or Tap image to Zoom

$5799.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • HEAVY-DUTY PERFORMANCE: The Atlas BP12000X Two-Post Baseplate Lift offers an imposing 12,000 lb. capacity, built to cater to commercial garages requiring robust lifting solutions for heavier vehicles with limited ceiling space
  • ADJUSTABLE AND VERSATILE DESIGN: Engineered with oversized columns and an adjustable width feature, this lift facilitates easy accommodation of wider trucks and trailers, allowing seamless driving between lift columns
  • SUPERIOR ARM AND LOCKING SYSTEM: Featuring symmetric three-stage arms for balanced lifting and a single-point lock release, the BP12000X ensures efficient and secure operations, enhancing workflow in busy garage settings
  • DURABLE CONSTRUCTION AND SAFETY FEATURES: Equipped with dual hydraulic chain-over cylinders and automatic arm restraints, the lift provides reliable performance with rubber carriage guards adding an extra layer of vehicle protection
  • COMPLETE INSTALLATION PACKAGE: The lift comes with a free 12-piece truck adapter set and all necessary mounting hardware, accompanied by a durable powder coat finish that ensures long-lasting resilience in demanding environments

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Atlas BP12000X is a commercial grade heavy duty 12,000 LB. capacity 2 post base plate above ground lift. This above ground lift has over sized columns, symmetric three stage arms, and single point lock release. This lift is perfect for those commercial garages that want to lift heavier vehicles but have limited ceiling height. The Atlas BP12000X can be installed at two different width settings to accommodate wider trucks or trailers and to facilitate “driving between” the lift columns.

What's Included

    (1) Item

Features + Benefits

  • HEAVY-DUTY PERFORMANCE: The Atlas BP12000X Two-Post Baseplate Lift offers an imposing 12,000 lb. capacity, built to cater to commercial garages requiring robust lifting solutions for heavier vehicles with limited ceiling space
  • ADJUSTABLE AND VERSATILE DESIGN: Engineered with oversized columns and an adjustable width feature, this lift facilitates easy accommodation of wider trucks and trailers, allowing seamless driving between lift columns
  • SUPERIOR ARM AND LOCKING SYSTEM: Featuring symmetric three-stage arms for balanced lifting and a single-point lock release, the BP12000X ensures efficient and secure operations, enhancing workflow in busy garage settings
  • DURABLE CONSTRUCTION AND SAFETY FEATURES: Equipped with dual hydraulic chain-over cylinders and automatic arm restraints, the lift provides reliable performance with rubber carriage guards adding an extra layer of vehicle protection
  • COMPLETE INSTALLATION PACKAGE: The lift comes with a free 12-piece truck adapter set and all necessary mounting hardware, accompanied by a durable powder coat finish that ensures long-lasting resilience in demanding environments

Key Specs

AttributeSpecification

item#

7067195

Brand

Atlas

Manufacturer's Warranty

5 year limited warranty

Ship Weight

2150.0 LB

Capacity

12,000 lb

Max. Rise

10.2 ft
AttributeSpecification

Horsepower

0 HP

Motor Phase

Single-phase

Volts

220

Product Weight

2150.0000 lb

Dimensions L x W x H (in.)

116.0 x 32.0 x 23.0 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. How much hydraulic fluid does it take to fill the reservoir and what would the weight be for Florida

    0 answers

  2. Does the floor plate have to be tied to both upright beams

    0 answers

Warranty

Manufacturer's Warranty

5 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All Atlas Two-Post Lifts

Specifications

Specifications
Atlas Automotive Equipment BP12000X 2-Post Commercial Grade Vehicle Lift, Baseplate, Open-top Style, 10’4” Minimum Ceiling Height, 12,000lb Capacity, 3-Stage Symmetric Arms, For Low Ceiling Garage Use
BendPak 2-Post Car Lift, 10,000-Lb. Capacity, Model# 10AP
BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX
BendPak, Two Post Parking Lift 6000lb Capacity, Capacity 6000 lb, Max. Rise 6.8 ft, Horsepower 4 HP, Model# PL-6000DCX
Capacity
Same

12,000 lb

10,000 lb

10,000 lb

6,000 lb

Max. Rise
Same

10.2 ft

6 ft

6.5 ft

6.8 ft

Horsepower
Same

0 HP

3 HP

3 HP

4 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Product Weight
Same

2150.0000 lb

1710.0000 lb

1766.0000 lb

2288.0000 lb

Dimensions L x W x H (in.)
Same

116.0 x 32.0 x 23.0 in

145.0 x 20.0 x 145.0 in

145.0 x 20.0 x 157.0 in

163.5 x 112.0 x 131.0 in

Lock Spacing
Same

-

3.75 in

4 in

-

Locking Position (qty.)
Same

-

14

15

10

Time of Full Rise
Same

-

45 sec.

45 sec.

50 sec.

Pad Height
Same

-

4 in

4 in

-

Drive-Thru Clearance
Same

-

102 in

102 in

-

Material
Same

-

Steel

Steel

Steel
