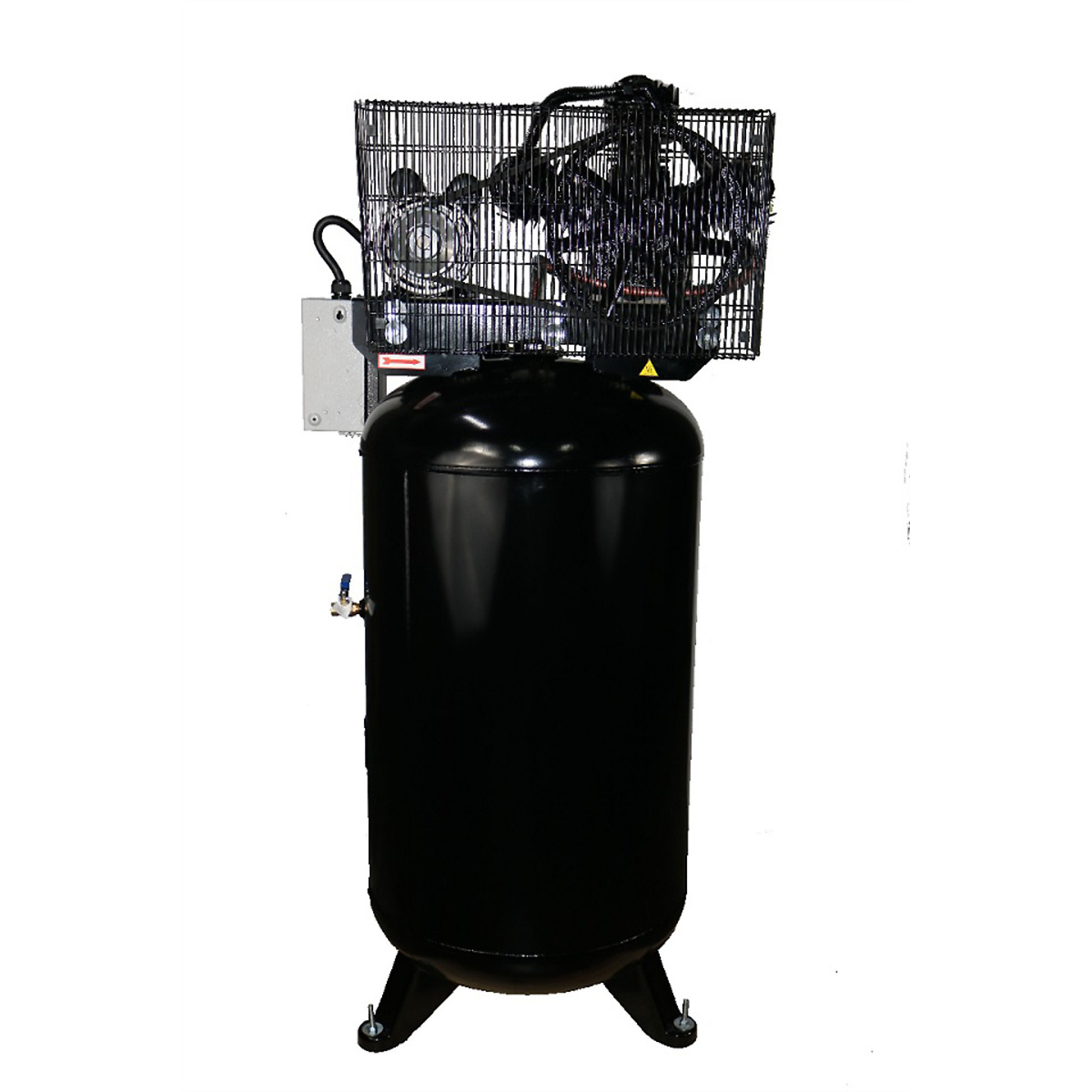

Atlas Automotive Equipment AF6 Vertical Air Compressor — 80-Gallon, 5 HP, 3-Cylinder, 2-Stage Pump, 90-175 PSI, 220V, Quiet Operation, Model# ATEMPAF6-FPD

Item# 7239129
Atlas Automotive Equipment AF6 Vertical Air Compressor — 80-Gallon, 5 HP, 3-Cylinder, 2-Stage Pump, 90-175 PSI, 220V, Quiet Operation, Model# ATEMPAF6-FPD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Atlas Automotive Equipment AF6 Vertical Air Compressor — 80-Gallon, 5 HP, 3-Cylinder, 2-Stage Pump, 90-175 PSI, 220V, Quiet Operation, Model# ATEMPAF6-FPD

Click or Tap image to Zoom

$2399.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 2-Stage Pump
  • 5HP Motor
  • 80 Gallon Vertical Tank (Made in the USA)
  • Air Output 145-175 PSI
  • Extremely Quiet Operation

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Atlas Air Force AF6 is a entry level commercial grade two (2) stage vertical air compressor. This unit operates between145 and 175 PSI and will run our Atlas line of sandblast cabinets (when using Medium or Medium-Fine glass bead). The combination of the commercial grade low RPM motor and the heavy duty 3 cylinder (2 cylinders are low pressure and 1cylinder is high pressure) cast iron reciprocating air compressor pump delivers an incredible amount of air volume and air pressure for a very low price. The Atlas Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas Air Force shop compressors are built to the same exacting standards as the entire line of Atlas professional grade automotive equipment.

What's Included

    (1) Item

Features + Benefits

  • 2-Stage Pump
  • 5HP Motor
  • 80 Gallon Vertical Tank (Made in the USA)
  • Air Output 145-175 PSI
  • Extremely Quiet Operation

Key Specs

AttributeSpecification

item#

7239129

Brand

Atlas

Manufacturer's Warranty

1 year limited warranty

Ship Weight

418.0 LB

Horsepower

5 HP
AttributeSpecification

Air Tank Size

80 Gal

Volts

220

Stage

2

Product Weight

418.0000 lb

Dimensions L x W x H (in.)

75.0 x 31.0 x 30.0 in

Reviews

Questions & Answers

Questions

  1. is this good for all day use

    1 answer

    1. The Atlas AF6’s duty profile is mid‑duty, meaning it is not rated for continuous all‑day operation, and the pump and 5 HP single‑phase motor are designed for intermittent cycling, not 100% duty‑cycle workloads; a better option would be the Atlas Automotive Equipment AF8P 80‑Gallon Air Compressor (Item #7239102) on our website.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
