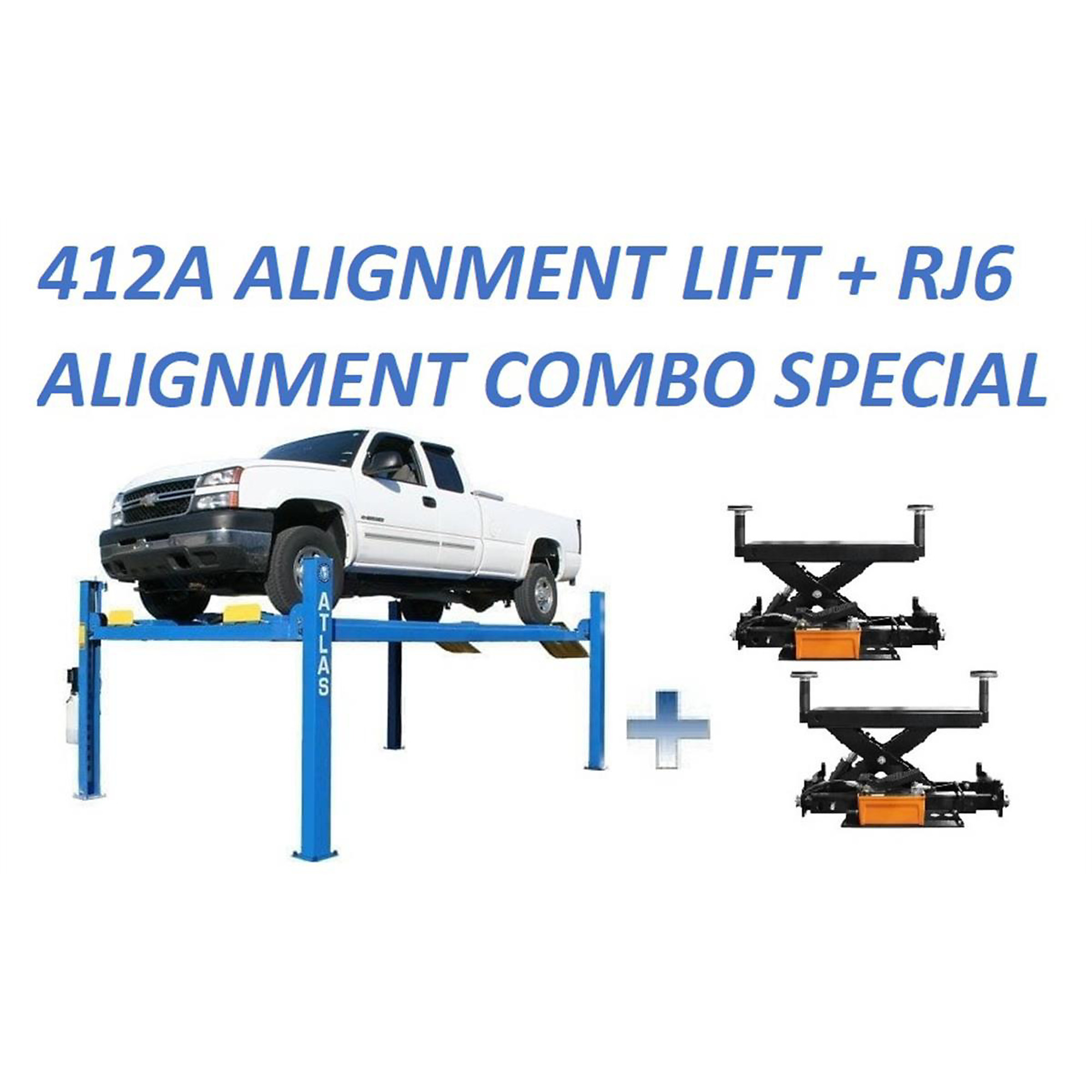

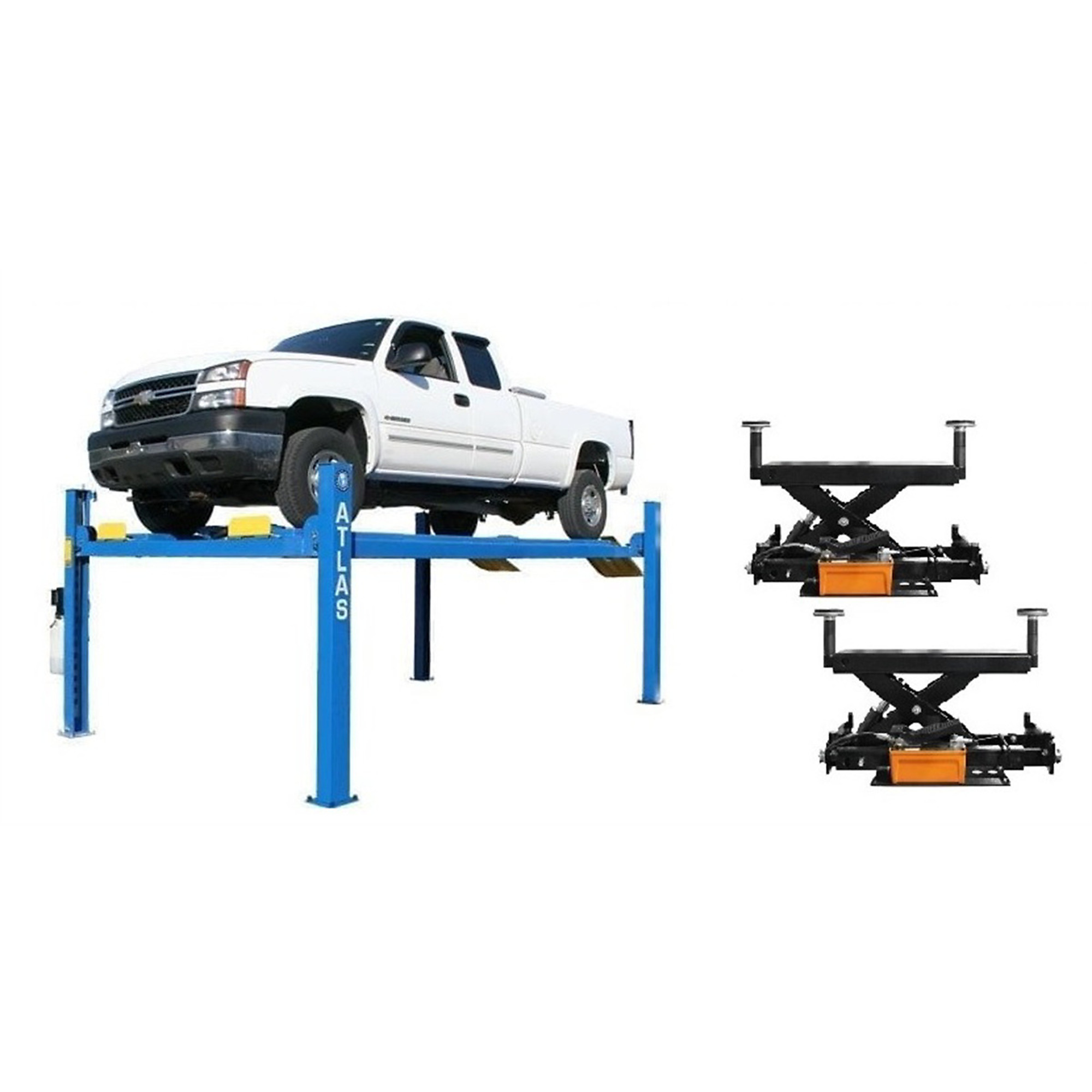

Atlas Automotive Equipment 412A Alignment Lift and RJ6 Rolling Jacks Combo, Model# ATEATTD-412A-COMBO-FPD

Item# 7067101
Atlas Automotive Equipment 412A Alignment Lift and RJ6 Rolling Jacks Combo, Model# ATEATTD-412A-COMBO-FPD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Atlas Automotive Equipment 412A Alignment Lift and RJ6 Rolling Jacks Combo, Model# ATEATTD-412A-COMBO-FPD

Click or Tap image to Zoom

$12,899.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

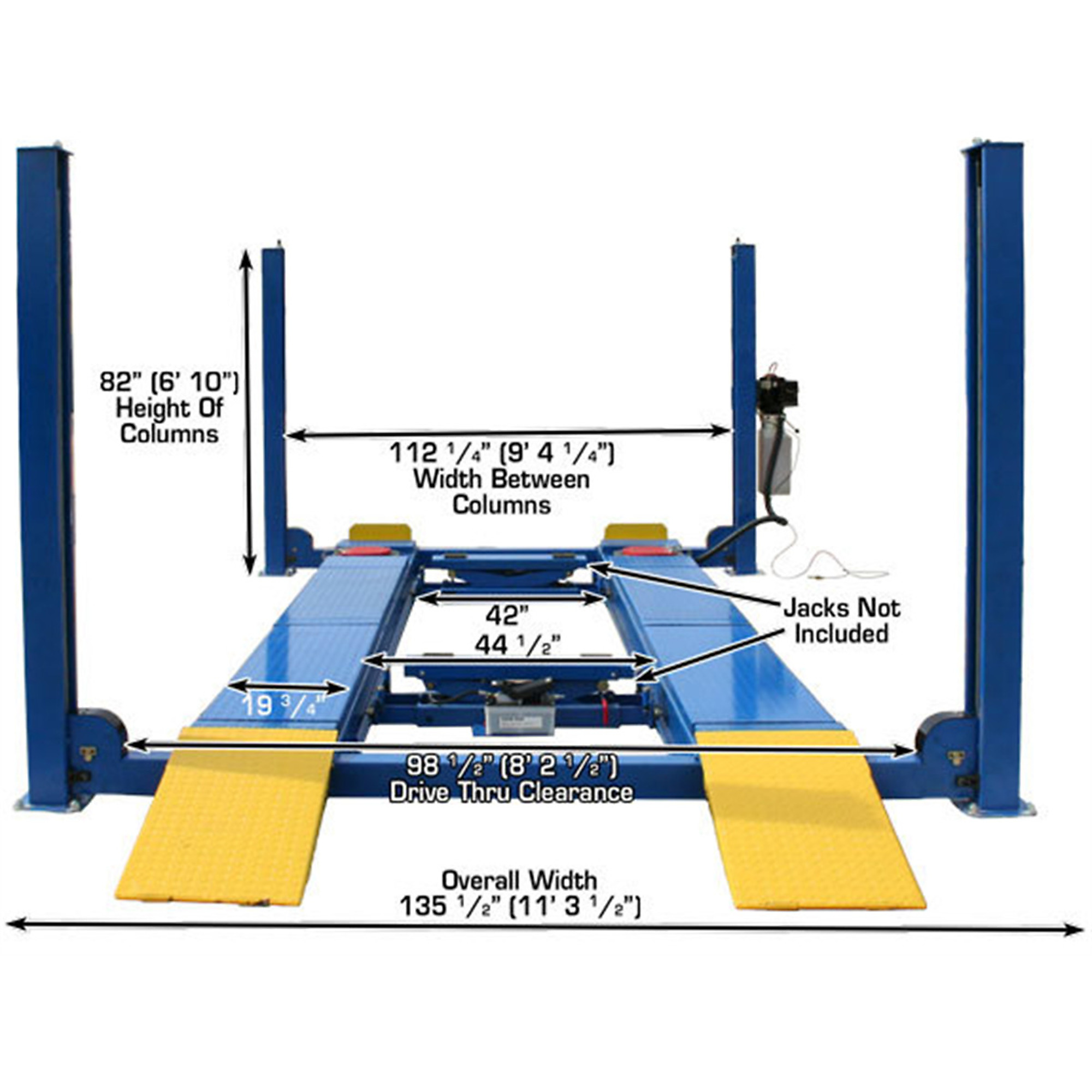

  • Capacity: 12000 lbs.
  • Lifting Height, Top of Runway: 77 3/4" (6' 5 3/4")
  • Clearance Under Runways: 70 1/4" (5' 10 1/4")
  • Height of Columns: 89 3/4" (7' 5 3/4")
  • Overall Width: 126 1/4" (10' 6 1/4") w/ motor 135 1/4" (11' 3 1/4")

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

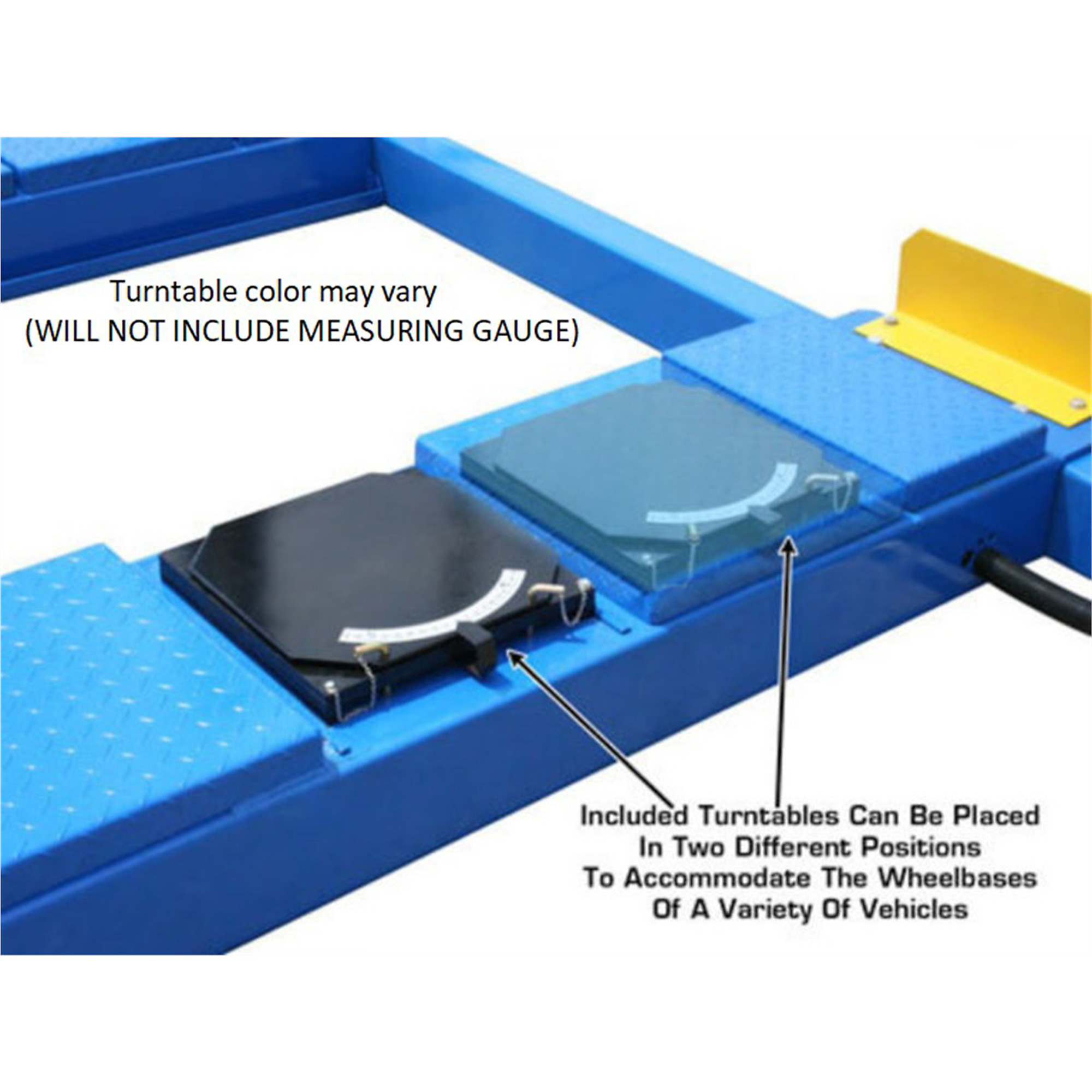

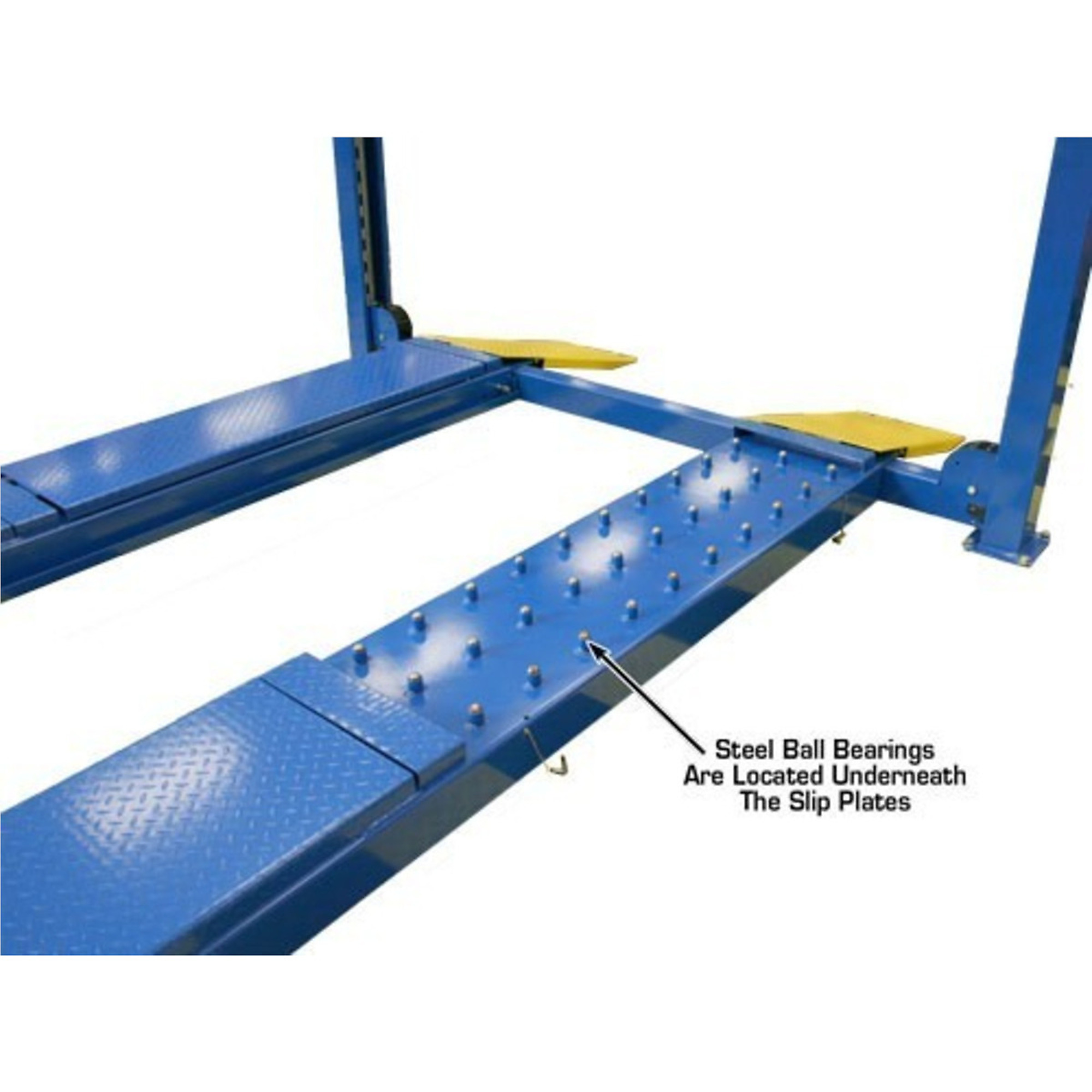

The Atlas 412A 12,000 pound capacity four post alignment lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas lifts offer many exclusive features not found on many other competitor's lifts. Besides having all the heavy duty features of the Atlas 412, such as “tracks” between the runways to allow the use of a rolling bridge jack on the lift the 412A features slip plates and alignment turntables. The slip plates are built in and are assured to be level with the turntables. The turntables can be set in different positions on the runway to accommodate a wide variety of wheelbases. The 412A also features metal cover plates to replace the turntables when not in use and so the lift can be used for more than just alignments. This combo package also includes two of the popular Atlas RJ6 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

What's Included

    (1) Item

Features + Benefits

  • Capacity: 12000 lbs.
  • Lifting Height, Top of Runway: 77 3/4" (6' 5 3/4")
  • Clearance Under Runways: 70 1/4" (5' 10 1/4")
  • Height of Columns: 89 3/4" (7' 5 3/4")
  • Overall Width: 126 1/4" (10' 6 1/4") w/ motor 135 1/4" (11' 3 1/4")

Key Specs

AttributeSpecification

item#

7067101

Brand

Atlas

Manufacturer's Warranty

5 year limited warranty

Ship Weight

3700.0 LB

Capacity

12,000 lb

Max. Rise

6.5 ft
AttributeSpecification

Horsepower

0 HP

Motor Phase

Single-phase

Volts

220

Product Weight

2900.0000 lb

Dimensions L x W x H (in.)

204.0 x 28.0 x 21.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All Atlas Four-Post Lifts

Specifications

Specifications
Atlas Automotive Equipment 412A Alignment Lift and RJ6 Rolling Jacks Combo, Model# ATEATTD-412A-COMBO-FPD
BendPak Open-Front Alignment 4-Post Vehicle Lift, 14,000-Lb. Capacity, Model# HDSO14AX
BendPak Heavy-Duty 4-Post Truck Lift, 40,000-Lb. Capacity, Model# HDS-40
BendPak 4-Post Extended Truck Lift, 40,000-Lb. Capacity, Model# HDS-40X
Capacity
Same

12,000 lb

14,000 lb

40,000 lb

40,000 lb

Max. Rise
Same

6.5 ft

6.5 ft

5.8 ft

5.8 ft

Horsepower
Same

0 HP

3 HP

5 HP

5 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220/240

220

Product Weight
Same

2900.0000 lb

3,586 lb

-

-

Dimensions L x W x H (in.)
Same

204.0 x 28.0 x 21.0 in

-

-

-

Lock Spacing
Same

-

4 in

4 in

4 in

Locking Position (qty.)
Same

-

15

13

13

Time of Full Rise
Same

-

60 sec.

75 sec.

75 sec.

Drive-Thru Clearance
Same

-

98 in

109 in

109 in

Material
Same

-

Steel

Steel

Steel
