Product Summary

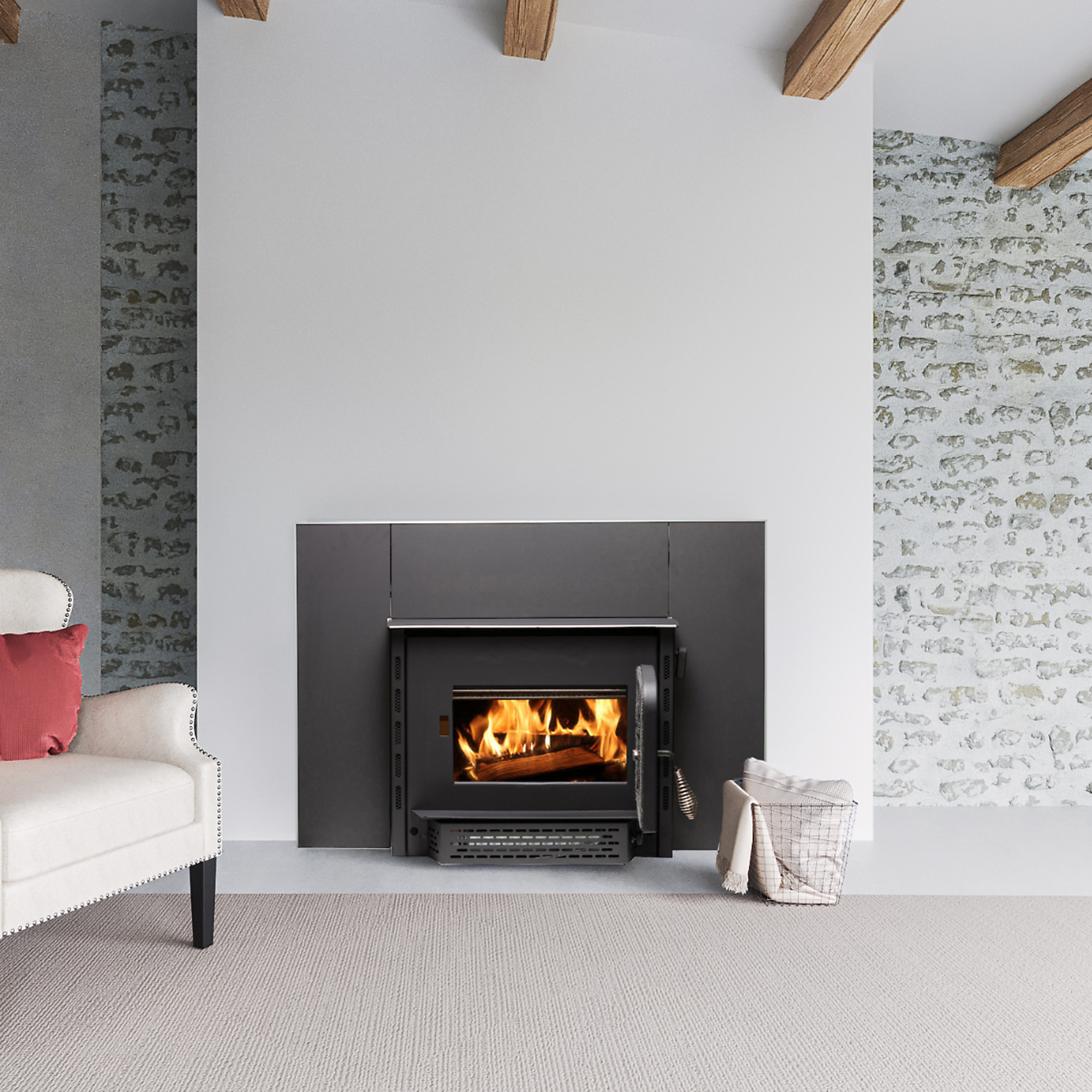

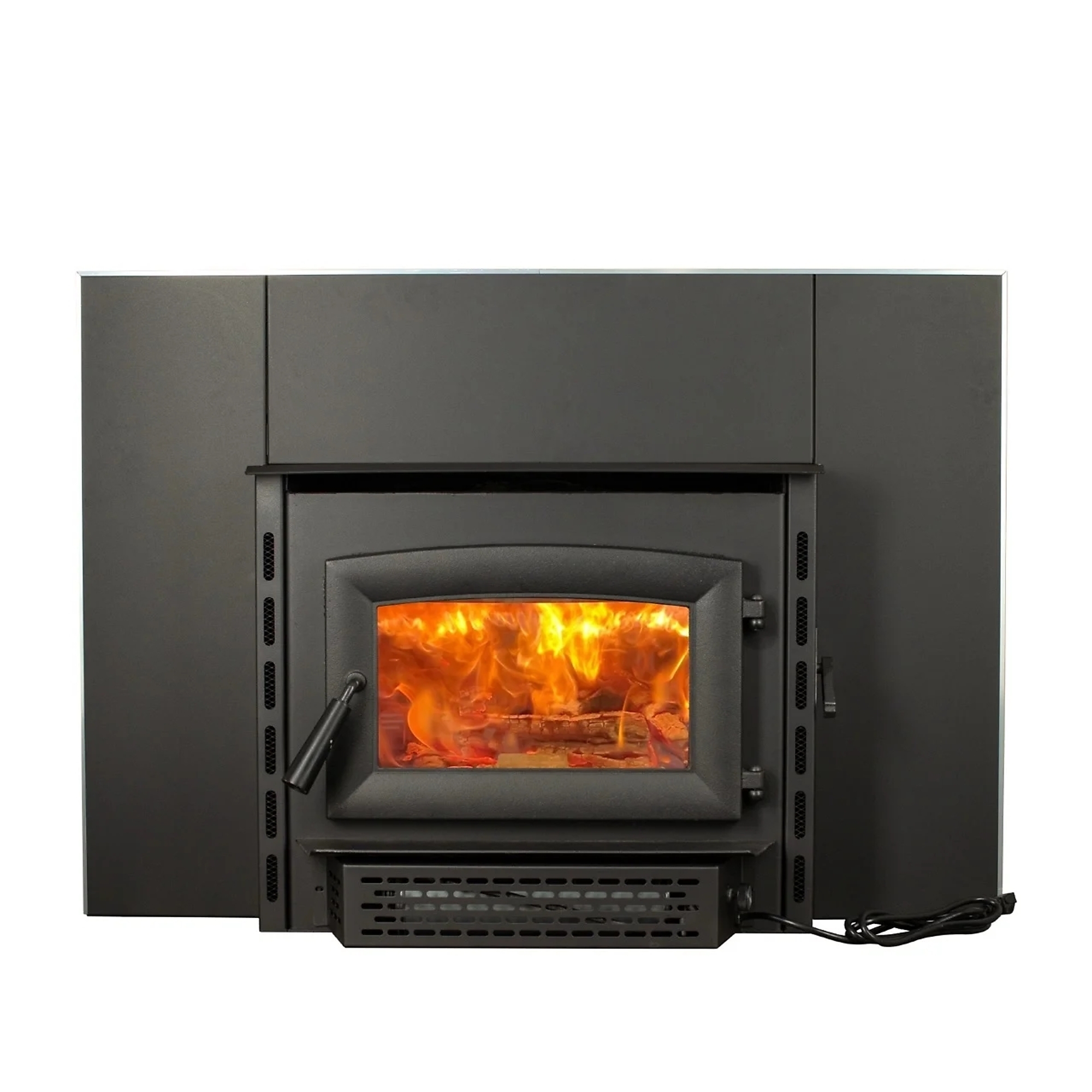

The AW1820E from Ashley Hearth Products is an airtight fireplace insert that will greatly improve the efficiency of your fireplace. The AW1820E fireplace insert meets the stringent requirements of the EPA Certification Guidelines. With a heavy cast iron door and a cool touch wood handle along with an air washed ceramic glass that allows a magnificent view of the burning fire, it will be a beautiful addition to your existing hearth. It includes a hearth surround to fully enclose the existing fireplace and is equipped with a spring-loaded automatic adjustment making installation a breeze. The Ashley AW1820E model replaces the previous Vogelzang model TR004 Colonial fireplace insert and the US Stove Company model 2200IE insert.

What's Included

    (1) AW1820E

Features + Benefits

  • 69,000 BTUs heats up to 1,200 sq. ft. with over 75% efficient heating
  • Installation materials are not included (such as floor protector, chimney connector, thimble, flue)
  • Air wash glass keeps door window clean so you can see the warm glow of the fire
  • Cast iron feed door with large 16.5 in. x 9 in. ceramic glass window
  • Accepts logs up to 18 inches in length
  • Adjustable high speed (150 CFM) blower included
  • Heavy-gauge 3/16 in. reinforced plate steel with firebrick lining
  • Not approved for use in mobile or modular homes

Key Specs

AttributeSpecification

item#

6213138

Brand

Ashley Hearth

Manufacturer's Warranty

1 year limited warranty

Ship Weight

280.0 LB

Heat Output

69,000 Btu/hour

Heating Capability

1,200 ft²

Color Family

Black

Assembled Height

22.33 in

Assembled Width

27.53 in

Assembled Depth

20.2 in

Mantel Color

Black

Blower Included

Yes
AttributeSpecification

Blower CFM

100 cfm

Firebox Height

9.87 in

Firebox Width

20.25 in

Firebox Depth

10.13 in

Log Capacity Length

18 in

Material

Cast Iron

Remote Included

No

Vent-Free

No

EPA Certified

Yes

Oxygen Depletion Sensor

No

Product Weight

260.0000 lb

Dimensions L x W x H (in.)

20.2 x 27.53 x 22.33 in

Warranty

Manufacturer's Warranty

1 year limited warranty
