Yes, the heater runs hot. In addition to the clearances already listed, typical front distance would be 36 inches.

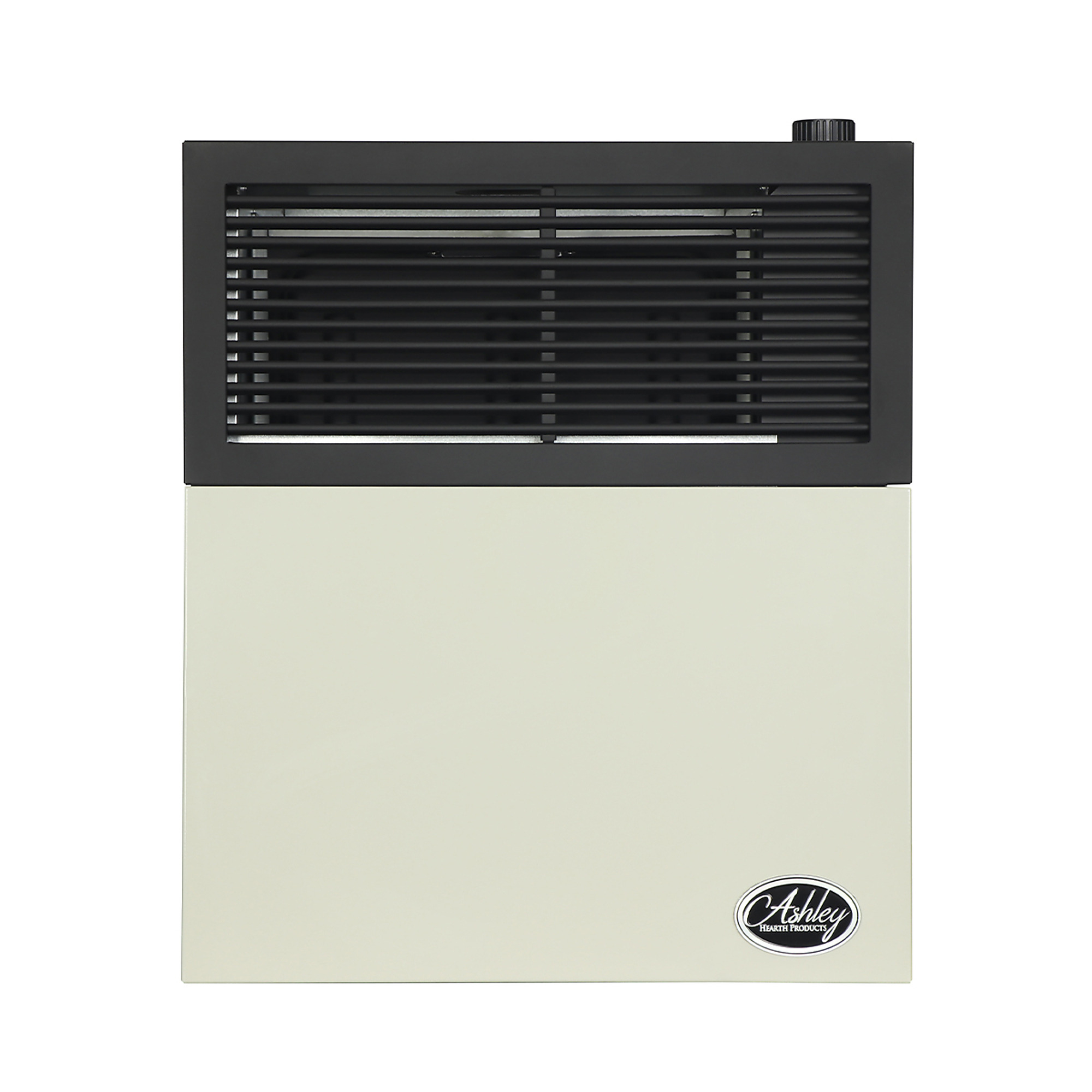

Ashley Hearth Direct Vent Wall Heater — 11,000 BTU, LP, 375 Sq. Ft. Heating Capacity, Model# DVAG11L
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$449.99
- Direct-vent liquid propane wall heater produces up to 11,000 BTUs to efficiently heat spaces up to 375 sq ft
- Operates without electricity making it ideal for use during power outages or off-grid applications
- Sealed burn system with direct-vent design pulls in outside air and vents exhaust outdoors for cleaner and safer indoor air quality
- Battery Powered manual ignition uses a standard AA battery (included) for easy and reliable startup without electricity
- Convenient top control knob offers adjustable heat levels; after pilot is manually lit, the internal thermostat controls the heater
Prop 65 Warning: See Details
See full description
What's Included
- (1) DVAG11N
Features + Benefits
- Direct-vent liquid propane wall heater produces up to 11,000 BTUs to efficiently heat spaces up to 375 sq ft
- Operates without electricity making it ideal for use during power outages or off-grid applications
- Sealed burn system with direct-vent design pulls in outside air and vents exhaust outdoors for cleaner and safer indoor air quality
- Battery Powered manual ignition uses a standard AA battery (included) for easy and reliable startup without electricity
- Convenient top control knob offers adjustable heat levels; after pilot is manually lit, the internal thermostat controls the heater
- Includes mounting bracket and vent kit with heat shield, vent pipe, air intake pipe, flashing, cap, and connecting rod, for added value and easier installation right out of the box
- Recommended for use with minimum 100 lb. propane tank (sold separately) for extended heating sessions
- Optional blower accessory available for enhanced circulation model# DVB11 (sold separately - blower requires electricity to run)
- Approved for use in mobile homes (USA only) as well as houses, cabins, garages and small to medium living spaces
- Durable steel construction built for long-lasting performance and energy efficient heating
-
When running, is the unit hot? What are the specs on distances to combustibles?
-
Helpful?
-
The wall heater would be hot when it is running. The clearances for combustibles for the heater would be a minimum of 6" from the sides, 36" from the top, 6" from the floor and 0.25" from the rear wall.
Helpful?
-
-
how to light it?
-
This heater has a piezo igniter. you depress the control knob on pilot and hold while pressing the igniter button until you see a spark and it lights.
Helpful?
-
You would open the access door, turn the control knob to the pilot setting, press and hold it down, then press the igniter button repeatedly until the pilot flame ignites. Continue to hold the knob down for about 30-60 seconds to heat the thermocouple, then release it to be sure it stays lit. Once pilot is lit, turn the knob to the desired heat setting.
Helpful?
-
-
Can you hook up thermostat?
-
The heater cannot be connected to a thermostat.
Helpful?
-
This unit cannot be connected to a thermostat. it has a thermobulb that will help regulate temperatures typically between 65 degrees and 80 degrees Fahrenheit. This is preset, however, and is not anything that can be adjusted.
Helpful?
-
-
Can I buy a blower for this unit
1 answer-
Yes, the correct blower kit for the Ashley Hearth DVAG11L 11,000 BTU Direct Vent Propane Wall Heater is the Ashley Hearth DVB11 blower. It’s specifically made for the DVAG11 series heaters.
Helpful?
-
-
Ashley 11,000 BTU Direct Vent Heater - LP, DVAG11Lng One review says it has internal thermostat, specs say no stat. which is true. Thx
1 answer-
The DVAG models contain a thermo bulb that will reduce the gas flow through the gas valve to help regulate temperatures. The thermo bulb will both reduce or completely shut off the flame depending on the temperature. The thermo bulb is not able to be adjusted.
Helpful?
-
See All Propane Wall Heaters
See All Ashley Hearth Propane Wall Heaters
Currently Viewing This Product
Specifications
Specifications
Ashley Hearth Direct Vent Wall Heater — 11,000 BTU, LP, 375 Sq. Ft. Heating Capacity, Model# DVAG11L
Mr. Heater Propane Vent-Free Blue Flame Wall Heater, 10,000 BTU, Model# MHVFB10LP
Mr. Heater Propane Vent-Free Blue Flame Wall Heater, 30,000 BTU, Model# MHVFB30LPT
Mr. Heater Propane Vent-Free Radiant Wall Heater, 10,000 BTU, 2-Plaque, Model# MHVFR10LP
Heat Output
Same
11,000 Btu/hour
10,000 Btu/hour
30,000 Btu/hour
10,000 Btu/hour
Heating Capability
Same
375 ft²
300 ft²
1,000 ft²
300 ft²
Heat Type
Same
Convection
Convection
Convection
Radiant
Hardwired
Same
No
No
No
No
Vent-Free
Same
No
Yes
Yes
Yes
Assembled Width
Same
17.36 in
11.38 in
13.13 in
8.5 in
Assembled Height
Same
20 in
23 in
28.13 in
19.75 in
Assembled Depth
Same
6.61 in
18.25 in
31.13 in
15.5 in
Remote Included
Same
No
No
No
No
Gas Inlet
Same
3/8 in
3/8 in
3/8 in
3/8 in
Blower Included
Same
No
No
No
No
Thermostat Included
Same
No
No
Yes
No
Needs Direct Venting
Same
Yes
No
No
No
Heat Settings
Same
5
-
-
-
Product Weight
Same
42.0000 lb
lb
lb
lb

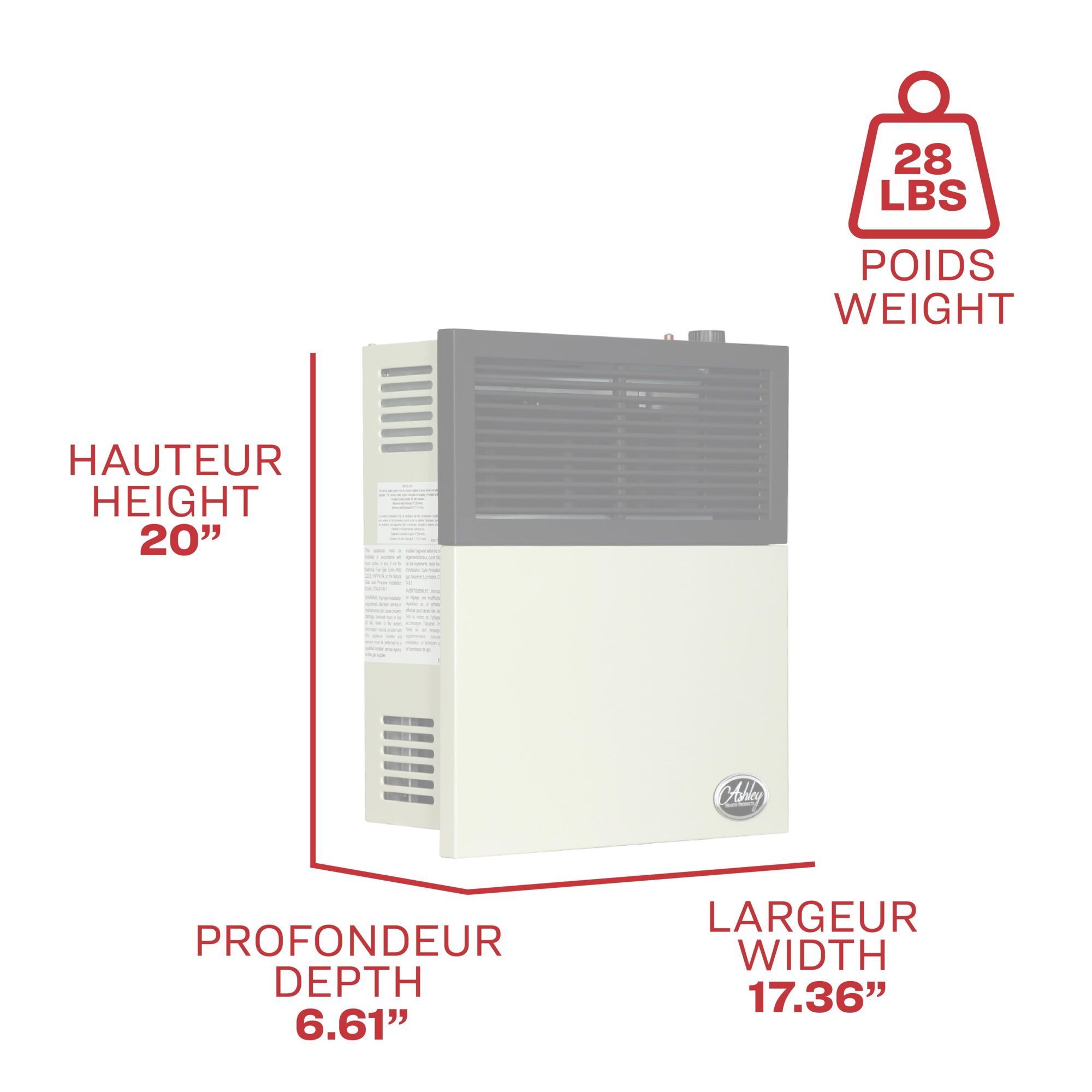

Dimensions L x W x H (in.)
Same
6.61 x 17.36 x 20.0 in
19.75 x 11.25 x 22.5 in
27.25 x 11.25 x 27.0 in
19.75 x 11.25 x 22.5 in
