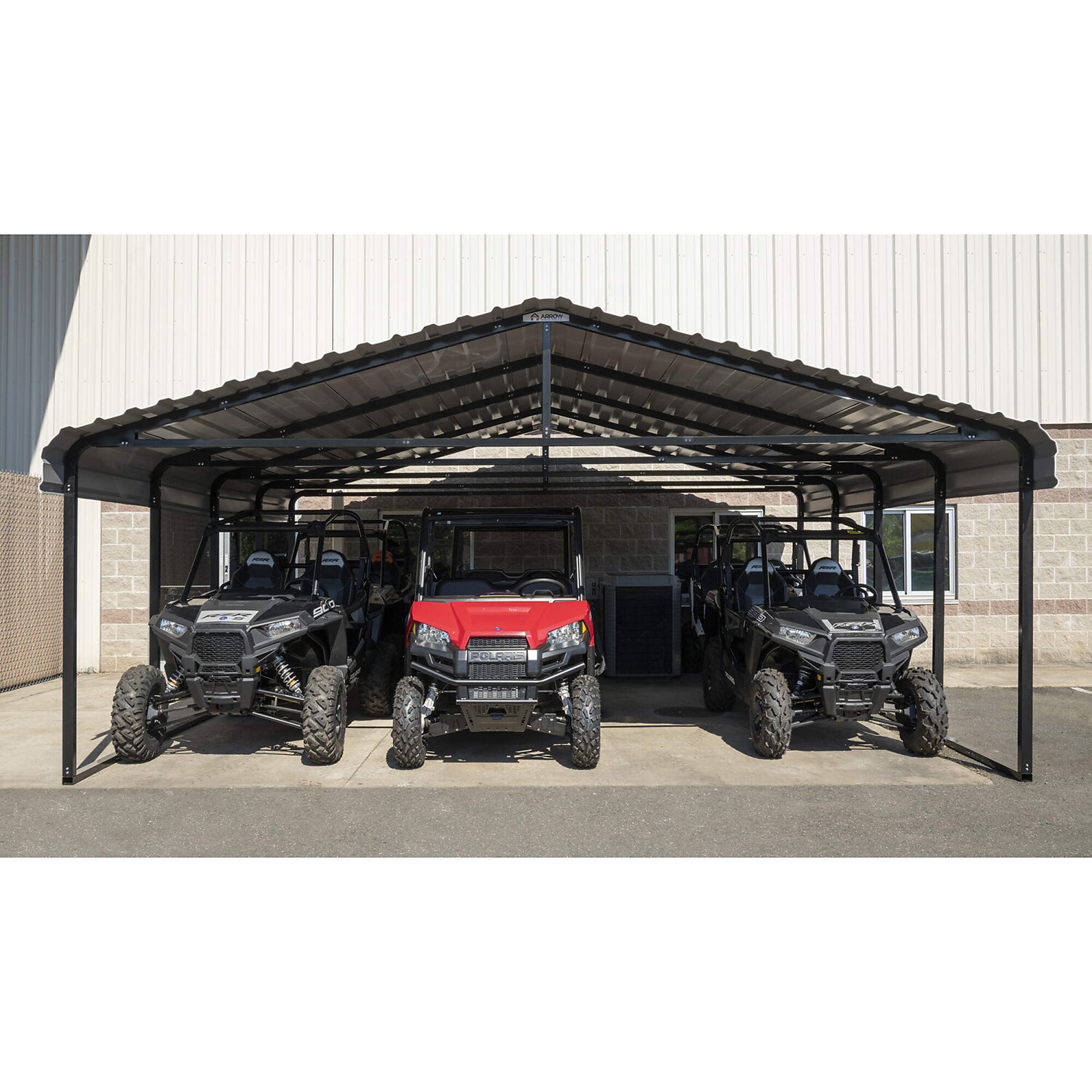

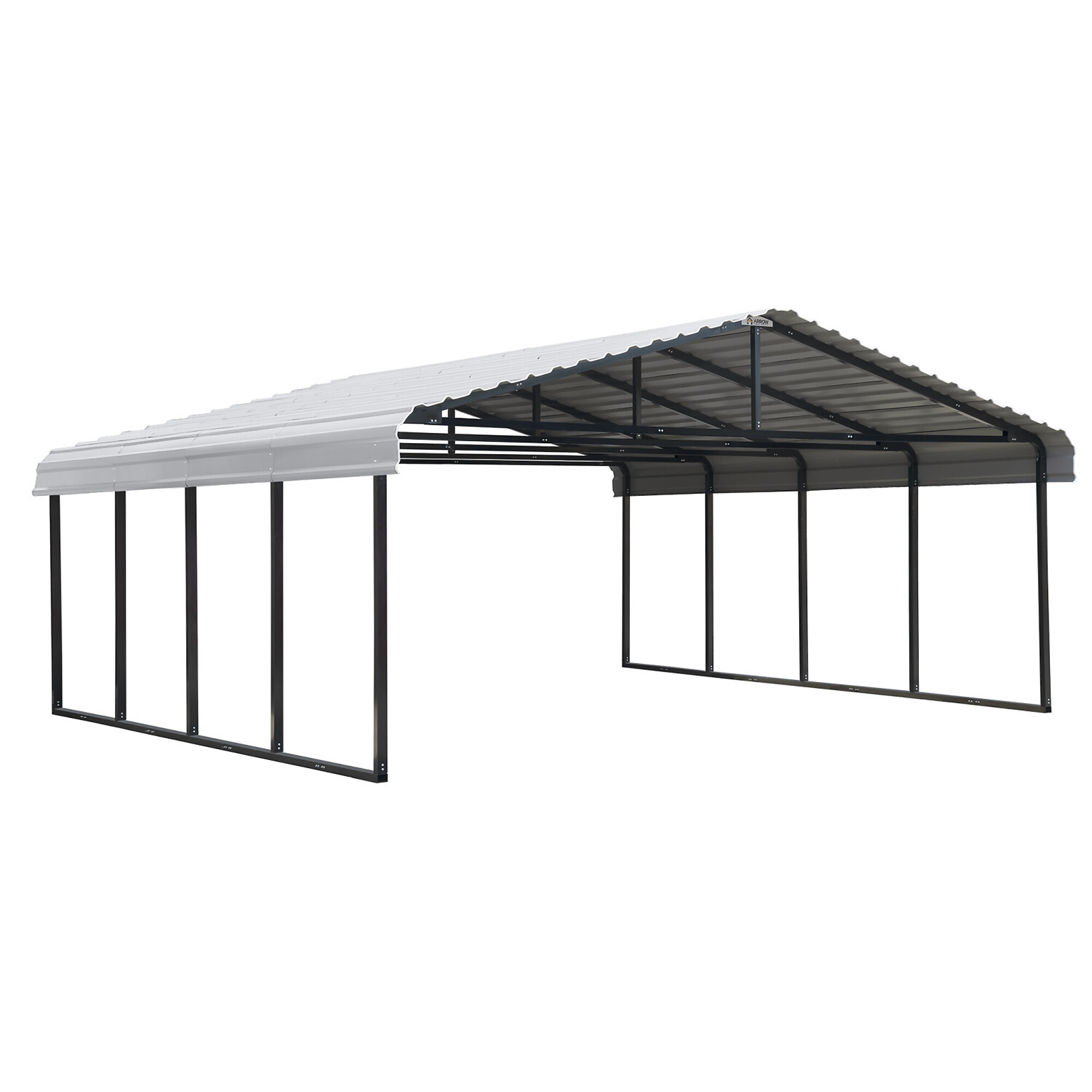

Arrow Steel Carport, 20ft.L x 20ft.W x 9.8ft.H, Eggshell, Model# CPH202007

Item# 88901
"Arrow Steel Carport, 20ft.L x 20ft.W x 9.8ft.H, Eggshell, Model# CPH202007"
Arrow Steel Carport, 20ft.L x 20ft.W x 9.8ft.H, Eggshell, Model# CPH202007

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Arrow Steel Carport, 20ft.L x 20ft.W x 9.8ft.H, Eggshell, Model# CPH202007

Click or Tap image to Zoom

$2499.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Built strong with a 2in. x 3in. rectangle tube frame with 15-gauge wall thickness
  • Carport delivers 100 MPH wind rating and 35 PSF snow load rating for strength and stability
  • Powder-coated finish for superior rust and corrosion resistance
  • Tough, horizontal roof panels made from 29-gauge galvanized steel for superior corrosion resistance
  • Designed for easy installation thanks to slip-fit connections with self-drilling screws

See full description

Complete Your Solution

  • Arrow Steel Carport, 20ft.L x 20ft.W x 9.8ft.H, Eggshell, Model# CPH202007
  • Arrow Storage Products, Enclosure Kit for Arrow Carport (Carport not included), Length 20 ft, Width 20 ft, Model# 10183
Price for all two:

$2929.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Arrow Steel Carport is built strong, wind rated to 100 MPH and snow load rated to 35 PSF, and backed by a 10-year limited warranty. This galvanized steel carport features a powder-coated steel frame for corrosion and rust resistance. The tough made galvanized steel roof is made strong. Perfect for use as a carport, shelter, shade and storage for boats, vehicles, tractors and even as an outdoor picnic area.

What's Included

    (1) Powder-coated steel frame (1) Galvanized steel roof panel set (1) Fastener kit (1) Anchor set
Play Item Video

Features + Benefits

  • Built strong with a 2in. x 3in. rectangle tube frame with 15-gauge wall thickness
  • Carport delivers 100 MPH wind rating and 35 PSF snow load rating for strength and stability
  • Powder-coated finish for superior rust and corrosion resistance
  • Tough, horizontal roof panels made from 29-gauge galvanized steel for superior corrosion resistance
  • Designed for easy installation thanks to slip-fit connections with self-drilling screws
  • Attractive Eggshell roof with a black powder-coated frame
  • Perfect for car storage and shelter, truck shelter, vehicle shelter, boat shelter or as a multi-use shade and picnic area

Key Specs

AttributeSpecification

item#

88901

Brand

Arrow Storage Products

Manufacturer's Warranty

10 year limited warranty

Ship Weight

1159.91 LB

Width

243 in

Height

118 in

Cover Material

Steel
AttributeSpecification

UV Inhibitors

No

Frame Material

Steel

Frame Thickness

3 in

Anchors Included

Yes

Rip-Stop

No

Color

Multi

Product Weight

1,024 lb

Reviews

Questions & Answers

11 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Where was it manufactured?

    1 answer

    1. This Arrow carport is made in the USA.

      Helpful?

  2. what are the dimensions of the freight shipping package?

    1 answer

    1. Shipping package dimensions are 76.58'' long, 30.25'' wide, and 36.03'' high.

      Helpful?

  3. is the top peak of the roof 118'' ??

    1 answer

    1. The height to the outer center peak would be 118" and the interior center height would be 115".

      Helpful?

  4. What is the inside clearance height?

    1 answer

    1. The height from the frame bar to the ground is 7 feet. That will be the clearance.

      Helpful?

  5. It seems this product comes with anchors, it is going to be setup on concrete driveway, I will need as many concrete anchors as practical. Please advise.

    1 answer

    1. This carport includes ground anchors that attach to each leg of the shelter for a total of 10 anchor points. For concrete installation, the anchor kit, model AK100 is required. This concrete anchor kit can be purchased through the manufacturer directly.

      Helpful?

  6. How long does this usually take to set up?

    1 answer

    1. It would take 2-3 people a full day to put this steel carport up.

      Helpful?

  7. Does this need a concrete slab or is leavel gravel good?

    1 answer

    1. This Arrow carport does not need a concrete slab, but should be set up on a level area.

      Helpful?

  8. can panels be fastened to sides n fastened on inside of legs

    1 answer

    1. Per the manufacturer, an enclosure kit can be fastened to this carport, however it cannot be fastened on the inside. Drilling any holes or fastening panels to the inside of the carport will void the warranty. An enclosure kit for this carport is available directly with the manufacturer.

      Helpful?

  9. Height at leg location n at the center

    1 answer

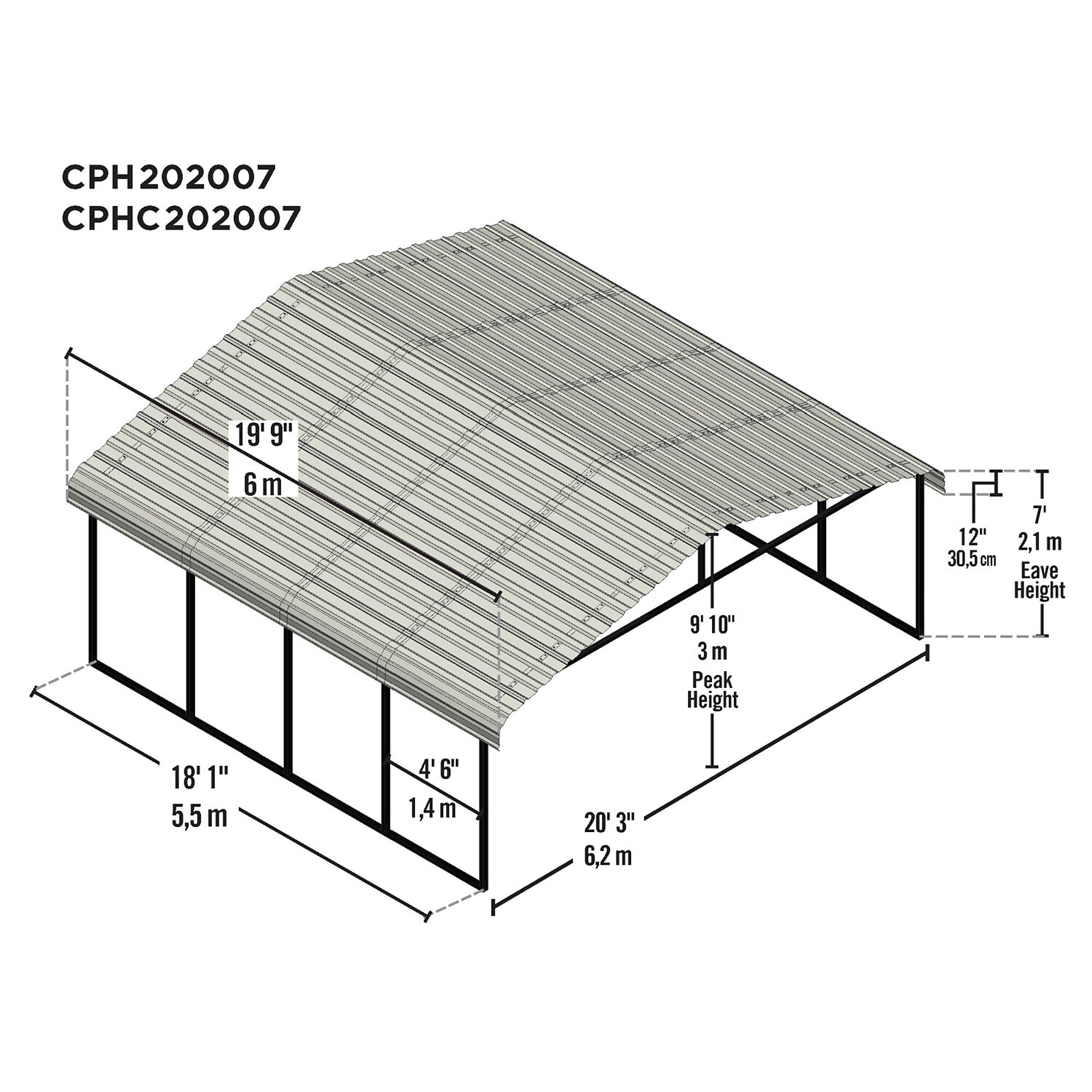

    1. The assembled exterior height is 118". The assembled interior height is 115". The side wall height is 84".

      Helpful?
