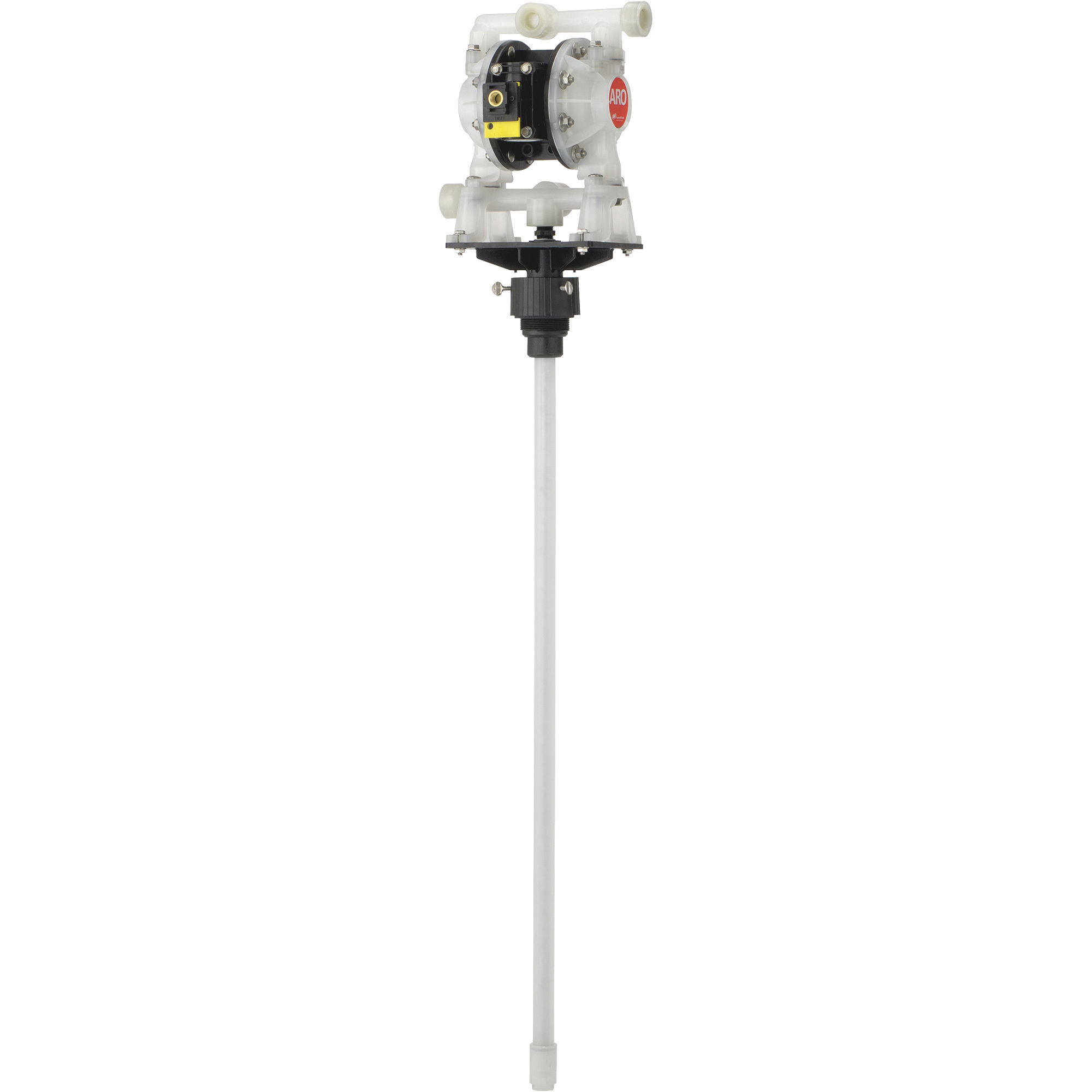

ARO Air-Operated Double Diaphragm Pump Transfer Package, 1/2in. Ports, 14.4 GPM, Polypropylene/Hytrel, Model# DAB05-PPCC-2-A

Item# 59736
ARO Air-Operated Double Diaphragm Pump Transfer Package, 1/2in. Ports, 14.4 GPM, Polypropylene/Hytrel, Model# DAB05-PPCC-2-A

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ARO Air-Operated Double Diaphragm Pump Transfer Package, 1/2in. Ports, 14.4 GPM, Polypropylene/Hytrel, Model# DAB05-PPCC-2-A

Click or Tap image to Zoom

$1049.81

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Air-operated double diaphragm pump features polypropylene construction
  • Maximized flow rates, minimized pulsation and air consumption
  • Environmentally sound with bolted construction provides maximum chemical and leak resistance
  • D valve provides a positive seal avoiding costly air "blow-by" and features ceramic construction for long service life
  • Rated for typical fluids: engine oil, gear oil, hydraulic fluid, ATF, antifreeze

See full description

Complete Your Solution

  • ARO Air-Operated Double Diaphragm Pump Transfer Package, 1/2in. Ports, 14.4 GPM, Polypropylene/Hytrel, Model# DAB05-PPCC-2-A
  • Fast Orange Pumice Hand Cleaner, Gallon
Price for all two:

$1066.80

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The ARO Air-Operated Double Diaphragm Pump Transfer Package features a complete dispense drum pump that will move fluids from any 55-gallon drum. "Unbalanced" valve design eliminates valve centering and pump stall-out. Simul-Shift valve provides ultra-positive, reliable shift signal for maximum efficiency. U.S.A.

What's Included

    (1) 1:1 diaphragm pump (1) Bung adapter (1) Air shut-off valve (1) Siphon tube (1) Base (1) Weather seal

Downloads

Product Manual

Features + Benefits

  • Air-operated double diaphragm pump features polypropylene construction
  • Maximized flow rates, minimized pulsation and air consumption
  • Environmentally sound with bolted construction provides maximum chemical and leak resistance
  • D valve provides a positive seal avoiding costly air "blow-by" and features ceramic construction for long service life
  • Rated for typical fluids: engine oil, gear oil, hydraulic fluid, ATF, antifreeze
  • 1/2in. NPT ports with Hytrel ball checks and diaphragms
  • 14.4 GPM

Key Specs

AttributeSpecification

item#

59736

Brand

Ingersoll Rand

Manufacturer's Warranty

5 year limited warranty

Ship Weight

14.0 LB

Flow

14.4 GPM

Inlet Port

1-1/2 in

Outlet Port

1/4 in

Diaphragm Material

Nitrile

Average Air Consumption

12 cfm
AttributeSpecification

Operating PSI

100 PSI

Max. PSI

100

Air Inlet Size NPT

0.25 in

Gear Ratio

1:1

Max. Fluid Temp

180 °F

Pump Housing Material

Polypropylene

Max. Suspended Solids

0.093 in

Product Weight

14.0000 lb

Dimensions L x W x H (in.)

51.5 x 12.5 x 10.0 in

Reviews

Questions & Answers

Questions

  1. Is this model okay for spraying liquid adhesive?

    ARO Air-Operated Double Diaphragm Oil Drum Pump Transfer Package - 1/2in. Ports, 14.4 GPM, Polypropylene/Hytrel, Model# DAB05-PPCC-2-A"

    1 answer

    1. This model is not compatible with liquid adhesive.
