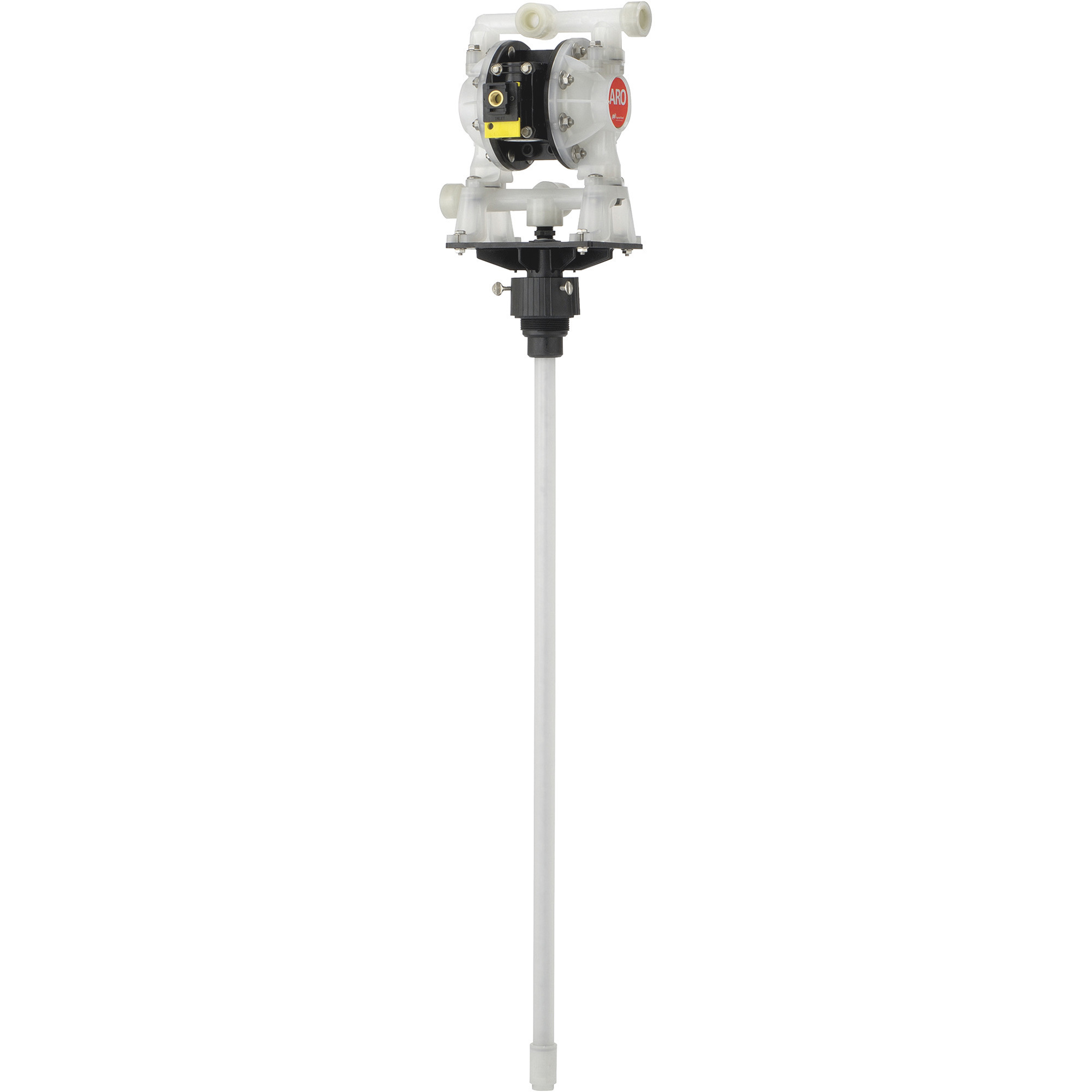

Ingersoll Rand Air-Operated Double Diaphragm Drum Pump Package, 11 GPM, Model# DAB05-PPAA-2-A

Item# 85503
Ingersoll Rand Air-Operated Double Diaphragm Drum Pump Package, 11 GPM, Model# DAB05-PPAA-2-A

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Air-Operated Double Diaphragm Drum Pump Package, 11 GPM, Model# DAB05-PPAA-2-A

Click or Tap image to Zoom

$1047.04

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Air-operated double diaphragm pump with 1/2in. Inlet delivers 11 GPM flow rate
  • Bolted construction with bolted fasteners for leak-tight integrity
  • Polypropylene construction
  • 1/2in. NPT ports with Santoprene ball checks and diaphragms
  • Stall-free operation, even under low air-inlet pressures

See full description

Complete Your Solution

  • Ingersoll Rand Air-Operated Double Diaphragm Drum Pump Package, 11 GPM, Model# DAB05-PPAA-2-A
  • Fast Orange Pumice Hand Cleaner, Gallon
Price for all two:

$1064.03

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Ingersoll Rand Air-Operated Double Diaphragm Drum Pump Package is a complete dispensing pump designed to move fluids from any 55-gallon drum. An unbalanced valve design helps to eliminate valve centering and pump stall-out. The Simul-Shift valve provides an ultra-positive, reliable shift signal for maximum efficiency. Package includes 1:1 diaphragm pump, bung adapter, air shut-off valve, siphon tube, base and weather seal. 5-year limited warranty.

What's Included

    (1) Diaphragm pump (1) Bung adapter (1) Air shut-off valve (1) Siphon tube (1) Base (1) Weather seal

Features + Benefits

  • Air-operated double diaphragm pump with 1/2in. Inlet delivers 11 GPM flow rate
  • Bolted construction with bolted fasteners for leak-tight integrity
  • Polypropylene construction
  • 1/2in. NPT ports with Santoprene ball checks and diaphragms
  • Stall-free operation, even under low air-inlet pressures
  • Package includes 1:1 diaphragm pump, bung adapter, air shut-off valve, siphon tube, base and weather seal

Key Specs

AttributeSpecification

item#

85503

Brand

Ingersoll Rand

Manufacturer's Warranty

5 year limited warranty

Ship Weight

26.0 LB

Flow

11 GPM

Inlet Port

1/2 in

Outlet Port

3/8 in

Diaphragm Material

Santoprene
AttributeSpecification

Operating PSI

100 PSI

Max. PSI

100

Air Inlet Size NPT

0.25 in

Gear Ratio

1:1

Pump Housing Material

Polypropylene

Max. Suspended Solids

0.093 in

Product Weight

26.0000 lb

Dimensions L x W x H (in.)

51.5 x 12.5 x 10.0 in

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. Food Safe?

    1 answer

    1. The pump is not food grade.

      Helpful?

  2. Will the diaphragm and seals hold up to coolant?

    1 answer

    1. This would not be recommended for use with coolant due to the materials of the pump.

      Helpful?

  3. can this pump handle water based adhesives up to 3000 centipoises

    1 answer

    1. This pump can handle up to a maximum of 3000 cP.

      Helpful?

  4. Can I get a rebuild kit for this and how much would that be.

    1 answer

    1. Replacement parts are not available for this pump. Please contact the manufacturer directly.

      Helpful?

  5. Can this pump be used for flamable liquids such as ethyl alcohol or organic cane sugar alcohol?

    1 answer

    1. This pump is not recommended for use with flammable liquids such as ethyl alcohol and organic cane sugar alcohol as the pump would need to be grounded. The pump model DAB05-SSTT-2-A would be recommended for these liquids.

      Helpful?
