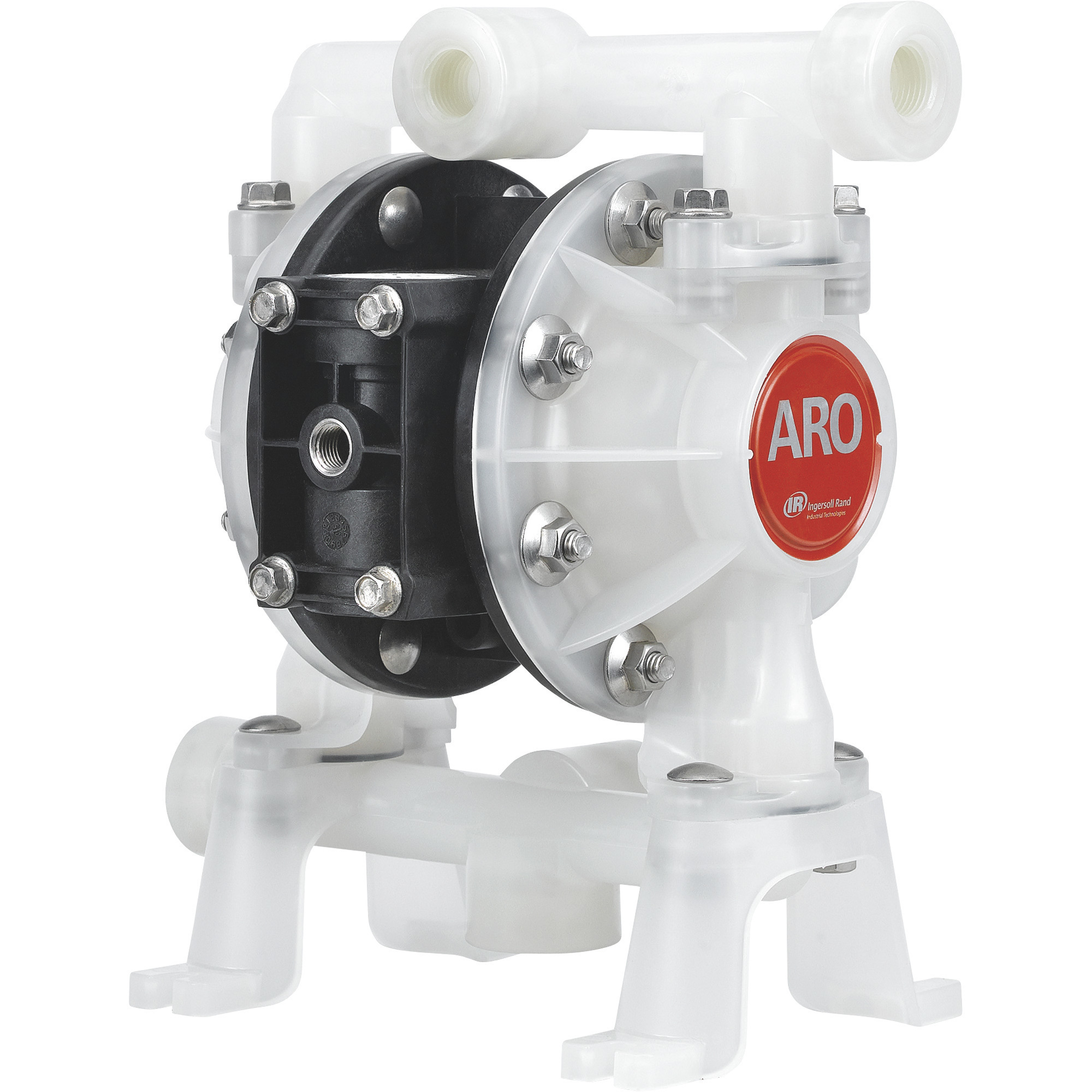

ARO Air-Operated Double Diaphragm Pump, 1/2in. Ports, 14.4 GPM, Polypropylene/Santoprene, Model# PD05P-ARS-PAA-B

Item# 59738
ARO Air-Operated Double Diaphragm Pump, 1/2in. Ports, 14.4 GPM, Polypropylene/Santoprene, Model# PD05P-ARS-PAA-B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ARO Air-Operated Double Diaphragm Pump, 1/2in. Ports, 14.4 GPM, Polypropylene/Santoprene, Model# PD05P-ARS-PAA-B

Click or Tap image to Zoom

$858.85

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Air-operated double diaphragm pump features polypropylene construction
  • Maximized flow rates, minimized pulsation and air consumption
  • Environmentally sound with bolted construction provides maximum chemical and leak resistance
  • D valve provides a positive seal avoiding costly air "blow-by" and features ceramic construction for long service life
  • 1/2in. NPT ports with Santoprene ball checks and diaphragms

See full description

Complete Your Solution

  • ARO Air-Operated Double Diaphragm Pump, 1/2in. Ports, 14.4 GPM, Polypropylene/Santoprene, Model# PD05P-ARS-PAA-B
  • Fast Orange Pumice Hand Cleaner, Gallon
Price for all two:

$875.84

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The ARO Air-Operated Double Diaphragm Pump features a compact design that enables usage in a variety of locations, including limited space. "Unbalanced" valve design eliminates valve centering and pump stall-out. Simul-Shift valve provides ultra-positive, reliable shift signal for maximum efficiency. U.S.A.

What's Included

    (1) 1:1 diaphragm pump (1) Operation/maintenance manuals

Downloads

Product Manual

Features + Benefits

  • Air-operated double diaphragm pump features polypropylene construction
  • Maximized flow rates, minimized pulsation and air consumption
  • Environmentally sound with bolted construction provides maximum chemical and leak resistance
  • D valve provides a positive seal avoiding costly air "blow-by" and features ceramic construction for long service life
  • 1/2in. NPT ports with Santoprene ball checks and diaphragms
  • Rated for typical fluids: DEF applications
  • D valve provides a positive seal avoiding costly air "blow-by"
  • 14.4 GPM

Key Specs

AttributeSpecification

item#

59738

Brand

Ingersoll Rand

Manufacturer's Warranty

5 year limited warranty

Ship Weight

7.0 LB

Flow

14.4 GPM

Inlet Port

1-1/2 in

Outlet Port

1-1/2 in

Diaphragm Material

Santoprene

Average Air Consumption

12 cfm
AttributeSpecification

Operating PSI

100 PSI

Max. PSI

100

Air Inlet Size NPT

0.25 in

Gear Ratio

1:1

Max. Fluid Temp

225 °F

Pump Housing Material

Polypropylene

Max. Suspended Solids

0.093 in

Product Weight

7.0000 lb

Dimensions L x W x H (in.)

10.0 x 7.0 x 11.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Can this pump be used to pump calcium for tractor tires

    1 answer

    1. This diaphragm pump can be used to pump calcium.

      Helpful?

  2. Can this pump be used with washer fluid?

    1 answer

    1. This pump is suitable to dispense windshield washer fluid.

      Helpful?

  3. Will this pump work on a food grade maple syrup filter press?

    1 answer

    1. This pump is not rated or designed to be used with food grade applications.

      Helpful?

  4. Can you pump bleach or pool shock with this pump?

    1 answer

    1. This DEF pump cannot be used with chlorine.

      Helpful?
