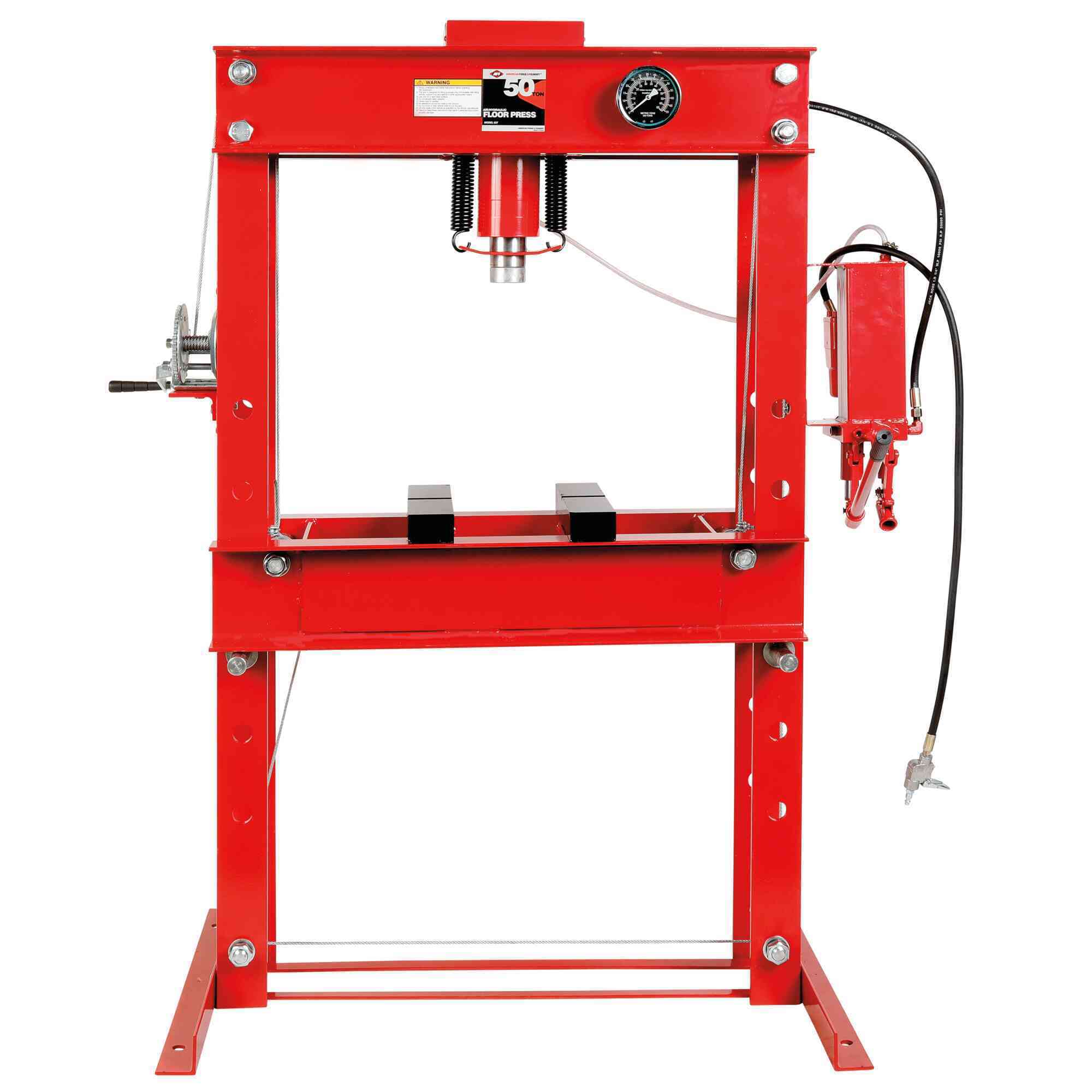

American Forge & Foundry - Shop Press - 50 Ton Capacity - Air/Manual 2 Speed Pump w/ Hydraulic Ram - Model # 837

Item# 7088041
American Forge & Foundry - Shop Press - 50 Ton Capacity - Air/Manual 2 Speed Pump w/ Hydraulic Ram - Model # 837

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

American Forge & Foundry - Shop Press - 50 Ton Capacity - Air/Manual 2 Speed Pump w/ Hydraulic Ram - Model # 837

Click or Tap image to Zoom

$3499.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • The heavier gauge steel make these presses ideal for heavy duty truck applications, spring shops, industrial, or every day shops that find themselves in need of a “step up” from a regular duty press.

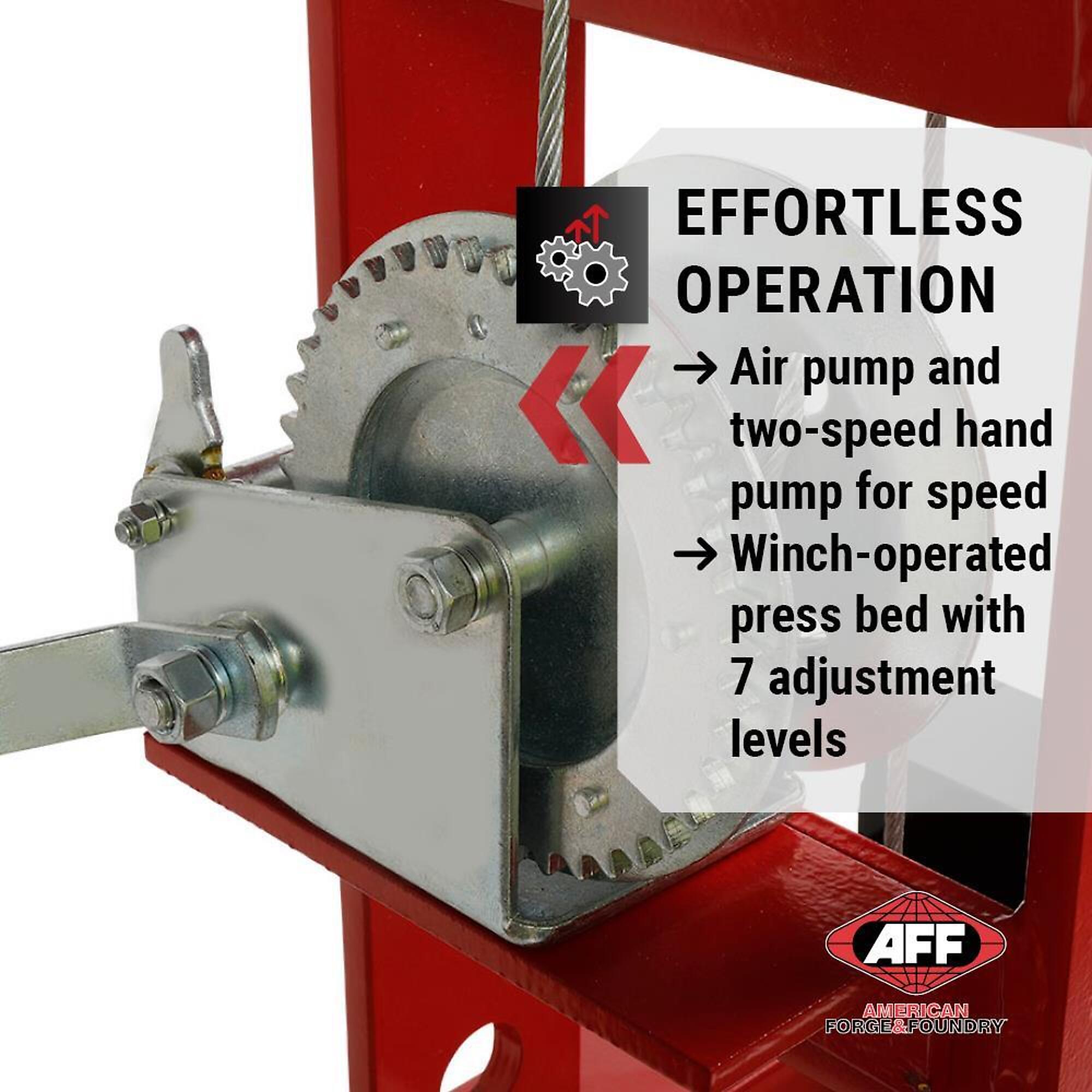

  • Winch-operated press bed with seven adjustment levels.
  • Comes with 2 pressing plates.

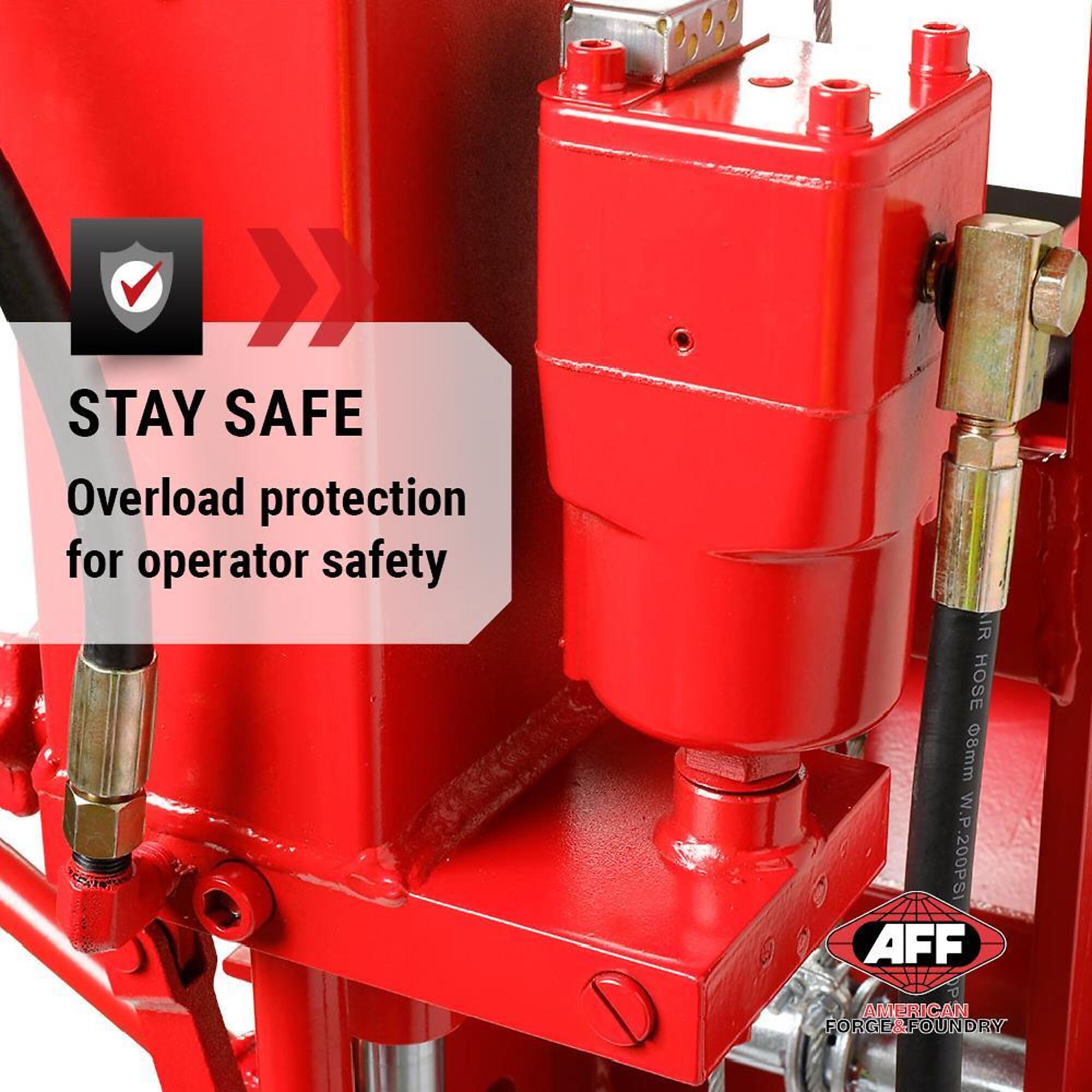

  • Two-speed hand pump provides faster travel to load while air/hydraulic pump (with overload protection) provides effortless operation.

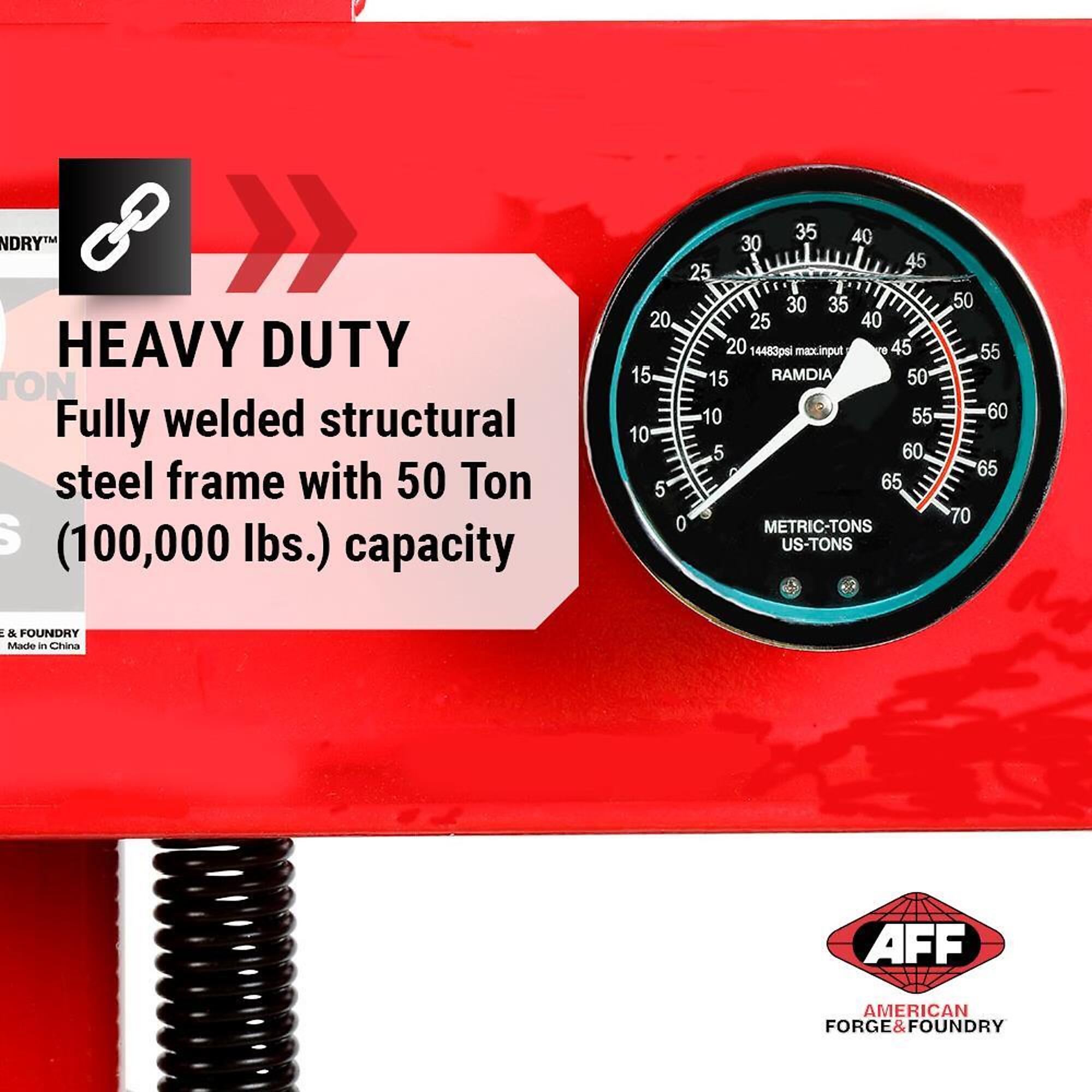

  • Frame-mounted hydraulic pressure gauge. 7" ram stroke. 9" bed rail opening with 32" post opening. 68" tall with 44" base width.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Offering both standard and super duty shop presses, AFF has your pressing needs covered. Our Super Duty Shop Presses are constructed with a fully welded frame and heavier gauge steel for exceptional strength and durability. A lateral head adjuster provides smooth side to side movement of the press head which adds versatility that you won’t find with other standard duty shop presses. Capacity: 50 Ton Product Type: Shop Press Power Type: Hydraulic Power Unit Type: Pump Ram Operation Type: Manual/ Air Frame Size: 68in. H x 44in. W Bed Width (in.): 32in. Bed Rail Opening (in.): 5.5in. Bed Position Adjustments: 7 Throat Width (in.): 9in. Throat Depth (in.): 7.125in. Ram Stoke: 7in. Working Air Pressure (PSI): 90-150 PSI Duty Level: Heavy Duty Weight: 672 Lbs. Includes: 2 Sets of Arbor Plates | Pressure Guage Special Features: Two Speed Hand Pump | Heavy Duty Return Springs Warranty: 1 Year

What's Included

    (1) Shop Press

Features + Benefits

  • The heavier gauge steel make these presses ideal for heavy duty truck applications, spring shops, industrial, or every day shops that find themselves in need of a “step up” from a regular duty press.
  • Winch-operated press bed with seven adjustment levels.
  • Comes with 2 pressing plates.
  • Two-speed hand pump provides faster travel to load while air/hydraulic pump (with overload protection) provides effortless operation.
  • Frame-mounted hydraulic pressure gauge. 7" ram stroke. 9" bed rail opening with 32" post opening. 68" tall with 44" base width.

Key Specs

AttributeSpecification

item#

7088041

Brand

American Forge & Foundry

Manufacturer's Warranty

1 year limited warranty

Ship Weight

672.0 LB

Press Type

Hydraulic
AttributeSpecification

Max. Pressure

50 Tons

Stroke Length

7 in

Working Width

32 in

Product Weight

672.0000 lb

Dimensions L x W x H (in.)

72.0 x 22.0 x 42.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
