Strongway Hydraulic Shop Press, 12-Ton Capacity, H-Frame Press, Automotive Shop Press
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- 12-Ton Capacity: Handles pressing, bending and straightening of components
- Manual Hydraulic Operation: Provides controlled ram movement for precision work
- Hydraulic Cylinder + Pump System: Large-diameter cylinder reduces pressure and wear; QT450 nodular iron pump increases durability
- Polished Ram + Seal System: Treated piston with Y-style polyurethane sealing ring and backup ring helps prevent drift and oil bypass
- Hydraulic Oil Performance: High-quality oil supports corrosion resistance and operation from 40°–105°F
See full description
$189.98
What's Included
- (1) Strongway Hydraulic Shop Press (1) Hardware kit (2) Steel press plates
Downloads

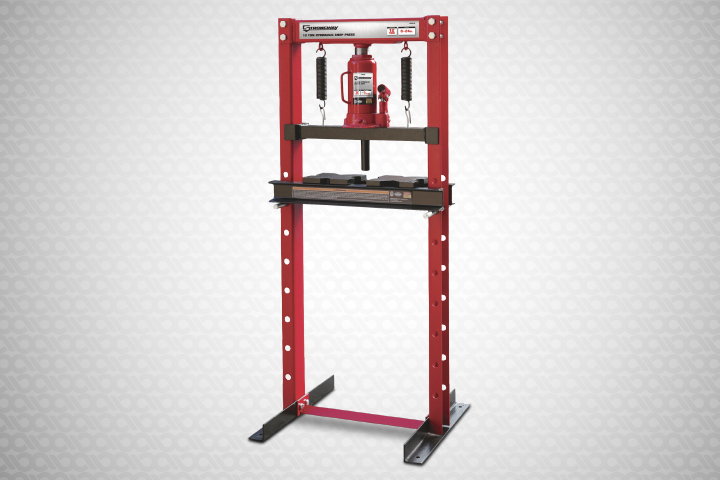

DURABLE CONSTRUCTION
The HYDRAULIC PUMP is constructed of QT450 NODULAR IRON for greater durability; powered with high-quality oil for OPERATIONAL STABILITY FROM 40° TO 105°F, dimensions: 20.875 x 19.68 x 48.43 inches and expands up to 24 inches for versatile use

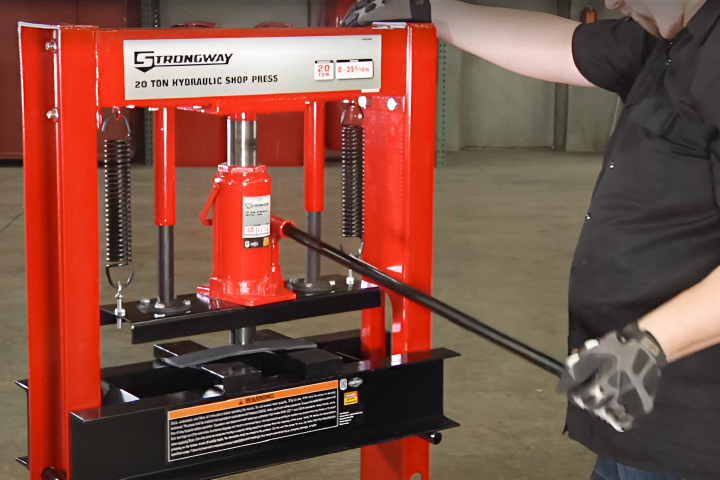

PRECISION ENGINEERING
Designed for tasks such as STRAIGHTENING, STAMPING, BENDING and PRESSING with ease, supported by a 12-ton capacity

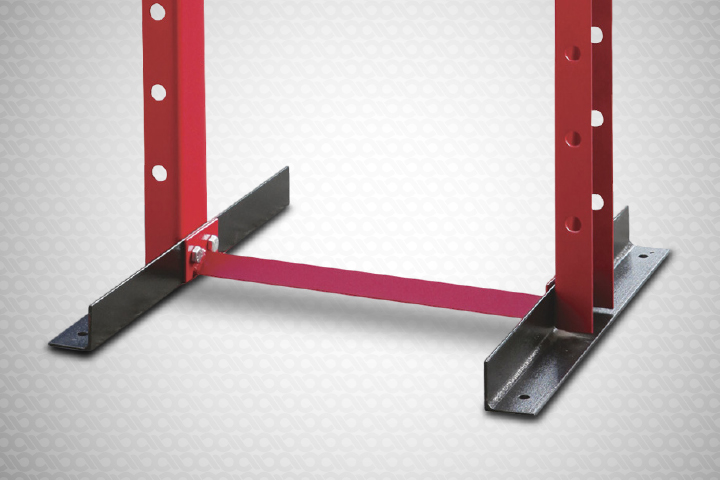

CERTIFIED QUALITY
Built in ISO-CERTIFIED facilities using advanced AEROSPACE and AUTOMOTIVE technologies to ensure top-tier performance, the shop press is supported by a sturdy base that ensures stable operation under heavy loads, preventing movement and providing reliable performance during intense compression tasks

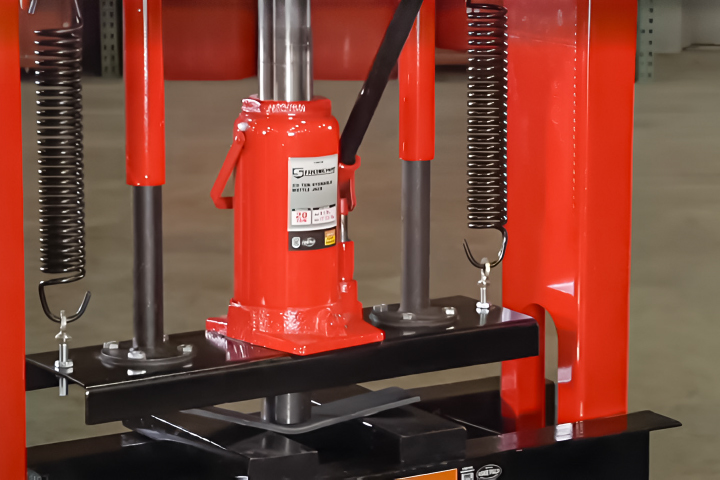

ENHANCED SEAL LONGEVITY
Polished INNER CYLINDER WALLS EXTEND SEAL LIFE, minimizing abrasion and wear, while a Y-style sealing ring with a backup ring prevents slow load falls and oil drift
Features + Benefits
- 12-Ton Capacity: Handles pressing, bending and straightening of components
- Manual Hydraulic Operation: Provides controlled ram movement for precision work
- Hydraulic Cylinder + Pump System: Large-diameter cylinder reduces pressure and wear; QT450 nodular iron pump increases durability
- Polished Ram + Seal System: Treated piston with Y-style polyurethane sealing ring and backup ring helps prevent drift and oil bypass
- Hydraulic Oil Performance: High-quality oil supports corrosion resistance and operation from 40°–105°F
- Adjustable Work Bed: Lower bolster accommodates different workpiece sizes

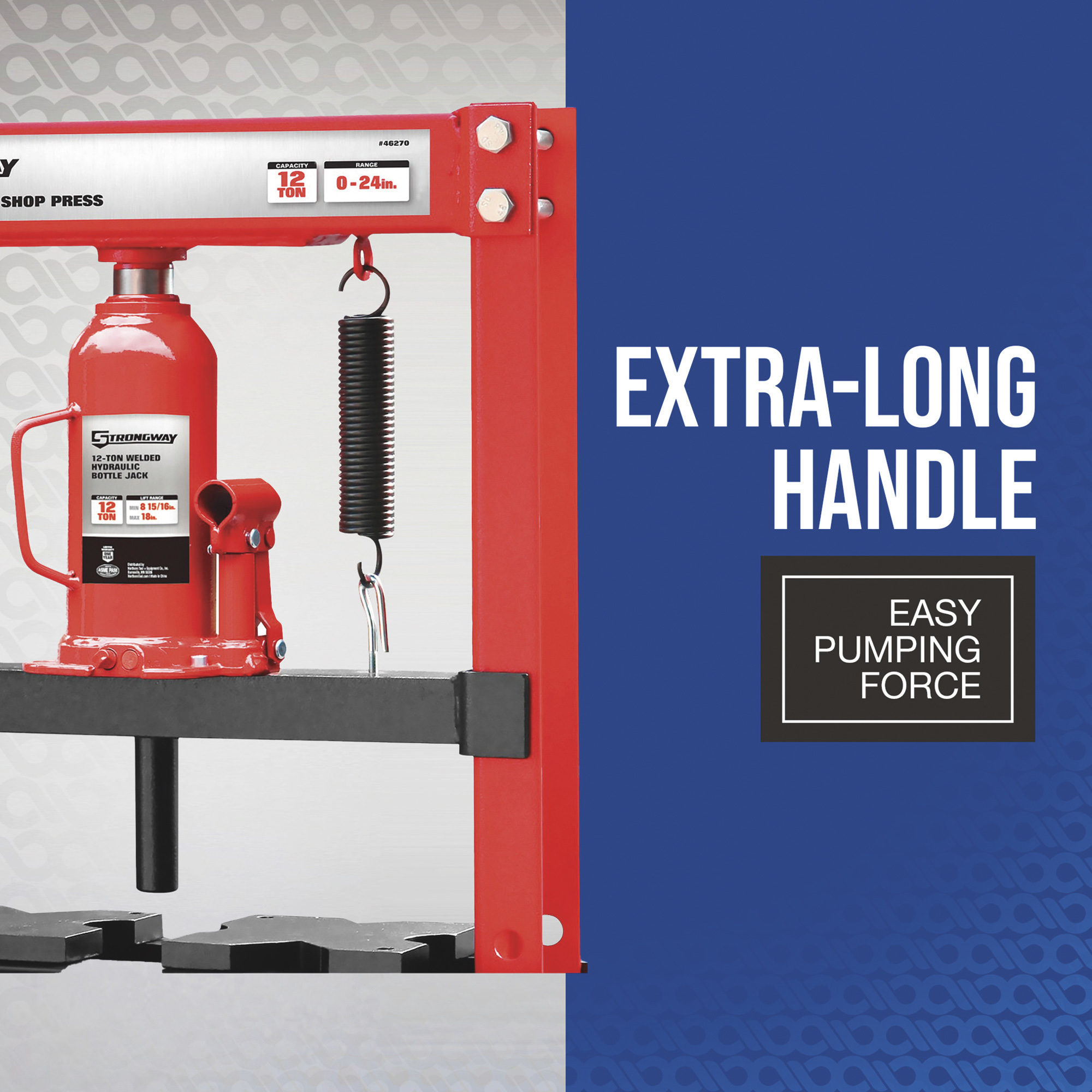

- Extra-Long Handle: Provides leverage for easier manual pumping
- Heavy-Duty Steel Frame + Finish: H-frame construction with lead-free coating resists oil, grease and corrosion
- Manufacturing + Safety Standards: Built in ISO-certified facilities and meets ASME ASP 2010 requirements
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Hydraulic + Pneumatic Presses
See All Strongway Hydraulic + Pneumatic Presses
Currently Viewing This Product
Specifications
Hydraulic
Hydraulic
Hydraulic
Hydraulic
12 Tons
20 Tons
40 Tons
60 Tons
6.875 in
6.25 in
12.25 in
12.25 in
3.12 in
-
-
-
24 in
-
-
-
20.875 x 19.68 x 48.43 in
40.5 x 36.5 x 42.0 in
79.0 x 48.0 x 48.0 in
54.0 x 48.0 x 84.3125 in
-
400.0000 lb
lb
lb
