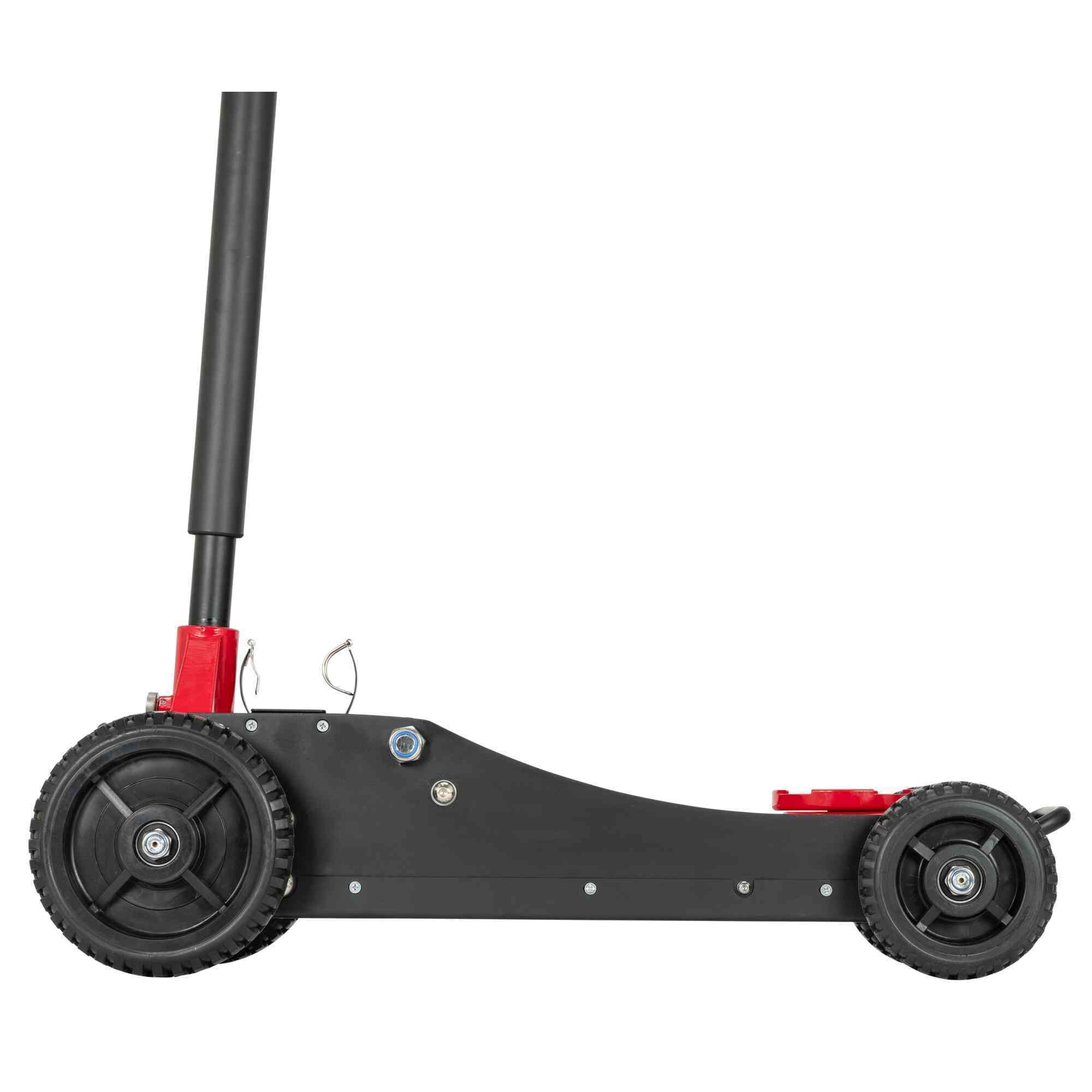

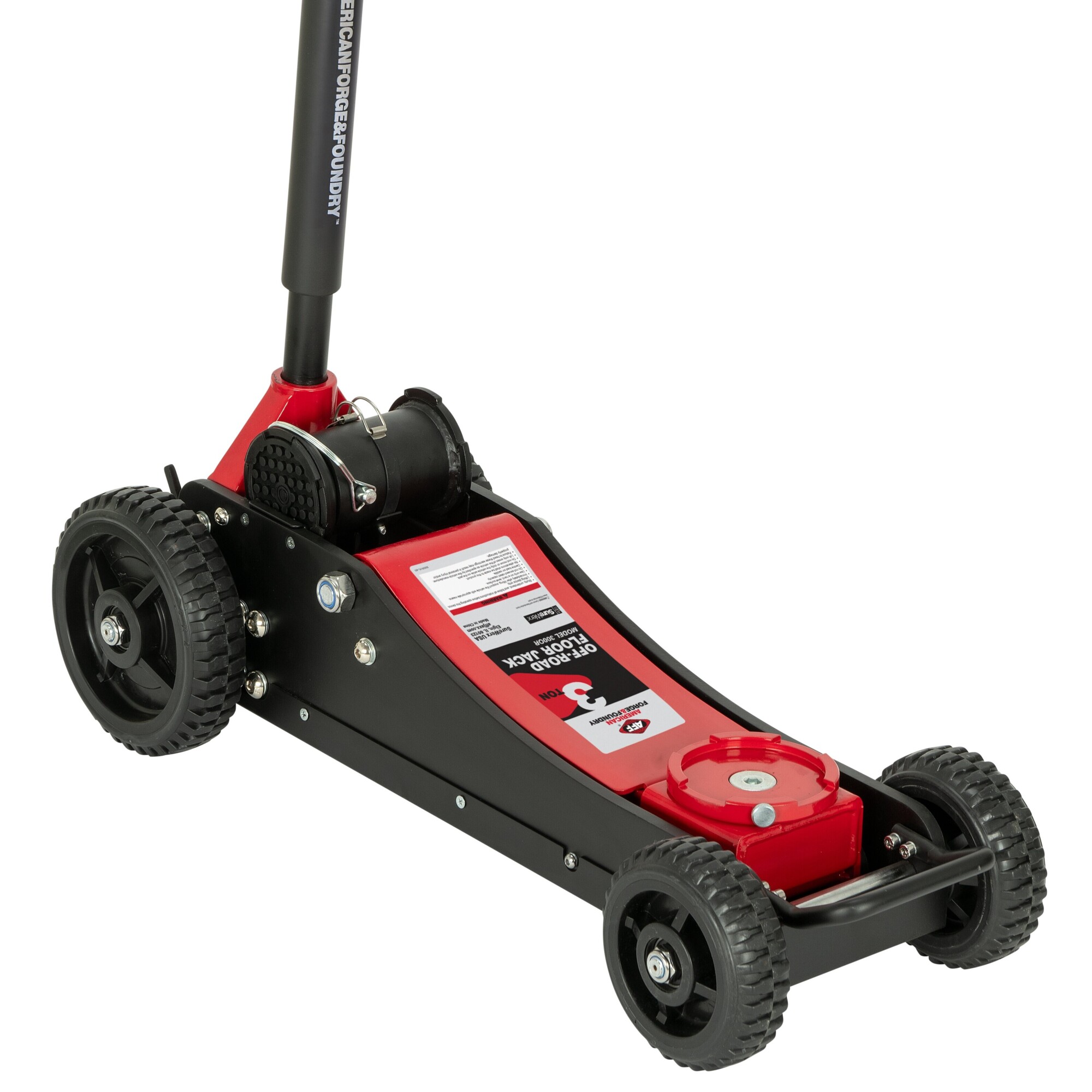

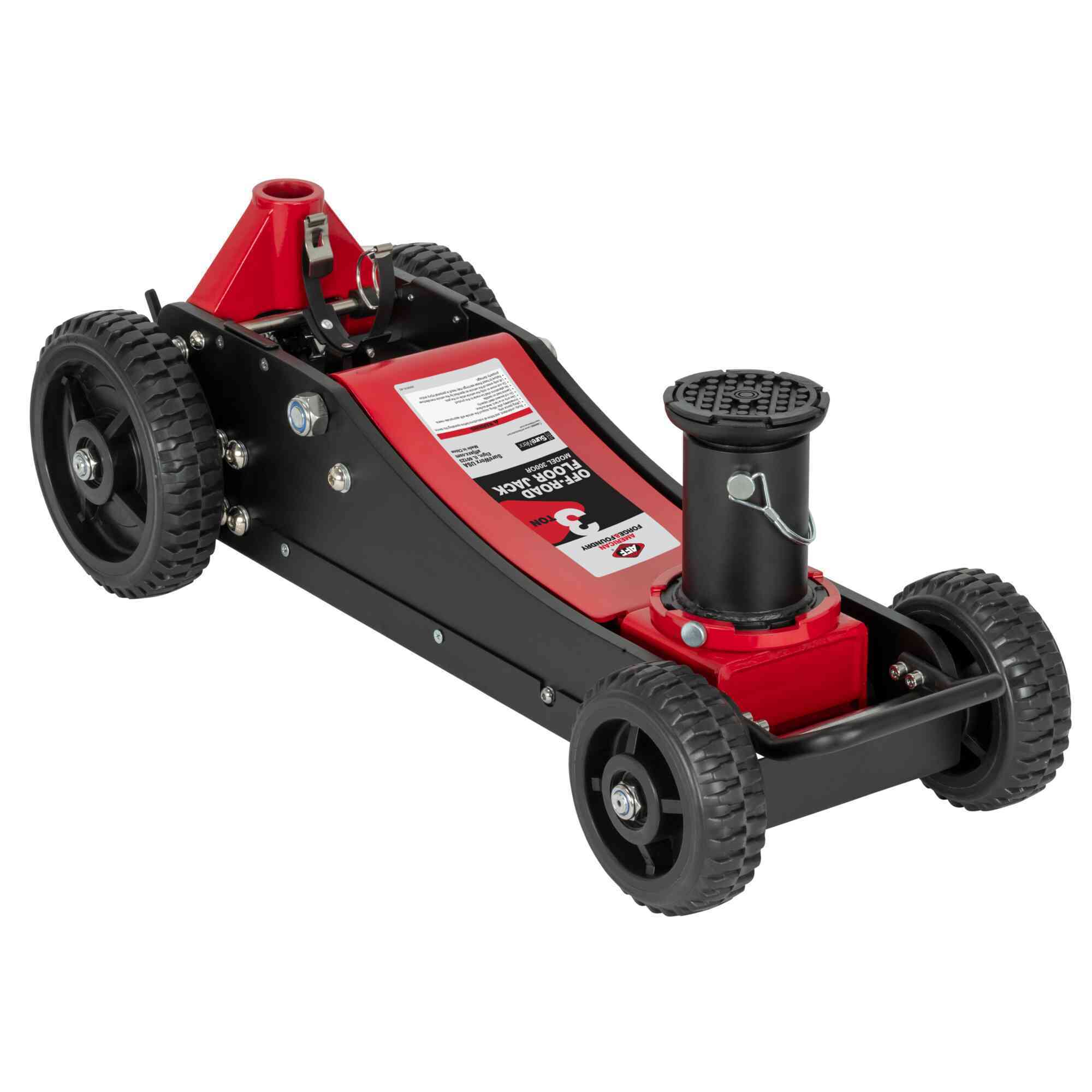

American Forge & Foundry - Off Road Service Jack - 3 Ton Aluminum / Steel Hybrid - Double Pump - Min H 5.9" to 28.74" Max H - Model # 300OR

Item# 7083769
American Forge & Foundry - Off Road Service Jack - 3 Ton Aluminum / Steel Hybrid - Double Pump - Min H 5.9" to 28.74" Max H - Model # 300OR

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

American Forge & Foundry - Off Road Service Jack - 3 Ton Aluminum / Steel Hybrid - Double Pump - Min H 5.9" to 28.74" Max H - Model # 300OR

Click or Tap image to Zoom

$499.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 3 Ton Capacity Double Pumper hydraulic lift system quickly raises the saddle quickly from lowest height to max height in 8 pumps or less
  • 28.74” max lift height provides versatility needed to lift most cars, SUV’s off road vehicles and pick-up trucks
  • Heavy duty aluminum / steel hybrid frame for durability and ease of carrying

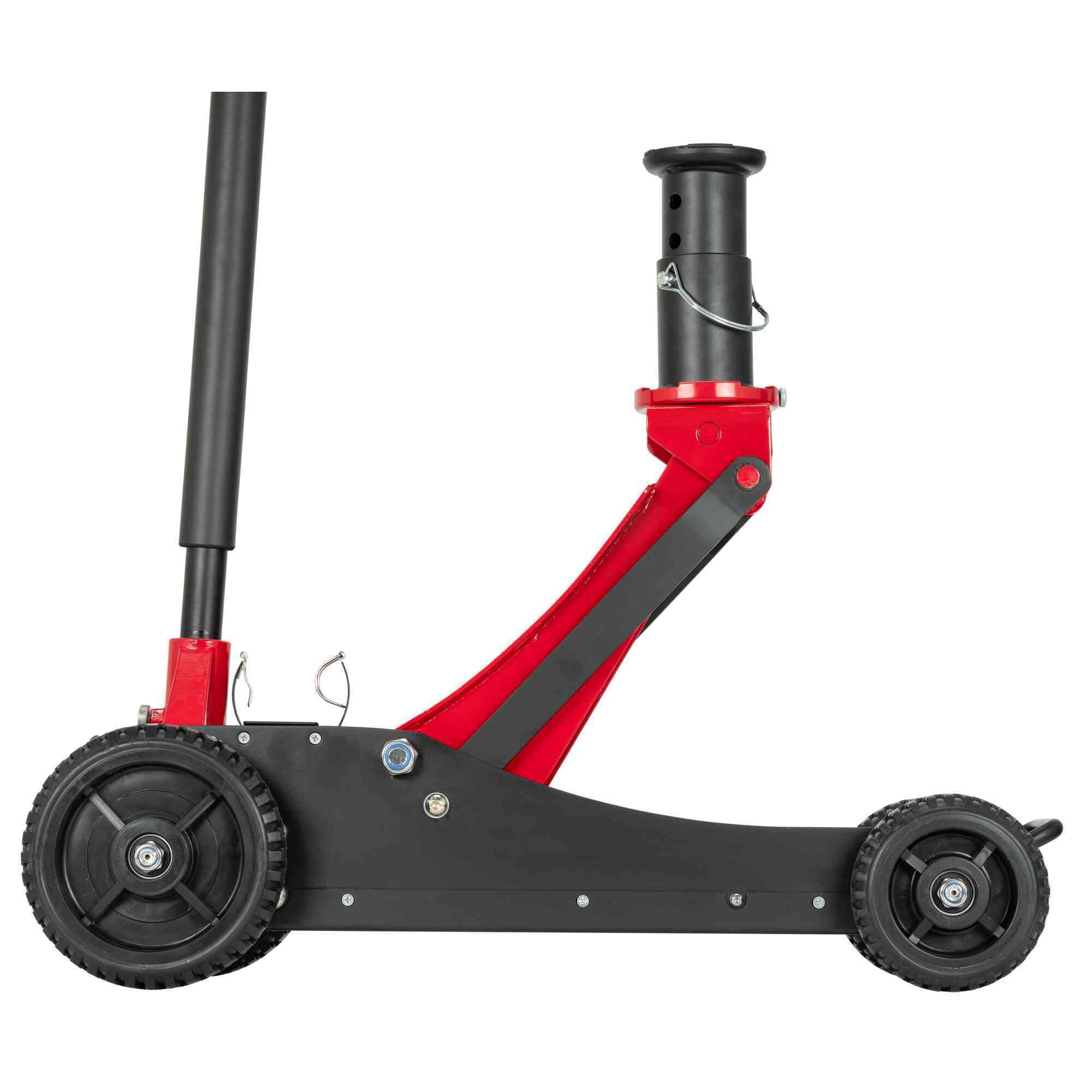

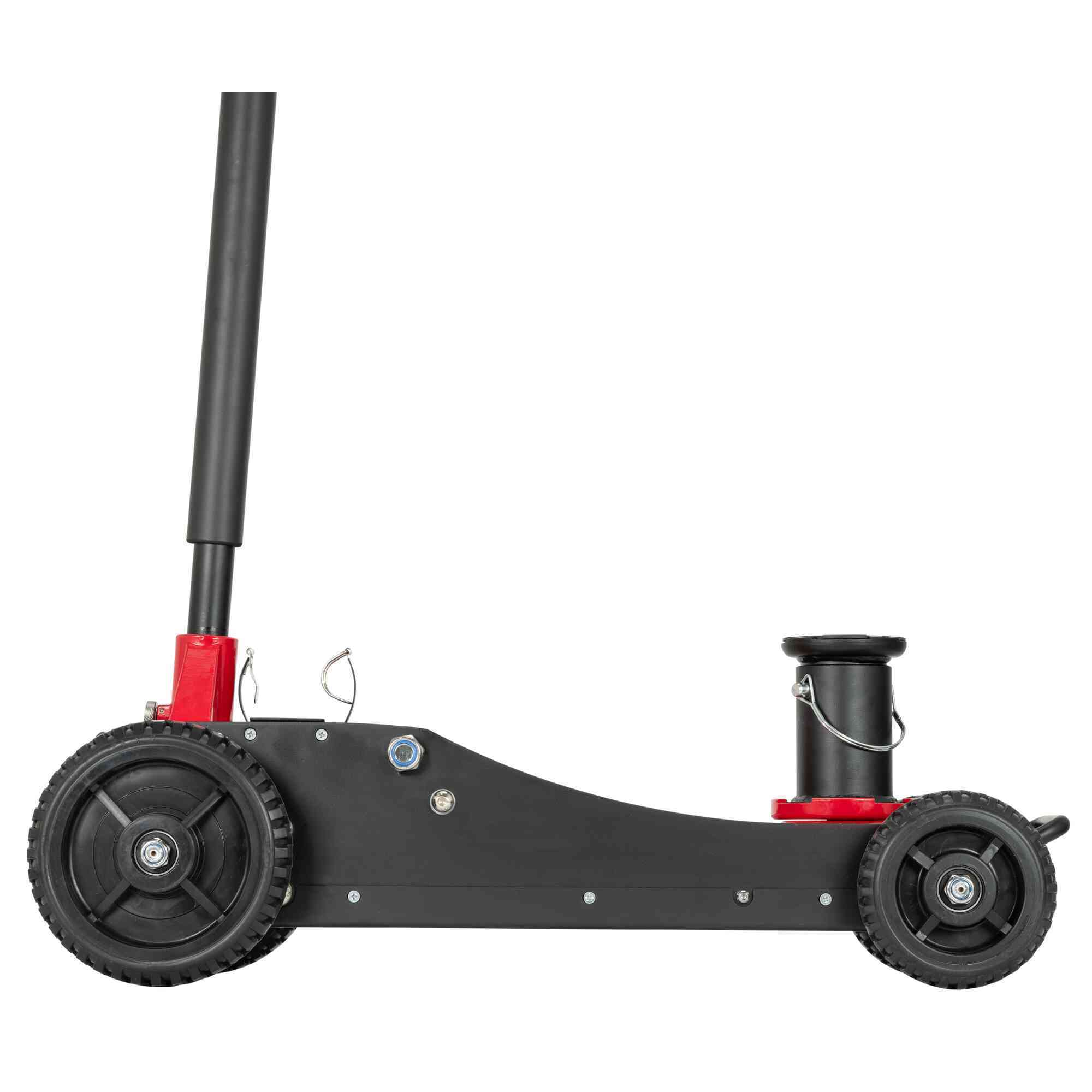

  • Jack is equipped with a adjustable saddle that extends in 3 increments of 4.96”, 6.22”, 7.48” or the extension can be removed completely to have a standard saddle.
  • Large front and rear wheels for easy maneuverability off road. Handle locks for easy positioning. Equipped with safety bypass valve to prevent overloading. Meets or exceeds 2019 ASME PASE Standards

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Designed with the professional service technician in mind, AFF service jacks are built to withstand the rigors of everyday use and are among the most durable in the industry today. Heavy gauge steel, UV powder coated paint, upgraded seals and overload protection are just some of the features that make AFF service jacks stand out in the shop. Capacity: 3 Ton Minimum Height: 5.9in. Maximum Height: 28.74in. Power Type: Hydraulic Operation Type: Manual Quick Lift Feature: Double Pumper Release Assembly: U-Joint Chassis Type: Short Chassis Service Jack Chassis Length (in.): 31.22in. Chassis Width (in.): 12.83in. Handle Type: Straight Handle Length (in.): 45.12in. Handle Type (Pcs): 2 Saddle Size: 4.57in. Saddle Extension Size: 4.96in. / 6.22” / 7.48” Includes Saddle Pad: Yes Saddle Pad Material: Rubber Handle Bump Protector: Yes Rear Casters: Qty 2 Front Wheels: Qty 2 Hydraulic Return Spring: Yes Overload Bypass Valve: Yes Handle Return Spring: Yes Handle Docking Position: 90° Handle Locking Positions: 90° Service Parts Available: Yes Weight (lb.): 79.86 Lbs. Warranty: 1 Year Certification: ASME/PASE 2019

What's Included

    (1) Service Jack

Features + Benefits

  • 3 Ton Capacity Double Pumper hydraulic lift system quickly raises the saddle quickly from lowest height to max height in 8 pumps or less
  • 28.74” max lift height provides versatility needed to lift most cars, SUV’s off road vehicles and pick-up trucks
  • Heavy duty aluminum / steel hybrid frame for durability and ease of carrying
  • Jack is equipped with a adjustable saddle that extends in 3 increments of 4.96”, 6.22”, 7.48” or the extension can be removed completely to have a standard saddle.
  • Large front and rear wheels for easy maneuverability off road. Handle locks for easy positioning. Equipped with safety bypass valve to prevent overloading. Meets or exceeds 2019 ASME PASE Standards

Key Specs

AttributeSpecification

item#

7083769

Brand

American Forge & Foundry

Manufacturer's Warranty

1 year limited warranty

Ship Weight

79.86 LB

Lift Capacity

3 Tons

Max. Lift Height

28.74 in

Power Source

Hydraulic

Low Profile

No
AttributeSpecification

Material

Combination

Product Type

Service Jack

Min. Lift Height

5.9 in

Handle Included

Yes

Safety Valve

Yes

Product Weight

79.8600 lb

Dimensions L x W x H (in.)

31.22 x 10.55 x 12.83 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
