Sunex Tools Air/Hydraulic Floor Jack — 20-Ton Capacity, Telescoping Ram, Narrow Chassis, 5in. Composite Wheels, Model# 6623

Item# 27973
"Sunex Tools Air/Hydraulic Floor Jack — 20-Ton Capacity, Telescoping Ram, Narrow Chassis, 5in. Composite Wheels, Model# 6623"
Sunex Tools Air/Hydraulic Floor Jack — 20-Ton Capacity, Telescoping Ram, Narrow Chassis, 5in. Composite Wheels, Model# 6623

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Sunex Tools Air/Hydraulic Floor Jack — 20-Ton Capacity, Telescoping Ram, Narrow Chassis, 5in. Composite Wheels, Model# 6623

Click or Tap image to Zoom

$719.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • Overload and bypass safety valves
  • Telescoping ram lifts to 23.4in.
  • Dual-spring self-retracting arm
  • Integrated filter to protect air motor
  • Includes 1.75in. diameter saddle

See full description

Complete Your Solution

  • Sunex Tools Air/Hydraulic Floor Jack — 20-Ton Capacity, Telescoping Ram, Narrow Chassis, 5in. Composite Wheels, Model# 6623
  • ESCO Jack Plate, 20-Ton Capacity, Model# 10753
  • Esco 20-Ton Screw Jack Stand, Model# 10802
Price for all three:

$1119.89

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

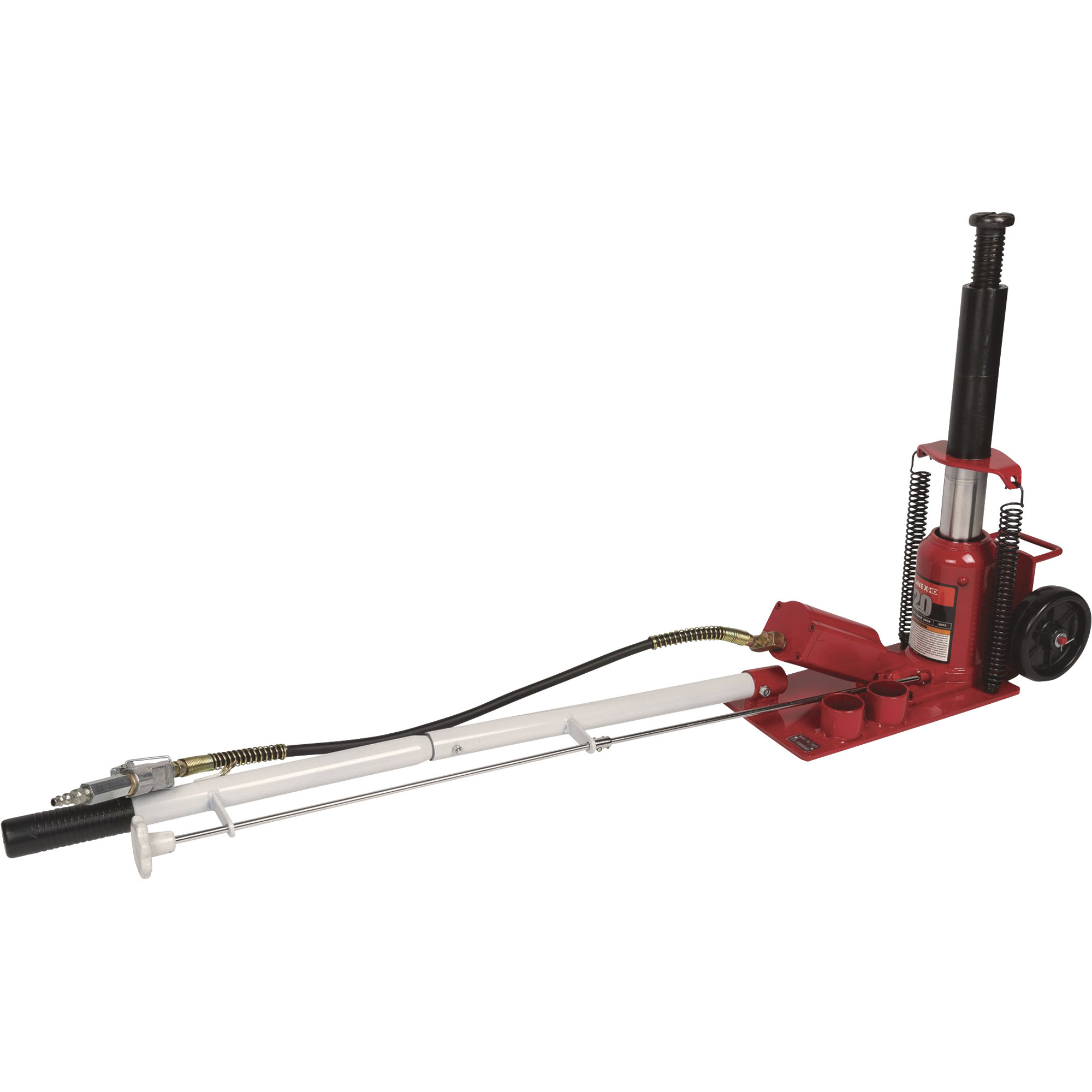

This Sunex Air/Hydraulic Floor Jack features a 20-ton capacity, 5in. composite wheels and a narrow chassis design that fits easily between tandem wheels. ASME PALD 2009 Certified.

What's Included

    (1) Floor jack

Downloads

Product Manual

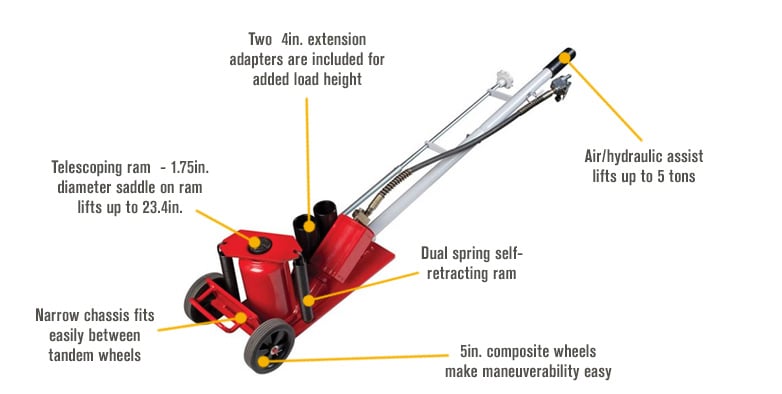

Features + Benefits

  • Overload and bypass safety valves
  • Telescoping ram lifts to 23.4in.
  • Dual-spring self-retracting arm
  • Integrated filter to protect air motor
  • Includes 1.75in. diameter saddle
  • Includes two 4in. long extension adapters for added load height
  • Narrow chassis designed to easily fit between tandem wheels
  • 5in. dia. composite wheels for easy maneuverability
  • Handle grip is perfect for positioning the jack in hard-to-reach areas

Key Specs

AttributeSpecification

item#

27973

Brand

Sunex Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

54.0 LB

Lift Capacity

20 Tons

Max. Lift Height

23.31 in

Power Source

Air/Hydraulic

Low Profile

No
AttributeSpecification

Material

Carbon Steel

Product Type

Axle Jack

Min. Lift Height

8.6 in

Handle Included

Yes

Safety Valve

Yes

Product Weight

53.85 lb

Dimensions L x W x H (in.)

20 x 9.13 x 11.26 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. What size air compressor is needed for this? (PSI and CFM) I am looking at this to use on construction sites.

    1 answer

    1. The floor jack would require an air compressor of at least 90 PSI and 6-8 CFM.

      Helpful?

  2. So would maximum stroke length be 24, or is ram travel of 4 inches the only amount it will go up. So it can go from 20 to 24, or 12 to 16, but not from 5 to 20 for example.

    1 answer

    1. The ram travel is 3.94". The maximum height with the extensions is 23.35".

      Helpful?

  3. Max height listed is 23 5/16. Is this with the 2 four inch adapters included, or can you get a total of 31 5/16 height with the extention adapters?

    1 answer

    1. The max lift capacity is 23-5/16" when the two additional extension adapters are used.

      Helpful?
