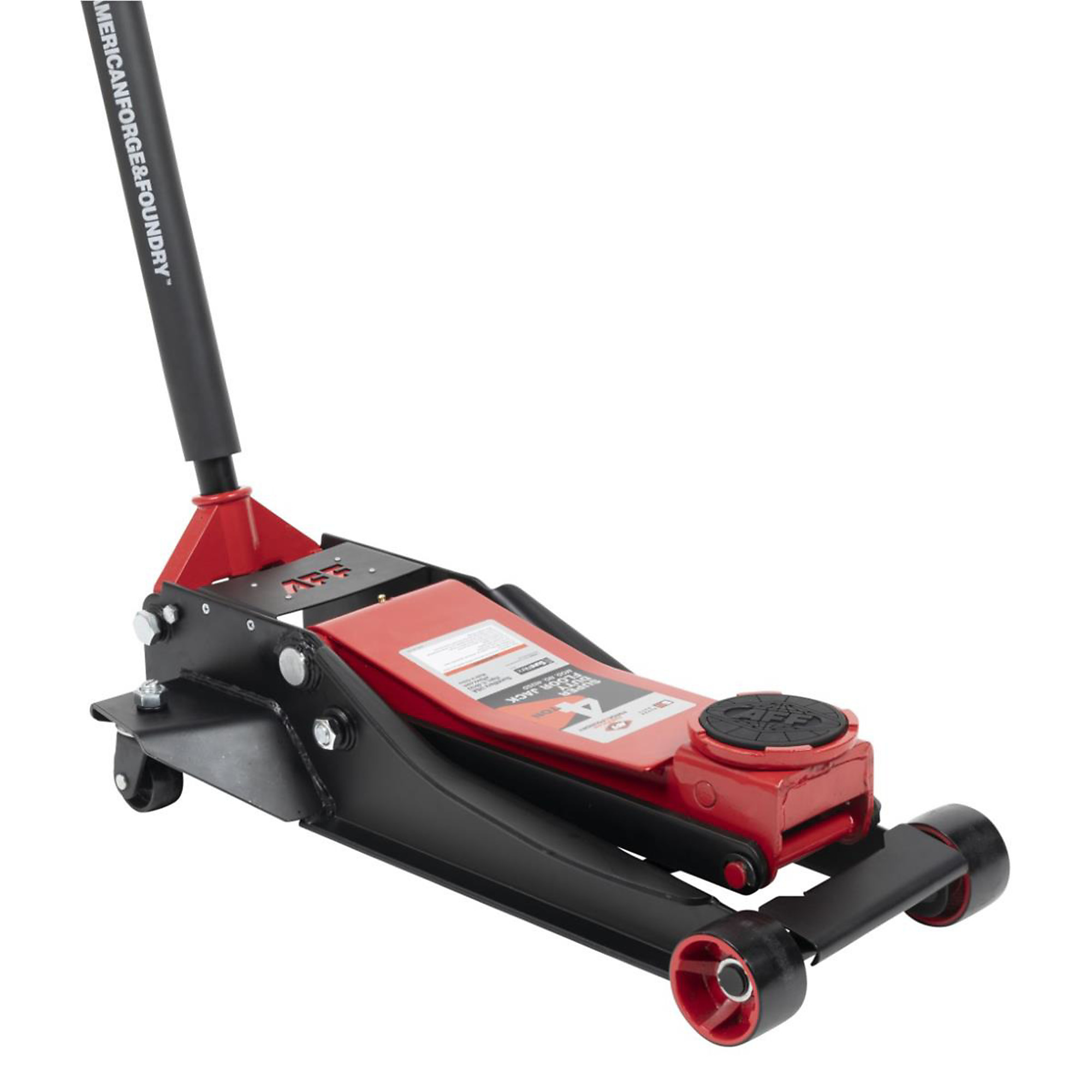

American Forge & Foundry Hydraulic Service Jack — 4-Ton Capacity, 4.1in. to 20.5in. Lift Height, Short Chassis, Lightning Lift, Model# INT402SD

Item# 6691762
American Forge & Foundry Hydraulic Service Jack — 4-Ton Capacity, 4.1in. to 20.5in. Lift Height, Short Chassis, Lightning Lift, Model# INT402SD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

American Forge & Foundry Hydraulic Service Jack — 4-Ton Capacity, 4.1in. to 20.5in. Lift Height, Short Chassis, Lightning Lift, Model# INT402SD

Click or Tap image to Zoom

$499.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Color: Red/Black
  • Capacity: 4 Ton
  • Minimum Height: 4.1"
  • Maximum Height: 20.5"
  • Power Type: Hydraulic

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Color: Red/Black; Capacity: 4 Ton; Minimum Height: 4.1in.; Maximum Height: 20.5in.; Power Type: Hydraulic; Operation Type: Manual; Quick Lift Feature: Lightning™ Lift - Single Piston One Pump To Load; Working Air Motor Pressure: N/A; Release Assembly: U-Joint; Chassis Type: Short Chassis Service Jack; Chassis Length (in.): 28in.; Chassis Width (in.): 15.4in.; Handle Type: Straight; Handle Length (in.): 50in.; Handle Type (Pcs): 2; Saddle Size: 4.7in.; Includes Saddle Pad: Yes; Saddle Pad Material: Rubber; Handle Bump Protector: Yes; Rear Casters: Qty 2; Front Wheels: Qty 2; Hydraulic Return Spring: Yes; Overload Bypass Valve: Yes; Handle Return Spring: Yes; Handle Docking Position: 90°; Handle Locking Positions: N/A; Service Parts Available: Yes; Duty Level: Super Duty; Weight (lb.): 103 Lbs.; Warranty: 1 Year; Certification: ASME/PASE 2019; Lightning™ hydraulic lift system quickly raises the saddle in one pump to load and the vehicle to desired lift height.; 20.5” max lift height provides versatility needed to lift most cars, SUV’s and pick-up trucks ; Heavy gauge steel frame with upper and lower flanges withstand twisting of the jack when under load; Jack is equipped with a rubber saddle pad and foam handle bumper to protect the vehicle. Ball-bearing rear mounted swivel casters for easy maneuverability. Equipped with safety bypass valve to prevent overloading. ; Meets or exceeds 2019 ASME PASE Standards

What's Included

    (1) Unit

Features + Benefits

  • Color: Red/Black
  • Capacity: 4 Ton
  • Minimum Height: 4.1"
  • Maximum Height: 20.5"
  • Power Type: Hydraulic

Key Specs

AttributeSpecification

item#

6691762

Brand

American Forge & Foundry

Manufacturer's Warranty

1 year limited warranty

Ship Weight

103.0 LB

Lift Capacity

4 Tons

Max. Lift Height

20.5 in
AttributeSpecification

Low Profile

Yes

Product Type

Service Jack

Min. Lift Height

4.13 in

Product Weight

103.0000 lb

Dimensions L x W x H (in.)

32.5 x 17.0 x 8.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
