ALC Steel Abrasive Blasting Cabinet, 36in., Model# 40403

Item# 44126
"ALC Steel Abrasive Blasting Cabinet, 36in., Model# 40403"
Top Seller
ALC Steel Abrasive Blasting Cabinet, 36in., Model# 40403

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ALC Steel Abrasive Blasting Cabinet, 36in., Model# 40403

Click or Tap image to Zoom

$2399.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Perfect for surface preparation on any type of irregular surfaces where other forms of preparation such as sanding are difficult
  • Ideal for removing paint, rust, scale and oxidation on various irregular surfaces
  • 80-125 psi operating range
  • Minimum air volume of 15 CFM @ 80 psi
  • Fully-welded construction with no seams or leak points helps keep the blasting operation contained inside the cabinet

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • ALC Steel Abrasive Blasting Cabinet, 36in., Model# 40403
  • ALC Medium Aluminum Oxide Abrasive Blast Media, 25 Lbs., Model# 40098
  • ALC Abrasive Blaster Steel Nozzle Kit, 1/4in., Model# 40054
  • ALC Replacement Pressure Abrasive Blasting Cabinet Gloves, 6in. x 24in., Pair, Model# 40248
Price for all four:

$2557.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

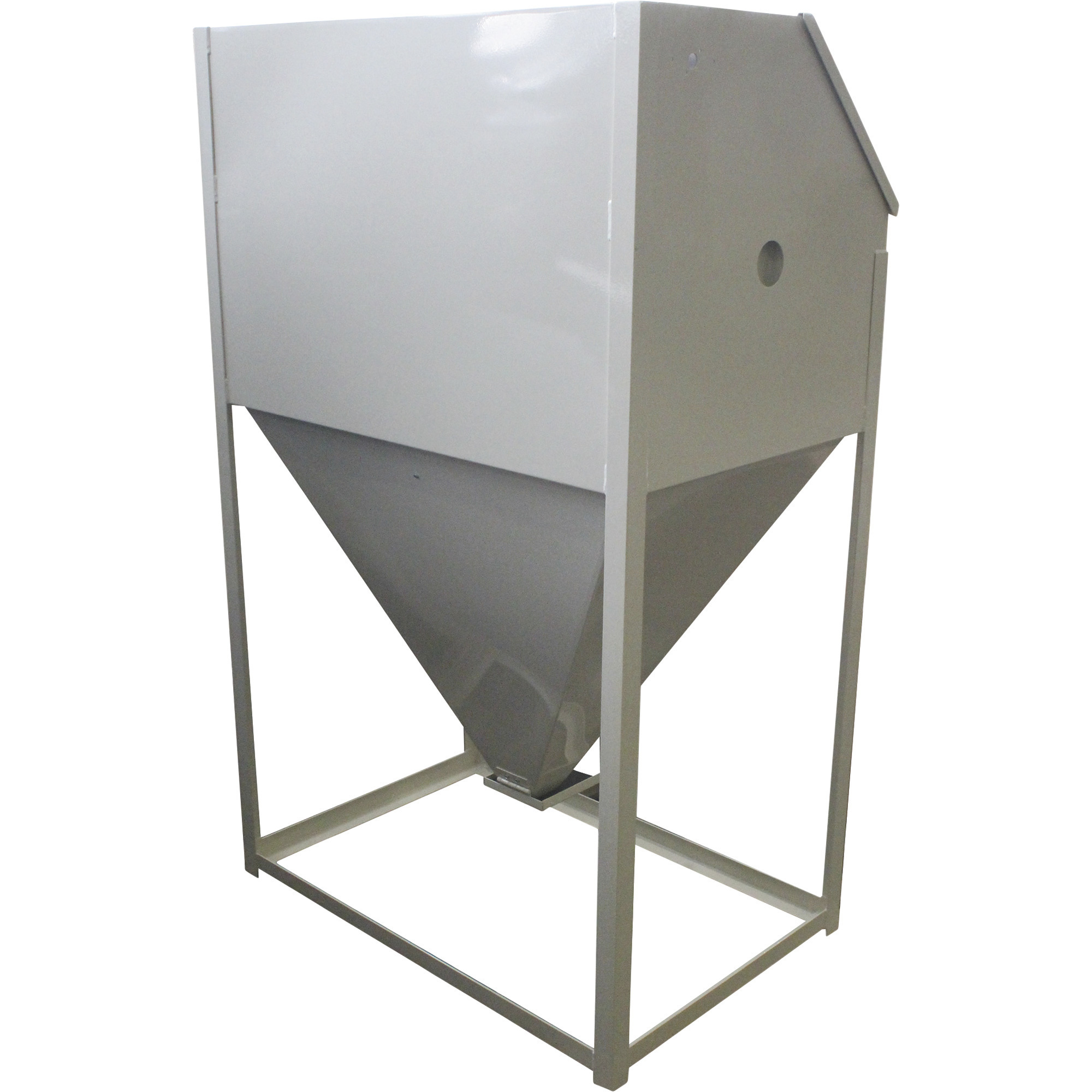

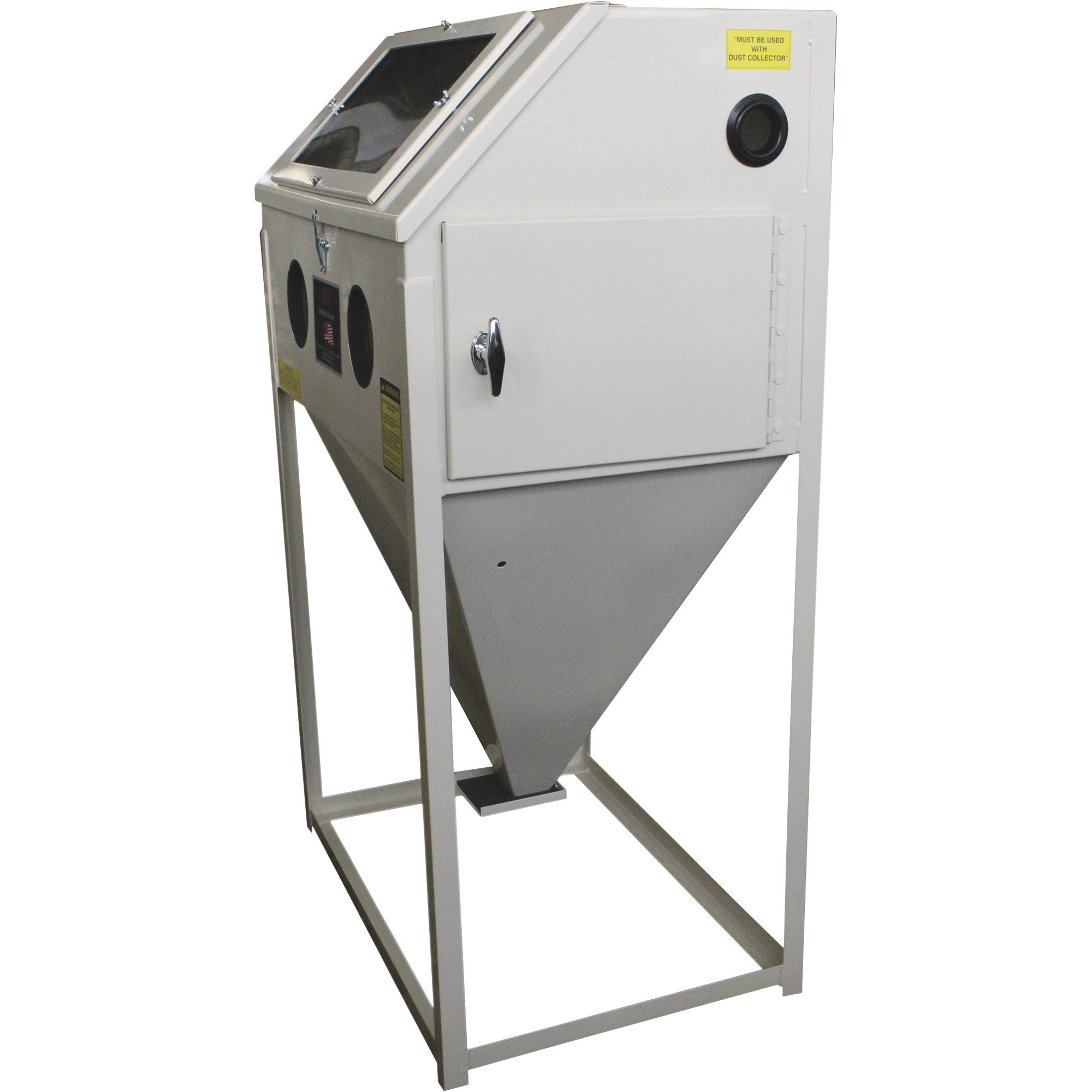

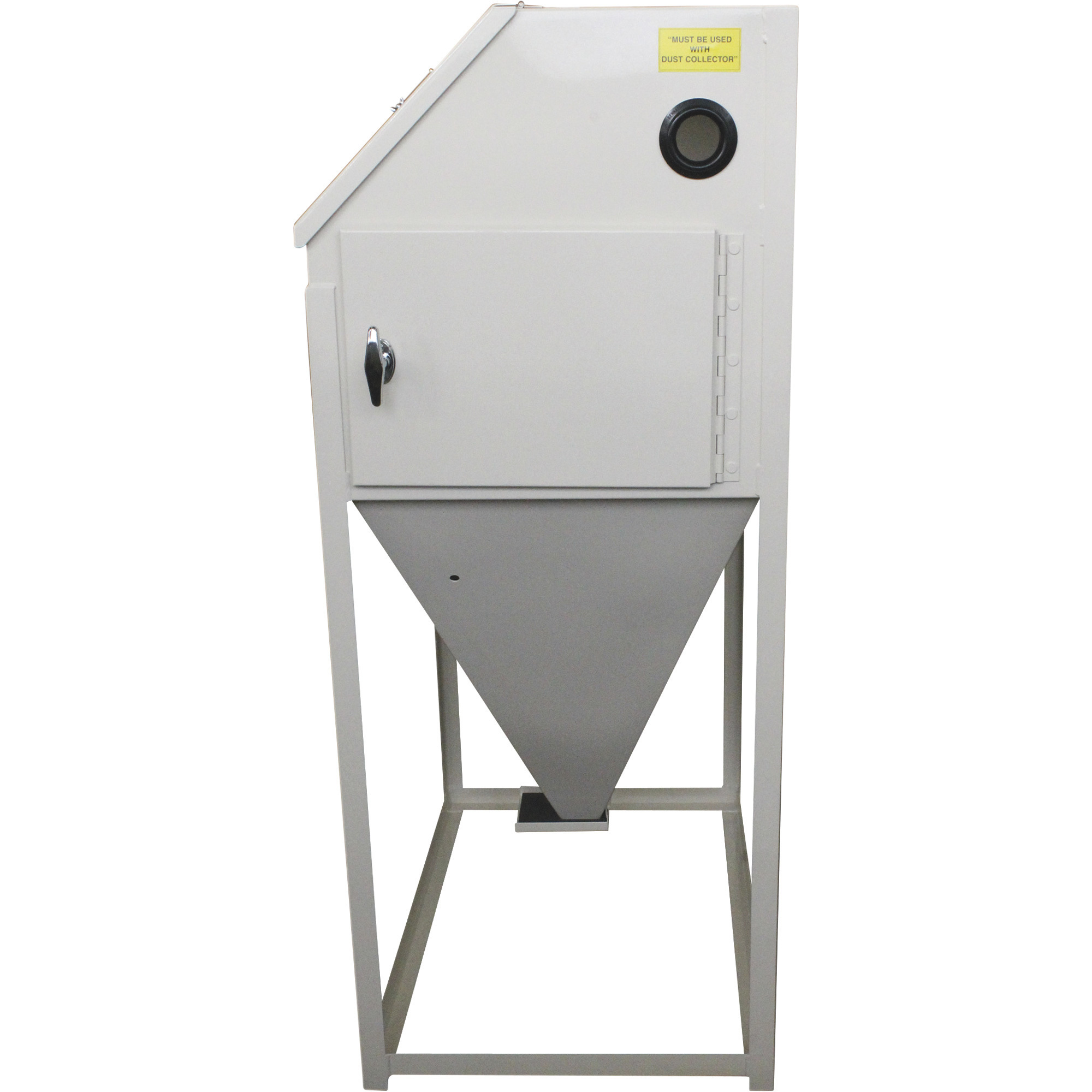

This ALC® Steel Abrasive Blast Cabinet is a durable 36in. x 24in. steel blast cabinet constructed of 14-ga. steel with heavy-duty angle iron legs. The fully-welded design means there are no seams to leak. Inside work area of 36in.W x 24in.H x 24in.D to accommodate a large variety of items, with side door access. Includes foot pedal controlled gun with 1/4in. nozzle, 150 watt light kit, high quality 24in. lined gloves, cushioned foam arm holes, 112 CFM dust collector with 50 micron filter bag and protective window underlay. Full opening top door and side door.

What's Included

    (1) 36in. x 24in. steel cabinet (1) 112 CFM polymer dust collector with filter bag (1) Foot pedal and gun kit with 1/4in. nozzle (1) 150 Watt light kit (1) Pair of lined gloves (1) Window underlay (1) Steel grate

Downloads

Product Manual

Features + Benefits

  • Perfect for surface preparation on any type of irregular surfaces where other forms of preparation such as sanding are difficult
  • Ideal for removing paint, rust, scale and oxidation on various irregular surfaces
  • 80-125 psi operating range
  • Minimum air volume of 15 CFM @ 80 psi
  • Fully-welded construction with no seams or leak points helps keep the blasting operation contained inside the cabinet
  • Large viewing window measuring 12in. x 24in. gives the operator a wide viewing area
  • Oversized hinged top door opening of 13in. x 35in. and hinged side door opening of 11in. x 17in. allows the operator to easily load a wide variety of items into the blast cabinet
  • Large inside work area of 36in.W x 24in.H x 24in.D allows the operator to easily maneuver bulky items inside the cabinet
  • Heavy-duty angle iron legs provide strength and a stable foot print
  • 150 Watt max light kit and 112 CFM dust collector help the operator to maintain a good visual in heavy blasting operations
  • Replaceable protective window underlay to protect and extend the life of the viewing window
  • Foot pedal controlled siphon blast gun helps to reduce operator hand fatigue
  • Grate capacity of 200 lbs. allows the operator to blast heavier items such as cylinder heads

Key Specs

AttributeSpecification

item#

44126

Brand

ALC

Manufacturer's Warranty

2 year limited warranty

Ship Weight

313.0 LB

Max. PSI

125

Max. Air Consumption

20 cfm

Body Material

Steel

Body Finish

Painted
AttributeSpecification

Nozzle Size

1/4

Gun Included

Yes

Foot Control Included

Yes

Media Capacity

25 lb

Main Door Width

13 in

Main Door Length

35 in

For Use With

Aluminum Oxide, Glass Bead, Garnet, Steel Grit, Walnut Shell, Plastic Grit, Corn Cob

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. What kind of air compressor do you suggest I need for this product?

    1 answer

    1. This requires a air compressor with a minimum of 15 CFM at 80 PSI.

      Helpful?

  2. Is the hole on the left left side of the cabinet supposed to stay exposed or does it need to be plugged when running the sandblaster?

    1 answer

    1. The hole on the left hand side with the cover open should remain open. This is a intake air vent hole. The cabinet should be under negative pressure while the dust collector is running and the hole is an intake to let air in to draw from. Since it is under negative pressure with the dust collector running no abrasive should come out of the intake hole.

      Helpful?

  3. one

    will a car rim go in this cabnet

    1 answer

    1. The top door opening is 13" L x 35" W. The inside work area measures 36" L x 24" W x 24" H.

      Helpful?

  4. What are the electrical requirements? (Volts, Amps)

    For the light and air filter specifically.

    1 answer

    1. The electrical requirement would be 110 volts and 20 amps.

      Helpful?

  5. Is the window in the cabinet made of glass, plexiglass, or Lexan? Also, what would be the part # for a 1/4" ceramic tip to fit the gun?

    1 answer

    1. The glass in the Abrasive Blast Cabinet is made of plexiglass. The item #155512 is the 1/4" ceramic nozzle kit to fit the gun. See below.

      Helpful?
