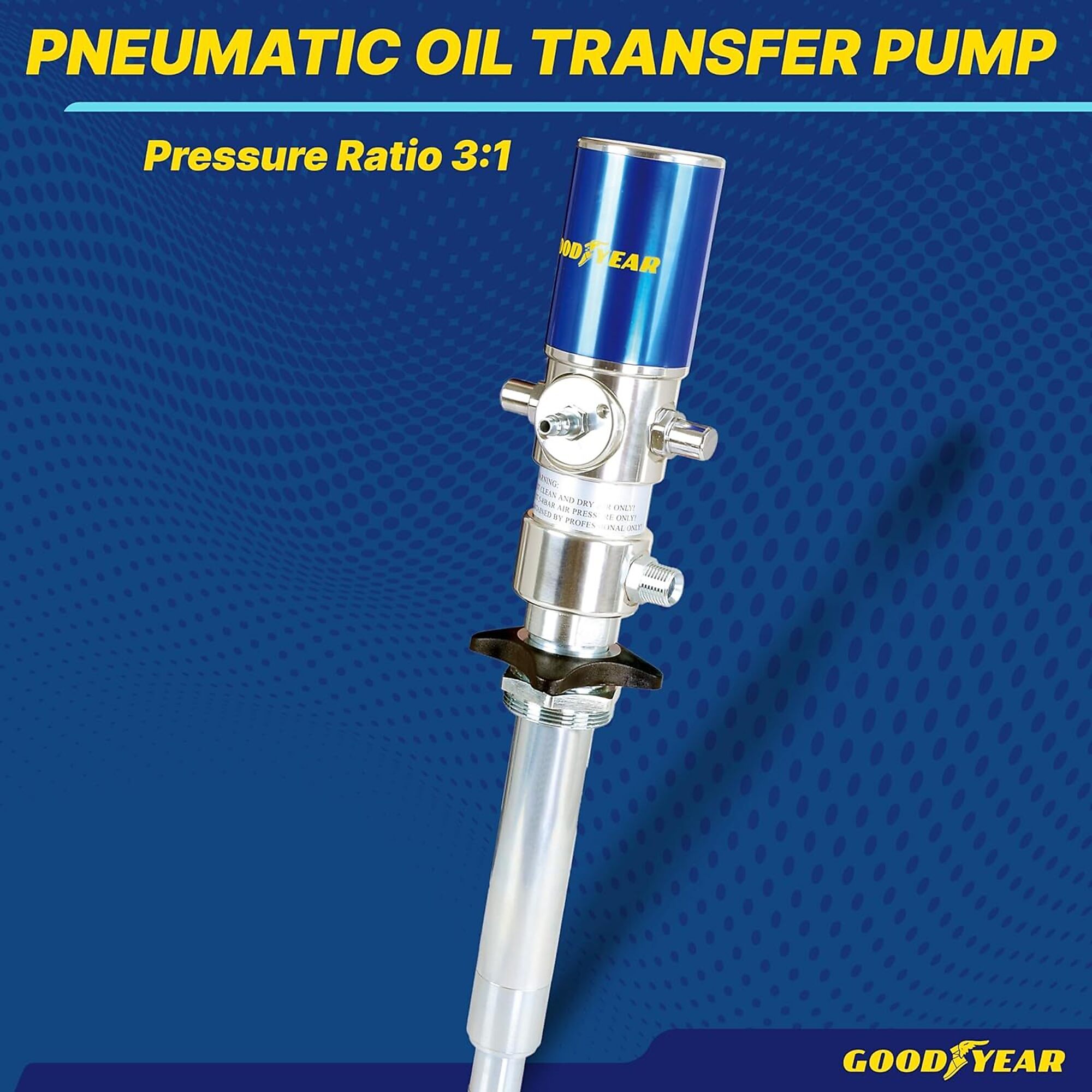

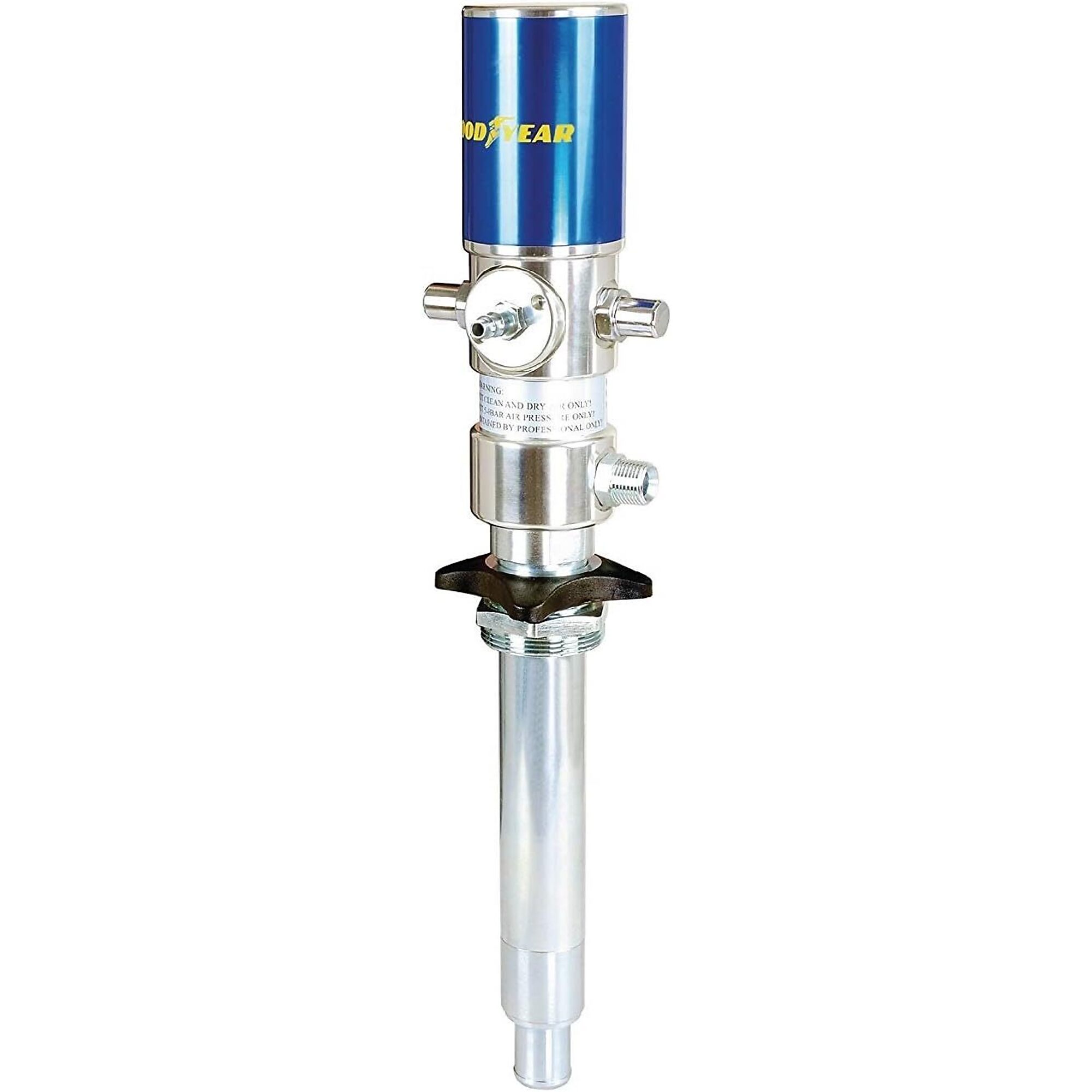

Goodyear Air Operated Oil Transfer Pump — 3.1 GPM, Double Action, 3:1 Pressure Ratio, Heavy-Duty, Model# TRI-1701031G

Item# 6700016
Goodyear Air Operated Oil Transfer Pump — 3.1 GPM, Double Action, 3:1 Pressure Ratio, Heavy-Duty, Model# TRI-1701031G

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Goodyear Air Operated Oil Transfer Pump — 3.1 GPM, Double Action, 3:1 Pressure Ratio, Heavy-Duty, Model# TRI-1701031G

Click or Tap image to Zoom

$339.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

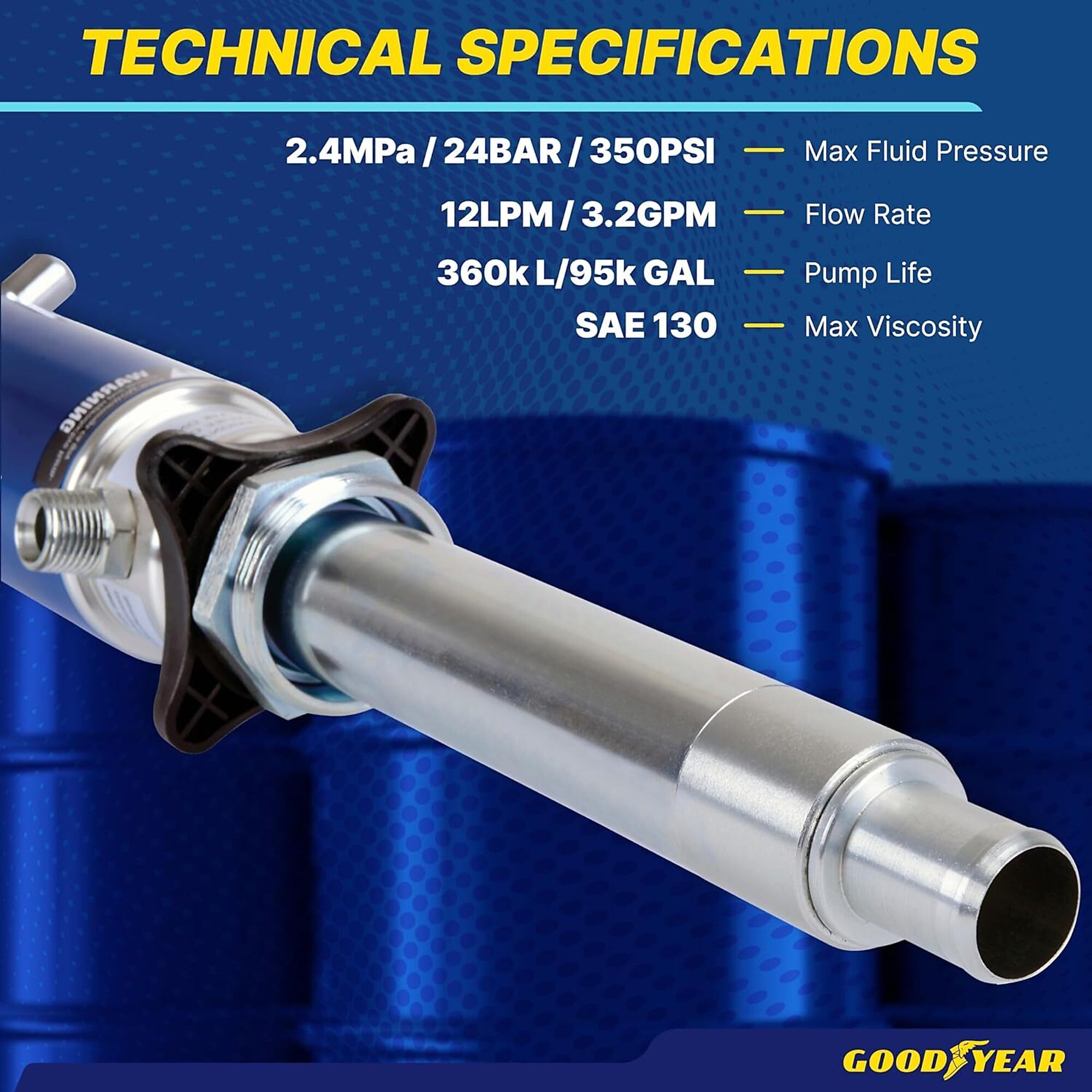

  • SPECIFICATIONS - This Air Operated (Pneumatic) Double Action Oil Transfer Pump has a High Flow rate of a Max 3.2GPM / 12LPM. A Max Pressure Ratio of 3:1. A Max Air Inlet Pressure of 5-8BAR / 70-115PSI. A Max Fluid Pressure of 8BAR / 115PSI. An Air Motor Effective Dia. of 63mm 2.5". An Air Consumption (per minute) @ 8BAR / 110L @ 115PSI / 3.9CFM. An Air Inlet Connection of 1/4" & Oil Outlet Connection of 1/2" Male. A Long Pump Life of 360k Liters / 95k+ Gallons.

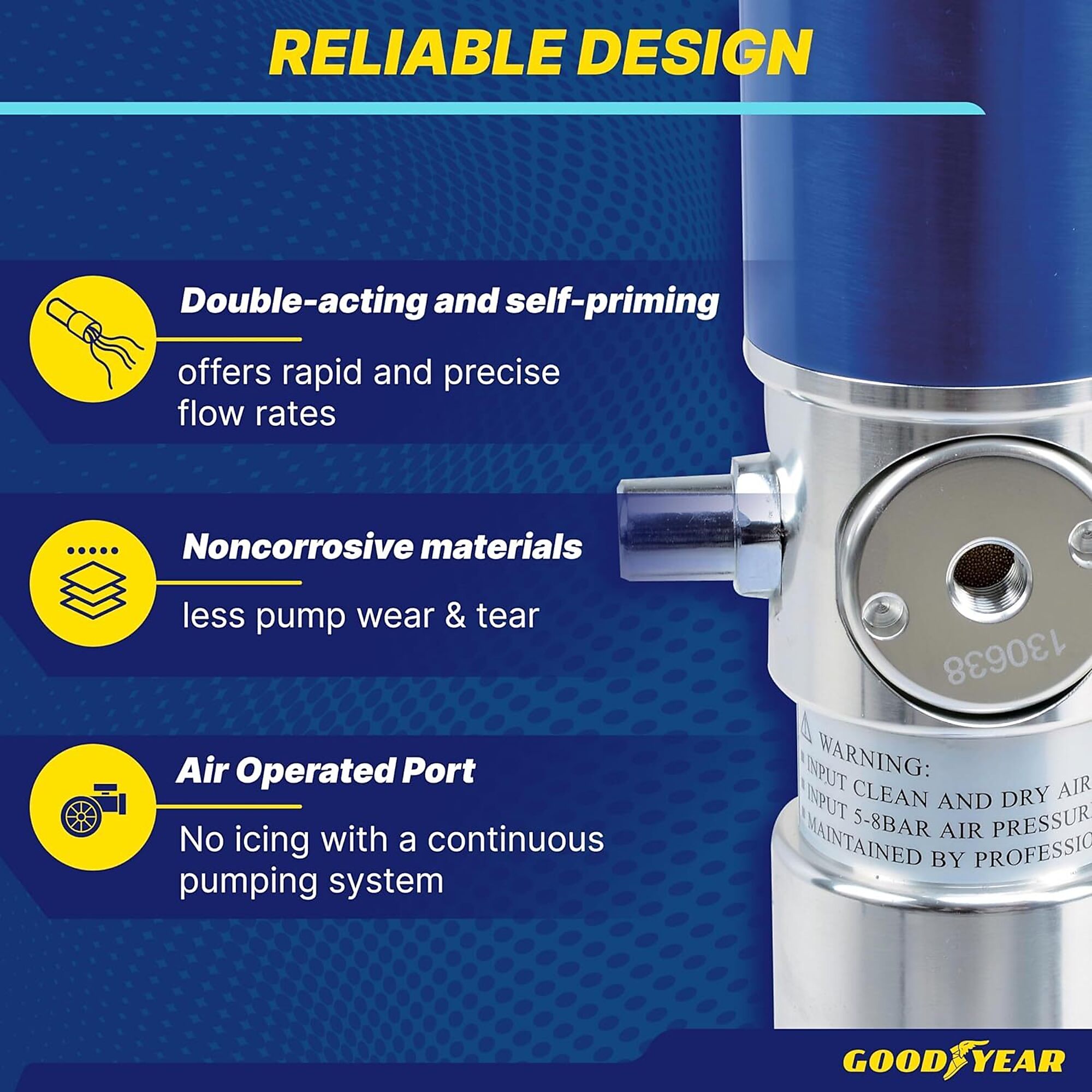

  • EFFICIENT DESIGN and CAPABILITIES - Our Transfer Pumps are Double Action & Self Priming designed, delivering the fast & precise flow rates. This Smart design uses fewer parts for less pump wear & tear, making it is easy to use & maintain.This pump is best suited for a Multiple Fluid types of medium to high viscosity at a short to medium distance, typical fluids handled include: motor oil, synthetic oil hydraulic, gear oil, automatic transmission fluid & suitable up to SAE130 grade oil.
  • PROPER USE and SAFETY - All our pumps come with a 2" Adjustable Bung adapter, for easy installation for barrel mounted applications. This pump can be barrel, cart or wall mounted. A Wall Mount Kit or Extension Tube Kit are Sold SEPARATELY. Follow manual for setup & always use the proper additional equipment as listed in the manual when installing pump & always wear protective glasses/goggles or gear when operating equipment.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Goodyear Oil Transfer Pump Air Operated Pneumatic 3.1GPM / 12LPM PRO Heavy Duty Double Action 3:1 Fast High Flow Rate for SAE130 Oils/Fluids (NOT for Gasoline or Diesel), TRI-1701031G. SPECIFICATIONS - This Air Operated (Pneumatic) Double Action Oil Transfer Pump has a High Flow rate of a Max 3.2GPM / 12LPM. A Max Pressure Ratio of 3:1. A Max Air Inlet Pressure of 5-8BAR / 70-115PSI. A Max Fluid Pressure of 8BAR / 115PSI. An Air Motor Effective Dia. of 63mm 2.5in. An Air Consumption (per minute) 8BAR / 110L 115PSI / 3.9CFM. An Air Inlet Connection of 1/4in. Oil Outlet Connection of 1/2in. Male. A Long Pump Life of 360k Liters / 95k+ Gallons. EFFICIENT DESIGN and CAPABILITIES - Our Transfer Pumps are Double Action Self Priming designed, delivering the fast precise flow rates. This Smart design uses fewer parts for less pump wear tear, making it is easy to use maintain.This pump is best suited for a Multiple Fluid types of medium to high viscosity at a short to medium distance, typical fluids handled include: motor oil, synthetic oil hydraulic, gear oil, automatic transmission fluid suitable up to SAE130 grade oil. PROPER USE and SAFETY - All our pumps come with a 2in. Adjustable Bung adapter, for easy installation for barrel mounted applications. This pump can be barrel, cart or wall mounted. A Wall Mount Kit or Extension Tube Kit are Sold SEPARATELY. Follow manual for setup always use the proper additional equipment as listed in the manual when installing pump always wear protective glasses/goggles or gear when operating equipment.

What's Included

    (1) Oil Transfer Pump

Features + Benefits

  • SPECIFICATIONS - This Air Operated (Pneumatic) Double Action Oil Transfer Pump has a High Flow rate of a Max 3.2GPM / 12LPM. A Max Pressure Ratio of 3:1. A Max Air Inlet Pressure of 5-8BAR / 70-115PSI. A Max Fluid Pressure of 8BAR / 115PSI. An Air Motor Effective Dia. of 63mm 2.5". An Air Consumption (per minute) @ 8BAR / 110L @ 115PSI / 3.9CFM. An Air Inlet Connection of 1/4" & Oil Outlet Connection of 1/2" Male. A Long Pump Life of 360k Liters / 95k+ Gallons.
  • EFFICIENT DESIGN and CAPABILITIES - Our Transfer Pumps are Double Action & Self Priming designed, delivering the fast & precise flow rates. This Smart design uses fewer parts for less pump wear & tear, making it is easy to use & maintain.This pump is best suited for a Multiple Fluid types of medium to high viscosity at a short to medium distance, typical fluids handled include: motor oil, synthetic oil hydraulic, gear oil, automatic transmission fluid & suitable up to SAE130 grade oil.
  • PROPER USE and SAFETY - All our pumps come with a 2" Adjustable Bung adapter, for easy installation for barrel mounted applications. This pump can be barrel, cart or wall mounted. A Wall Mount Kit or Extension Tube Kit are Sold SEPARATELY. Follow manual for setup & always use the proper additional equipment as listed in the manual when installing pump & always wear protective glasses/goggles or gear when operating equipment.

Key Specs

AttributeSpecification

item#

6700016

Brand

Goodyear

Manufacturer's Warranty

1 year limited warranty

Ship Weight

11.0 LB

Flow Rate

3.1 GPM

Max. PSI

350

Material

Aluminum
AttributeSpecification

Max. Total Head

0 ft

Max. Suction Lift

0 ft

Inlet Port

0.25 in

Outlet Port

0.5 in

Self-Priming

Yes

Product Weight

11.0000 lb

Dimensions L x W x H (in.)

5.1 x 5.1 x 24.4 in

Reviews

Questions & Answers

Questions

  1. I need to use this pump with a zinc free oil. Will the pump contaminate my oil supply if I use it?

    1 answer

    1. Model # TRI-1701031G must be connected to a filtered compressed air supply to prevent dust and moisture from entering the pump. Air pressure must not exceed 0.8 MPa. Adhering to these requirements will help prevent contamination of the oil supply.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
