Air Compressor Hose Kit with 3/4" x 100' PEX-AL-PEX Tubing and Aluminum Outlet Blocks, black, BAC-W465P220518

Item# 7514733
New
Air Compressor Hose Kit with 3/4" x 100' PEX-AL-PEX Tubing and Aluminum Outlet Blocks, black, BAC-W465P220518

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Air Compressor Hose Kit with 3/4" x 100' PEX-AL-PEX Tubing and Aluminum Outlet Blocks, black, BAC-W465P220518

Click or Tap image to Zoom

$199.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 100 FT TUBING – Includes 100’ of continuous 3/4" ID x 1" OD PEX-AL-PEX tubing for a reliable compressed air piping system. The continuous length helps reduce the need for multiple joints to reduce leak points and makes installation easy!
  • DURABLE 3-LAYER CONSTRUCTION – PEX-AL-PEX tubing features a strong aluminum core sandwiched between inner and outer layers of high-density polyethylene to combine flexibility and chemical resistance with the strength and barrier properties of aluminum.
  • 200 PSI OPERATING PRESSURE – Rated for up to 200 PSI at 73°F and 160 PSI at 140°F, for versatility with a wide range of compressed air piping needs.

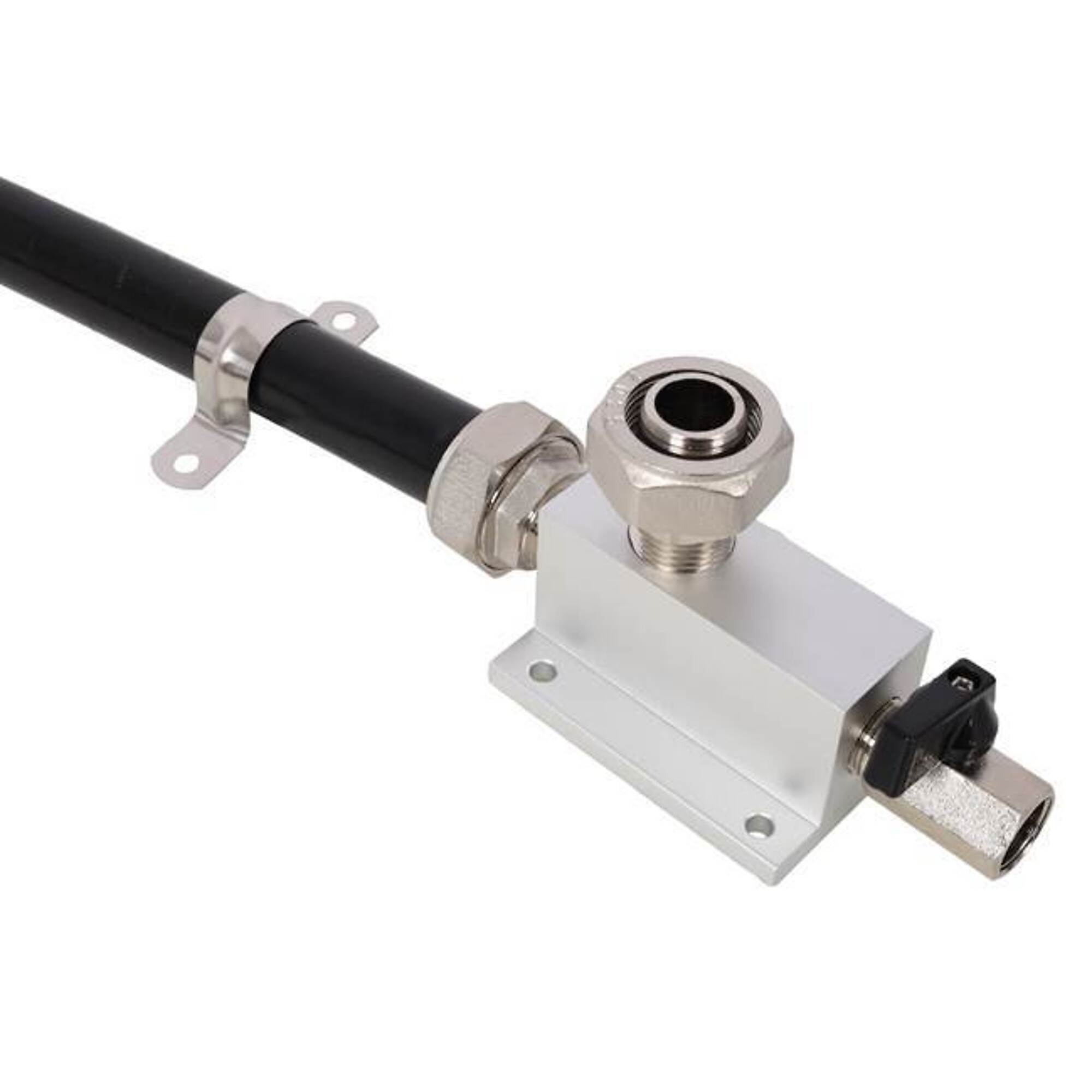

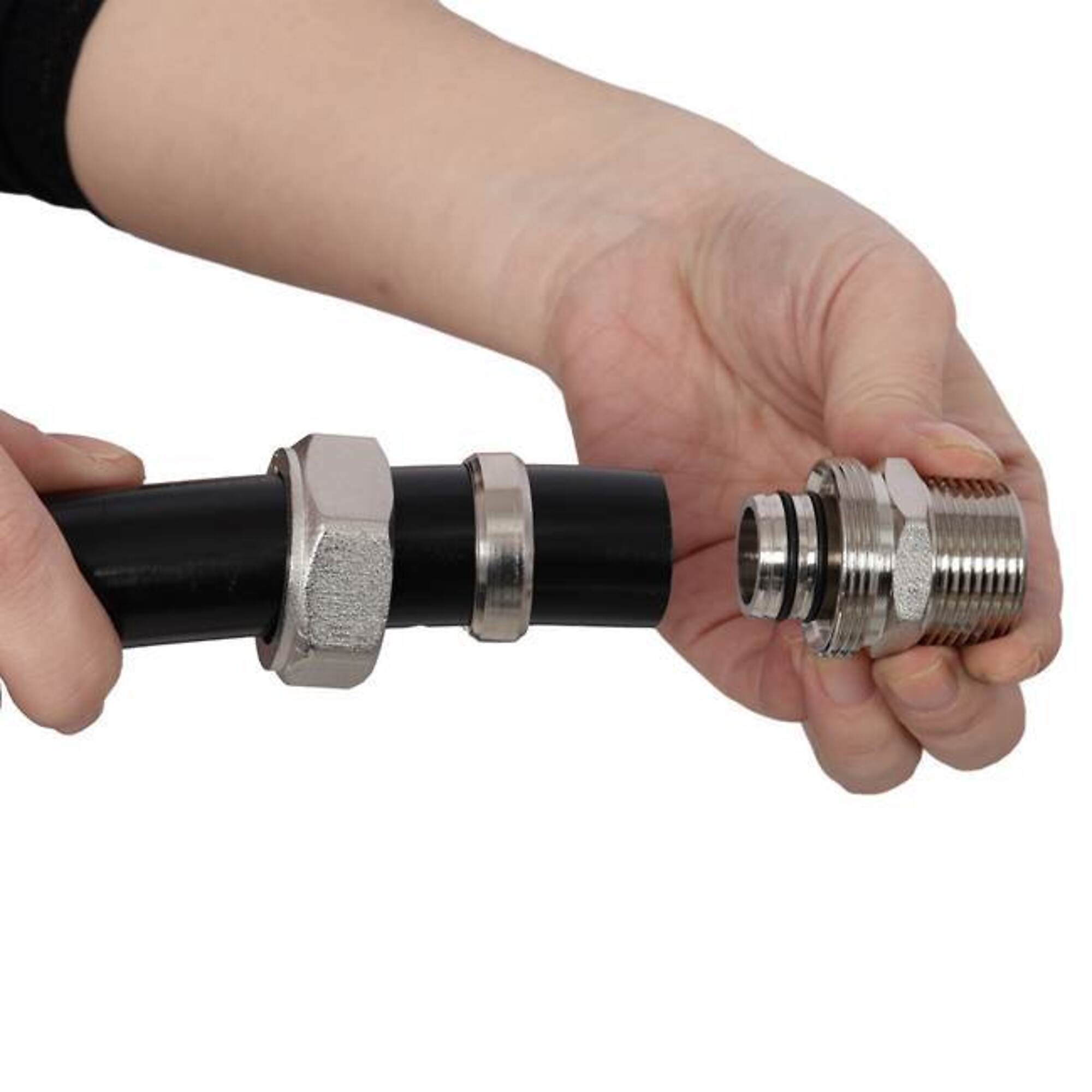

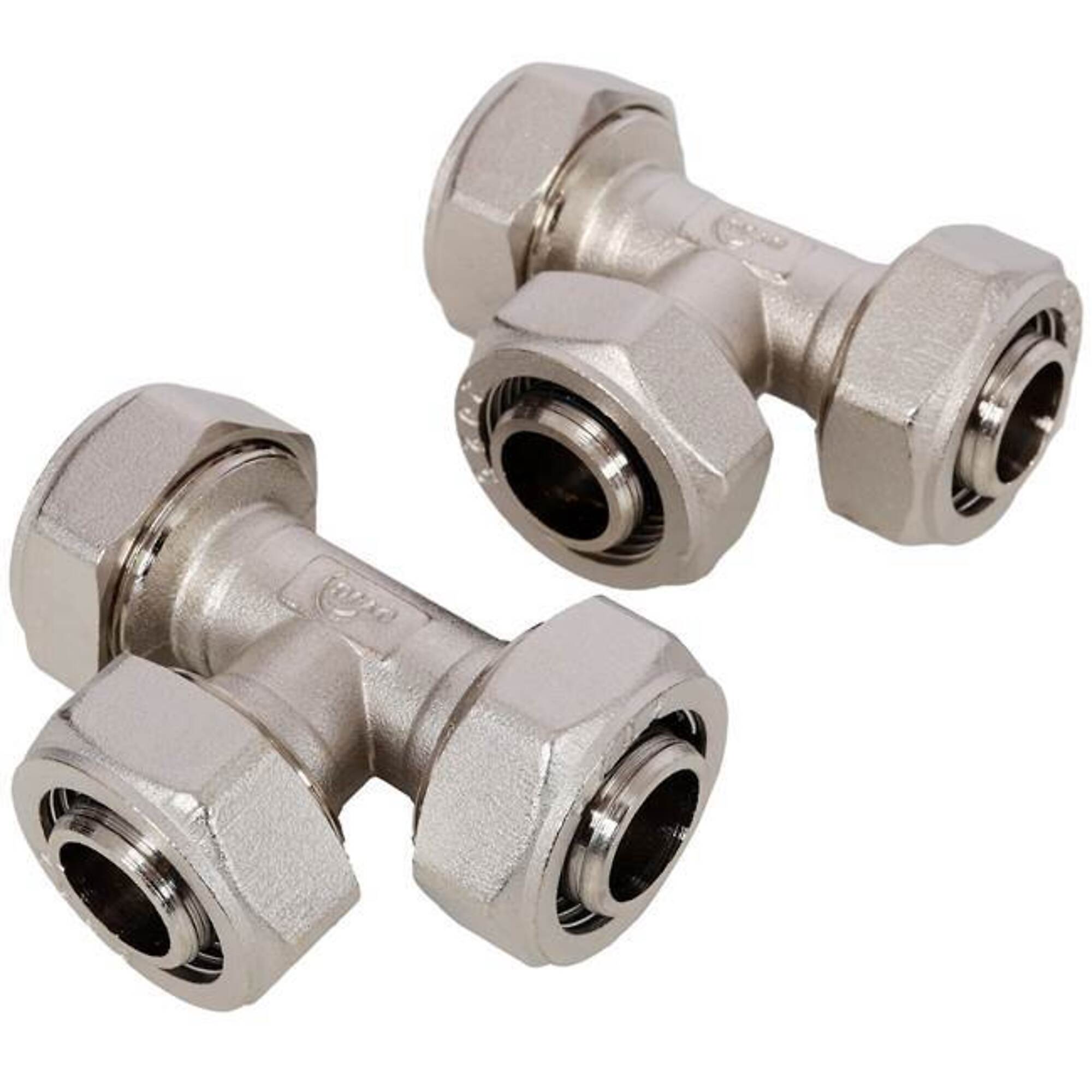

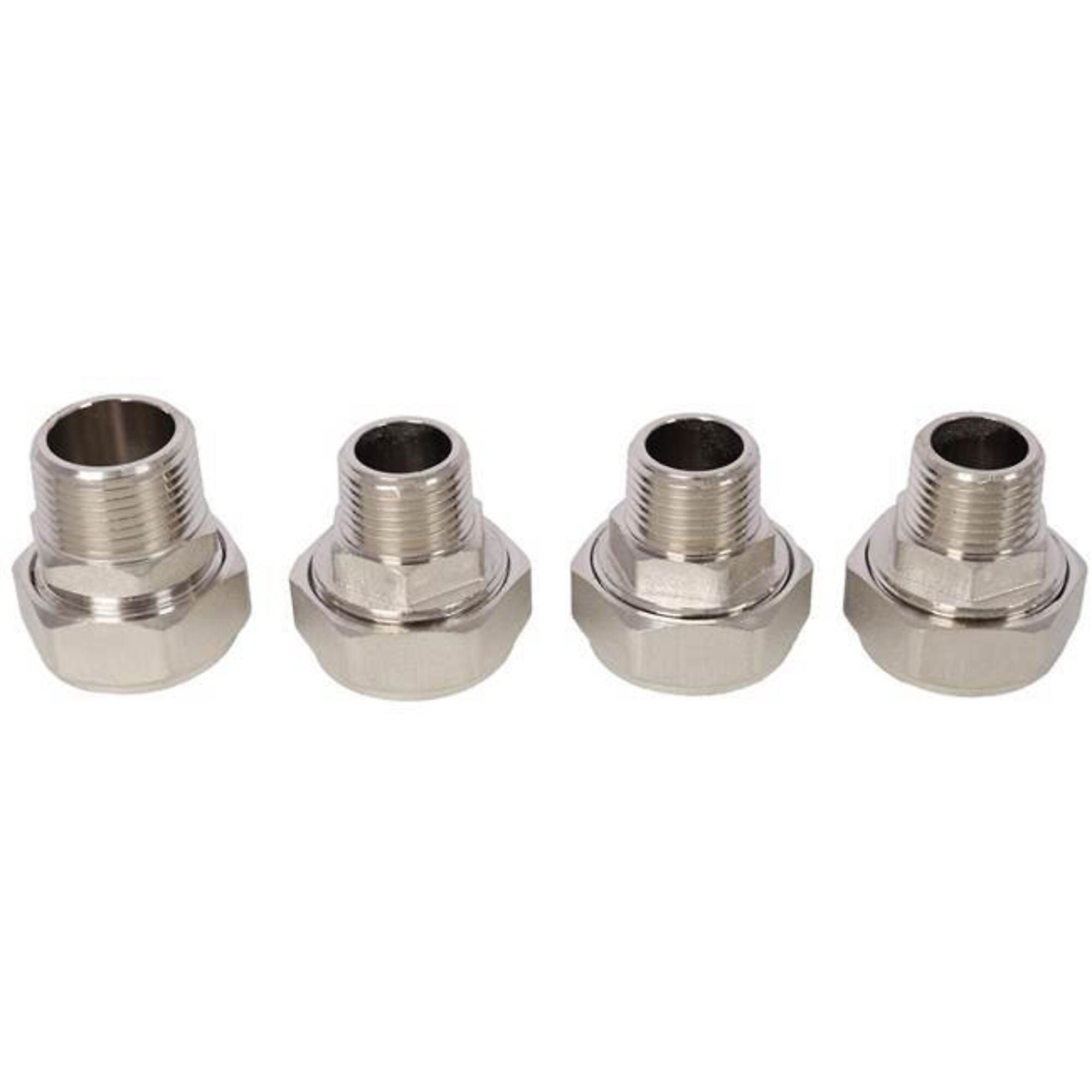

  • COMPLETE INSTALLATION KIT – Includes 3 aluminum outlet blocks, 3 brass valves, three 1/2" NPT fittings, one 3/4" NPT fitting, 2 tubing tee fittings, 2 L tubing fittings, 20 pipe-fixing clips, and 2 rolls of Teflon tape.

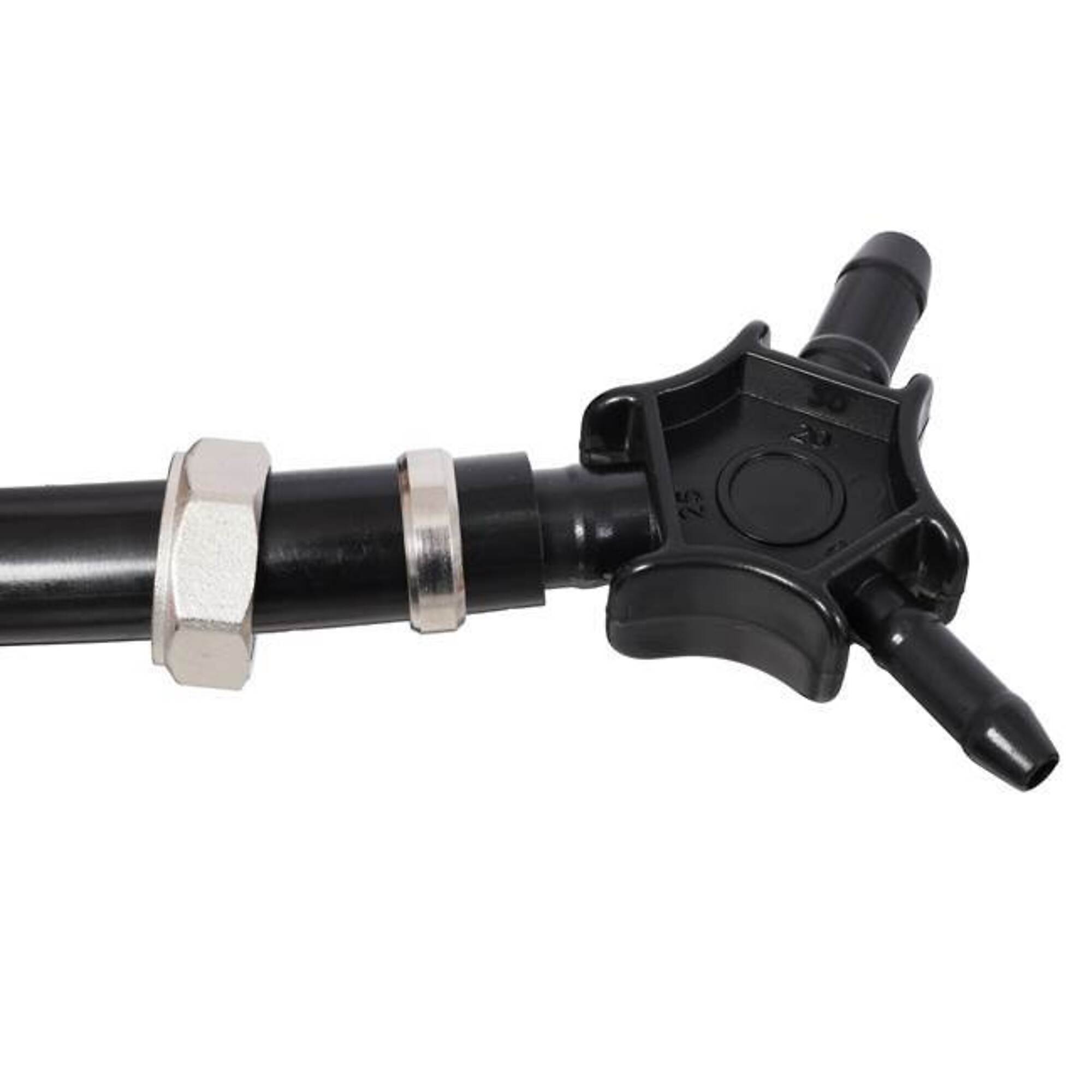

  • EASY INSTALLATION – Comes with a tubing cutter and bevel tool to help prepare the tubing for connections. Perfect for garages, workshops, auto repair facilities, woodworking spaces, and other compressed air tasks.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The BAC-W465P220518 Air Compressor Hose Kit allows you to build a reliable compressed air piping system. It features 3/4in. x 100ft. PEX-AL-PEX black tubing and aluminum outlet blocks. The three-layer PEX-AL-PEX construction has a strong aluminum core with inner and outer layers of high-density polyethylene to give you flexibility, chemical resistance, strength, and barrier protection. The 100’ length features a 3/4in. inner diameter and 1in. outer diameter, helping reduce the number of joints and potential leak points while installing. The system is rated for up to 200 PSI at 73°F and 160 PSI at 140°F. The complete kit includes 3 aluminum blocks, 3 brass valves, 1/2in. and 3/4in. NPT fittings, tee and L fittings, pipe-fixing clips, Teflon tape, a tubing cutter, and a bevel tool, providing the essential parts for a customized airline system in garages, workshops, auto repair facilities, woodworking areas, and other compressed air tasks.

What's Included

    (1) Air Compressor Tubing Kit

Features + Benefits

  • 100 FT TUBING – Includes 100’ of continuous 3/4" ID x 1" OD PEX-AL-PEX tubing for a reliable compressed air piping system. The continuous length helps reduce the need for multiple joints to reduce leak points and makes installation easy!
  • DURABLE 3-LAYER CONSTRUCTION – PEX-AL-PEX tubing features a strong aluminum core sandwiched between inner and outer layers of high-density polyethylene to combine flexibility and chemical resistance with the strength and barrier properties of aluminum.
  • 200 PSI OPERATING PRESSURE – Rated for up to 200 PSI at 73°F and 160 PSI at 140°F, for versatility with a wide range of compressed air piping needs.
  • COMPLETE INSTALLATION KIT – Includes 3 aluminum outlet blocks, 3 brass valves, three 1/2" NPT fittings, one 3/4" NPT fitting, 2 tubing tee fittings, 2 L tubing fittings, 20 pipe-fixing clips, and 2 rolls of Teflon tape.
  • EASY INSTALLATION – Comes with a tubing cutter and bevel tool to help prepare the tubing for connections. Perfect for garages, workshops, auto repair facilities, woodworking spaces, and other compressed air tasks.
  • 12 months limited parts warranty

Key Specs

AttributeSpecification

item#

7514733

Brand

TMB

Manufacturer's Warranty

1 year limited warranty

Ship Weight

20.8 LB
AttributeSpecification

Max. PSI

200

Hose Length

100 ft

Product Weight

18.4000 lb

Dimensions L x W x H (in.)

1,200.0 x 0.75 x 0.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
