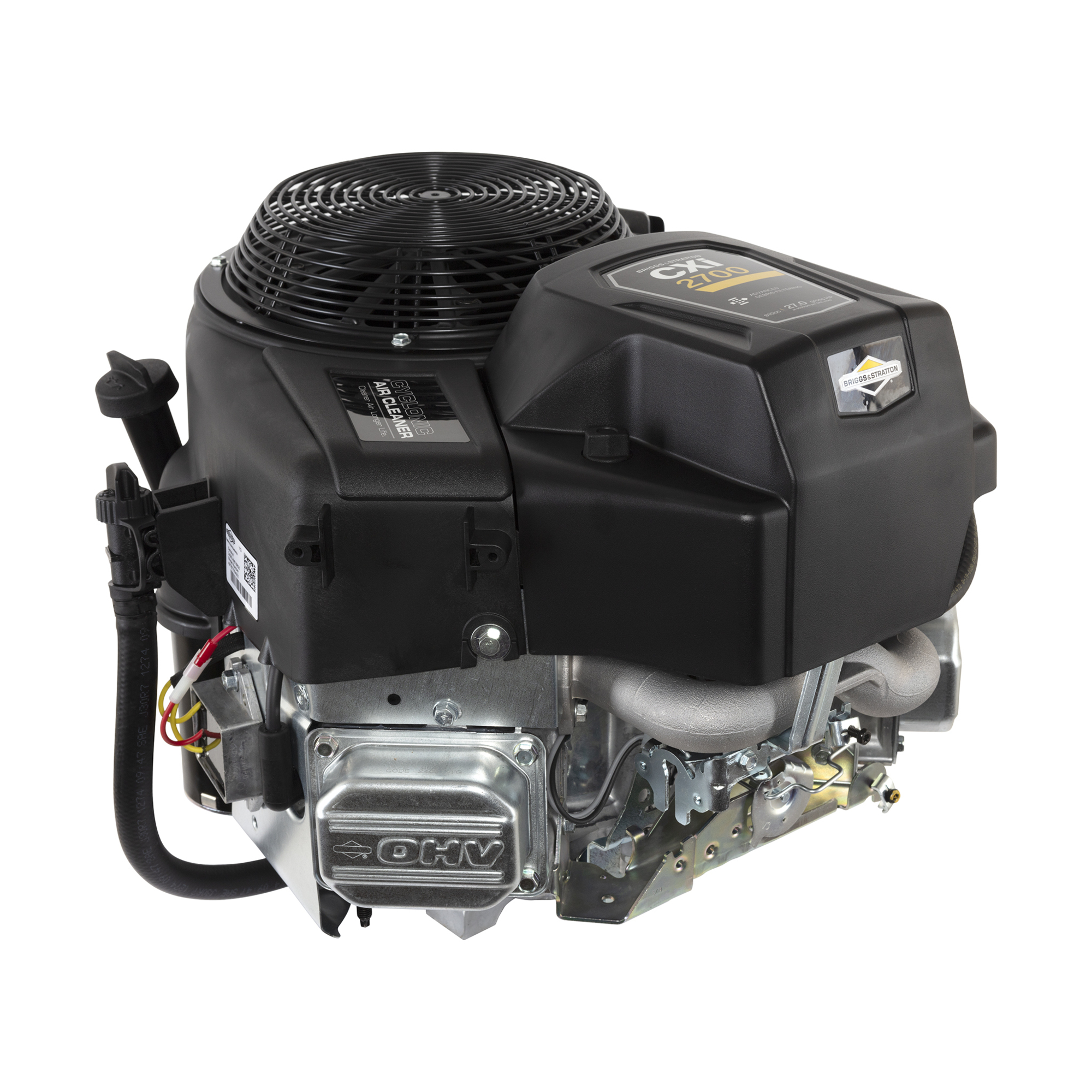

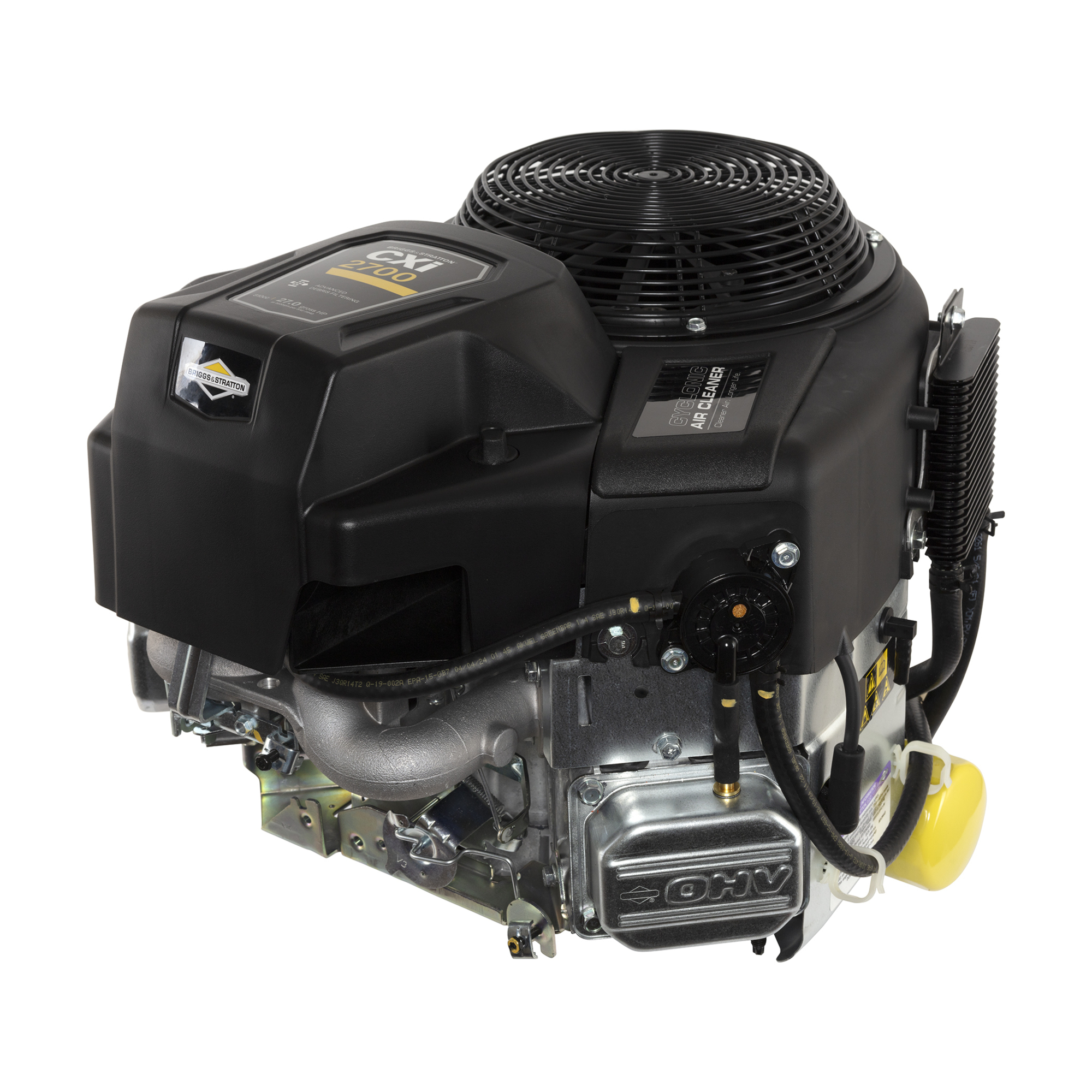

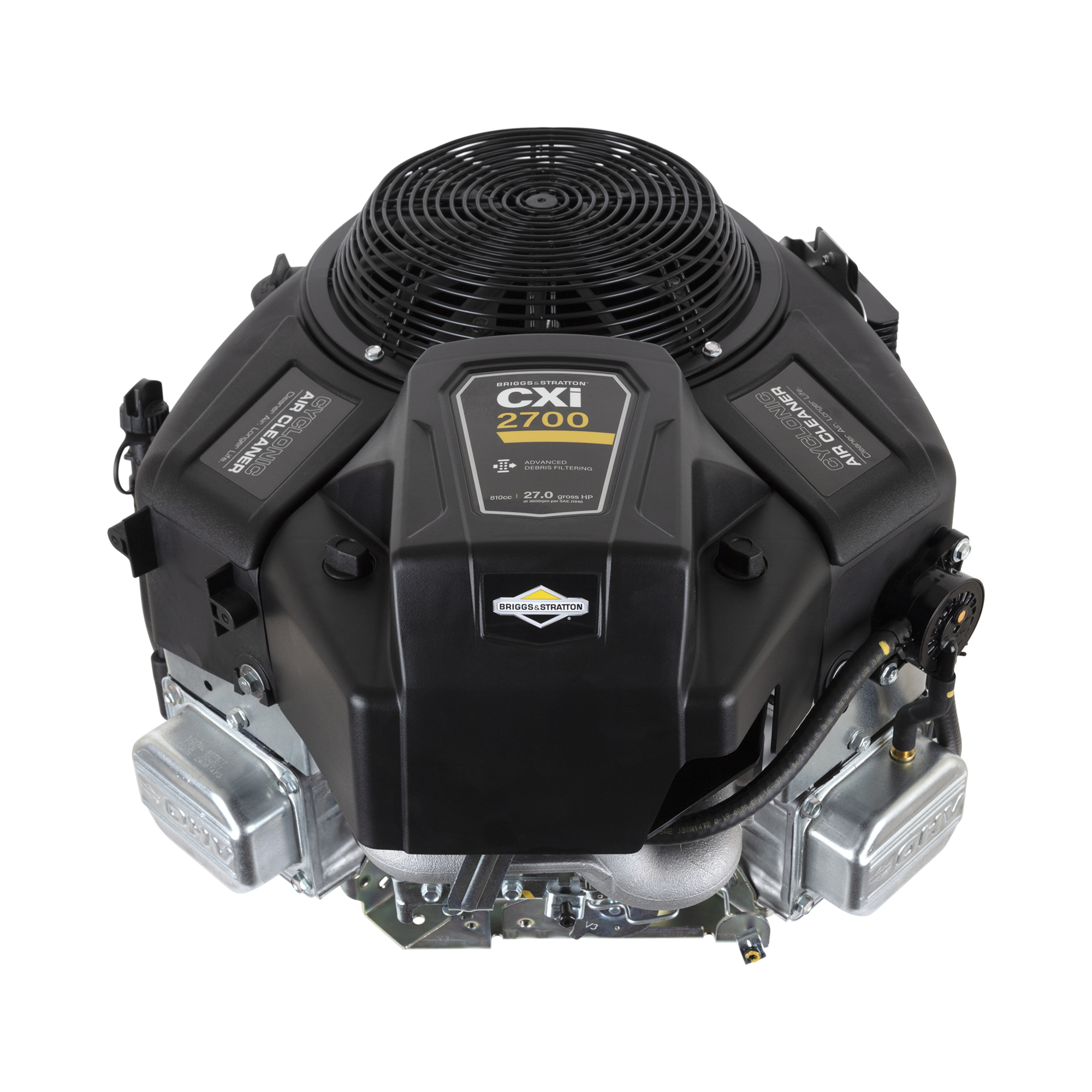

27.0 GHP Briggs & Stratton CXi2700 Series Vertical Shaft Engine, 810cc, 1-1/8" x 4-19/64” Crankshaft, Tapped 7/16-20, 1/4" Keyway, 12V Electric Start, 20A Alternator, Cyclonic Filtration, Model# 49T877-0049-Z1

Item# 6866391
Top Seller
27.0 GHP Briggs & Stratton CXi2700 Series Vertical Shaft Engine, 810cc, 1-1/8" x 4-19/64” Crankshaft, Tapped 7/16-20, 1/4" Keyway, 12V Electric Start, 20A Alternator, Cyclonic Filtration, Model# 49T877-0049-Z1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

27.0 GHP Briggs & Stratton CXi2700 Series Vertical Shaft Engine, 810cc, 1-1/8" x 4-19/64” Crankshaft, Tapped 7/16-20, 1/4" Keyway, 12V Electric Start, 20A Alternator, Cyclonic Filtration, Model# 49T877-0049-Z1

Click or Tap image to Zoom

$1299.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • V-Twin Engine. For more power, comfort and durability.
  • Patented 5-Step Integrated Cyclonic Debris Management System. Extended durability under heavy debris conditions.
  • Cyclonic air filter provides ultimate debris protection and lasts 2X longer than panel-style air cleaner systems
  • Increased cylinder block structure for added strength and durability
  • Cooling fin inspection panels speed debris inspection and cleaning

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

These V-Twin engines are specially designed for zero turn mowers and other high-debris applications to endure extended use in extreme conditions. Cyclonic air filtering keeps dirt out and extends engine life. The V-Twin design delivers more power, is naturally balanced for less vibration, runs cooler and cleaner.

What's Included

    (1) 1

Features + Benefits

  • V-Twin Engine. For more power, comfort and durability.
  • Patented 5-Step Integrated Cyclonic Debris Management System. Extended durability under heavy debris conditions.
  • Cyclonic air filter provides ultimate debris protection and lasts 2X longer than panel-style air cleaner systems
  • Increased cylinder block structure for added strength and durability
  • Cooling fin inspection panels speed debris inspection and cleaning
  • Not for sale in CA
  • 27.0 GHP CXi2700 Series 4-Cycle Gas Engine, 1-1/8" x 4-19/64” Crankshaft, Model# 49T877-0049-Z1

Key Specs

AttributeSpecification

item#

6866391

Brand

Briggs & Stratton

Manufacturer's Warranty

3 year limited warranty

Ship Weight

155.0 LB

Engine Displacement

810 cc

Engine Type

27.0 GHP CXi2700 Series

Shaft Diameter

1-1/8 in

Shaft Length

4.296875 in

Fuel Type

Gasoline
AttributeSpecification

Start Type

Electric

Shaft Keyway

1/4" in

Cylinders (qty.)

2

Cylinder Bore

Cast Iron

Net Power Output

27 HP

Oil Capacity

2 qt

CARB Approved

No

Product Weight

95.0000 lb

Dimensions L x W x H (in.)

33.0 x 32.0 x 32.0 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Does this include the carburetor?

    1 answer

    1. This engine has a standard OEM float-type carburetor.

      Helpful?

  2. When buying this motor what all comes with it?

    1 answer

    1. This unit includes the engine and hardware to attach a muffler but it does not include the muffler itself.

      Helpful?

  3. What size mounting bolt holds the engine

    1 answer

    1. The engine block uses 3/8"-16 threaded mounting bolts.

      Helpful?

  4. WHAT MUFFLER DOES THIS ENGINE TAKE

    1 answer

    1. The engine would take a MUF0626 for the filter side of the engine, and MUF0626R for the starter side. Currently, we do not carry these mufflers. The MUF0626 can be purchased from our sister company Jacks Small Engines at www.jackssmallengines.com.

      Helpful?

  5. Is the end of the vertical shaft drilled and taped for bolt to hold the PTO clutch in place ?

    1 answer

    1. The end of the shaft would be drilled and tapped with a 7/16"-20 TPI tapped hole.

      Helpful?

  6. Is the engine actually 33"x32"x32"? Seems way too large.

    1 answer

    1. The dimensions for the engine are 18.25" L x 19.25" W x 20" H.

      Helpful?

  7. What is the exhaust configuration?

    1 answer

    1. The engine would use a standard side mounted exhaust configuration secured with studs, nuts and a gasket.

      Helpful?

  8. What is the mounting bolt pattern? Wondering if this engine would work as a repower option in a Simplicity zero turn that has a Vanguard 23 hp engine in it 386777-0114-E1.

    1 answer

    1. The engine has a 10" 4 bolt mounting circle.

      Helpful?

  9. Does this motor have a manual choke?

    1 answer

    1. The engine would have a manual choke.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
