110V/220V Portable ARC Welder Actual 160A, BAC-W46594408

Item# 7530750
New

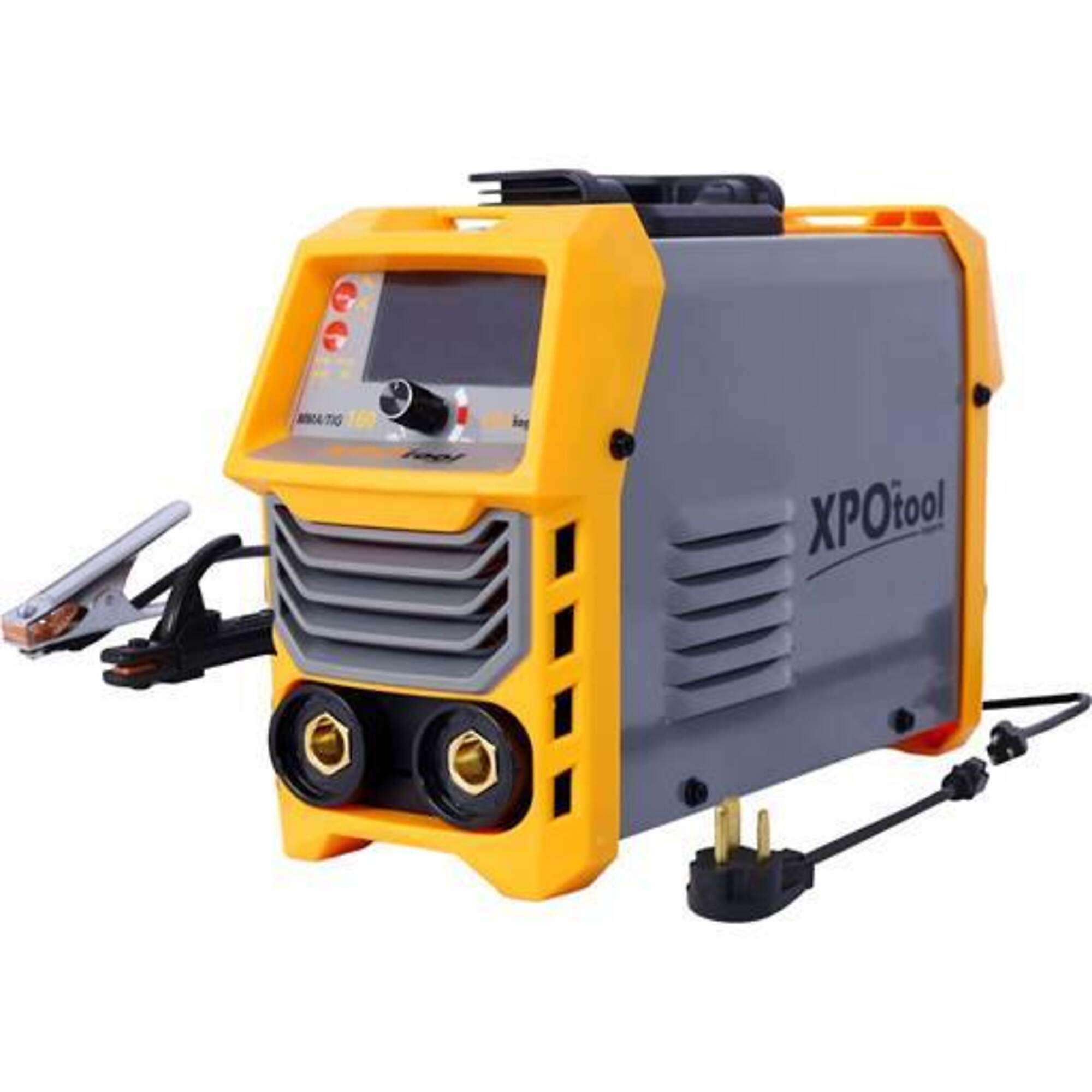

110V/220V Portable ARC Welder Actual 160A, BAC-W46594408

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

110V/220V Portable ARC Welder Actual 160A, BAC-W46594408

Click or Tap image to Zoom

$129.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 2-IN-1 ARC AND LIFT TIG WELDER - Combines MMA/Stick ARC and Lift TIG welding in one portable machine for stainless steel, mild steel, aluminum, and other metals. Ideal for garages, farms, maintenance, crafts, and DIY projects.
  • 160A TIG AND 140A MMA OUTPUT - Provides up to 160A in TIG mode and 140A in MMA mode. Supports E6011, E6013, E6014, and E7018 electrodes up to 5/32" (4.0mm), with automatic recommended current settings based on electrode size.
  • DUAL VOLTAGE - Automatically adapts to 110V or 220V power for effortless operation. TIG output ranges from 10–160A and the MMA output ranges from 10–140A.
  • IGBT INVERTER TECHNOLOGY - Advanced IGBT and PWM technology delivers efficient DC output, stable current, reduced spatter, and smoother welding performance with improved weld appearance.
  • HOT START AND ARC FORCE - Hot Start helps with easier arc striking, Arc Force provides a smoother arc and deeper penetration, and Anti-Stick helps prevent electrodes from sticking to your workpiece.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The BAC-W46594408 110V/220V Portable ARC Welder combines MMA/Stick ARC and Lift TIG welding in one easy-to-use machine. It delivers up to 160A for TIG welding and 140A for MMA welding, supporting E6011, E6013, E6014, and E7018 electrodes up to 5/32in. (4.0mm). The automatic dual-voltage operation allows the welder to work with 110V or 220V power. The adjustable current settings provide flexibility for different projects. Advanced IGBT inverter and PWM technology delivers stable DC output, reduced spatter, and smooth welding performance. Hot Start helps with arc starting, Arc Force promotes a smoother arc and deeper penetration, and Anti-Stick helps prevent electrodes from sticking. Overheating, overload, over-voltage, and over-current protection provide added safety. Compact and portable, this welder is perfect for garages, farms, outdoor maintenance, and home DIY projects. The package includes a 300A electrode holder, 300A work clamp, power adapter, cleaning brush, and owner's manual.

What's Included

    (1) Welder

Features + Benefits

  • 2-IN-1 ARC AND LIFT TIG WELDER - Combines MMA/Stick ARC and Lift TIG welding in one portable machine for stainless steel, mild steel, aluminum, and other metals. Ideal for garages, farms, maintenance, crafts, and DIY projects.
  • 160A TIG AND 140A MMA OUTPUT - Provides up to 160A in TIG mode and 140A in MMA mode. Supports E6011, E6013, E6014, and E7018 electrodes up to 5/32" (4.0mm), with automatic recommended current settings based on electrode size.
  • DUAL VOLTAGE - Automatically adapts to 110V or 220V power for effortless operation. TIG output ranges from 10–160A and the MMA output ranges from 10–140A.
  • IGBT INVERTER TECHNOLOGY - Advanced IGBT and PWM technology delivers efficient DC output, stable current, reduced spatter, and smoother welding performance with improved weld appearance.
  • HOT START AND ARC FORCE - Hot Start helps with easier arc striking, Arc Force provides a smoother arc and deeper penetration, and Anti-Stick helps prevent electrodes from sticking to your workpiece.
  • SAFETY FEATURES - Overheat, overload, over-voltage, and over-current protection help provide safe, reliable operation. Features a 60% duty cycle, 85% efficiency, and IP21S protection.

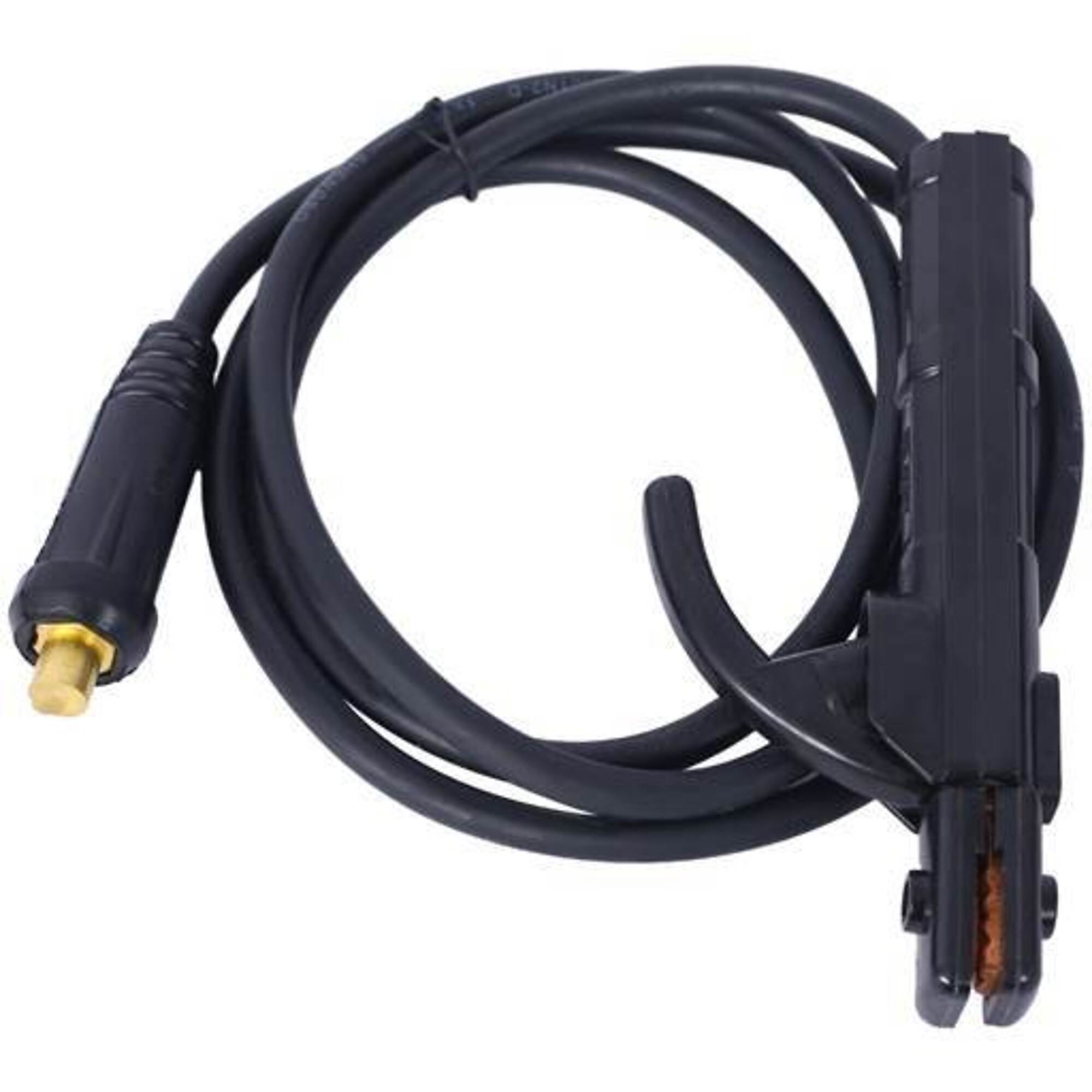

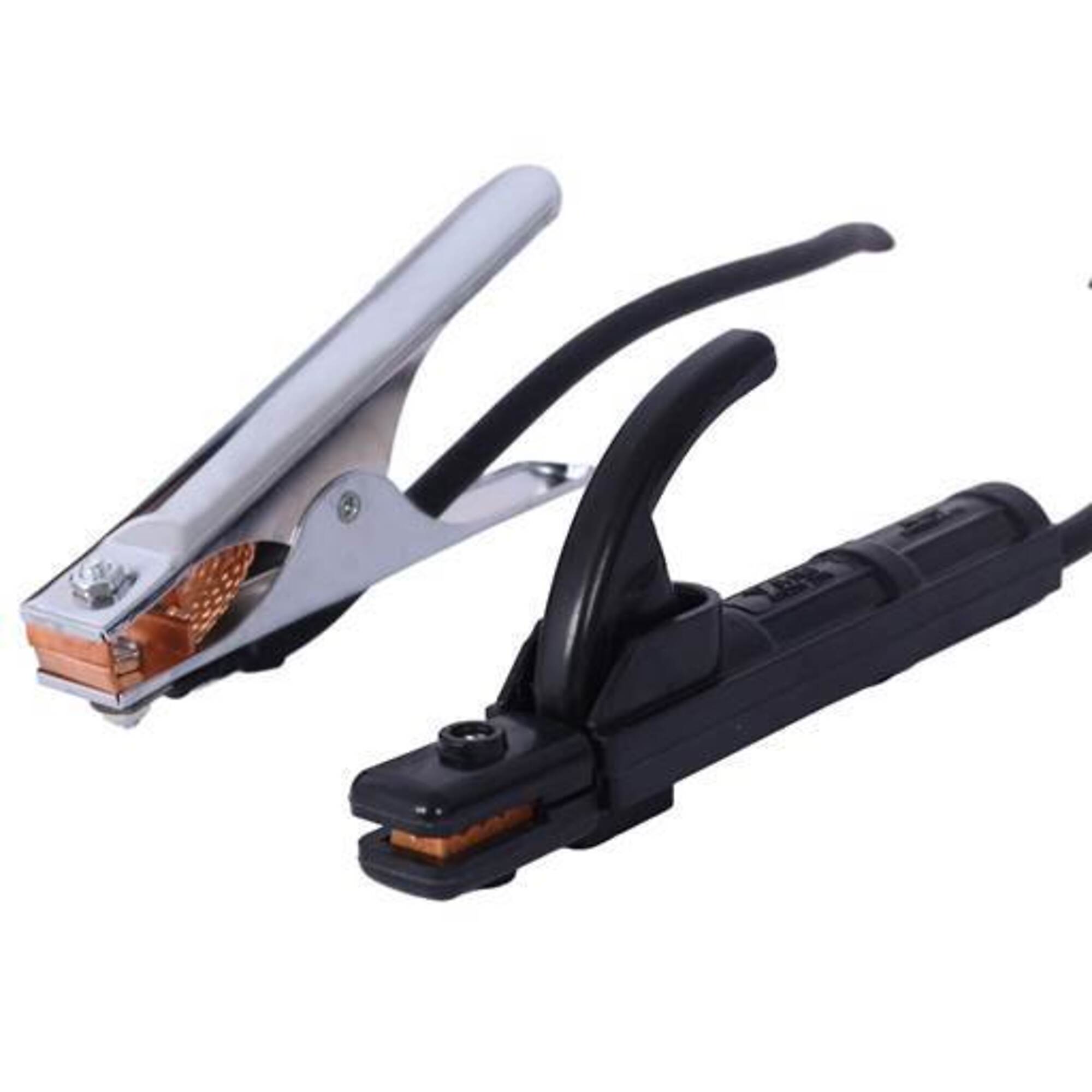

  • COMPLETE ACCESSORIES - Includes 300A electrode holder with 6-ft. cable, 300A work clamp with 5-ft. cable, 220V-to-110V power adapter, cleaning brush, and owner's manual.
  • 12 months limited parts warranty

Key Specs

AttributeSpecification

item#

7530750

Manufacturer's Warranty

1 year limited warranty

Ship Weight

12.1 LB
AttributeSpecification

Product Weight

10.0000 lb

Dimensions L x W x H (in.)

12.5 x 5.0 x 8.5 in
