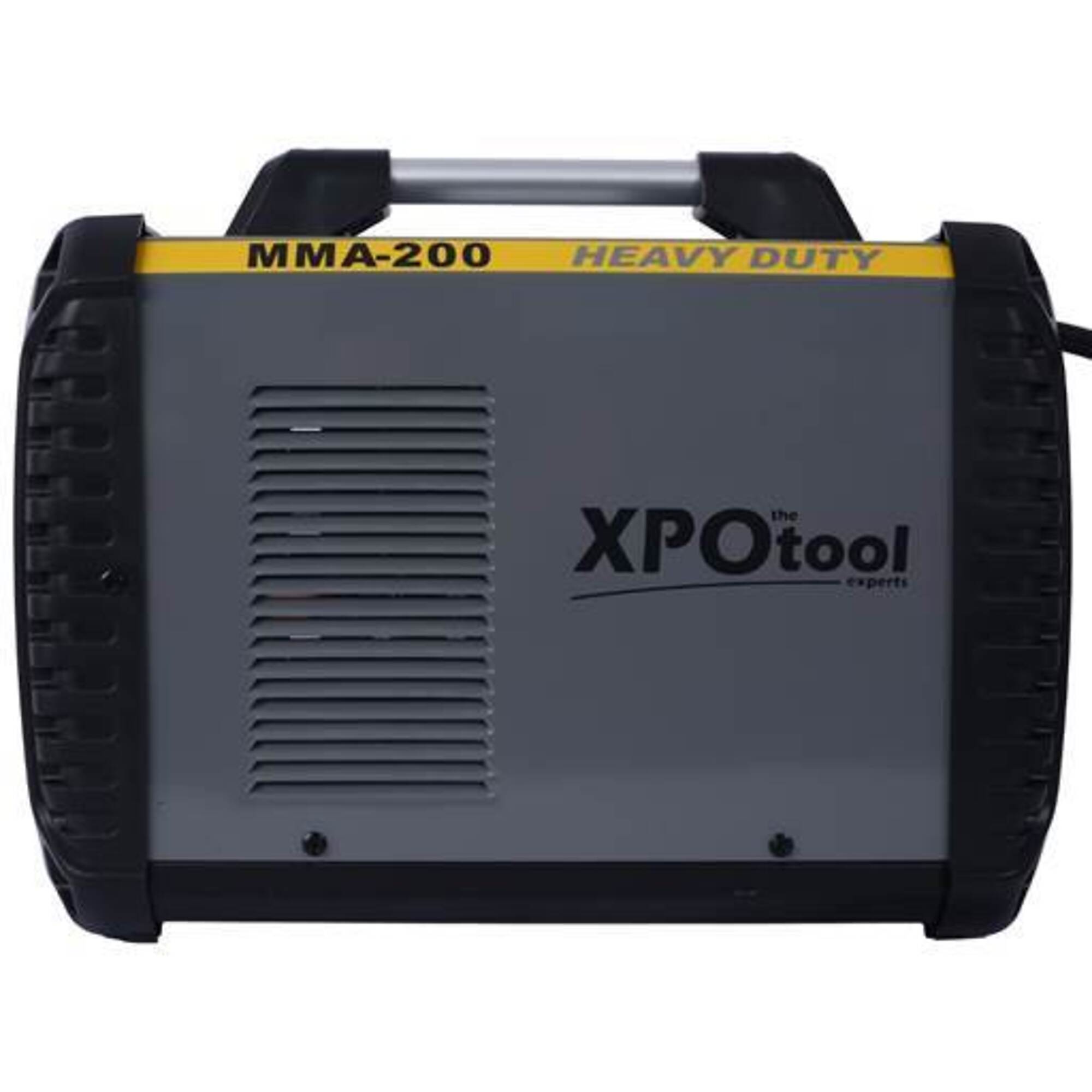

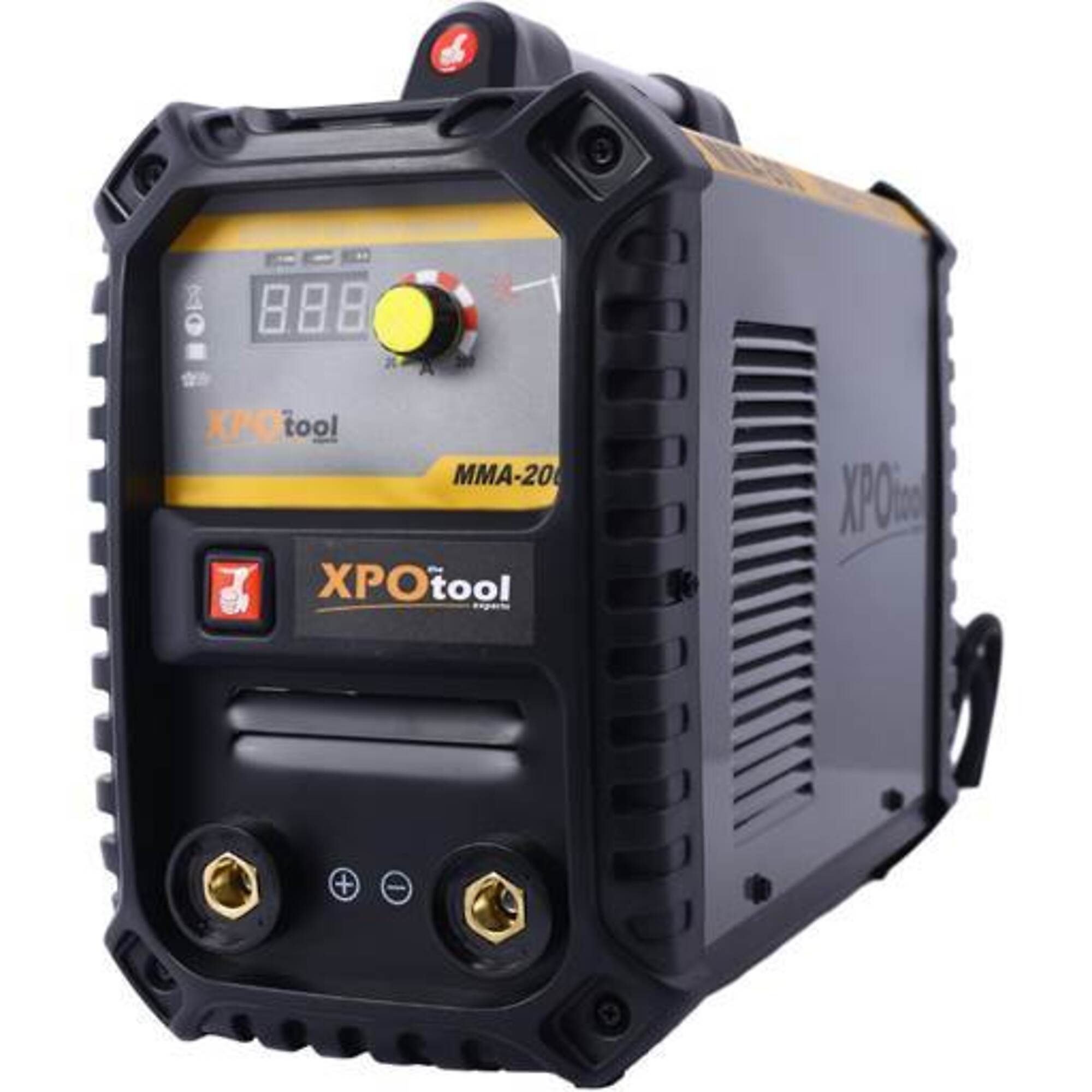

110/220V MMA Welder, 200A, BAC-W46594406

Item# 7530725
New
110/220V MMA Welder, 200A, BAC-W46594406

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

110/220V MMA Welder, 200A, BAC-W46594406

Click or Tap image to Zoom

$169.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • POWERFUL 200A WELDING - This 110/220V MMA/Stick ARC welder provides a 20–200A stepless current range and supports welding with 2.0–5.0mm electrodes, including E6011, E6013, E6014, and E7018 rods up to 5/32" for a variety of welding tasks.
  • DUAL-VOLTAGE - Designed with automatic 110/220V voltage conversion and a 90–260V wide-voltage range, this IGBT inverter welder adapts to voltage fluctuations for dependable operation in different working environments.
  • ARC FORCE AND HOT START - Arc Force and Hot Start functions help improve arc starting and welding stability. The Anti-Stick technology helps reduce electrode sticking for smoother, more consistent welding.
  • BUILT-IN SAFETY - Overheating, over-current, over-loading, and current protection features help keep the welder safe during operation. The unit is rated with an H insulation class and IP21S case protection for added durability.
  • PORTABLE AND EASY-TO-USE DESIGN: The compact welder features an easy-carry handle and digital display for convenient transport, setup, and operation. Its automatic matching of electrode size and current makes it ideal for beginners and experienced welders.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The BAC-W46594406 110/220V MMA Welder delivers reliable welding capabilities with a 20–200A stepless current range and support for 2.0–5.0mm electrodes, making it suitable for E6011, E6013, E6014, and E7018 rods up to 5/32in. Its IGBT inverter design features Arc Force, Hot Start, and Anti-Stick functions to promote smooth arc starting and stable welding for optimal performance. The automatic 110/220V conversion and a 90–260V wide-voltage range provide flexibility when working with different power conditions. The built-in overheating, over-current, over-load, and current protection give you safer operation. The 45% duty cycle at 220A and 104°F (40°C) allows for extended welding sessions. A digital display and convenient carrying handle make the unit easy to operate, transport, and store. The welder includes a 500A electrode holder, 500A work clamp, conversion plug, power cord, welding cable, and ground cable for a complete welding setup.

What's Included

    (1) Welder

Features + Benefits

  • POWERFUL 200A WELDING - This 110/220V MMA/Stick ARC welder provides a 20–200A stepless current range and supports welding with 2.0–5.0mm electrodes, including E6011, E6013, E6014, and E7018 rods up to 5/32" for a variety of welding tasks.
  • DUAL-VOLTAGE - Designed with automatic 110/220V voltage conversion and a 90–260V wide-voltage range, this IGBT inverter welder adapts to voltage fluctuations for dependable operation in different working environments.
  • ARC FORCE AND HOT START - Arc Force and Hot Start functions help improve arc starting and welding stability. The Anti-Stick technology helps reduce electrode sticking for smoother, more consistent welding.
  • BUILT-IN SAFETY - Overheating, over-current, over-loading, and current protection features help keep the welder safe during operation. The unit is rated with an H insulation class and IP21S case protection for added durability.
  • PORTABLE AND EASY-TO-USE DESIGN: The compact welder features an easy-carry handle and digital display for convenient transport, setup, and operation. Its automatic matching of electrode size and current makes it ideal for beginners and experienced welders.
  • HIGH DUTY CYCLE AND LOW-TEMPERATURE OPERATION - Rated for a 45% duty cycle at 200A and 104°F (40°C), allowing you to consecutively weld up to 10 electrodes without protection and is designed for normal operation in temperatures as low as 5°F (-15°C).

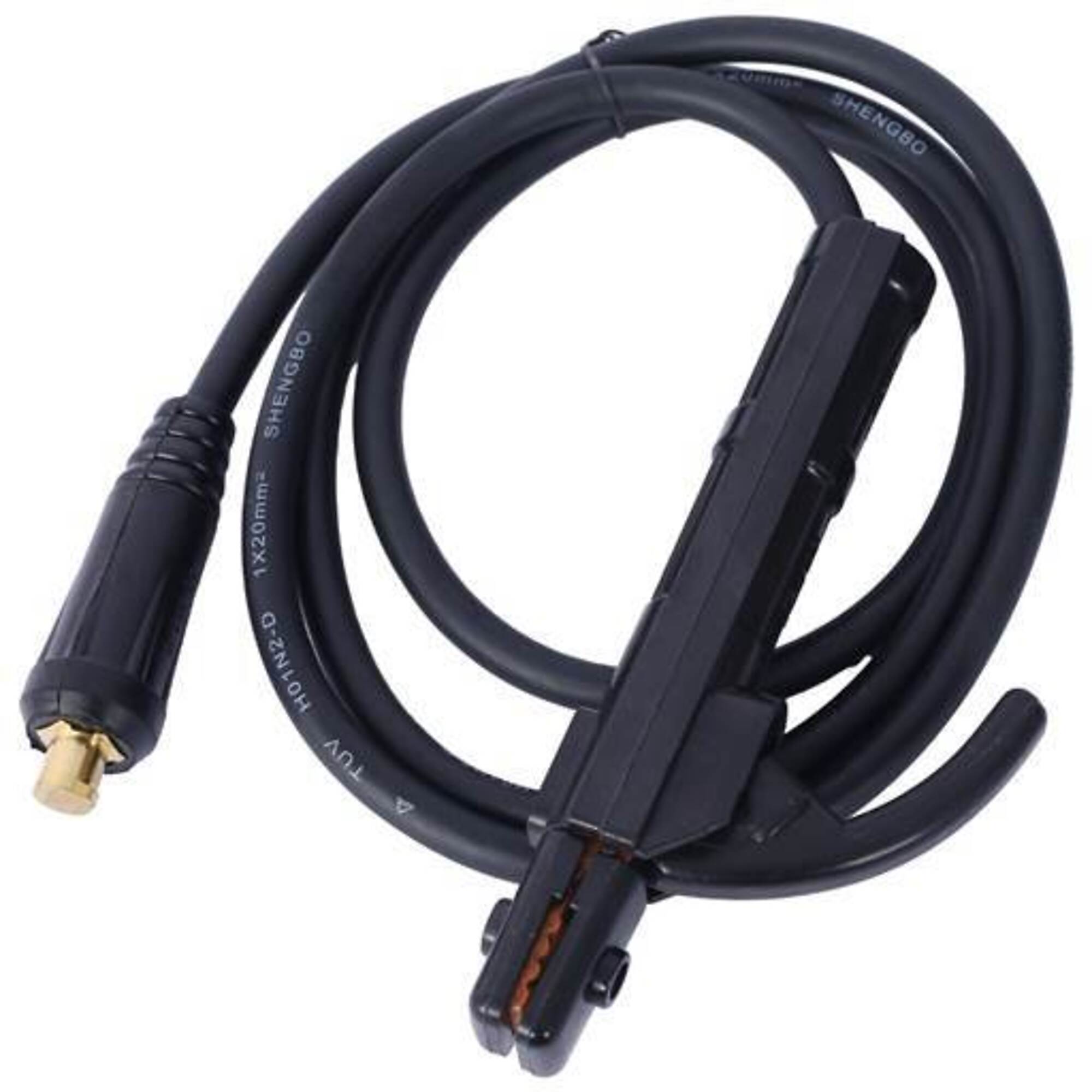

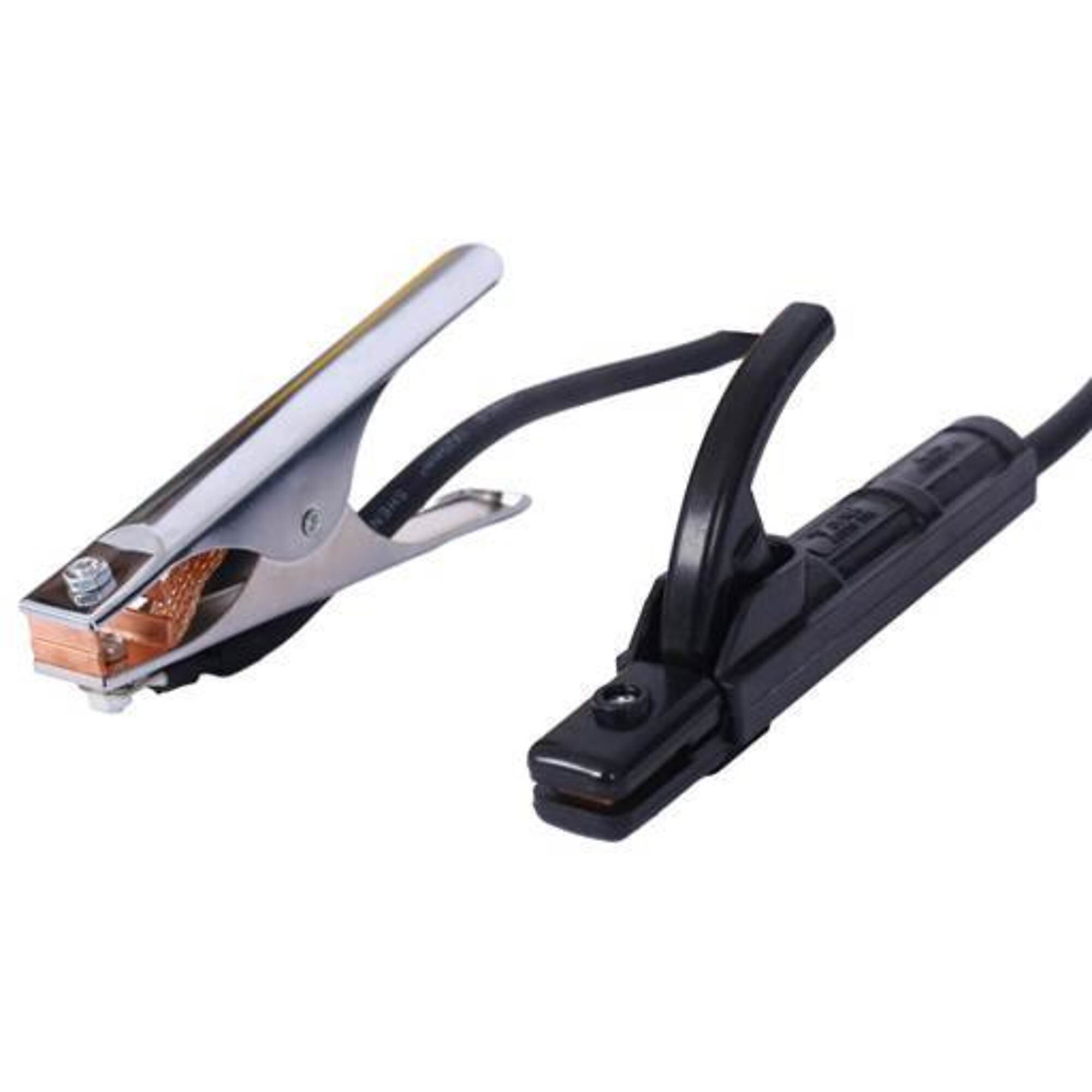

  • INCLUDES WELDING ACCESSORIES – Comes with a 500A electrode holder assembly, 500A work clamp assembly, 110/220V conversion plug, power cord, welding gun cable, and ground cable for a ready-to-use setup.
  • 12 months limited parts warranty

Key Specs

AttributeSpecification

item#

7530725

Manufacturer's Warranty

1 year limited warranty

Ship Weight

19.8 LB
AttributeSpecification

Product Weight

17.6000 lb

Dimensions L x W x H (in.)

16.5 x 7.0 x 12.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
