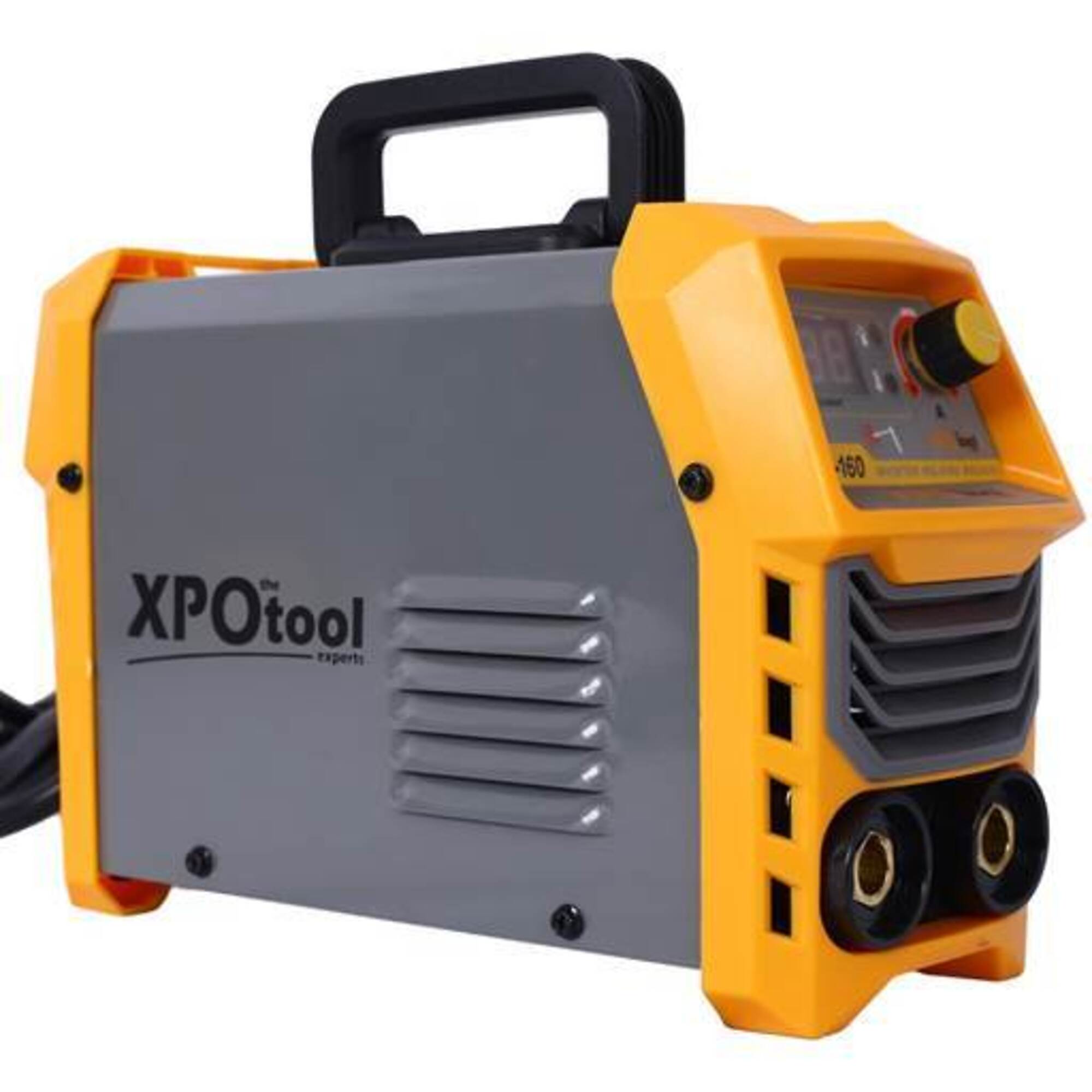

110/220V MMA Welder, 160A, BAC-W46594401

Item# 7530741
New
110/220V MMA Welder, 160A, BAC-W46594401

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

110/220V MMA Welder, 160A, BAC-W46594401

Click or Tap image to Zoom

$119.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • DUAL-VOLTAGE 160A POWER - Operates on 110V or 220V with automatic voltage conversion and a 20-160A stepless current adjustment, providing flexible power for a variety of stick welding tasks. The 90V-260V voltage adaptability helps maintain stable operation even during voltage fluctuations.
  • IGBT INVERTER TECHNOLOGY - Advanced IGBT inverter technology delivers efficient, consistent DC welding performance with up to 80% efficiency. The 65V maximum no-load voltage and 45% duty cycle at 160A/104°F (40°C) support reliable welding for demanding projects.
  • ELECTRODE COMPATIBILITY - Designed for common stick electrodes including E6011, E6013, E6014, and E7018. Supports electrode diameters from 2.0-4.0mm (approximately 5/64-5/32 in). Digital controls make current adjustment simple for both beginners and experienced welders.
  • SMART WELDING FUNCTIONS AND SAFETY - Built-in hot start, arc force, and anti-stick functions help provide easier arc starting and smoother welding. Overheating, over-current, and overload protection help safeguard the machine during operation, while the IP21S-rated housing provides added protection.
  • COMPLETE WELDING SET - Compact design with the built-in carrying handle makes the welder convenient to transport and store. Includes a 500A electrode holder assembly, 500A work clamp assembly, welding and ground cables, and 110V/220V power conversion plug for a ready-to-use setup.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The BAC-W46594401 110/220V MMA Welder gives you a versatile, reliable stick welder in a compact and portable piece of equipment. Featuring IGBT inverter technology, this 160A welder provides a stepless 20-160A current adjustment and supports 110V/220V operation with automatic voltage conversion, so that it will work with different power requirements and voltage fluctuations. The welder is compatible with common E6011, E6013, E6014, and E7018 electrodes ranging from 2.0-4.0mm and includes LCD digital controls for ideal operation. Hot start, arc force, and anti-stick functions help provide smooth arc starting and consistent welding results, while overheating, over-current, and overload protection make it safer to use. With an IP21S-rated housing, 45% duty cycle at 160A and 104°F (40°C), and a maximum no-load voltage of 65V, this MMA welder is suited for a variety of repair, fabrication, maintenance, and DIY welding projects. An integrated carrying handle makes transportation and storage easy. This is a convenient product with the included 500A electrode holder, 500A work clamp, welding and ground cables, power cord, and 110V/220V conversion plug.

What's Included

    (1) Welder

Features + Benefits

  • DUAL-VOLTAGE 160A POWER - Operates on 110V or 220V with automatic voltage conversion and a 20-160A stepless current adjustment, providing flexible power for a variety of stick welding tasks. The 90V-260V voltage adaptability helps maintain stable operation even during voltage fluctuations.
  • IGBT INVERTER TECHNOLOGY - Advanced IGBT inverter technology delivers efficient, consistent DC welding performance with up to 80% efficiency. The 65V maximum no-load voltage and 45% duty cycle at 160A/104°F (40°C) support reliable welding for demanding projects.
  • ELECTRODE COMPATIBILITY - Designed for common stick electrodes including E6011, E6013, E6014, and E7018. Supports electrode diameters from 2.0-4.0mm (approximately 5/64-5/32 in). Digital controls make current adjustment simple for both beginners and experienced welders.
  • SMART WELDING FUNCTIONS AND SAFETY - Built-in hot start, arc force, and anti-stick functions help provide easier arc starting and smoother welding. Overheating, over-current, and overload protection help safeguard the machine during operation, while the IP21S-rated housing provides added protection.
  • COMPLETE WELDING SET - Compact design with the built-in carrying handle makes the welder convenient to transport and store. Includes a 500A electrode holder assembly, 500A work clamp assembly, welding and ground cables, and 110V/220V power conversion plug for a ready-to-use setup.
  • 12 months limited parts warranty

Key Specs

AttributeSpecification

item#

7530741

Manufacturer's Warranty

1 year limited warranty

Ship Weight

12.1 LB
AttributeSpecification

Product Weight

11.0000 lb

Dimensions L x W x H (in.)

13.0 x 5.0 x 8.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
