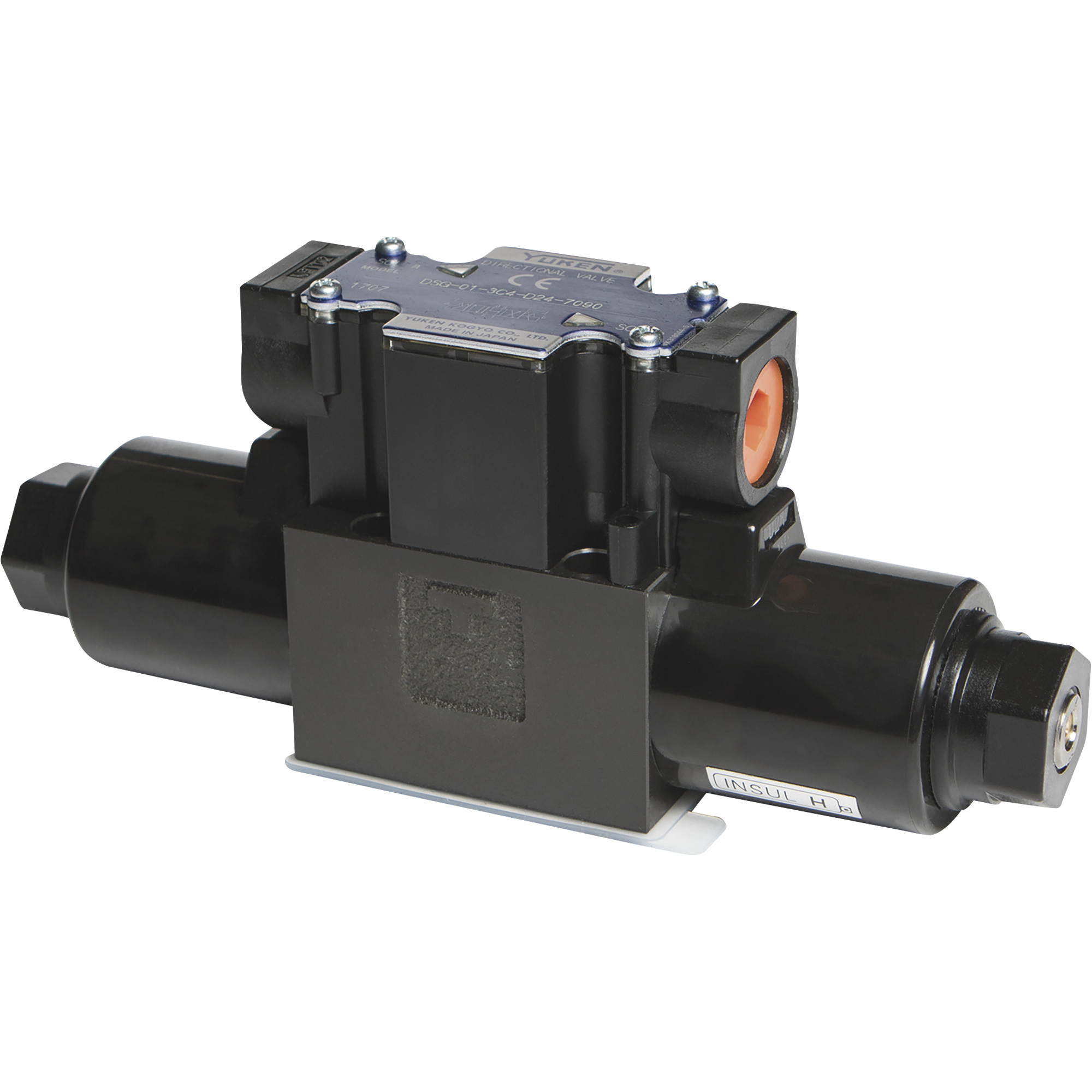

Yuken Spool-Style 5 Hydraulic Directional Control Valve - 13 GPM, 5080 PSI, 3-Position, 12 Volt DC Solenoid, Model# DSG-01-3C60-D12-7090

Item# 68305
Yuken Spool-Style 5 Hydraulic Directional Control Valve - 13 GPM, 5080 PSI, 3-Position, 12 Volt DC Solenoid, Model# DSG-01-3C60-D12-7090

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Yuken Spool-Style 5 Hydraulic Directional Control Valve - 13 GPM, 5080 PSI, 3-Position, 12 Volt DC Solenoid, Model# DSG-01-3C60-D12-7090

Click or Tap image to Zoom

  • Delivers high pressure and high flow rate
  • Low pressure drop for stable operation
  • IP65-equivalent high dust and waterproof protection
  • CE certified for installation

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This industrial-mobile Yuken Spool-Style 5 Hydraulic Directional Control Valve conforms to the National Fluid Power Association (NFPA) D03 mounting pattern for subplate or manifold mounting. As a 3-position, 4-way valve, it is commonly used to extend and retract a double-acting hydraulic cylinder. As a single solenoid valve, it will remain in its home position (tandem center) until shifted electrically, returning to home when the power is removed. Its molded coils are moisture and dirt resistant. Indicating signal lights, manual override and electrical junction box are standard. The valve mounts on Northern Tool Subplates 68306 (1/4in. port) and 68617 (3/8in. port).

What's Included

    (1) Hydraulic directional control valve

Features + Benefits

  • Delivers high pressure and high flow rate
  • Low pressure drop for stable operation
  • IP65-equivalent high dust and waterproof protection
  • CE certified for installation

Key Specs

AttributeSpecification

item#

68305

Brand

Yuken

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4.4 LB

GPM

13
AttributeSpecification

Max. PSI

5,080

Directional Control

4-way, 3-position

Indicator Light

Yes

Product Weight

5.0000 lb

Dimensions L x W x H (in.)

9.0 x 4.5 x 2.5 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. What size screws does it take to mount to subframe

    1 answer

    1. It would take the standard 10 x 24 UNC x 1 /34" screw.

      Helpful?

  2. Can I run ac through this instead of dc

    1 answer

    1. Th valve can only be run on DC, 12 volt.

      Helpful?

  3. What subplate works best with this valve

    1 answer

    1. Please see our item #68306 and #68617 for subplates this will fit.

      Helpful?

  4. Does this valve come with (4) o-rings for mounting to subplate or is there a sandwich plate for sealing?

    1 answer

    1. There are factory installed O-rings on the bottom of the valve that seal it to the subplate.

      Helpful?

  5. How much current is required to turn on the valve?

    1 answer

    1. The valve will be 2.45 amps at 12 volt.

      Helpful?

  6. How does the manual override work.

    1 answer

    1. This Yuken spool-style 5 hydraulic directional control valve has a push button with lock nut. This can be used for manual changeover of the spool. The push button can be locked in the pressed condition.

      Helpful?

  7. Soft start

    Can theses valves be proportionally controlled using PWM?
    Or at least a softer start using PWM?
    Thanks
    David

    1 answer

    1. This Yuken spool-style 5 hydraulic directional control valve cannot be proportionally controlled using PWM. This is a direct acting electro-magnetic solenoid operated directional valve that simply uses an on/off electrical signal to actuate the solenoid.

      Helpful?

  8. Hydraulic valve question

    What is a tandem center?

    1 answer

    1. Tandem spool valves are used in hydraulic circuits where two or more hydraulic cylinders or motors are controlled from a single source of power. In this configuration the working ports A and B are blocked and the pump port P is connected to the tank port T.

      Helpful?

  9. Hydraulic valve question

    Does this valve have an open center so it can be put in line on a tractor hydraulic system?

    1 answer

    1. This unit can be used in a tractor hydraulic system, however it features a tandem center. Please see My Product Recommendations below for another solenoid valve with an open center and the mounting subplate options.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
