Yost Vises, 4in. HD Vise Swivel Base, Jaw Width 4 in, Jaw Capacity 0 in, Material Ductile Iron, Model# 204

Item# 5325162
Yost Vises, 4in. HD Vise Swivel Base, Jaw Width 4 in, Jaw Capacity 0 in, Material Ductile Iron, Model# 204

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Yost Vises, 4in. HD Vise Swivel Base, Jaw Width 4 in, Jaw Capacity 0 in, Material Ductile Iron, Model# 204

Click or Tap image to Zoom

$429.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Conforms to Fed. Spec. GGG-V-410B Type VI Class 2
  • Meets NSN 5120-00-293-1439
  • Lifetime Casting Warranty
  • 65,000 PSI Tensile Ductile Iron Body Parts
  • Interlocking Swivel Base With 360 Degree Motion

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

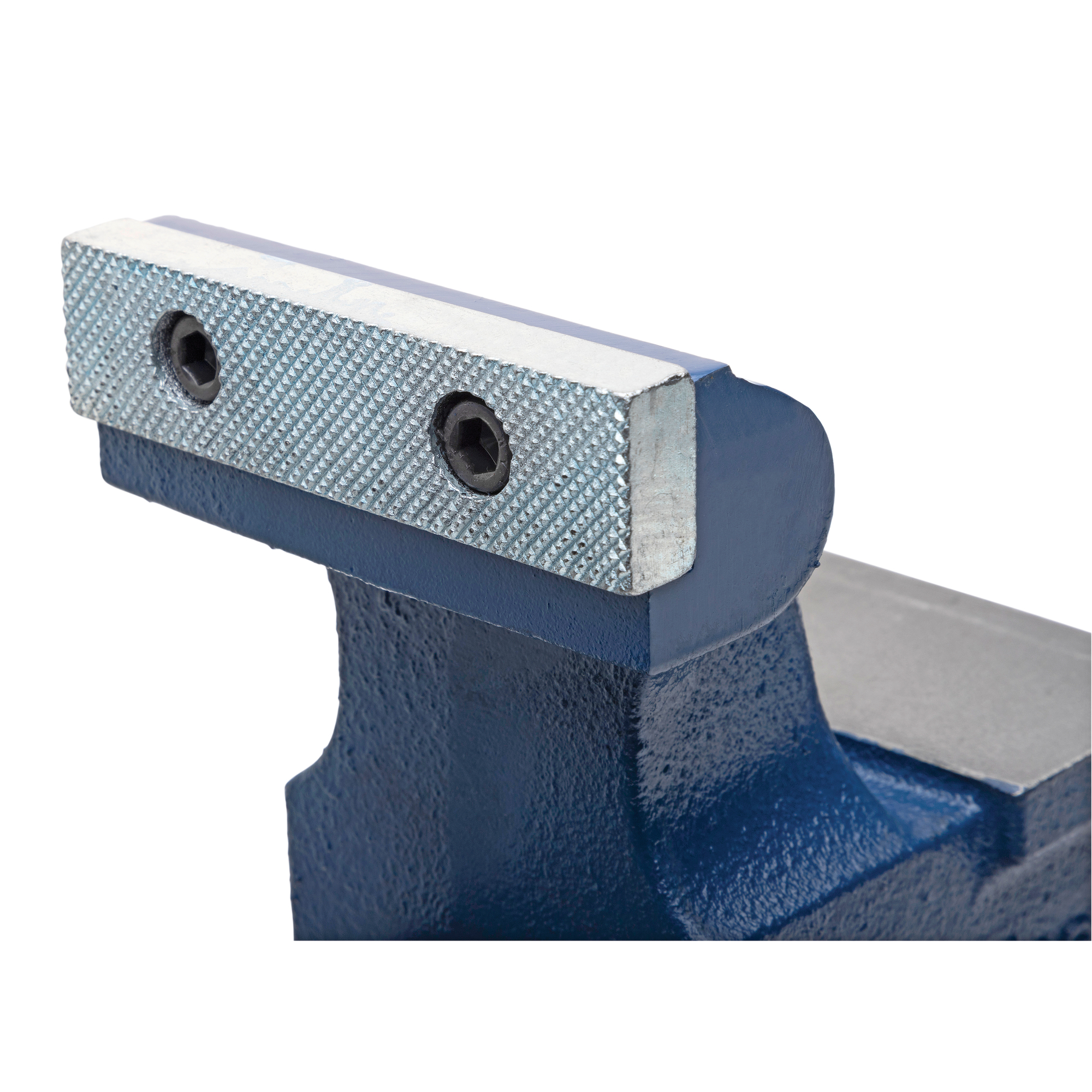

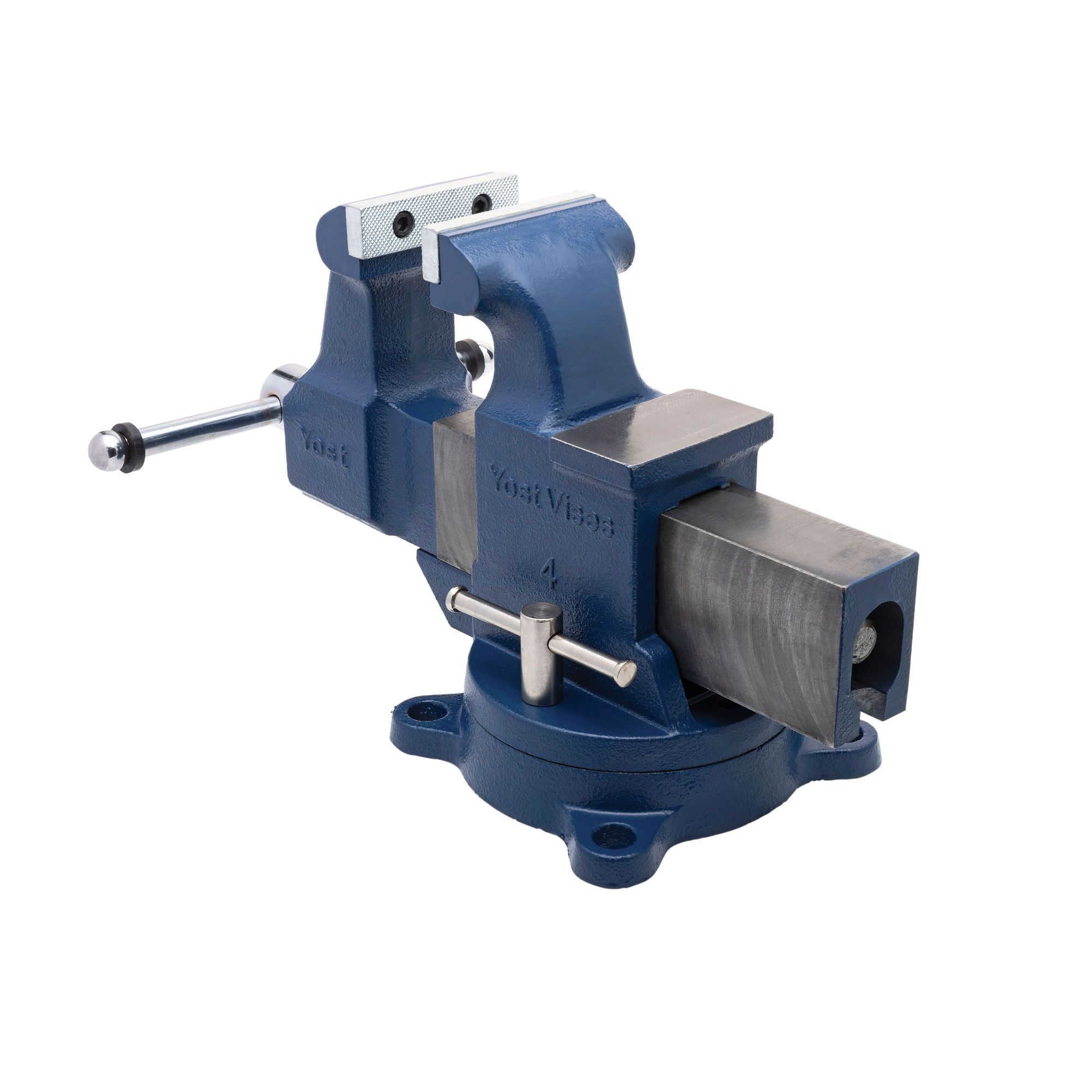

The Yost 204 4in. machinist vise with swivel base has an extra-large jaw opening and throat depth, mounts to a workbench to provide clamping action for heavy-duty applications, meets Federal Specification GGG-V-410B Type VI Class 2. The 360-degree swivel base adjusts the direction of the jaws for proper placement. Hand-tightening the lock knob on the base secures its position. The ductile iron body is durable and strong for extended life. The hardened-steel jaws have grooves for enhanced grip and can be replaced when worn. The jaws draw closer together or farther apart by turning the vise handle clockwise or counterclockwise. The main screw that controls the jaws has been continuous rolled for high strength. A rubber washer on either side of the handle prevents unwanted sliding when turning, and the balls on each end unscrew to enable replacement of the handle if worn. The base has four 0.65in.-diameter holes for mounting hardware (not included).

What's Included

    (1) Vise

Features + Benefits

  • Conforms to Fed. Spec. GGG-V-410B Type VI Class 2
  • Meets NSN 5120-00-293-1439
  • Lifetime Casting Warranty
  • 65,000 PSI Tensile Ductile Iron Body Parts
  • Interlocking Swivel Base With 360 Degree Motion
  • 2 Lockdowns
  • No Pinch Main Screw Handle
  • Replaceable Hardened Steel Serrated Jaws
  • Continuous Rolled Thread on Main Screw

Key Specs

AttributeSpecification

item#

5325162

Brand

Yost Vises

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

58.0 LB

Product Type

Bench Vises
AttributeSpecification

Jaw Width

4 in

Jaw Capacity

0 in

Material

Ductile Iron

Jaw Depth

4 in
