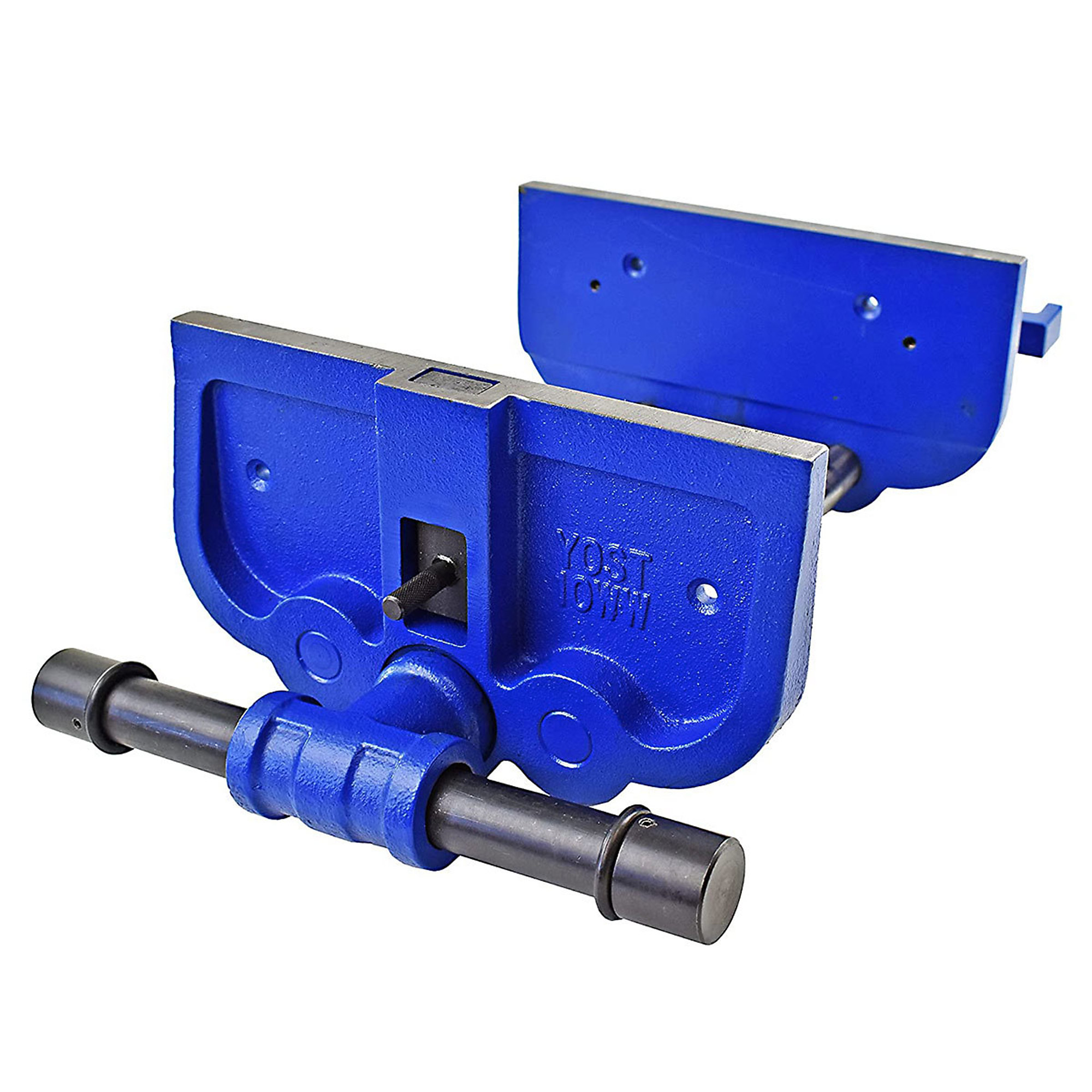

Yost Vises, 10in. Woodworker Vise, Jaw Width 10 in, Jaw Capacity 13 in, Material Ductile Iron, Model# 10WW-CA

Item# 5819525
Yost Vises, 10in. Woodworker Vise, Jaw Width 10 in, Jaw Capacity 13 in, Material Ductile Iron, Model# 10WW-CA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Yost Vises, 10in. Woodworker Vise, Jaw Width 10 in, Jaw Capacity 13 in, Material Ductile Iron, Model# 10WW-CA

Click or Tap image to Zoom

$189.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Heavy duty ductile iron castings with black baked-on enamel finish
  • Conforms to Federal Specifications GGG-V445 Type I Class II
  • Meets National Stock Number (NSN) 5120-00-221-1114
  • Machined toed-in vise jaws
  • Continuous rolled 1 Inch Acme threaded main screw

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Yost Vises 10WW-CA 10in. heavy-duty ductile iron woodworkers vise mounts to a workbench up to 3in. thick to provide clamping action for heavy-duty and professional applications, meets Federal Specification GGG-V445, Type I, Class II, and is National Stock Number (NSN) 5120-00-221-1114 compliant. The ductile iron body and replaceable cast bronze alloy nut construction provide strength for extended life. The slightly tapered, also known as toed, jaws create a solid grip and apply pressure evenly across the top and bottom of the vise. Solid steel guide rails adjust to counteract wear. The maximum opening guide bar equipped with end stop prevents vise separation. The adjustable-height steel lift dog holds a workpiece in place for sanding or scraping and is supported by pressure clamps. A rubber washer on either side of the handle prevents unwanted sliding when turning, and the balls on each end unscrew to enable replacement of the handle if worn. The vise has two 0.3in.- diameter holes and two 0.325in.-diameter holes for included mounting hardware.

What's Included

    (1) Vise

Features + Benefits

  • Heavy duty ductile iron castings with black baked-on enamel finish
  • Conforms to Federal Specifications GGG-V445 Type I Class II
  • Meets National Stock Number (NSN) 5120-00-221-1114
  • Machined toed-in vise jaws
  • Continuous rolled 1 Inch Acme threaded main screw
  • 1-1/16 Inch steel tube main screw handle supplied with pinch-free rubber washers
  • Main screw steel end caps pinned in place
  • 7/8 Inch diameter solid steel guide bars
  • Maximum opening guide bar equipped with end stop prevents vise separation
  • Continuous type nut
  • Replaceable cast bronze alloy nut construction
  • Replaceable cast bronze alloy nut construction
  • Solid steel lift dog with knurled lift pin
  • Mounting instructions and hardware included
  • Ideally suited for the professional woodworker

Key Specs

AttributeSpecification

item#

5819525

Brand

Yost Vises

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

38.0 LB

Jaw Width

10 in
AttributeSpecification

Jaw Capacity

13 in

Material

Ductile Iron

Jaw Depth

4 in

Product Type

Woodworking Vises

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
