Field Tuff, 30 x 60 Single Axle Dump Cart, Load Capacity 1400 lb, Model# ATV-3060SADC

Item# 5353825
Field Tuff, 30 x 60 Single Axle Dump Cart, Load Capacity 1400 lb, Model# ATV-3060SADC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Field Tuff, 30 x 60 Single Axle Dump Cart, Load Capacity 1400 lb, Model# ATV-3060SADC

Click or Tap image to Zoom

$798.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Features an extra wide, hand-operated dump latch
  • Bed measures 57.5” x 28” x 5” (bottom section); 57.5” x 39” x 22.25” (top section)
  • Constructed of heavy-duty steel for a durable and sturdy wagon
  • Designed with front and back gates – hinged and pinned for secure close, but easy access
  • Side rails secures your load

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

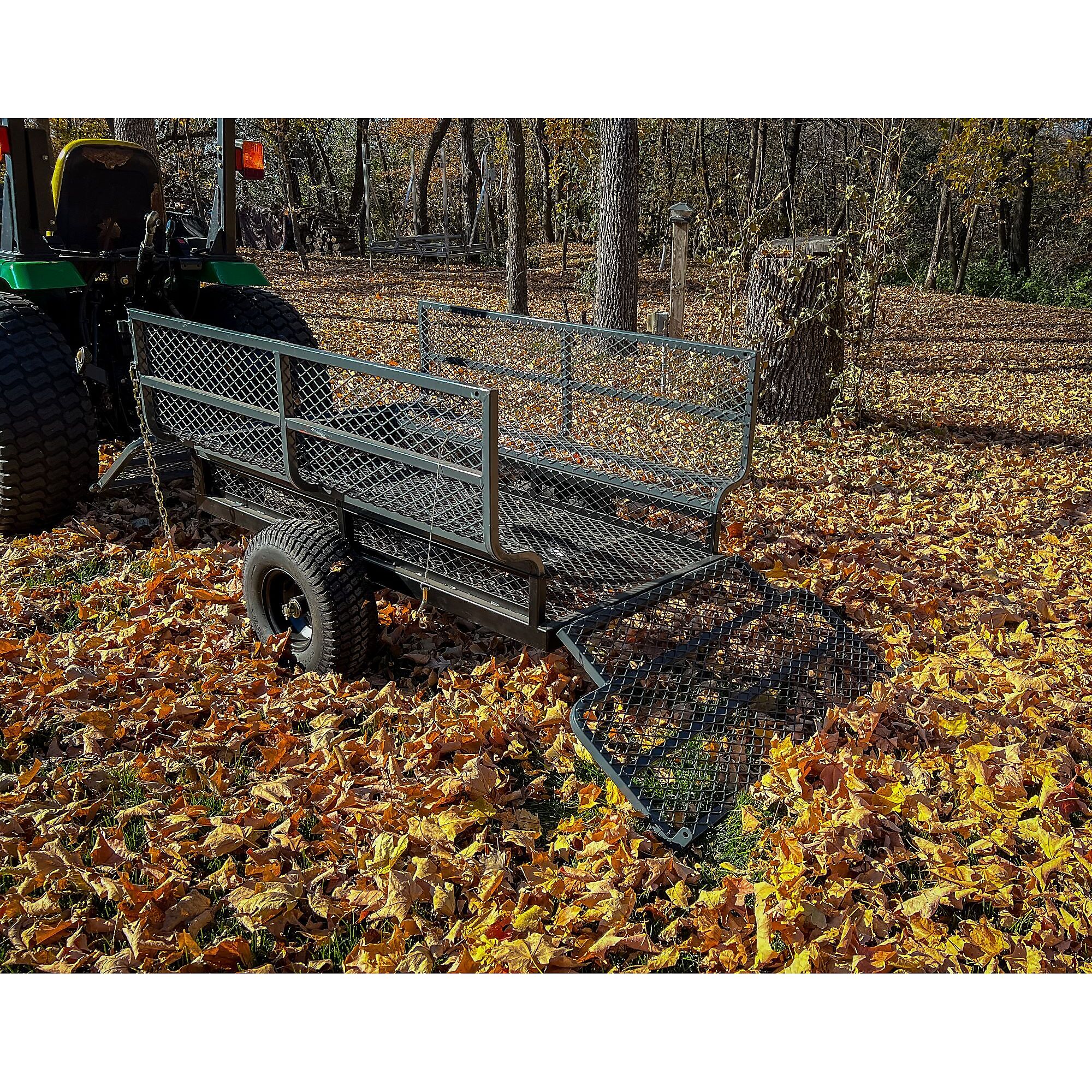

Field Tuff’s new ATV-3060SADC Single Axle Cart features an extra wide, hand-operated dump latch. The bed measures 57.5” x 28” x 5” while the overall size of the cart is 90.55” x 46.06” x 35.83.” The Field Tuff cart is constructed of heavy-duty steel for a durable and sturdy wagon. Designed with front and back gates, which are hinged and pinned for a secure close, but easy access. The side rail secures your load and gives you peace of mind. Attach this cart to your ATV, UTV, or utility tractor with the pin hitch to tow-behind and take wherever you need. The pneumatic tires measure 18 x 7.00-8 and make it easy to maneuver. This Single Axle Cart is perfect for material transport around the home, garage, shop, or farm. An additional tandem wheel is available to add-on (ATV-TWK) and provides stability and produces a greater capacity for even larger loads.

What's Included

    (1) Single Axle Cart

Features + Benefits

  • Features an extra wide, hand-operated dump latch
  • Bed measures 57.5” x 28” x 5” (bottom section); 57.5” x 39” x 22.25” (top section)
  • Constructed of heavy-duty steel for a durable and sturdy wagon
  • Designed with front and back gates – hinged and pinned for secure close, but easy access
  • Side rails secures your load
  • Attaches to your ATV, UTV, or utility tractor with the pin hitch
  • Easy to maneuver with pneumatic tires
  • Perfect for material transport around the home, garage, shop, or farm
  • Additional tandem wheel available to add-on (ATV-TWK) and provides extra stability and greater capacity for extra loads
  • 1 year limited manufacturer’s parts warranty
  • 1/2" hitch pin

Key Specs

AttributeSpecification

item#

5353825

Brand

Field Tuff

Manufacturer's Warranty

1 year limited warranty

Ship Weight

240.0 LB

Load Capacity

1,400 lb

Capacity

0.7 ft³

Deck Material

Carbon Steel

Frame Material

Carbon Steel
AttributeSpecification

Product Type

Dump Trailer

Side Rails Included

Yes

Side Rail/Wall Height

22.25 in

Wheel Type

Pneumatic

Wheel Size

18 in

Axle Diameter

1-1/2 in

Product Weight

231.0000 lb

Dimensions L x W x H (in.)

90.5 x 52.0 x 36.25 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. Is there any/much assembly required ? If not assembled, how many boxes ?

    1 answer

    1. This unit does require assembly. This unit is shipped in one box.

      Helpful?

  2. Are the side rails removable?

    1 answer

    1. The side rails are not removable on this dump cart.

      Helpful?

  3. Max towing speed

    1 answer

    1. The maximum towing speed for this dump cart would be 10 MPH.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
