The maximum degree of bend is 120 degrees.

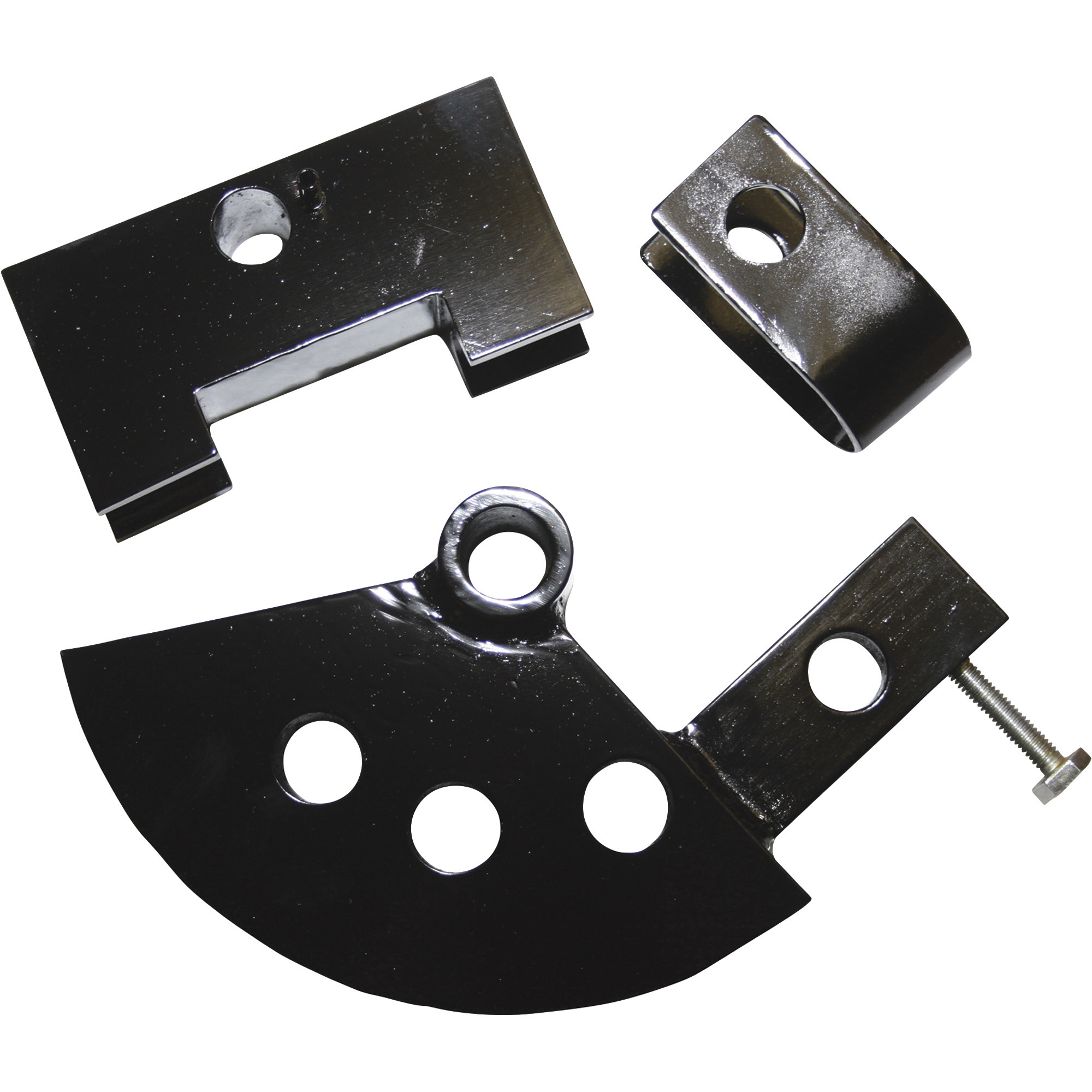

Woodward Fab Tubing Die, 1 5/8in. x 5in. Radius, Model# WFBDT 1 5/8
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$373.99
- Bend 1-5/8" O.D. Tubing up to 120 Degrees
- Minimum Wall Thickness .095"
- Maximum Wall Thickness .134"
- 5" Center Line Radius
- Includes Main Die, Follower, and Retaining Strap
See full description
See All Pipe + Bar Bender Accessories
See All Woodward Fab Pipe + Bar Bender Accessories
Currently Viewing This Product
Specifications
Specifications
Woodward Fab Tubing Die, 1 5/8in. x 5in. Radius, Model# WFBDT 1 5/8
METALpro 2in. Pipe Moving Die, For Use with 9565 and 9568 Dies, Model# MP9500
METALpro 2in. Pipe Stationary Die, For Use with 9565 and 9569 Dies, Model# MP9500
METALpro 16-Piece Square Tubing Bender Die Package, For Use with METALpro Model# MP9500 Bender, Model# MP9700
Dies (qty.)
Same
1
1
1
16
Product Type
Same
Tubing Die
Rotating Die
Stationary Die
Pipe Bending Die
Material
Same
-
Carbon Steel
Carbon Steel
Carbon Steel
For Use With
Same
-
Metalpro Models 9565, 9568 (sold Separately)
Metalpro Models 9565, 9569 (sold Separately)
Metalpro Model MP9500 (sold Separately)
Product Weight
Same
-
lb
7.0000 lb
328 lb
Dimensions L x W x H (in.)
Same
-
4.0 x 3.0 x 3.0 in
4.0 x 3.0 x 3.0 in
-
