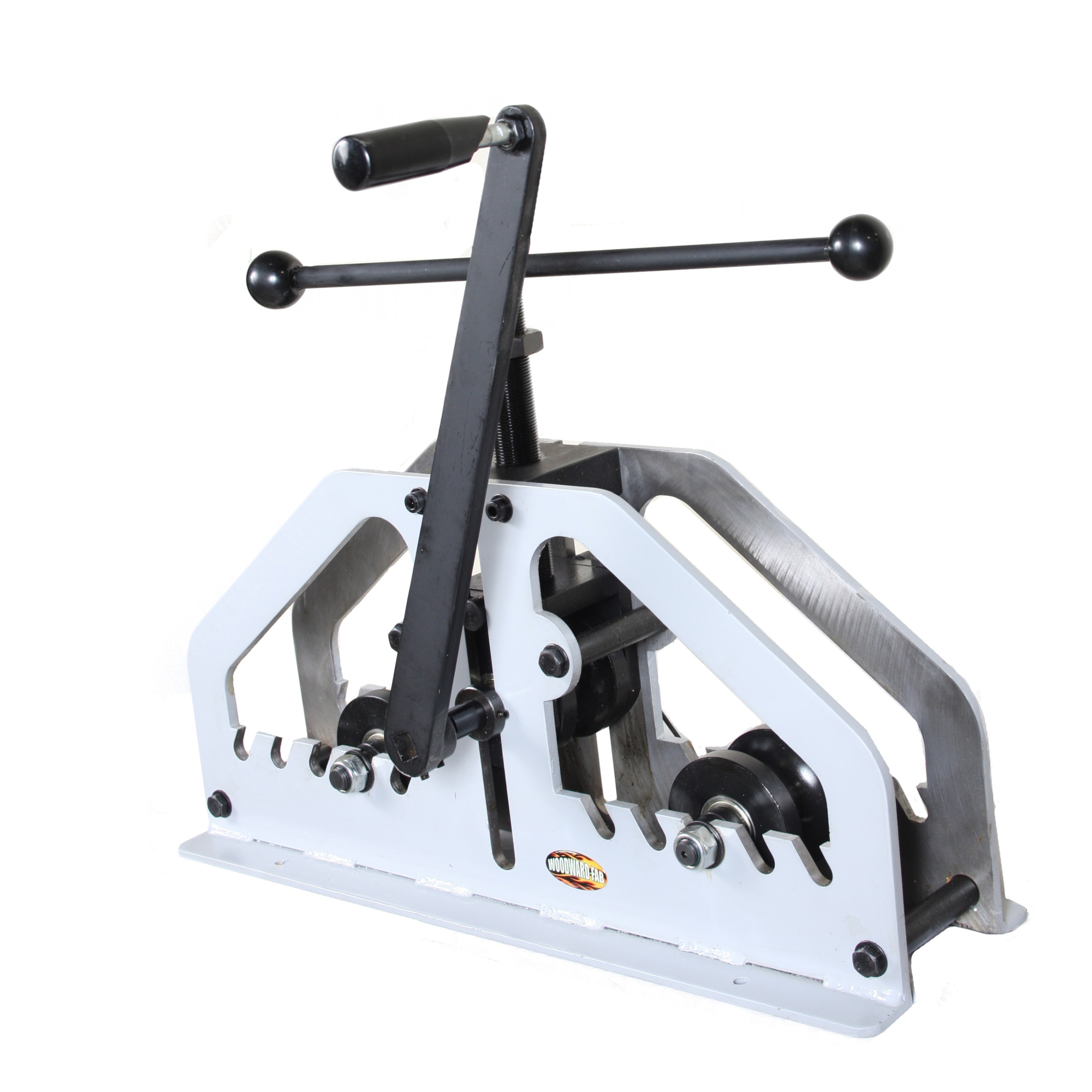

Woodward Fab, Bench Mounted Pipe and Tube Rolling Machine, Model# WFTR45

Item# 5945257
Top Seller
Woodward Fab, Bench Mounted Pipe and Tube Rolling Machine, Model# WFTR45

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Woodward Fab, Bench Mounted Pipe and Tube Rolling Machine, Model# WFTR45

Click or Tap image to Zoom

$634.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Small machine footprint ideal for bench top mounting
  • Slots for lower dies to adjust for tighter rolling
  • Roll up to .083" wall thickness mild steel, .095" Aluminum
  • Includes 1-1/2" OD round tubing die sets. Additional dies for round and square tubing up to 2" available for purchase separately

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Woodward Fab WFTR45 tubing roller machine is a 3 roll tubing roller that creates architectural rolls in steel and aluminum tubing. Simply move the material through the lower rollers by turning the crank hand lever clockwise and counterclockwise while applying pressure down on the center roller with the turn screw. The center die set is driven so as you crank the handle it moves the material back and forth. The more pressure applied on the center roller, the tighter the circle created.

What's Included

    (1) Machine

Features + Benefits

  • Small machine footprint ideal for bench top mounting
  • Slots for lower dies to adjust for tighter rolling
  • Roll up to .083" wall thickness mild steel, .095" Aluminum
  • Includes 1-1/2" OD round tubing die sets. Additional dies for round and square tubing up to 2" available for purchase separately

Key Specs

AttributeSpecification

item#

5945257

Brand

Woodward Fab

Manufacturer's Warranty

1 year limited warranty

Ship Weight

75.0 LB

Operation

Manual
AttributeSpecification

Product Type

Ring Roller

Dies Included

Yes

Material

Carbon Steel

Product Weight

70.0000 lb

Dimensions L x W x H (in.)

24.0 x 12.0 x 26.0 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. How small of a radius can it make using 1" round tubing?

    1 answer

    1. This rolling machine would have a 14" radius when using 1" round tubing.

      Helpful?

  2. Will it roll 1/2” round bar mild steel

    1 answer

    1. The pipe and tube rolling machine will roll 1/2" tube or solid round bar mild steel with the appropriate die.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
