The bolt circle is 8-3/4". The top holes are 3-13/16" from the vertical center line and 3-3/8" from the horizontal center line. The bottom holes are 3-3/8" from the vertical center line and 2-13/16" from the horizontal center line. The bolt hole diameter is 1/2" and uses a 7/16" diameter bolt.

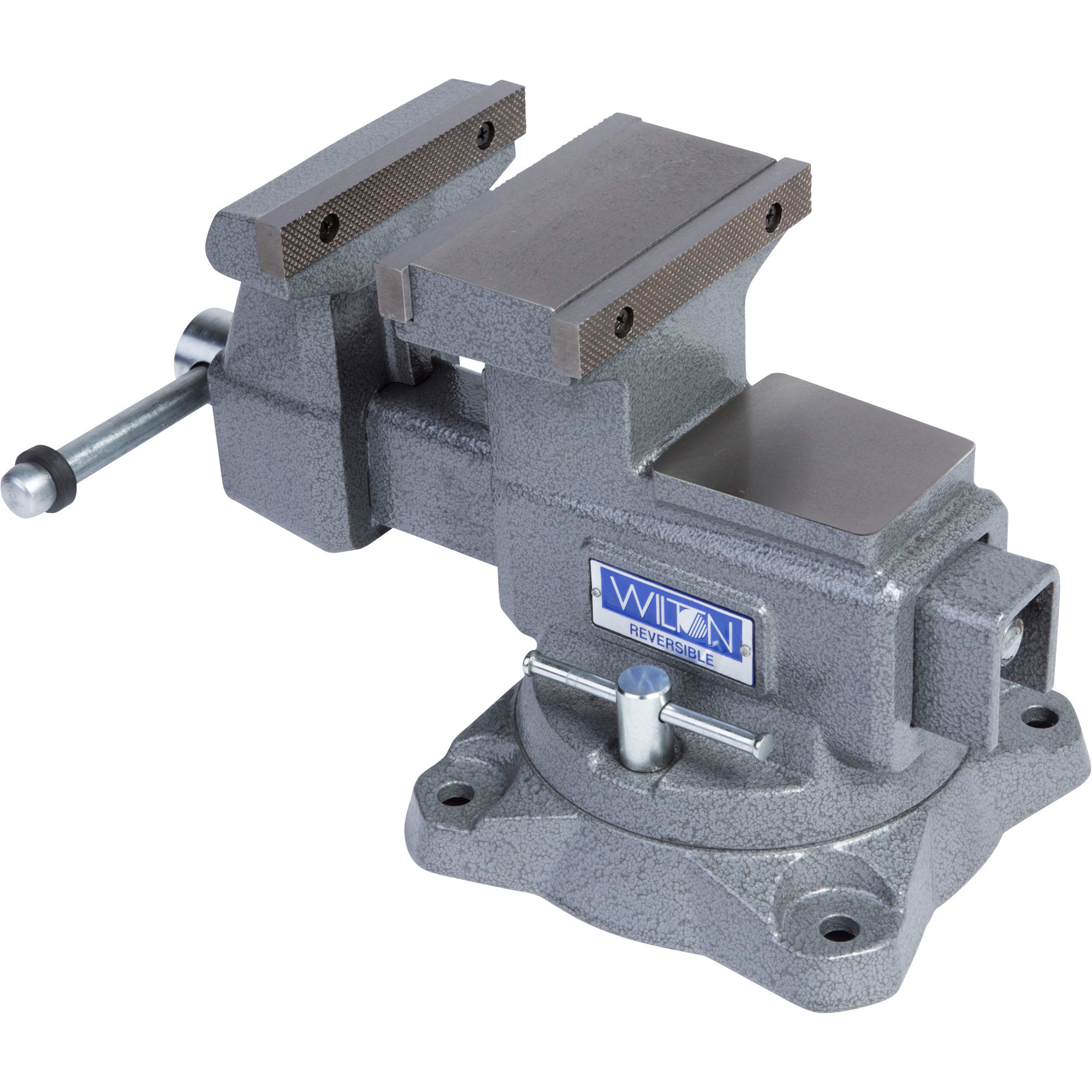

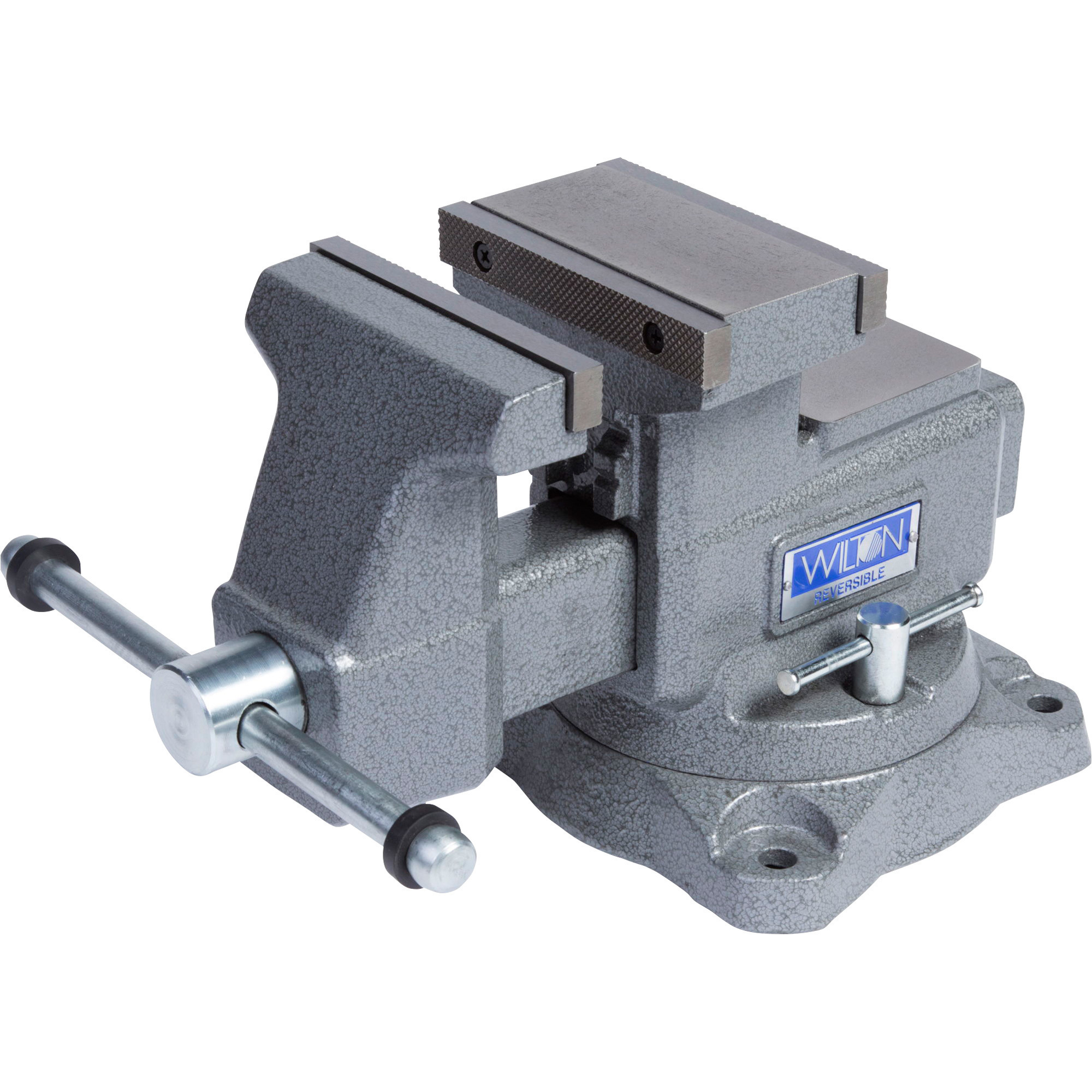

Wilton Reversible Mechanic's Vise with Swivel Base, 5 1/2in. Jaw Width, Model# 4550R
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$319.99
- 5 1/2in.W jaws with an 6 3/4in. opening in normal position
- 5 1/2in.W jaws have a 10 3/4in. opening when reversed
- 3 3/4in. regular throat depth; 2 3/4in. reversed throat depth
- Constructed of heavy-duty 30,000 PSI cast iron body and movable jaw, with 60,000 PSI ductile iron base

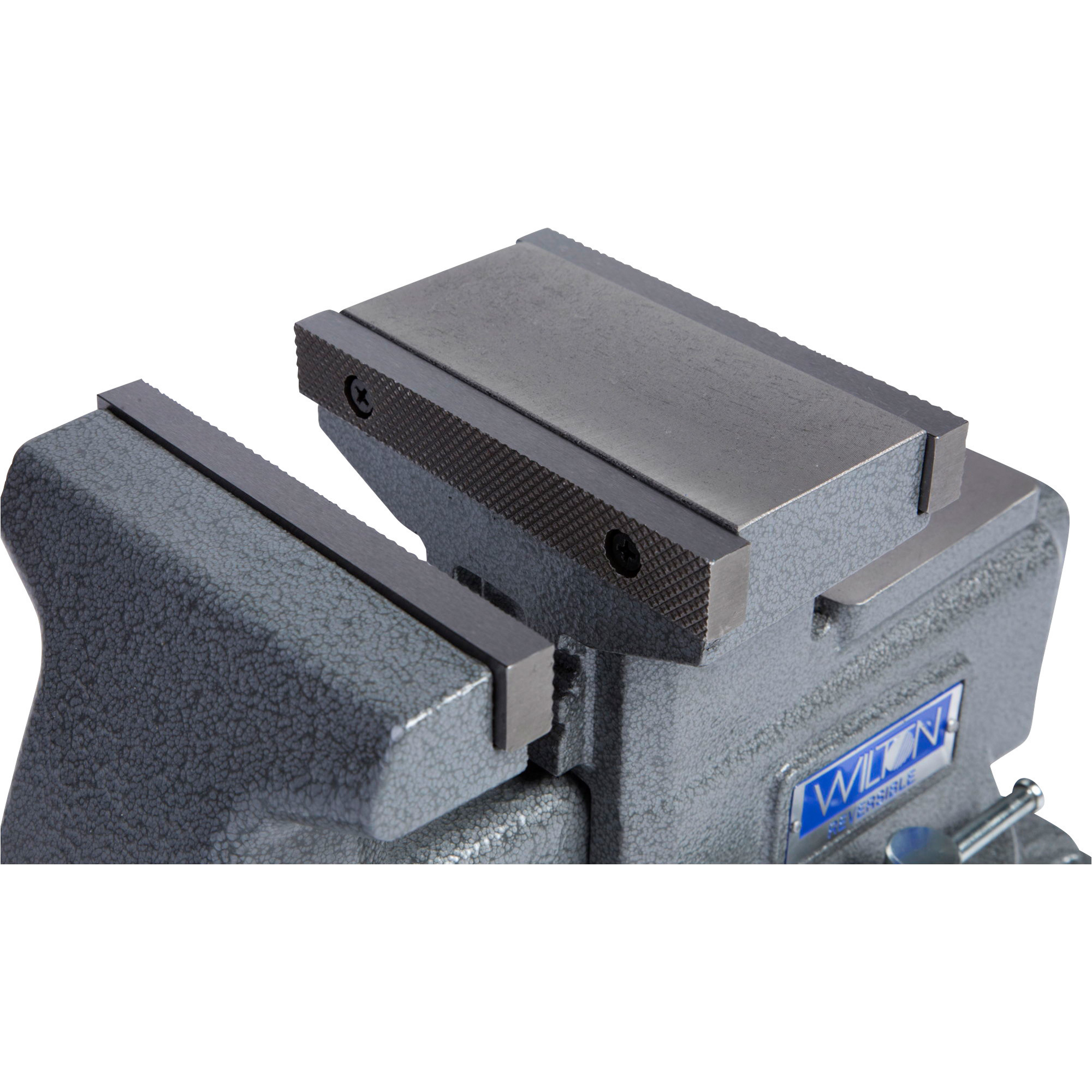

- Replaceable, hardened tool steel jaw faces with serrated pattern to ensure a solid grip
Prop 65 Warning: See Details
See full description
See All Bench Vises
See All Wilton Bench Vises
Currently Viewing This Product
Specifications
Specifications
Wilton Reversible Mechanic's Vise with Swivel Base, 5 1/2in. Jaw Width, Model# 4550R
Wilton Mechanic's Pro Vise with Swivel Base, 5 1/2in. Jaw Width, Model# 855M
Wilton Combination Pipe and Bench Vise, 3.5in. Jaw Width, Model# C0
Wilton Machinist Round Channel Bench Vise, 4in. Jaw Width, Model# 400S
Product Type
Same
Bench Vises
Bench Vises
Bench Vises
Bench Vises
Jaw Width
Same
5.5 in
5.5 in
3.5 in
4 in
Jaw Capacity
Same
10.75 in
5 in
5 in
6.5 in
Jaw Depth
Same
3.75 in
3.62 in
4.5 in
3.5 in
Replaceable Jaw
Same
Yes (Model# 14800S03)
Yes (28811-008, sold separately)
Yes (Model# 2904960)
Yes
Double Lock Downs
Same
Yes
Yes
Yes
Yes
Product Weight
Same
lb
40.7000 lb
lb
lb
Dimensions L x W x H (in.)
Same
17.31 x 10.25 x 9.4 in
17.75 x 10.625 x 10.25 in
17.0 x 8.0 x 9.12 in
19.0 x 9.0 x 9.81 in
