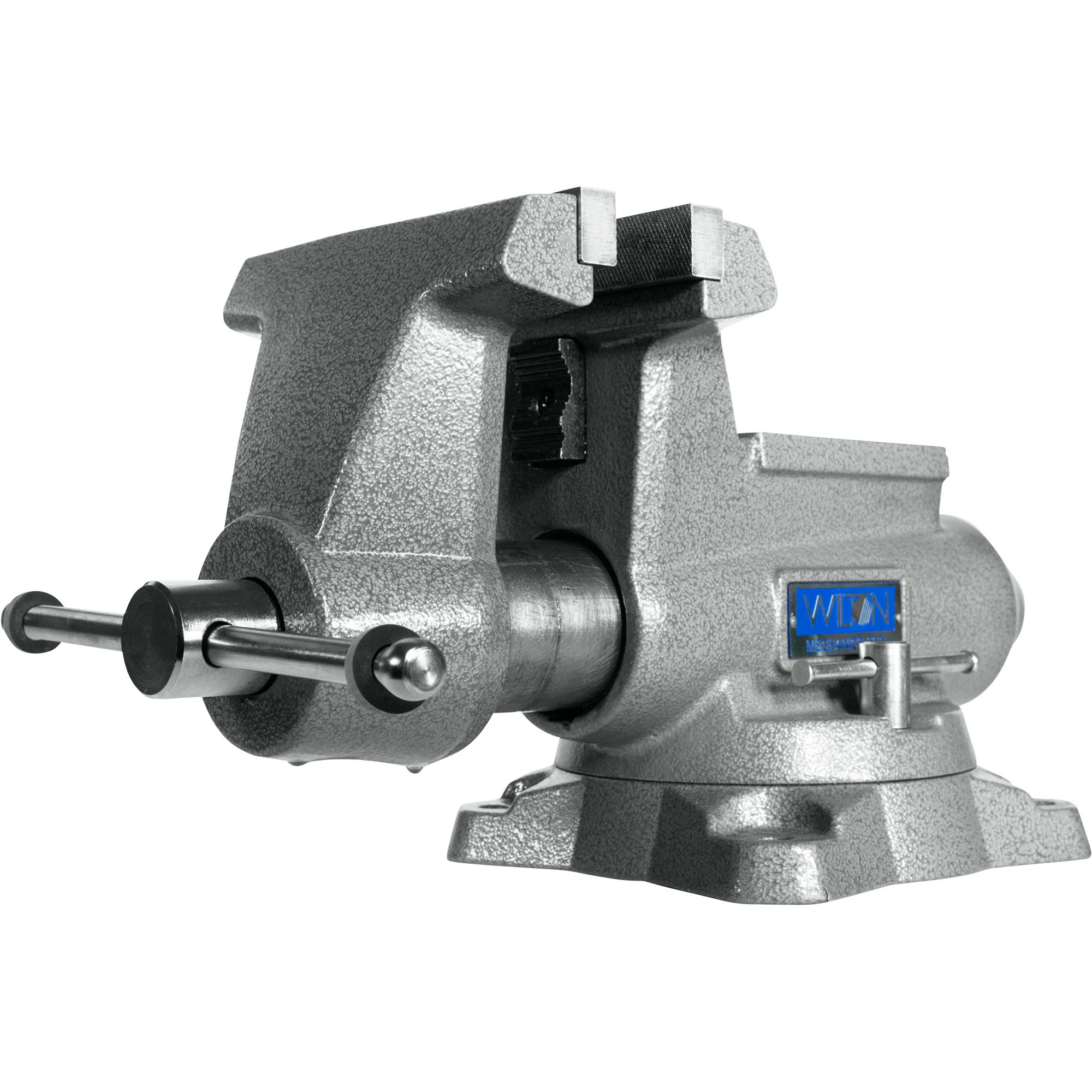

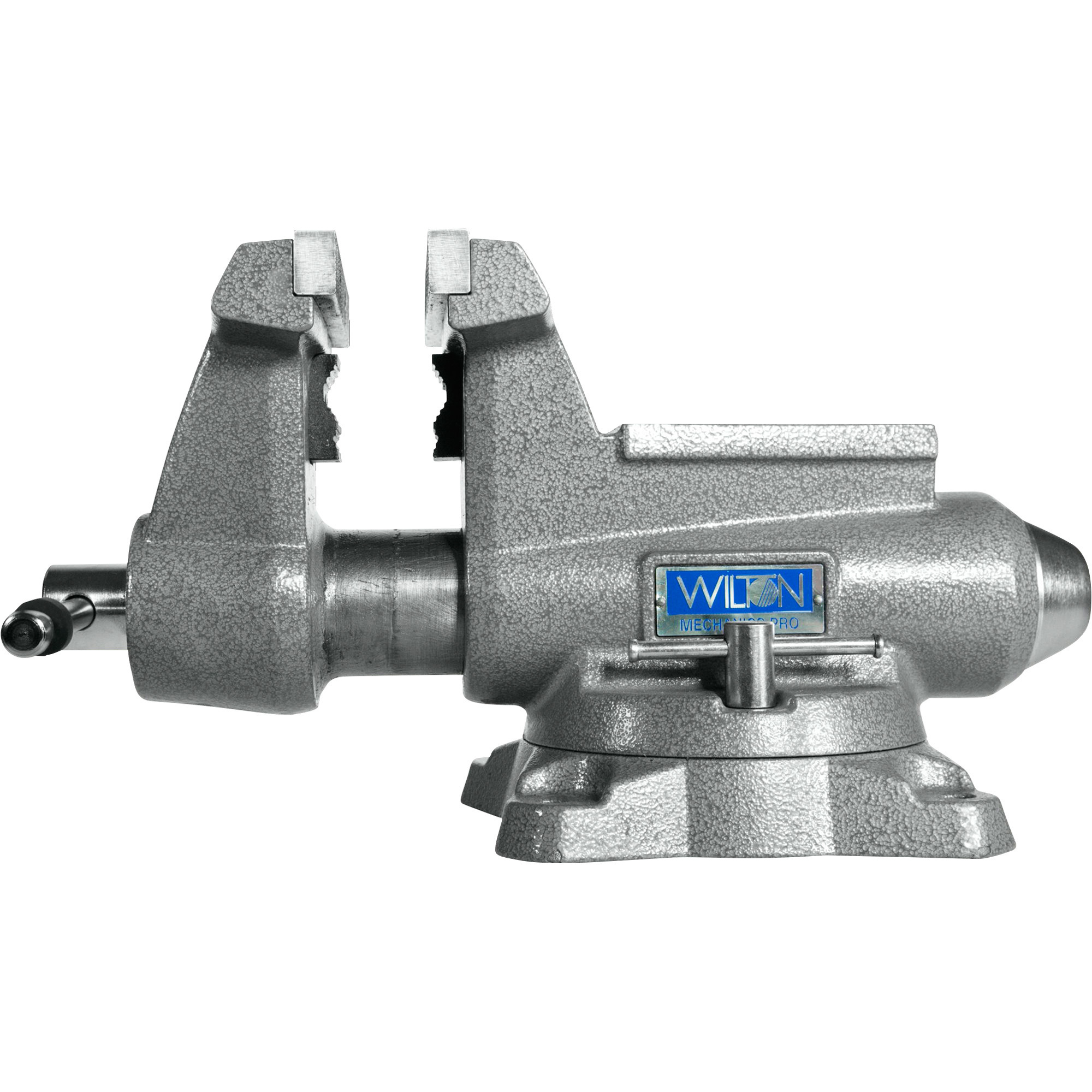

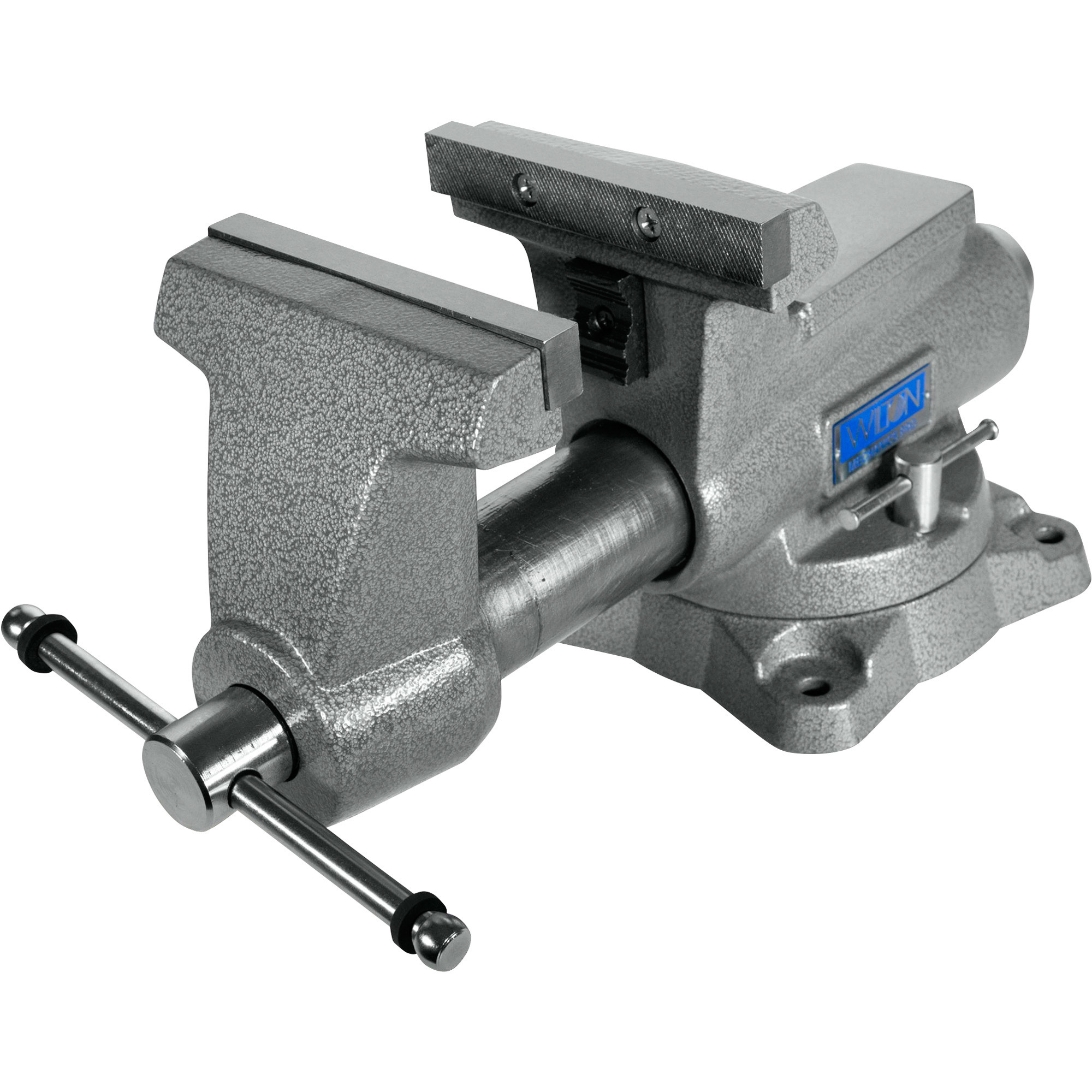

Wilton Mechanic's Pro Vise with Swivel Base, 6 1/2in. Jaw Width, Model# 865M

Item# 72742
Wilton Mechanic's Pro Vise with Swivel Base, 6 1/2in. Jaw Width, Model# 865M

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Wilton Mechanic's Pro Vise with Swivel Base, 6 1/2in. Jaw Width, Model# 865M

Click or Tap image to Zoom

$617.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Swivel base rotates 360° and has double lockdowns ensuring maximum stability
  • Precision round slide bar eliminates movement in the front jaw regardless of opened distance
  • Enclosed spindle keeps lubricants in and contaminants out for smooth operation
  • Innovative thrust bearing makes it easier to apply and release the vise, helping to deliver greater clamping force

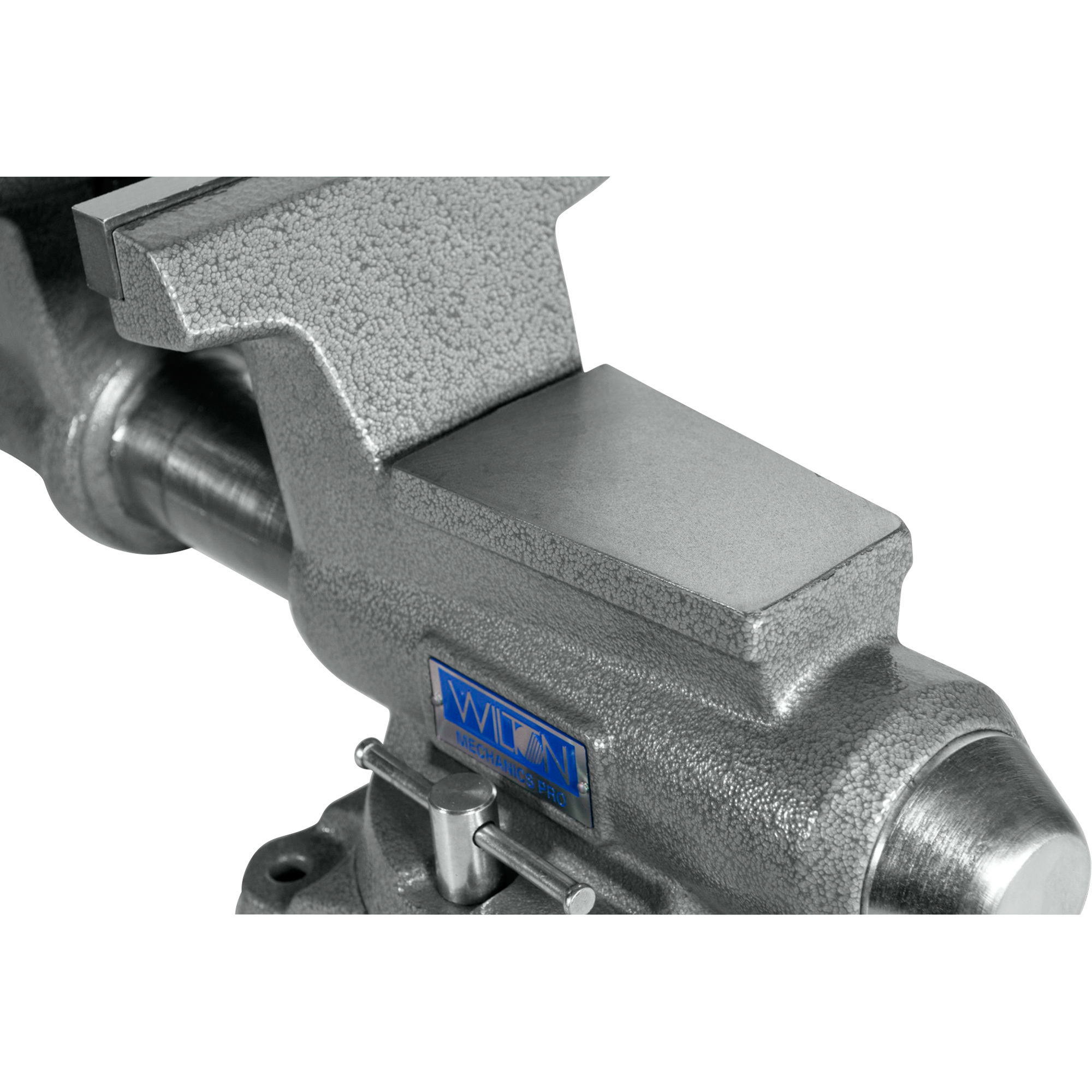

  • Large anvil work surface accommodates a wide range of striking needs

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Wilton® Mechanic's Pro Vise with Swivel Base and 6 1/2in. jaw width features a ductile iron moveable jaw and base, giving it exceptional durability at a lighter weight. A precision round slide bar eliminates movement in the front jaw regardless of opened distance. Has a 360° swivel base. Versatile design for a wide range of uses. Lifetime limited warranty .

What's Included

    (1) Wilton mechanic's pro vise

Features + Benefits

  • Swivel base rotates 360° and has double lockdowns ensuring maximum stability
  • Precision round slide bar eliminates movement in the front jaw regardless of opened distance
  • Enclosed spindle keeps lubricants in and contaminants out for smooth operation
  • Innovative thrust bearing makes it easier to apply and release the vise, helping to deliver greater clamping force
  • Large anvil work surface accommodates a wide range of striking needs
  • Forged using premium materials for unbeatable durability
  • 6 1/2in. jaw width, 6in. jaw opening, 4 3/8in. throat depth

Key Specs

AttributeSpecification

item#

72742

Brand

Wilton

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

57.0 LB

Product Type

Bench Vises

Jaw Width

6.5 in
AttributeSpecification

Jaw Capacity

6 in

Jaw Depth

4.37 in

Replaceable Jaw

Yes (28812-008, sold separately)

Double Lock Downs

Yes

Product Weight

59.2000 lb

Dimensions L x W x H (in.)

19.31 x 11.0 x 11.81 in

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. is the vise body iron or steel

    1 answer

    1. The Wilton Mechanic’s Pro Vise with Swivel Base features a ductile iron moveable jaw and base, providing exceptional durability while maintaining a lighter weight.

      Helpful?

  2. What is the jaw opening measurement?

    1 answer

    1. The jaw opening is 6 inches. The jaw width is 6.5 inches. The throat depth is 4 3/8 inches.

      Helpful?

  3. WHAT IS THE DEMINSIONS ON THE MOUNTING HOLES

    1 answer

    1. Measuring from front to rear center, the front bolt to center is 2 13/16". From the rear to front center will be 3 6/16". From side to side front center will be 3 6/16". From rear side to side center is 2 13/16". The overall bolt circle diameter is 8 12/16". The bolt hole diameter is 1/2". Recommended bolt diameter is 7/16".

      Helpful?

  4. What is the PSI on the ductile iron body  The tradesman vise is 60,000 psi

    1 answer

    1. This vise has a 60,000 psi ductile rating.

      Helpful?

  5. Is this vice made in the USA?

    1 answer

    1. The Wilton Mechanic's Pro Vise with Swivel Base is made in China.

      Helpful?

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
