Wilton Machinist Round Channel Bench Vise, 3in. Jaw Width, Model# 300S

Item# 79324
Wilton Machinist Round Channel Bench Vise, 3in. Jaw Width, Model# 300S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Wilton Machinist Round Channel Bench Vise, 3in. Jaw Width, Model# 300S

Click or Tap image to Zoom

$799.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Hardened steel jaw with replaceable inserts that are machine serrated for safe, sure grip under maximum torque
  • Extra deep throat design to give you more working room where it counts
  • Enclosed design keeps lubrication in and contaminants out for smooth operation
  • Locking swivel base with 360° rotation is enhanced by serrated swivel base with double lockdowns for non-slip holding plus 4 mounting posts
  • Large anvil work surface

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

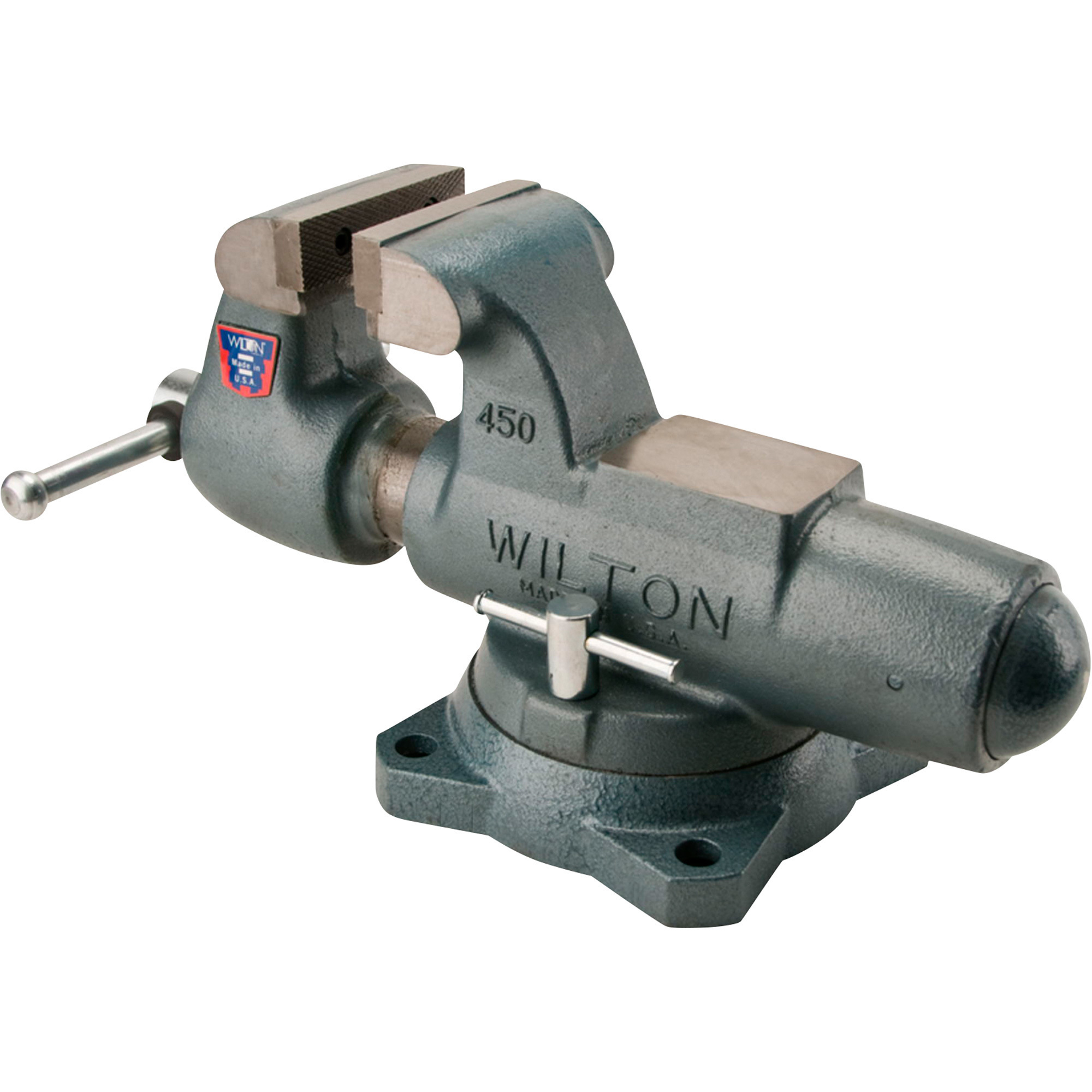

This Wilton Machinist Round Channel Bench Vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the Machinist round channel vise nut is anchored at the rear to provide straight line pull and even pressure, resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly which keeps debris out and lubrication in for a lifetime of smooth operation. Equipped with 3in.W main jaws and a machined anvil work surface. 360 degree swivel base.

What's Included

    (1) Machinist bench vise

Features + Benefits

  • Hardened steel jaw with replaceable inserts that are machine serrated for safe, sure grip under maximum torque
  • Extra deep throat design to give you more working room where it counts
  • Enclosed design keeps lubrication in and contaminants out for smooth operation
  • Locking swivel base with 360° rotation is enhanced by serrated swivel base with double lockdowns for non-slip holding plus 4 mounting posts
  • Large anvil work surface
  • 60,000 PSI ductile iron body is virtually indestructible with 2X the strength of grey casted vises
  • Precision slide bar eliminates movement in the front jaw regardless of opened distance
  • Longer spindle nut ensures a lifetime of smooth movement and straight-line pull

Key Specs

AttributeSpecification

item#

79324

Brand

Wilton

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

29.0 LB

Product Type

Bench Vises

Jaw Width

3 in
AttributeSpecification

Jaw Capacity

3 in

Jaw Depth

2.5 in

Replaceable Jaw

Yes

Double Lock Downs

Yes

Product Weight

lb

Dimensions L x W x H (in.)

15.25 x 6.81 x 6.75 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. What are the dimensions of the base and what’s the length from the front of the base to the rear of the vise? I am looking for a vise to go on our service truck and the pedestal is 9” from front to back where it butts up to the service body.

    1 answer

    1. The bolt circle diameter is 6 3/8". The length of the bracket from center hole to center hole is 4.3125". The width of the bracket from center hole to center hole is 4.625". The bolt hole diameter is 7/16". The mounting bolt diameter is 3/8". The bolt should be a minimum of 1 1/4" long and a minimum of grade 5.

      Helpful?

  2. made where

    1 answer

    1. This vise is manufactured in the United States.

      Helpful?

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
