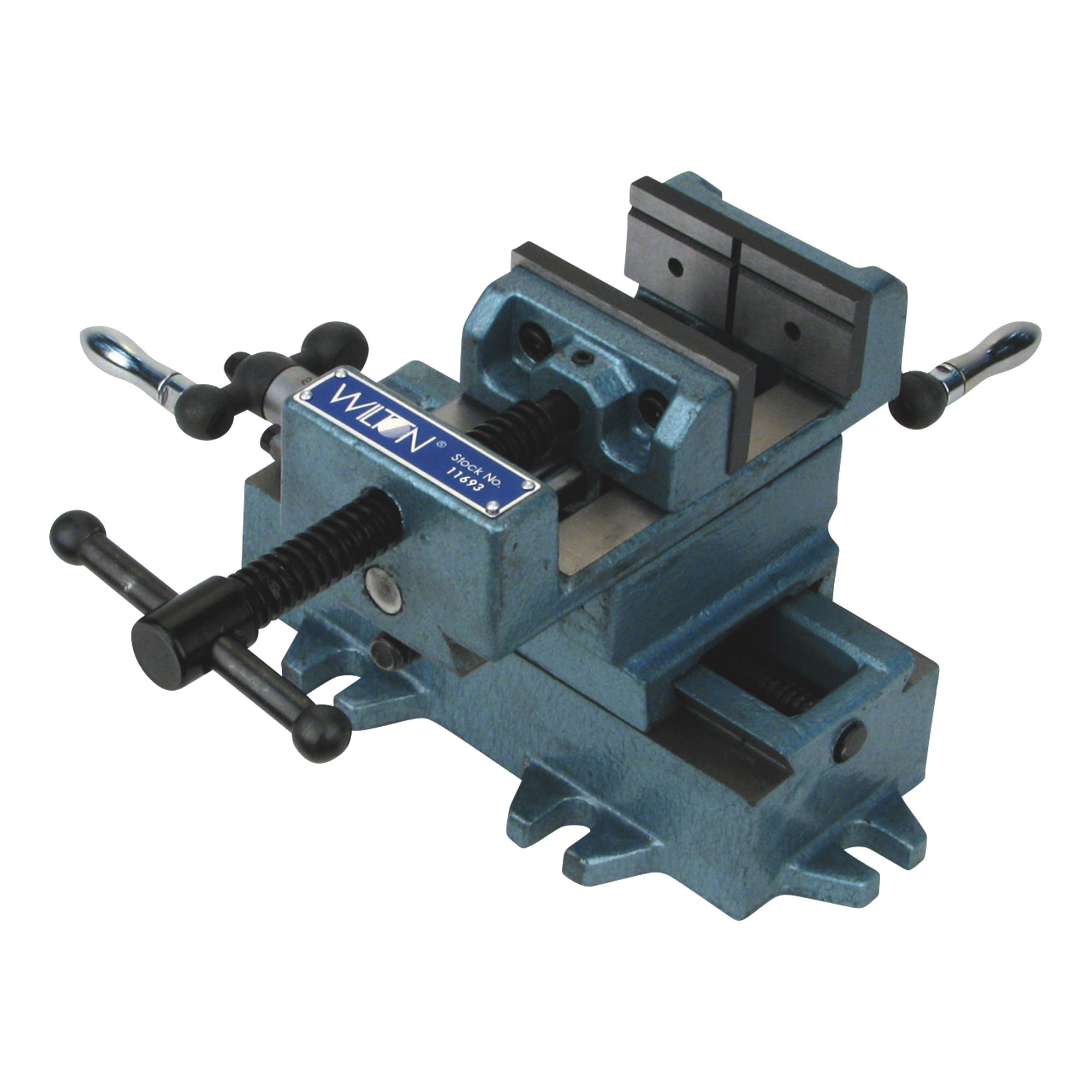

Wilton Cross Slide Drill Press Vise

Item# 93172
Wilton Cross Slide Drill Press Vise

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Wilton Cross Slide Drill Press Vise

Click or Tap image to Zoom

From

$189.99

Choose Options for complete product description, reviews and purchasing.

JAW WIDTH

See full description

  • Description

  • Reviews

  • Q & A

  • Accessories

Product Summary

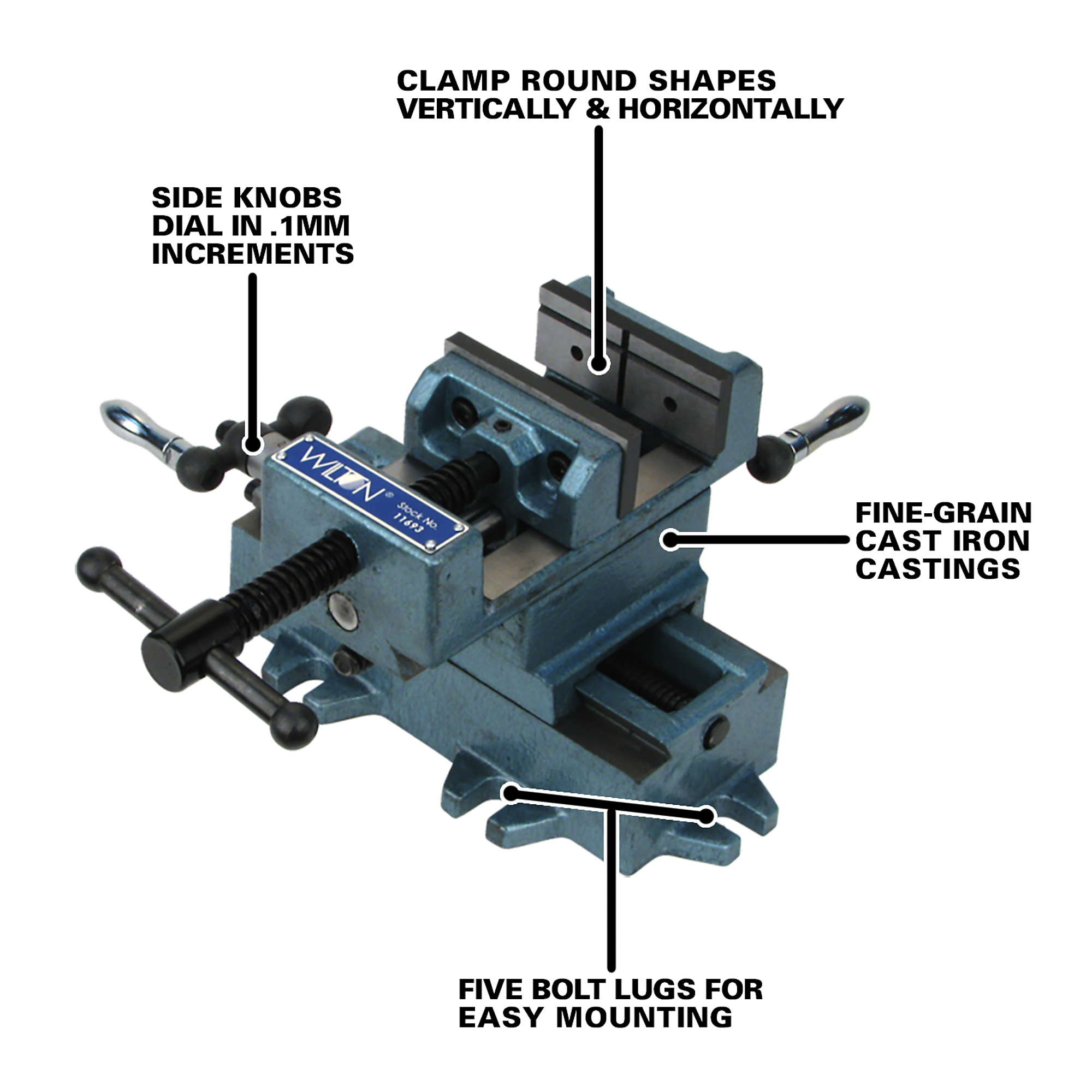

This Wilton® Cross Slide Drill Press Vise accurately moves your workpiece both forward and sideways for precise positioning. The dual sliding action allows repeated drills or taps in a workpiece. Cast side knobs accurately dial in 0.1mm increments. Hardened V-grooved jaws hold round shaped objects both vertically and horizontally. A black oxide coated screw provides consistent clamping pressure. Bench mount design. Available in 3in. or 4in. jaw width. Limited lifetime warranty.

Downloads

Product Manual

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Hold down plate & slot dimensions and locations

    1 answer
    Originally posted on "Wilton Cross Slide Drill Press Vise, 3in. Jaw Length, Model# CS3"

    1. The width of each slot is 0.67in (17MM). The depth of the slot is 0.93in (23.62MM). The bolting pattern will be 6.61in (168MM) long x 5.91in (150MM) wide. The overall dimensions of the plate will be 12.28in (312MM) L x 7.76in (197MM) W.

      Helpful?

  2. does this vise come with the clamping bolts ?

    1 answer
    Originally posted on Wilton Cross Slide Drill Press Vise, 4in. Jaw Length, Model# CS4

    1. The vise does not include the mounting hardware.

      Helpful?

  3. WILTON 11694 CROSS SLIDE DRILL PRESS VISE: What is the width and length dimensions of just the base plate of this cross slide vise?  And what is the centerline-to-centerline spacing of the mounting holes or notches on the sides of the base plate.  Thanks.

    1 answer
    Originally posted on Wilton Cross Slide Drill Press Vise, 4in. Jaw Length, Model# CS4

    1. The dimensions of the base plate would be 8.5" L x 4.88" W. From center to center of the notches across would be 3.54" and center to center apart lengthwise would be 3.82".

      Helpful?

  4. Is there any play when reversing direction on the forward and reverse direction and side to side screws? Thanks

    1 answer
    Originally posted on Wilton Cross Slide Drill Press Vise, 4in. Jaw Length, Model# CS4

    1. There is no play in the reversing direction or side to side screws.

      Helpful?

  5. What country was the vise manufactured?

    1 answer
    Originally posted on Wilton Cross Slide Drill Press Vise, 4in. Jaw Length, Model# CS4

    1. This item was manufactured in China.

      Helpful?
