Wilton Cam Action Drill Press Vise

Item# 93148
Wilton Cam Action Drill Press Vise
Wilton Cam Action Drill Press Vise

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Wilton Cam Action Drill Press Vise

Click or Tap image to Zoom

From

$403.99

Choose Options for complete product description, reviews and purchasing.

JAW WIDTH

See full description

  • Description

  • Reviews

  • Q & A

  • Accessories

Product Summary

The Wilton® Cam Action Drill Press Vise works with a simple push or pull on the center bar knob to set the jaw in position. Easy press locking lever cams the jaw ahead 3/32in., exerting a holding pressure that adjusts from 400 to 1,100 lbs. Unique top locking lever can be raised or lowered to tighten or loosen against the workpiece. Vise is durable, reliable and made to last. Available in 3in., 4in., 6in. or 8in. jaw width. Limited lifetime warranty.

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. can I get the exact diameter measurements of the push bar. trying to figure out if it will replace my damage one on a different brand. thank u

    1 answer
    Originally posted on "Wilton Cam Action Drill Press Vise, 8in. Jaw Width, Model# 1208"

    1. Push bar with the ball is 151/2 inches long, just the bar not including the ball ( which comes with it) is 14 inches. Note, this measurements includes the 1/2 inch tip that narrows down on the end. The diameter of the shaft is 19mm and the diameter of the tip is 9.5mm.

      Helpful?

  2. How far apart are the mounting slots? My Powermatic 1200 drill press has T-slots that are 9" apart (center-to-center).

    1 answer
    Originally posted on "Wilton Cam Action Drill Press Vise, 8in. Jaw Width, Model# 1208"

    1. From center to center, the mounting slots are 16 1/2" and 10 1/8" apart.

      Helpful?

  3. How wide is the opening between the pressing rods, the paralleled opening between the bars?

    1 answer
    Originally posted on "Wilton Cam Action Drill Press Vise, 4in. Jaw Width, Model# 1204"

    1. The widest parallel opening for this vise is 4 11/16 inches.

      Helpful?

  4. what is the hole spread on mounting surface

    1 answer
    Originally posted on "Wilton Cam Action Drill Press Vise, 4in. Jaw Width, Model# 1204"

    1. The hole spread on the mounting surface of this vise are 5" (Left to Right) and 10 5/16" (Front to Back)

      Helpful?

Recently Viewed Items

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

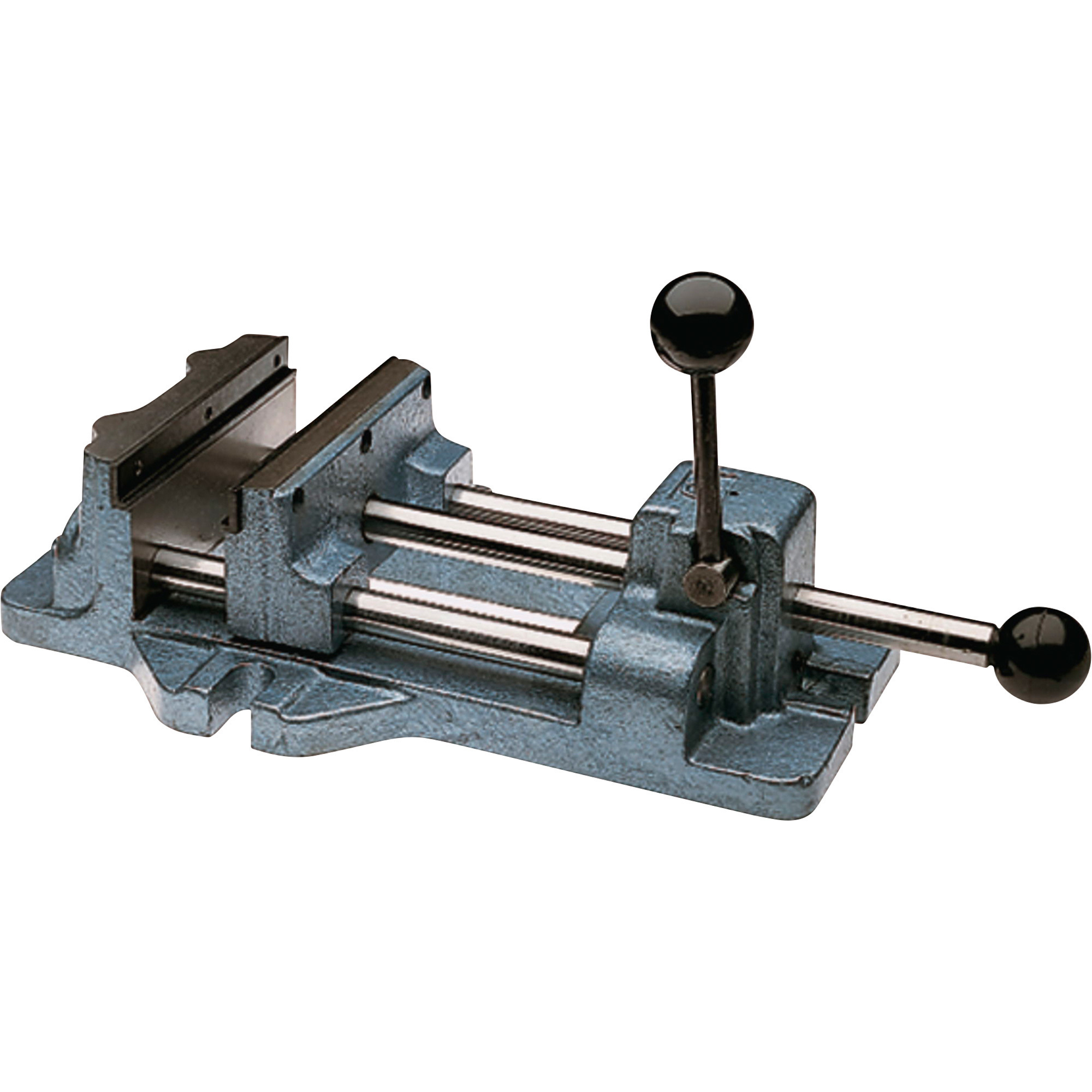

Wilton Cam Action Drill Press Vise, 4in. Jaw Width, Model# 1204
