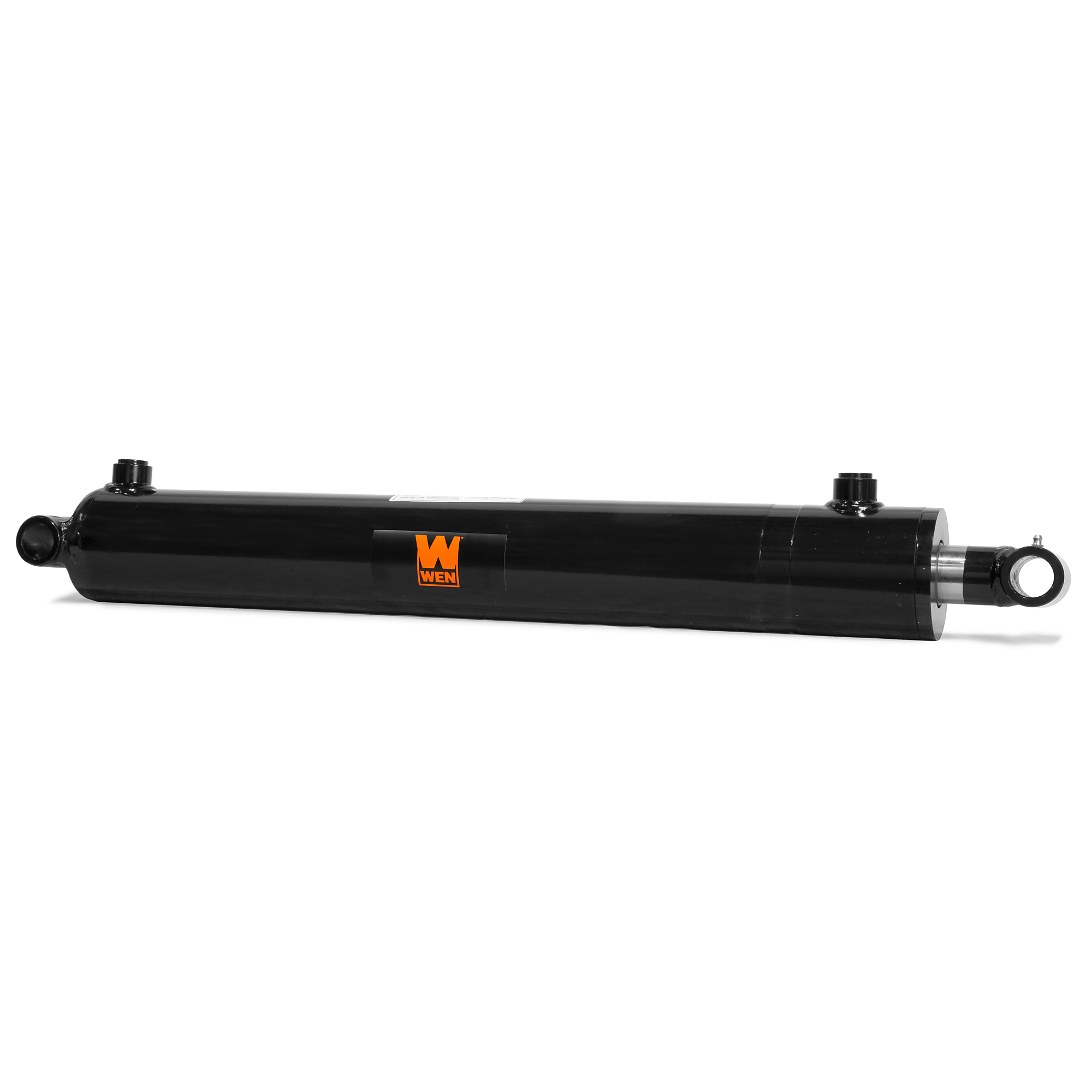

WEN WT-2520 Cross Tube Hydraulic Cylinder with 2.5-inch Bore and 20-inch Stroke

Item# 7061025
Top Seller
WEN WT-2520 Cross Tube Hydraulic Cylinder with 2.5-inch Bore and 20-inch Stroke

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN WT-2520 Cross Tube Hydraulic Cylinder with 2.5-inch Bore and 20-inch Stroke

Click or Tap image to Zoom

$119.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Double-acting steel-welded design creates pressure up to 3000 PSI
  • Features a 2.5-inch bore, a 20-inch stroke, and a 1.5-inch rod diameter
  • SAE-8 port (3/4 inch-16UNF) connects easily to your hydraulic hose
  • Retracted 28-inch cylinder extends out to 48 inches in length
  • Includes a polished chrome-plated rod, and a two-year warranty

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Remember when you had a cylinder that lasted? Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Hydraulic Cylinder. This double-acting cross tube hydraulic cylinder withstands operating pressures of up to 3000 PSI. The SAE-8 port (3/4in.-16UNF) attaches easily to the hydraulic hose of your choice. With a 2.5in. bore and a 20in. stroke, this durable cylinder goes from a retracted length of 28in. all the way out to an extended length of 48in. This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a high-tensile ground and polished chrome-plated rod, and an ASTM A536 65-45-12 ductile iron piston. And because it’s a WEN product, your cylinder comes backed by a two-year warranty and a friendly customer help line, all to make sure you remember WEN.

What's Included

    (1) Cross Tube Hydraulic Cylinder with 2.5-inch Bore and 20-inch Stroke

Features + Benefits

  • Double-acting steel-welded design creates pressure up to 3000 PSI
  • Features a 2.5-inch bore, a 20-inch stroke, and a 1.5-inch rod diameter
  • SAE-8 port (3/4 inch-16UNF) connects easily to your hydraulic hose
  • Retracted 28-inch cylinder extends out to 48 inches in length
  • Includes a polished chrome-plated rod, and a two-year warranty

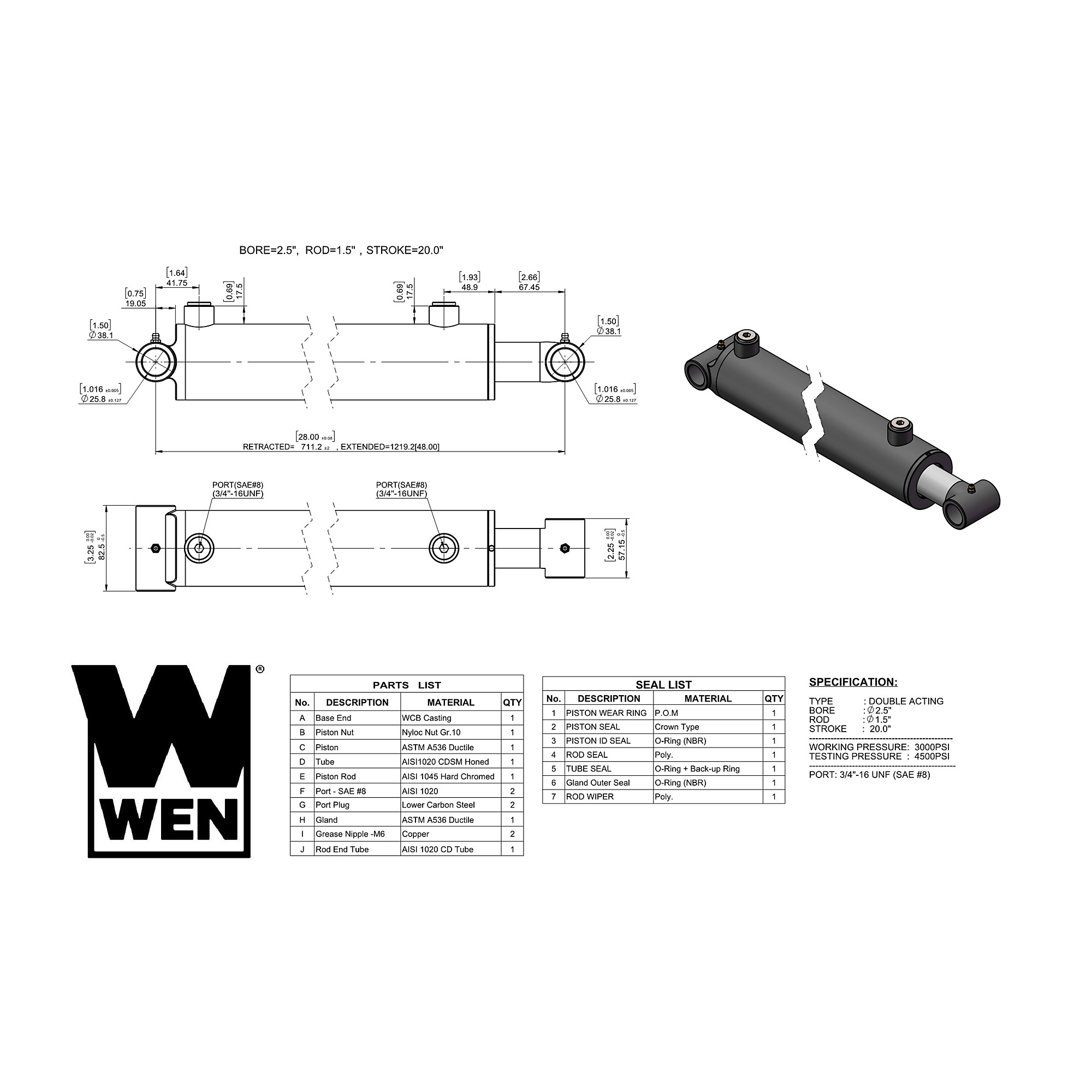

Key Specs

AttributeSpecification

item#

7061025

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

32.85 LB

Max. PSI

4,500

Bore Diameter

2.5 in
AttributeSpecification

Stroke Length

20 in

Retracted Length

28 in

Extended Length

48 in

Port Size

0.75 in

Product Weight

29.3000 lb

Dimensions L x W x H (in.)

29.5 x 3.7 x 3.25 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Power out power in?

    1 answer

    1. The model WT-2520 is a double acting cylinder.

      Helpful?

  2. what size mounting pin dia?

    1 answer

    1. The hydraulic cylinder would have a 1" diameter pin.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
