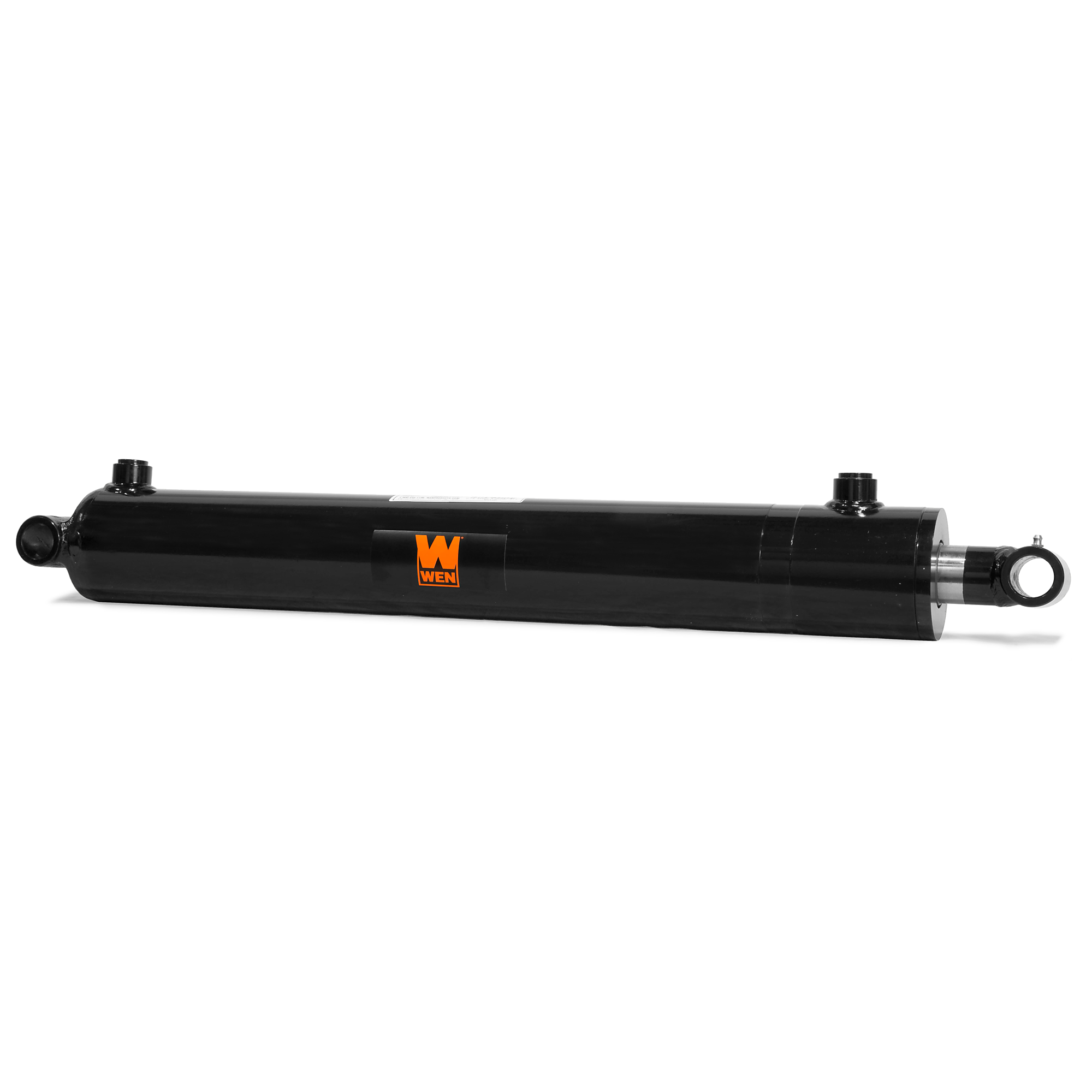

WEN WT-2518 Cross Tube Hydraulic Cylinder with 2.5-inch Bore and 18-inch Stroke
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Double-acting steel-welded design creates pressure up to 3000 PSI

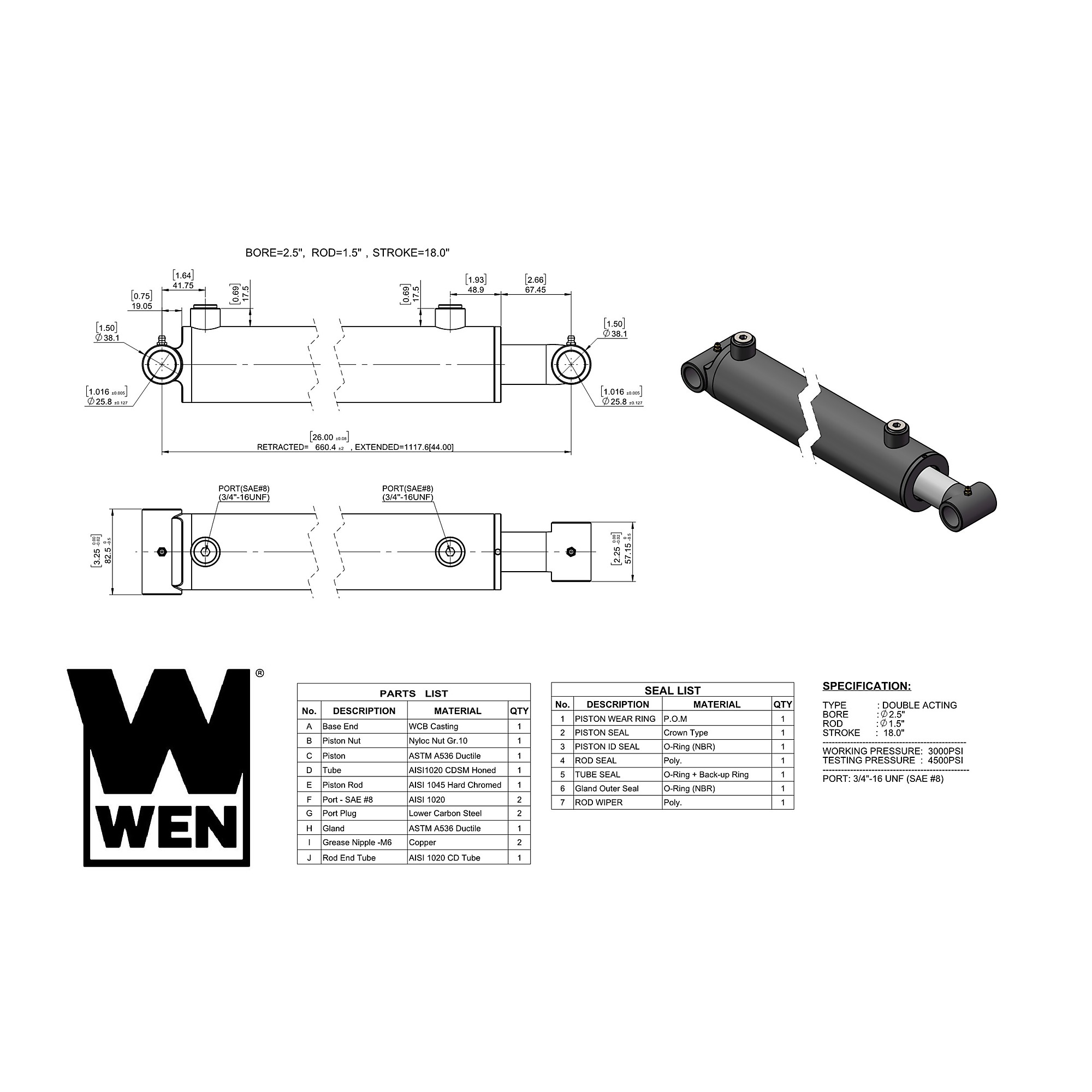

- Features a 2.5-inch bore, a 18-inch stroke, and a 1.5-inch rod diameter
- SAE-8 port (3/4 inch-16UNF) connects easily to your hydraulic hose
- Retracted 26-inch cylinder extends out to 44 inches in length
- Includes a polished chrome-plated rod, and a two-year warranty
Prop 65 Warning: See Details
See full description
See All Cross Tube Welded Cylinders
See All WEN Cross Tube Welded Cylinders
Currently Viewing This Product
$114.99
Specifications
4,500
4,500
4,500
4,500
2.5 in
2 in
3 in
2 in
18 in
6 in
8 in
8 in
26 in
14 in
16 in
16 in
44 in
20 in
24 in
24 in
0.75 in
0.563 in
0.75 in
0.563 in
27.3000 lb
11.7000 lb
22.7000 lb
13.0000 lb
27.5 x 3.7 x 3.25 in
15.5 x 3.15 x 2.75 in
17.5 x 4.22 x 3.75 in
17.5 x 3.15 x 2.75 in
