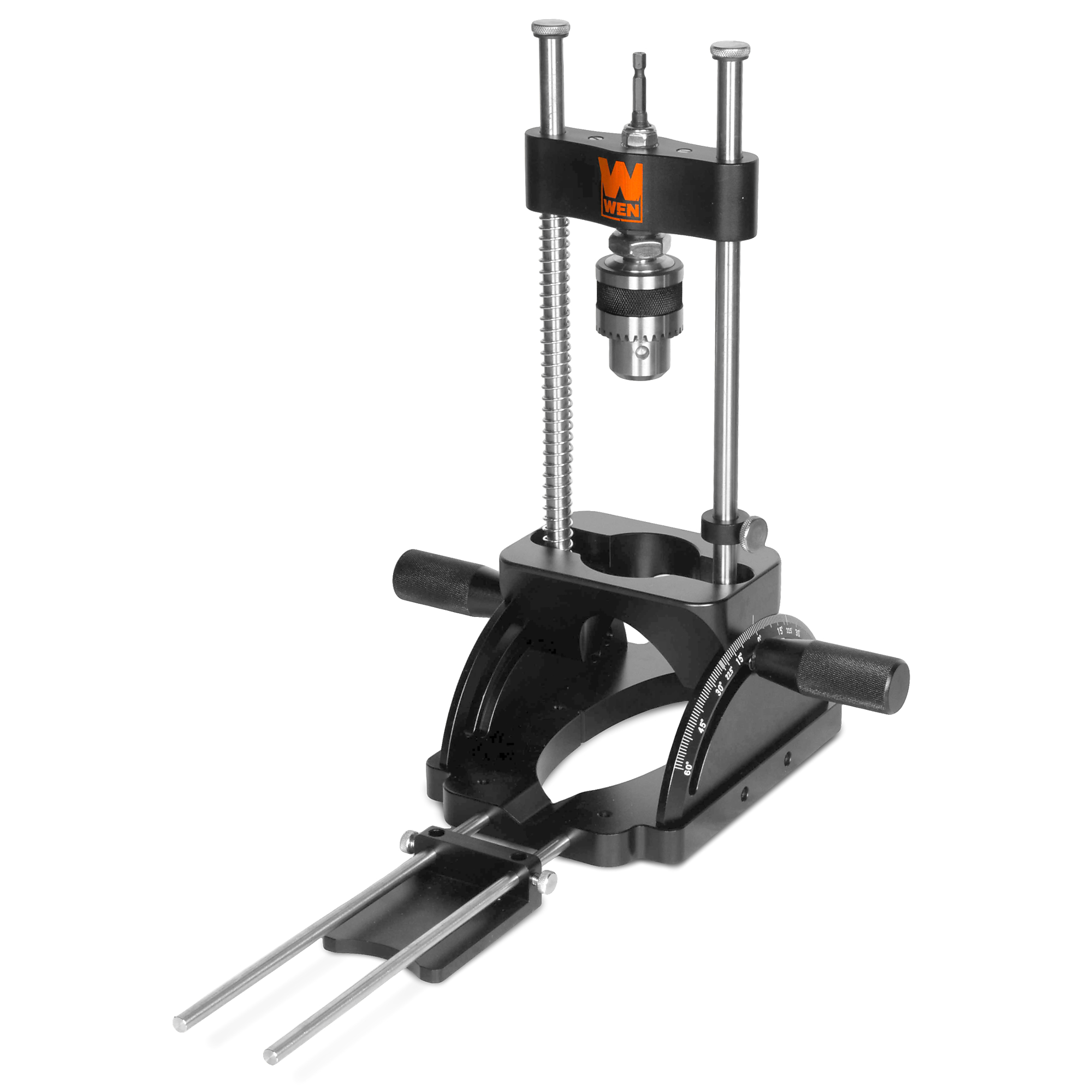

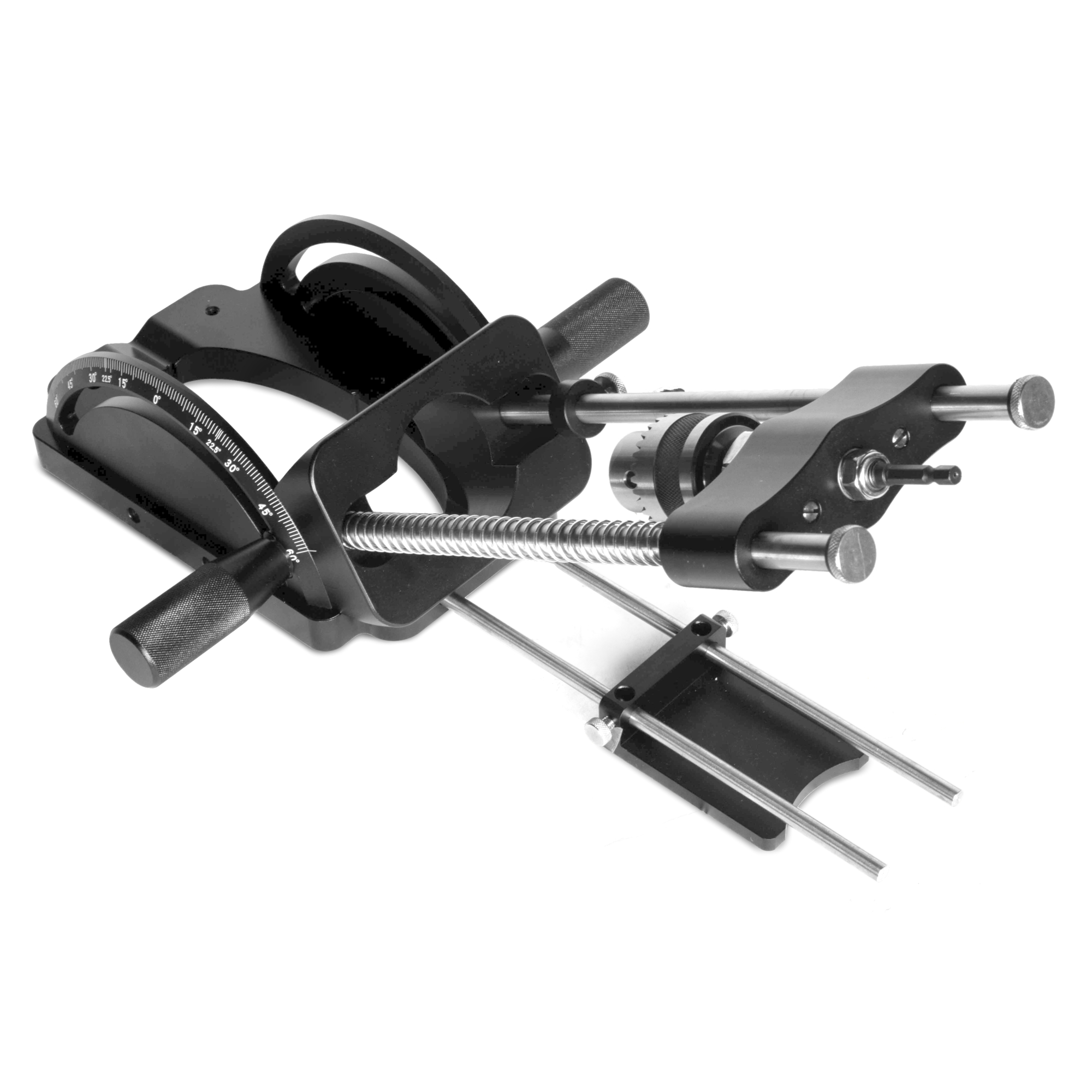

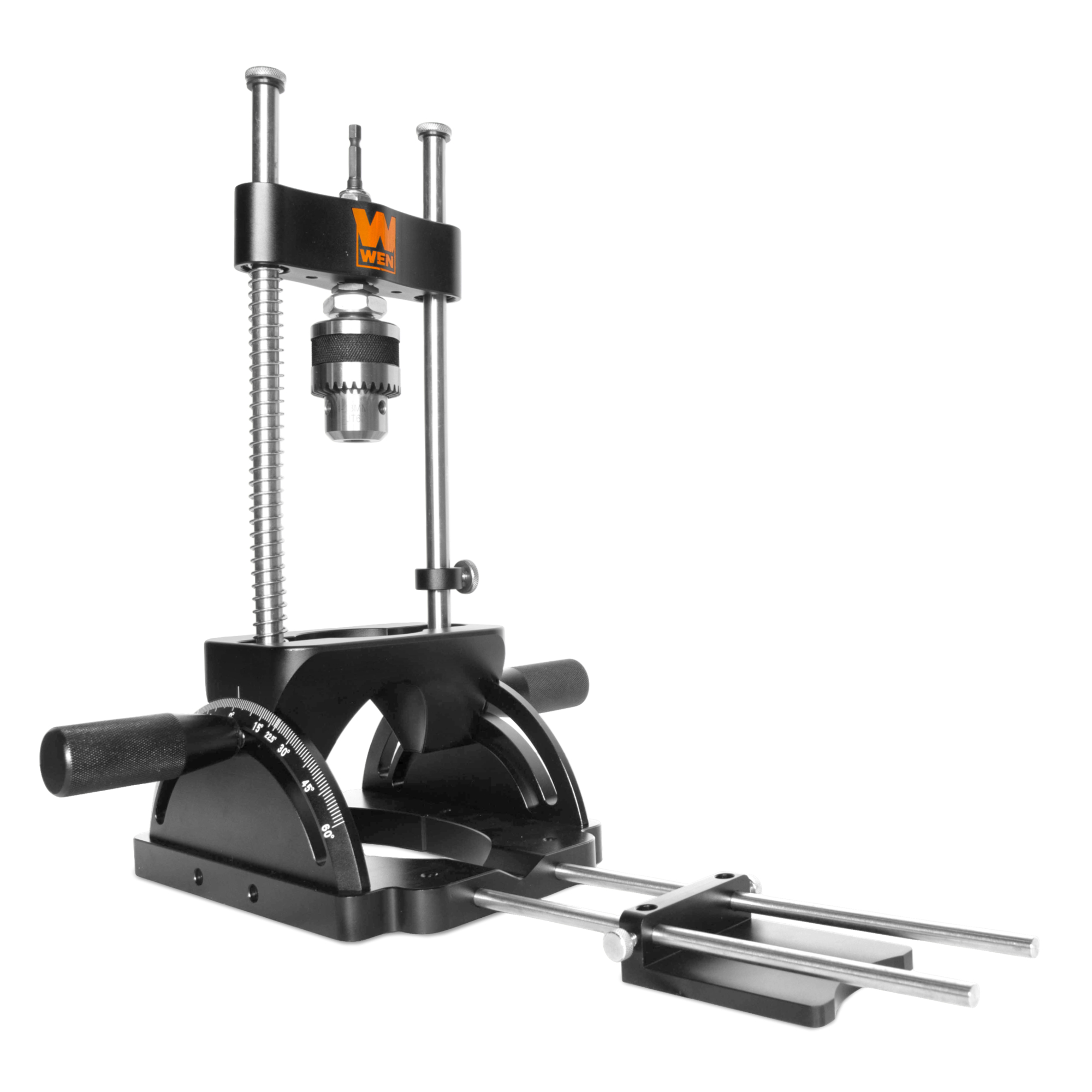

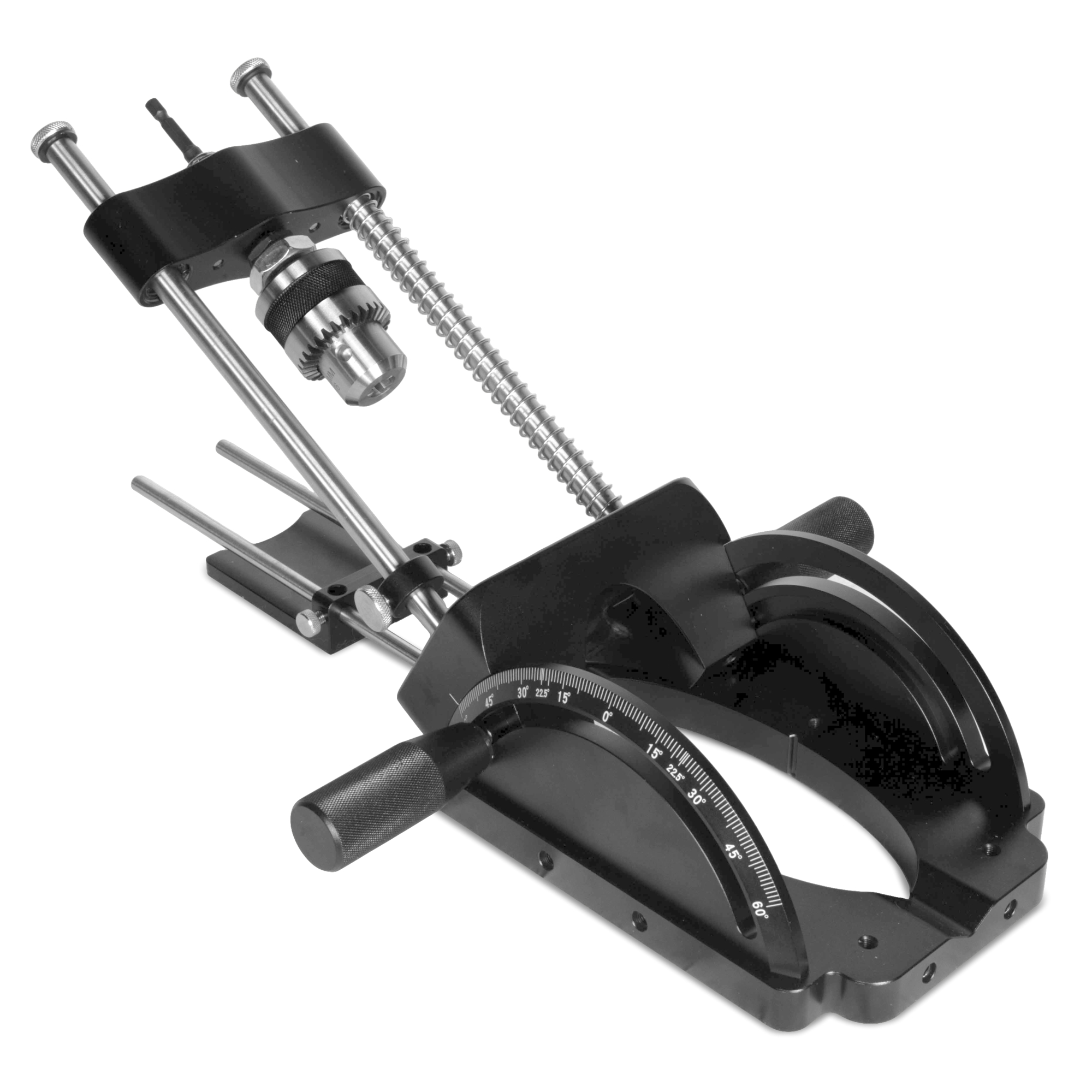

WEN Portable Drill Guide — Heavy-Duty, Adjustable Precision, 1/4in. Hex Shank, Aluminum Base, Model# WA1412

Item# 6701262
1 Included
WEN Portable Drill Guide — Heavy-Duty, Adjustable Precision, 1/4in. Hex Shank, Aluminum Base, Model# WA1412

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN Portable Drill Guide — Heavy-Duty, Adjustable Precision, 1/4in. Hex Shank, Aluminum Base, Model# WA1412

Click or Tap image to Zoom

$152.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Versatile guide converts any hand drill into a portable drill press for precision and control

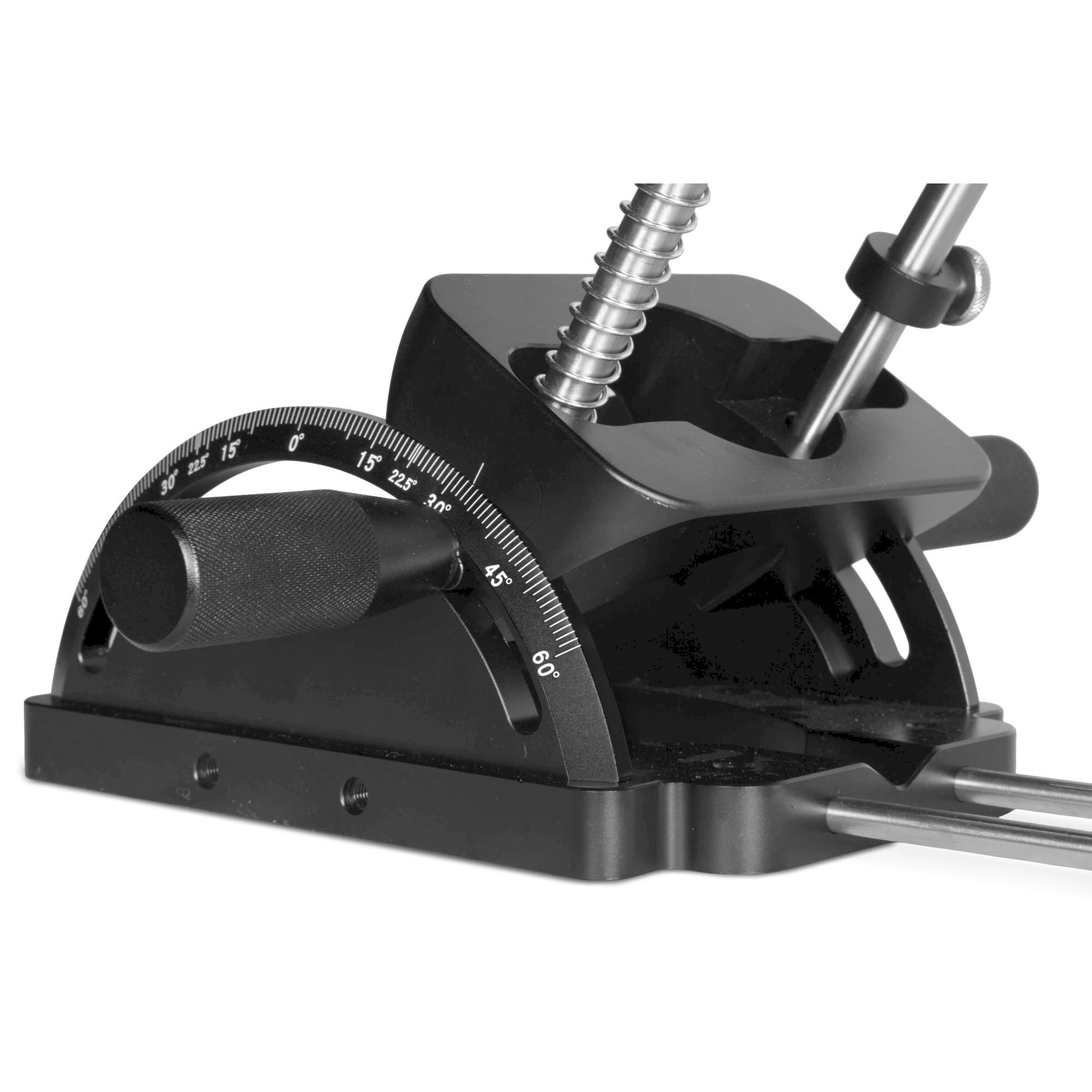

  • Adjustable drilling angle up to 60 degrees in either direction for creating angled holes for dowels, shelf pins, and more
  • Heavy-duty aluminum base features mounting holes and V-grooves
  • Keyed drill chuck accommodates bit sizes from 1/16” to 1/2” for a wide range of drilling applications
  • Depth stop ensures consistent hole depths for repetitive tasks, eliminating the need for constant adjustments

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Remember when your drill had the guidance it needed? Drill perfect holes with ease using the WEN Heavy-Duty Adjustable Precision Drill Guide. Attach any drill to the standard 1/4in. hex shank to instantly transform it into a portable drill press, giving you the accuracy and control needed to tackle jobs that a traditional drill press can’t reach. The adjustable depth stop ensures precise, repeatable, operation making it perfect for repetitive tasks. Featuring high-visibility laser-etched scales, this guide can be easily adjusted and locked up to 60 degrees in either direction, allowing you to effortlessly drill precise angled holes for dowels, shelf pins, and other specialized applications. Designed for stability, the heavy-duty aluminum base features pre-drilled mounting holes for secure placement, while ergonomic knurled aluminum handles provide a firm grip during operation. V-grooves on either end allow for accurate centered drilling in dowels, round stock, and other cylindrical materials. The edge guide adds an extra layer of support, keeping your drill aligned for consistent results. The keyed drill chuck accommodates bit sizes from 1/16” to 1/2”, offering versatility for various drilling needs. Two interchangeable springs provide customizable support, reducing fatigue during long projects. Remember when your drill was also a drill press? Remember WEN.

What's Included

    (1) Portable Drill Guide

Features + Benefits

  • Versatile guide converts any hand drill into a portable drill press for precision and control
  • Adjustable drilling angle up to 60 degrees in either direction for creating angled holes for dowels, shelf pins, and more
  • Heavy-duty aluminum base features mounting holes and V-grooves
  • Keyed drill chuck accommodates bit sizes from 1/16” to 1/2” for a wide range of drilling applications
  • Depth stop ensures consistent hole depths for repetitive tasks, eliminating the need for constant adjustments

Key Specs

AttributeSpecification

item#

6701262

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

12.8 LB

Included (qty.)

1

Chuck Size

1/4 in
AttributeSpecification

Keyless

No

For Concrete Drill Use Only

No

Accessory Type

Angle Drilling Attachment

Product Weight

9.5000 lb

Dimensions L x W x H (in.)

12.4 x 9.5 x 16.0 in

Reviews

Questions & Answers

Questions

  1. what is the maximum vertical travel?

    1 answer

    1. The spindle travel with spring is 8.3". The spindle travel with out the spring is 9.3". The distance from the chuck tip to the base is 11.2".

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
