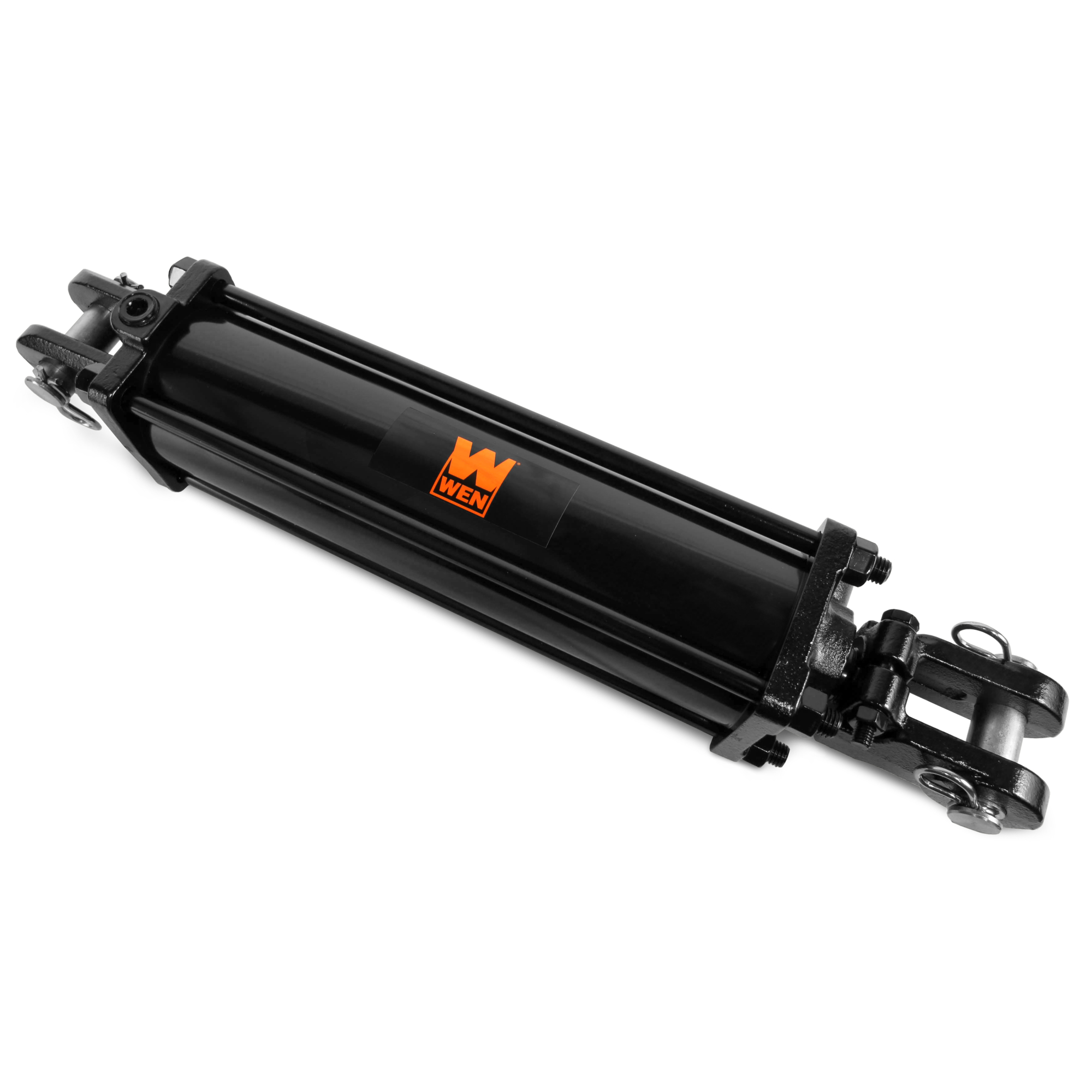

WEN TR-3536 2500 PSI Tie Rod Hydraulic Cylinder with 3.5 in. Bore and 36 in. Stroke

Item# 7060874
WEN TR-3536 2500 PSI Tie Rod Hydraulic Cylinder with 3.5 in. Bore and 36 in. Stroke

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN TR-3536 2500 PSI Tie Rod Hydraulic Cylinder with 3.5 in. Bore and 36 in. Stroke

Click or Tap image to Zoom

$205.99

    • Shipping:

      Factory shipped

    • Double-acting steel-welded design creates pressure up to 2500 psi
    • Features a 3. 5-inch bore, a 36-inch stroke, and a 1. 5-inch rod diameter
    • 1/2-inch NPT port connects to any standard hydraulic hose
    • Retracted 46. 25-inch cylinder extends out to 82. 25 inches in length
    • Includes a 1-inch zinc-plated steel pin, a polished chrome-plated rod, and a two-year

    • Prop 65 Warning: See Details

    See full description

    • Description

    • Key Specs

    • Reviews

    • Q & A

    • Warranty

    • Compare

    Product Summary

    Remember when you had a cylinder that lasted? Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Tie-Rod Hydraulic Cylinder. This double-acting steel-welded tie-rod hydraulic cylinder creates operating pressures of 2500 PSI. The 1/2in. NPT port size attaches easily to any standard hydraulic hose. With a 3. 5in. bore and a 36in. stroke, this durable cylinder goes from a retracted length of 46. 25in. all the way out to an extended length of 82. 25in. This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a 1in. diameter zinc-plated steel pin, a high-tensile ground and polished chrome-plated rod, an ASTM A536 65-45-12 ductile iron piston, and ductile iron female clevises with grade 8 clamp nuts. And because it’s a WEN product, your tie rod cylinder comes backed by a two-year , a stocked inventory of replacement parts and a two-year , all to make sure you remember WEN.

    What's Included

      (1) 2500 PSI Tie Rod Hydraulic Cylinder with 3.5 in. Bore and 36 in. Stroke

    Features + Benefits

    • Double-acting steel-welded design creates pressure up to 2500 psi
    • Features a 3. 5-inch bore, a 36-inch stroke, and a 1. 5-inch rod diameter
    • 1/2-inch NPT port connects to any standard hydraulic hose
    • Retracted 46. 25-inch cylinder extends out to 82. 25 inches in length
    • Includes a 1-inch zinc-plated steel pin, a polished chrome-plated rod, and a two-year

    Key Specs

    AttributeSpecification

    item#

    		7060874

    Brand

    		WEN

    Manufacturer's Warranty

    		2 year limited warranty

    Max. PSI

    		3,800

    Bore Diameter

    		3.5 in

    Stroke Length

    		36 in
    AttributeSpecification

    Retracted Length

    		46.25 in

    Extended Length

    		82.25 in

    Port Size

    		0.5 in

    Product Weight

    		76.0000 lb

    Dimensions L x W x H (in.)

    		0.0 x 0.0 x 0.0 in

    Reviews

    Questions & Answers

    Warranty

    Manufacturer's Warranty

    2 year limited warranty
