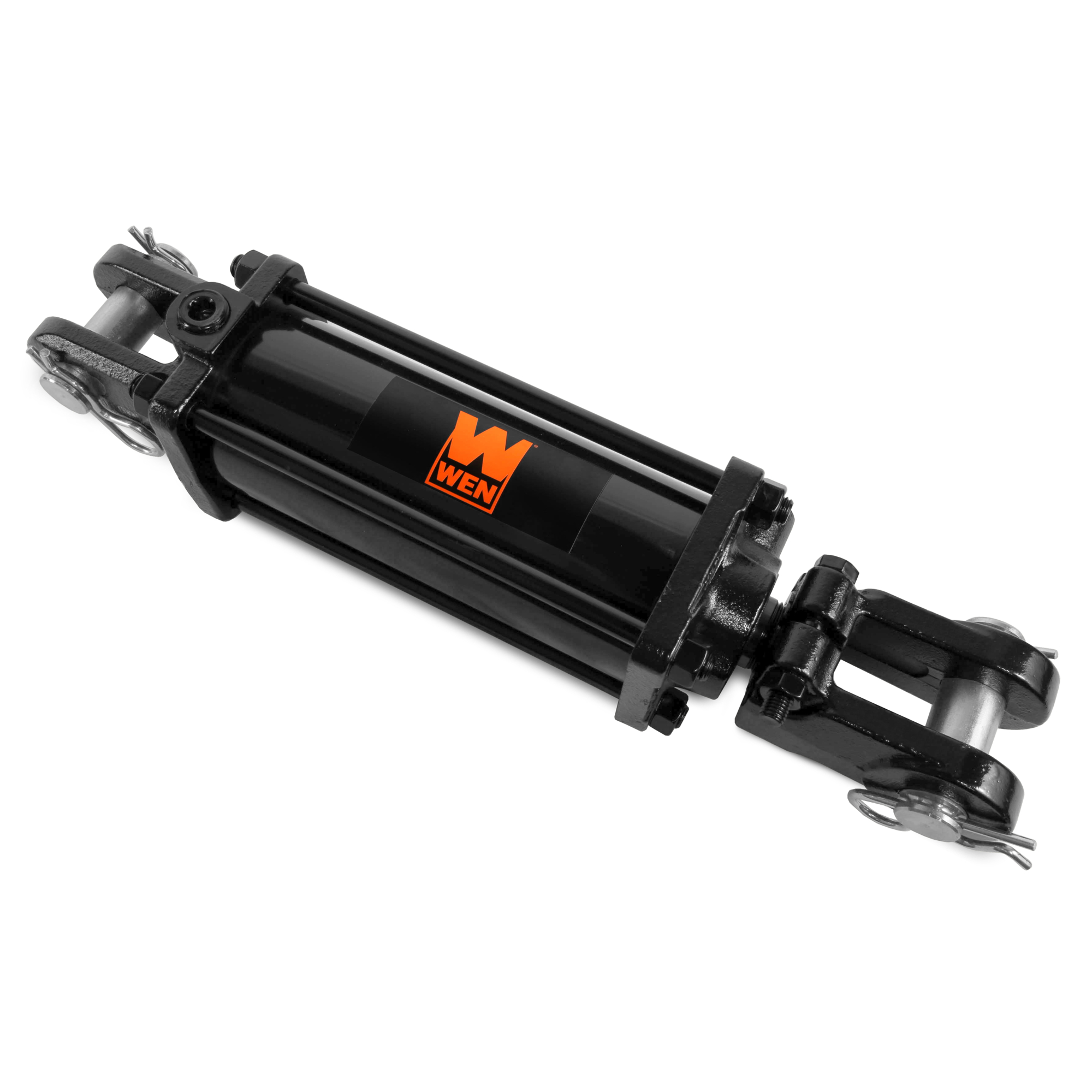

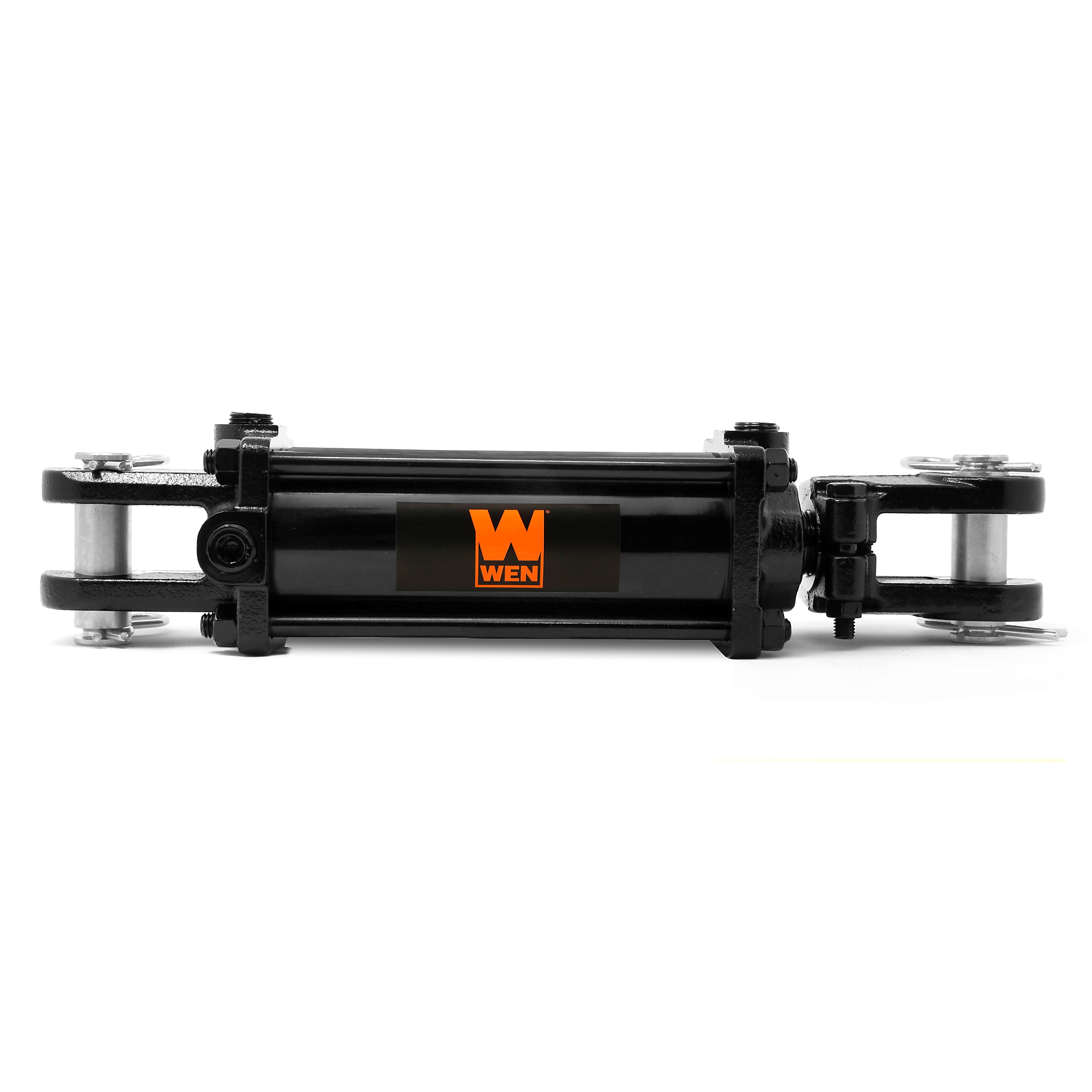

WEN TR-3012 2500 PSI Tie Rod Hydraulic Cylinder with 3 in. Bore and 12 in. Stroke

Item# 7060920
WEN TR-3012 2500 PSI Tie Rod Hydraulic Cylinder with 3 in. Bore and 12 in. Stroke

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN TR-3012 2500 PSI Tie Rod Hydraulic Cylinder with 3 in. Bore and 12 in. Stroke

Click or Tap image to Zoom

$104.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Double-acting steel-welded design creates pressure up to 2500 PSI
  • Features a 3-inch bore, a 12-inch stroke, and a 1.25-inch rod diameter
  • 1/2-inch NPT port connects to any standard hydraulic hose
  • Retracted 22.25-inch cylinder extends out to 34.25 inches in length
  • Includes a 1-inch zinc-plated steel pin, a polished chrome-plated rod, and a two-year warranty

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

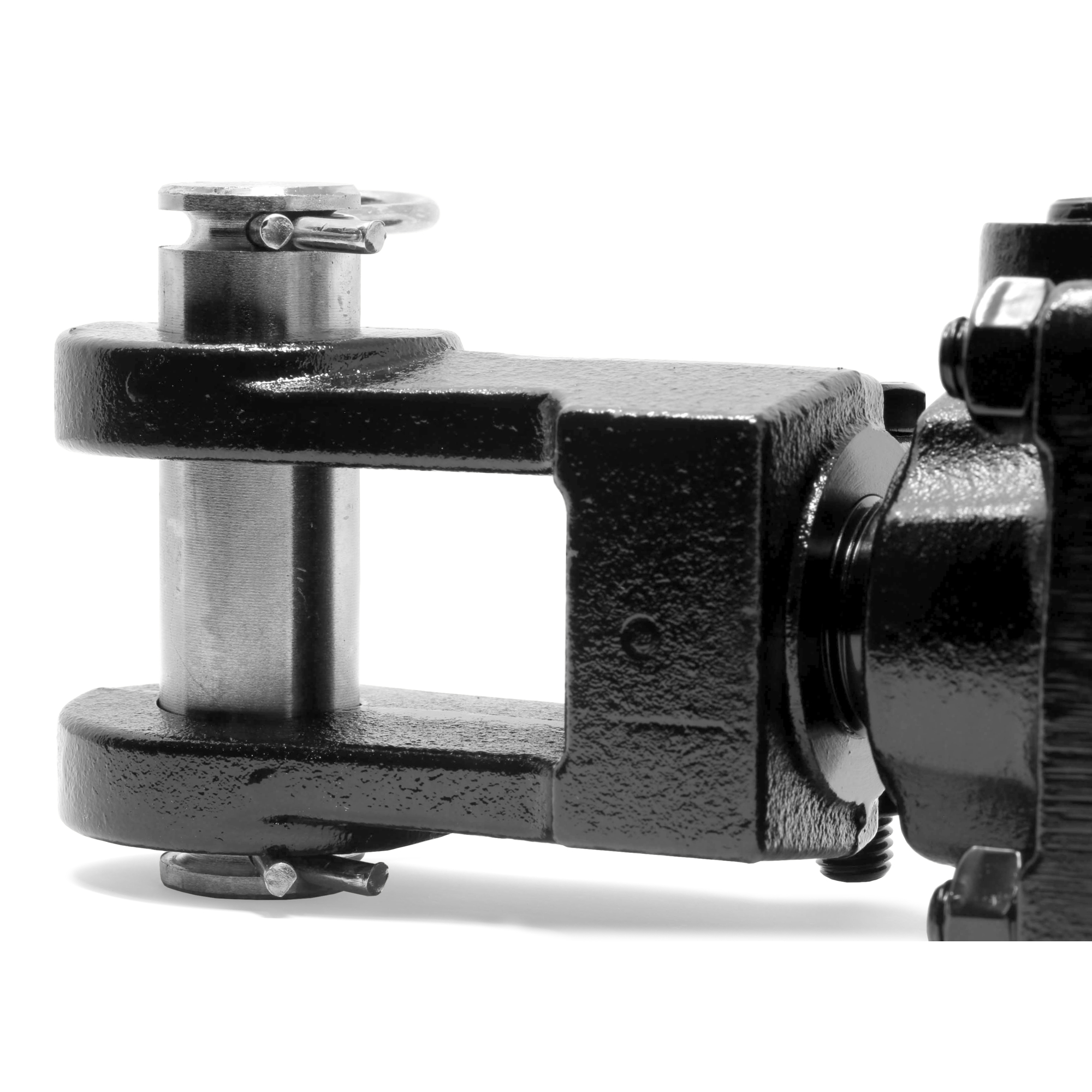

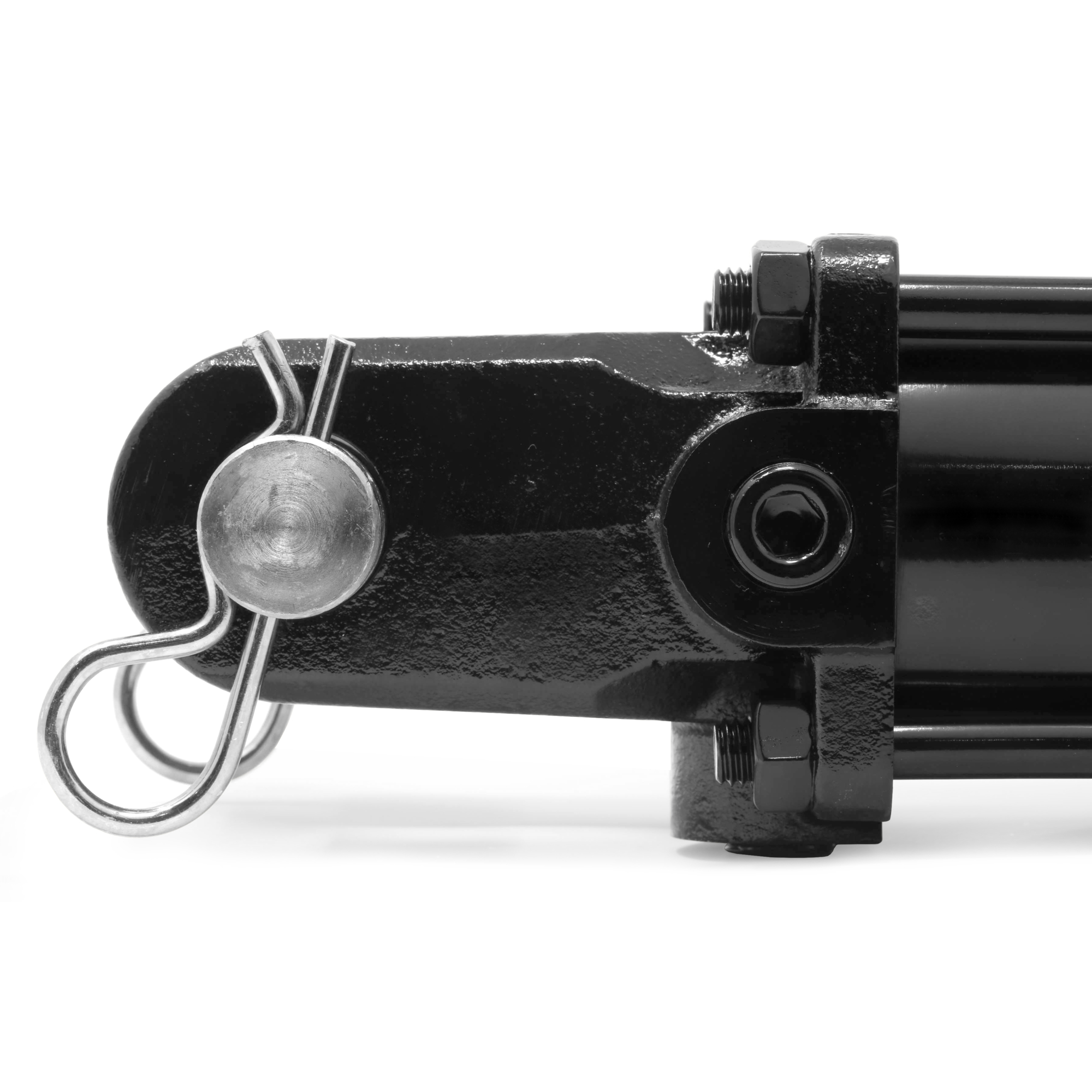

Remember when you had a cylinder that lasted? Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Tie-Rod Hydraulic Cylinder. This double-acting steel-welded tie-rod hydraulic cylinder creates operating pressures of 2500 PSI. The 1/2in. NPT port size attaches easily to any standard hydraulic hose. With a 3in. bore and a 12in. stroke, this durable cylinder goes from a retracted length of 22.25in. all the way out to an extended length of 34.25in. This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a 1in. diameter zinc-plated steel pin, a high-tensile ground and polished chrome-plated rod, an ASTM A536 65-45-12 ductile iron piston, and ductile iron female clevises with grade 8 clamp nuts. And because it’s a WEN product, your tie rod cylinder comes backed by a two-year warranty, a stocked inventory of replacement parts and a two-year warranty, all to make sure you remember WEN.

What's Included

    (1) 2500 PSI Tie Rod Hydraulic Cylinder with 3 in. Bore and 12 in. Stroke

Features + Benefits

  • Double-acting steel-welded design creates pressure up to 2500 PSI
  • Features a 3-inch bore, a 12-inch stroke, and a 1.25-inch rod diameter
  • 1/2-inch NPT port connects to any standard hydraulic hose
  • Retracted 22.25-inch cylinder extends out to 34.25 inches in length
  • Includes a 1-inch zinc-plated steel pin, a polished chrome-plated rod, and a two-year warranty

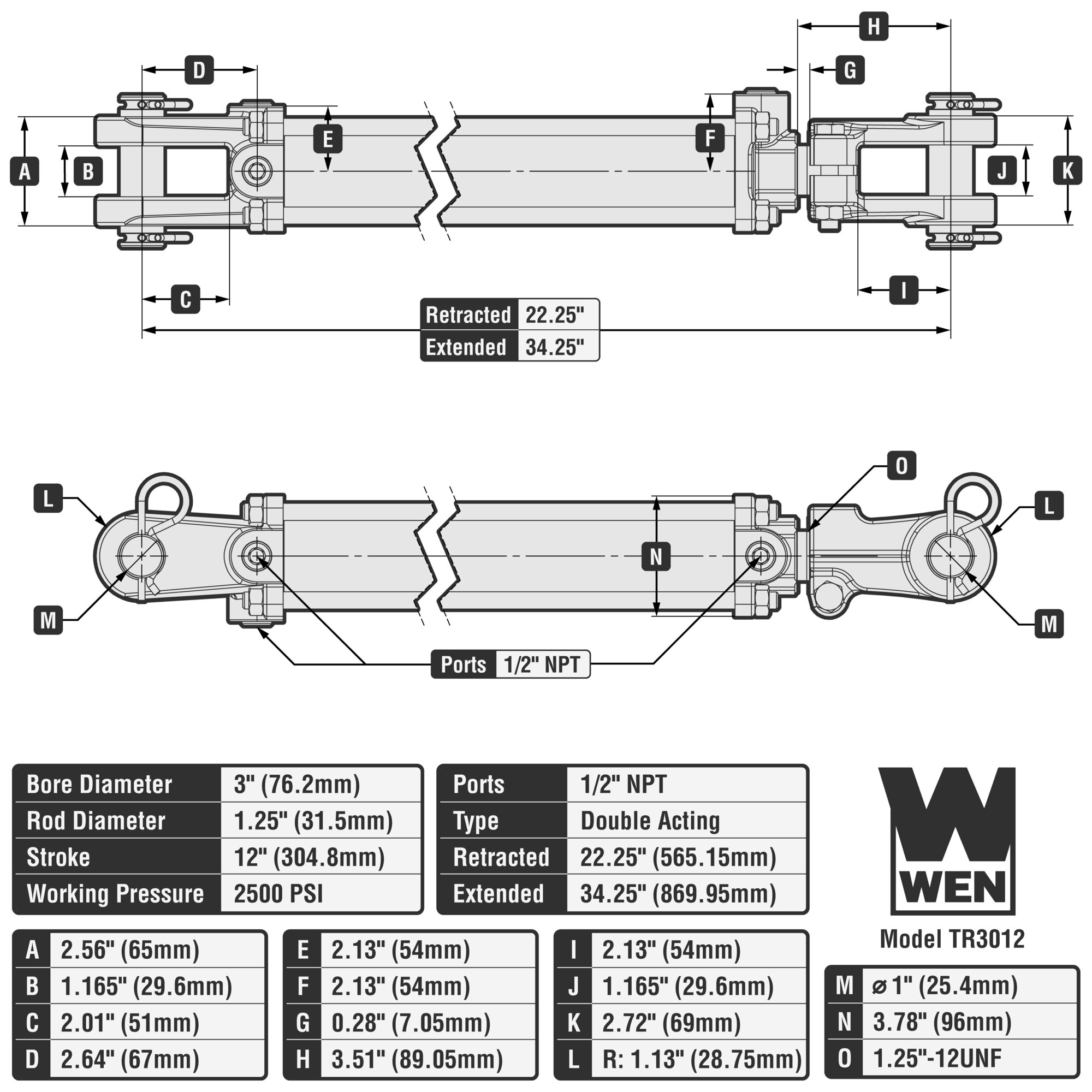

Key Specs

AttributeSpecification

item#

7060920

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

31.31 LB

Max. PSI

3,800

Bore Diameter

3 in
AttributeSpecification

Stroke Length

12 in

Retracted Length

22.25 in

Extended Length

34.25 in

Port Size

0.5 in

Product Weight

29.9200 lb

Dimensions L x W x H (in.)

24.42 x 4.2 x 4.2 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
