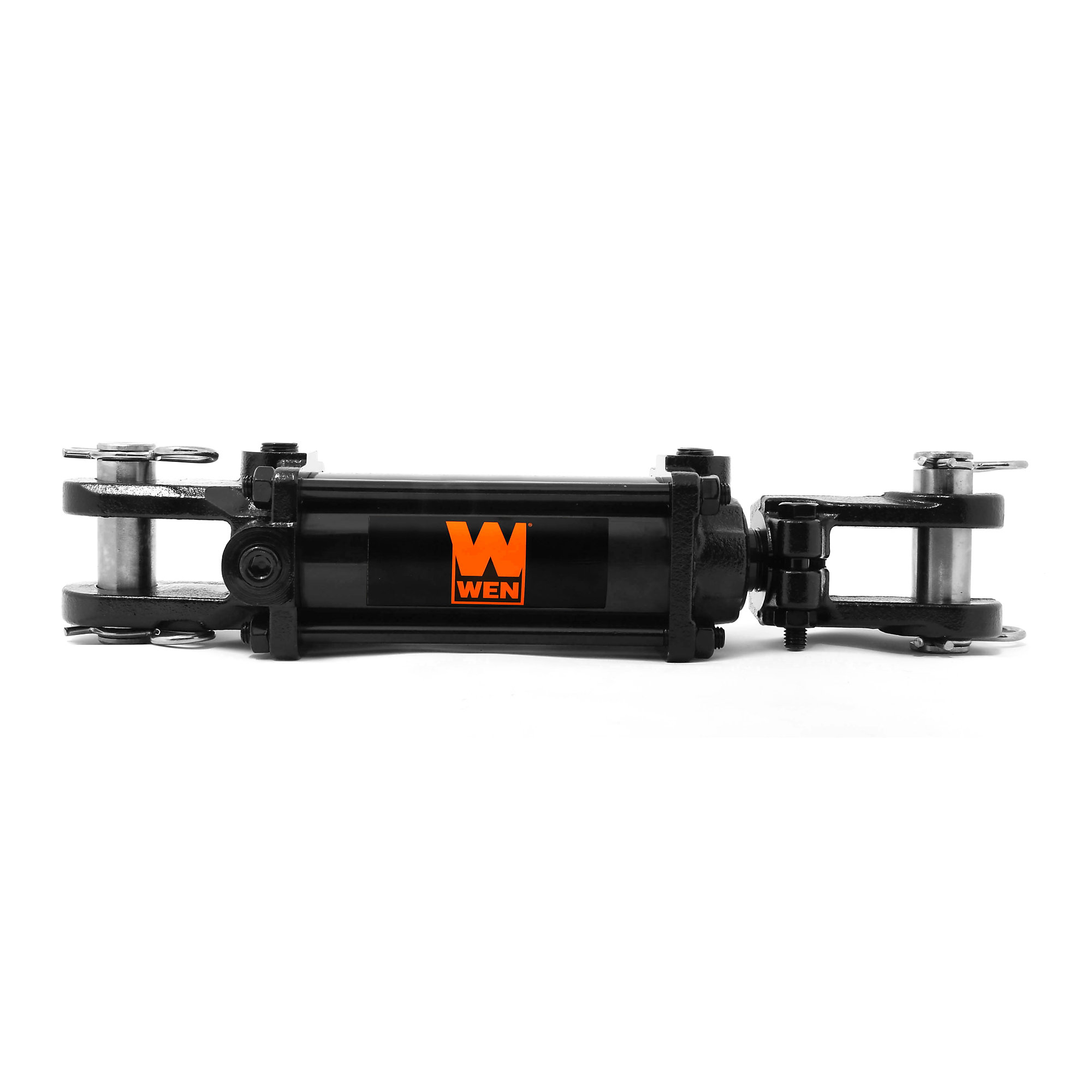

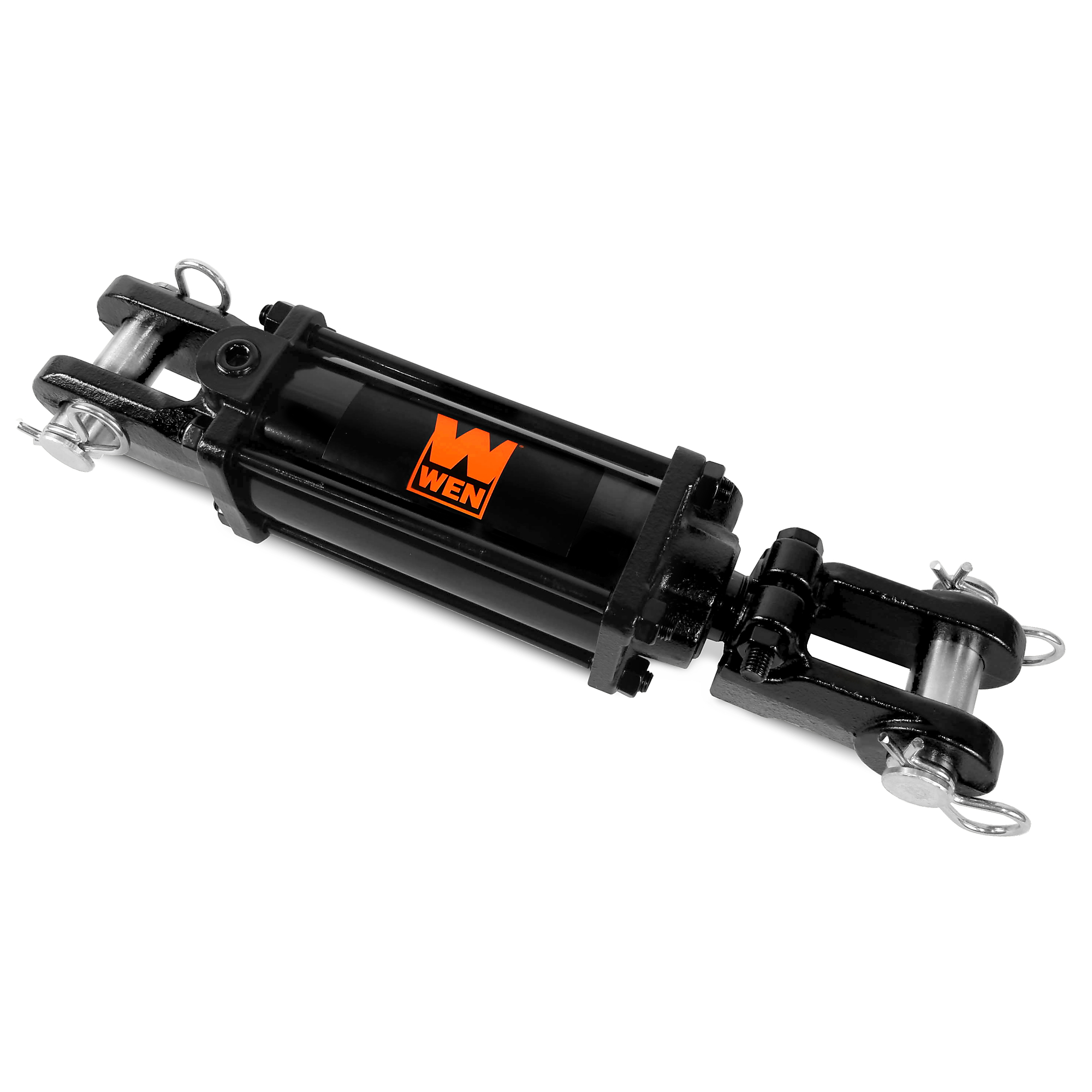

WEN TR-2512 2500 PSI Tie Rod Hydraulic Cylinder with 2.5 in. Bore and 12 in. Stroke

Item# 7060727
WEN TR-2512 2500 PSI Tie Rod Hydraulic Cylinder with 2.5 in. Bore and 12 in. Stroke

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN TR-2512 2500 PSI Tie Rod Hydraulic Cylinder with 2.5 in. Bore and 12 in. Stroke

Click or Tap image to Zoom

$89.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Double-acting steel-welded design creates pressure up to 2500 PSI

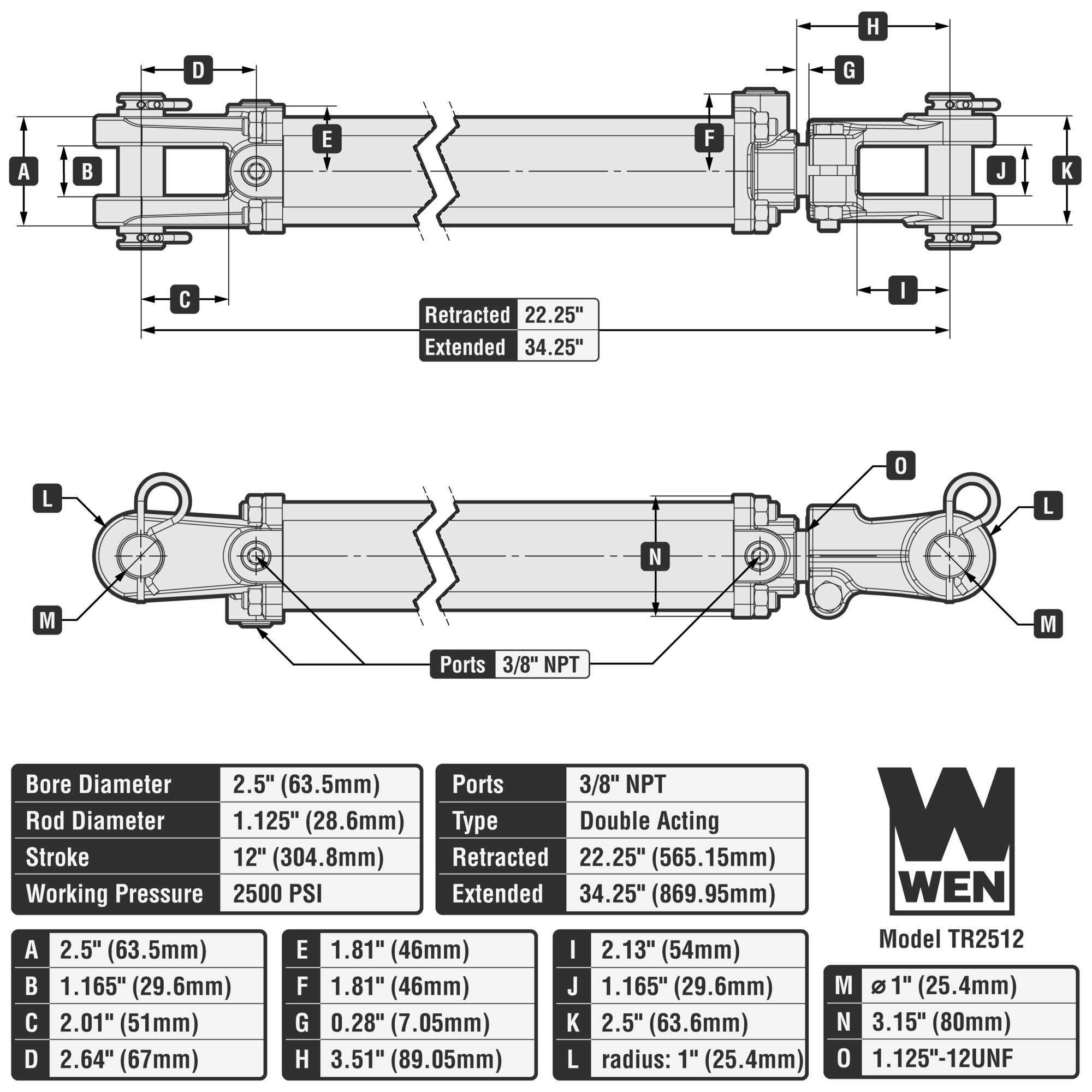

  • Features a 2.5-inch bore, a 12-inch stroke, and a 1.125-inch rod diameter
  • 3/8-inch NPT port connects to any standard hydraulic hose
  • Retracted 22.25-inch cylinder extends out to 34.25 inches in length

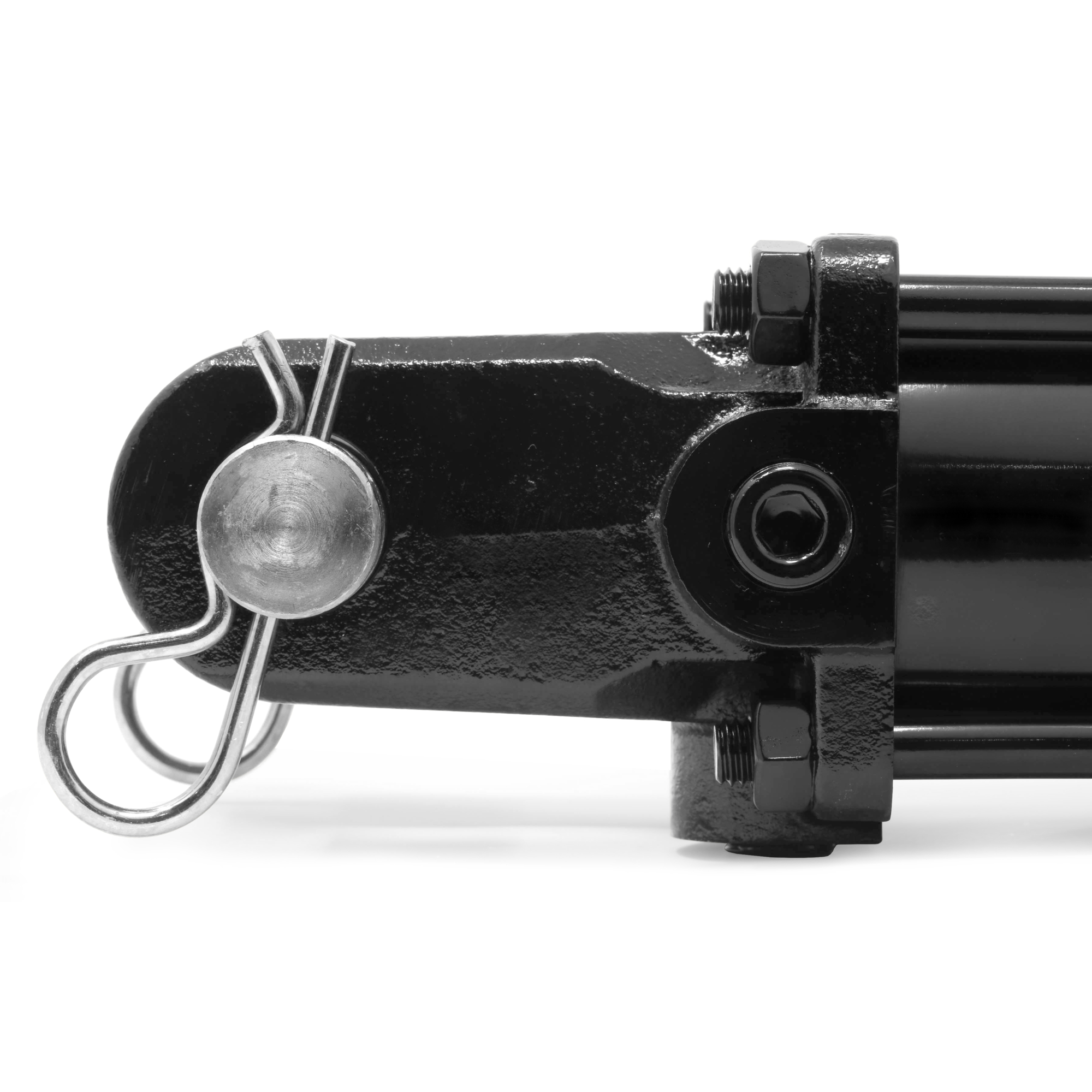

  • Includes a 1-inch zinc-plated steel pin, a polished chrome-plated rod, and a two-year warranty

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

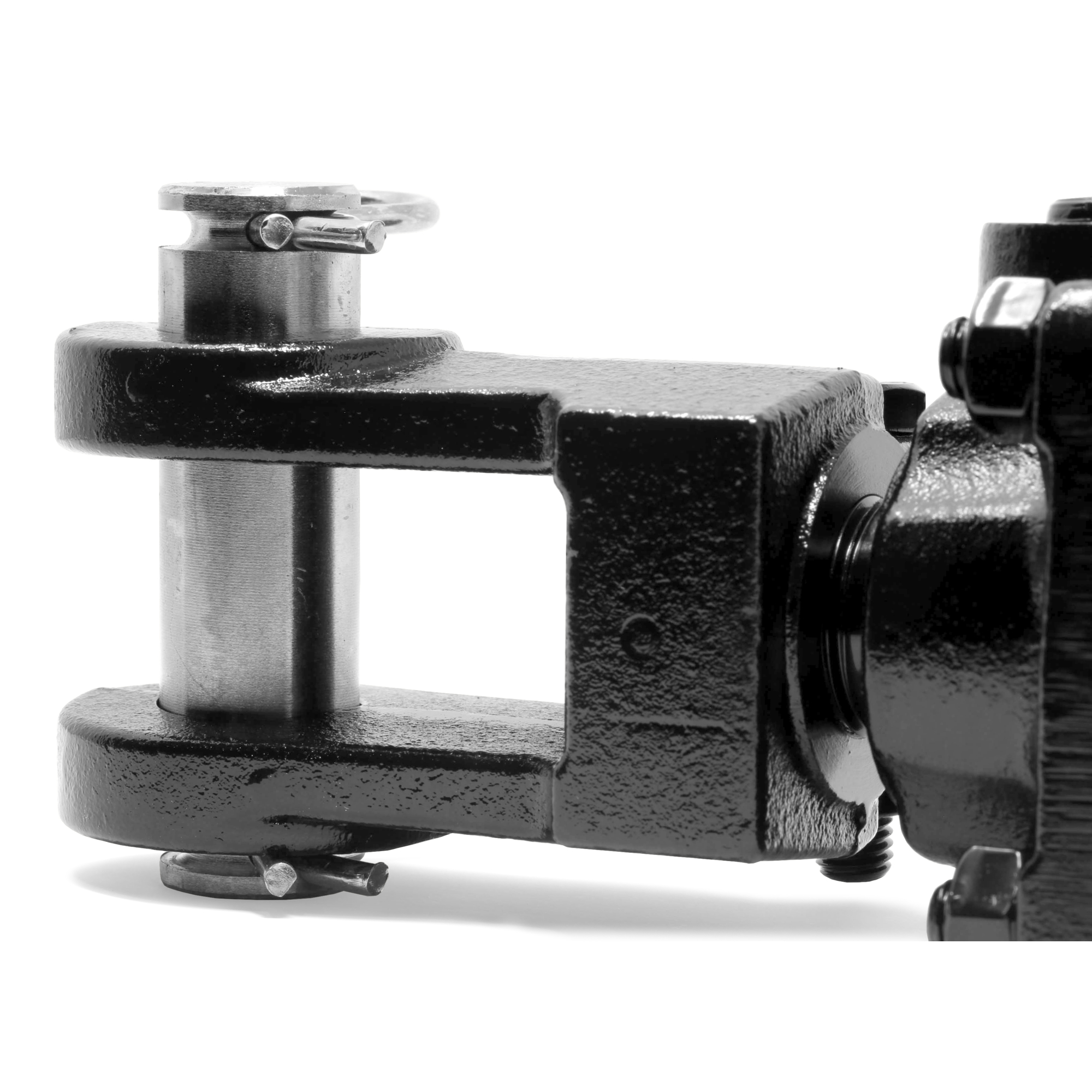

Remember when you had a cylinder that lasted? Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Tie-Rod Hydraulic Cylinder. This double-acting steel-welded tie-rod hydraulic cylinder creates operating pressures of 2500 PSI. The 3/8in. NPT port size attaches easily to any standard hydraulic hose. With a 2.5in. bore and a 12in. stroke, this durable cylinder goes from a retracted length of 22.25in. all the way out to an extended length of 34.25in. This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a 1in. diameter zinc-plated steel pin, a high-tensile ground and polished chrome-plated rod, an ASTM A536 65-45-12 ductile iron piston, and ductile iron female clevises with grade 8 clamp nuts. And because it’s a WEN product, your tie rod cylinder comes backed by a two-year warranty, a stocked inventory of replacement parts and a two-year warranty, all to make sure you remember WEN.

What's Included

    (1) 2500 PSI Tie Rod Hydraulic Cylinder with 2.5 in. Bore and 12 in. Stroke

Features + Benefits

  • Double-acting steel-welded design creates pressure up to 2500 PSI
  • Features a 2.5-inch bore, a 12-inch stroke, and a 1.125-inch rod diameter
  • 3/8-inch NPT port connects to any standard hydraulic hose
  • Retracted 22.25-inch cylinder extends out to 34.25 inches in length
  • Includes a 1-inch zinc-plated steel pin, a polished chrome-plated rod, and a two-year warranty

Key Specs

AttributeSpecification

item#

7060727

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

24.47 LB

Max. PSI

3,800

Bore Diameter

2.5 in
AttributeSpecification

Stroke Length

12 in

Retracted Length

22.25 in

Extended Length

34.25 in

Port Size

0.375 in

Product Weight

23.5400 lb

Dimensions L x W x H (in.)

24.4 x 3.7 x 3.8 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
