WEN Plate Compactor, 4500-Lb. Compaction Force, 212cc Engine, CARB Compliant, Model# 56035T

Item# 5807891
"WEN Plate Compactor, 4500-Lb. Compaction Force, 212cc Engine, CARB Compliant, Model# 56035T"
WEN Plate Compactor, 4500-Lb. Compaction Force, 212cc Engine, CARB Compliant, Model# 56035T

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN Plate Compactor, 4500-Lb. Compaction Force, 212cc Engine, CARB Compliant, Model# 56035T

Click or Tap image to Zoom

$709.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Powerful: 212cc engine is larger than most in its class, producing 4, 496lbs of force at 5, 400 blows per minute
  • Maneuverable with our unique swing-over handle and the compact 24 x 17-3/4" Contoured edge plate
  • Fast travel speed = productivity; single direction plate travels up to 82 feet per minute
  • Vibration isolators between the welded Steel plate and the engine reduce vibration extending the engine's life
  • Easily transportable with lift handles at the plate, as well as central lifting/load Bar

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

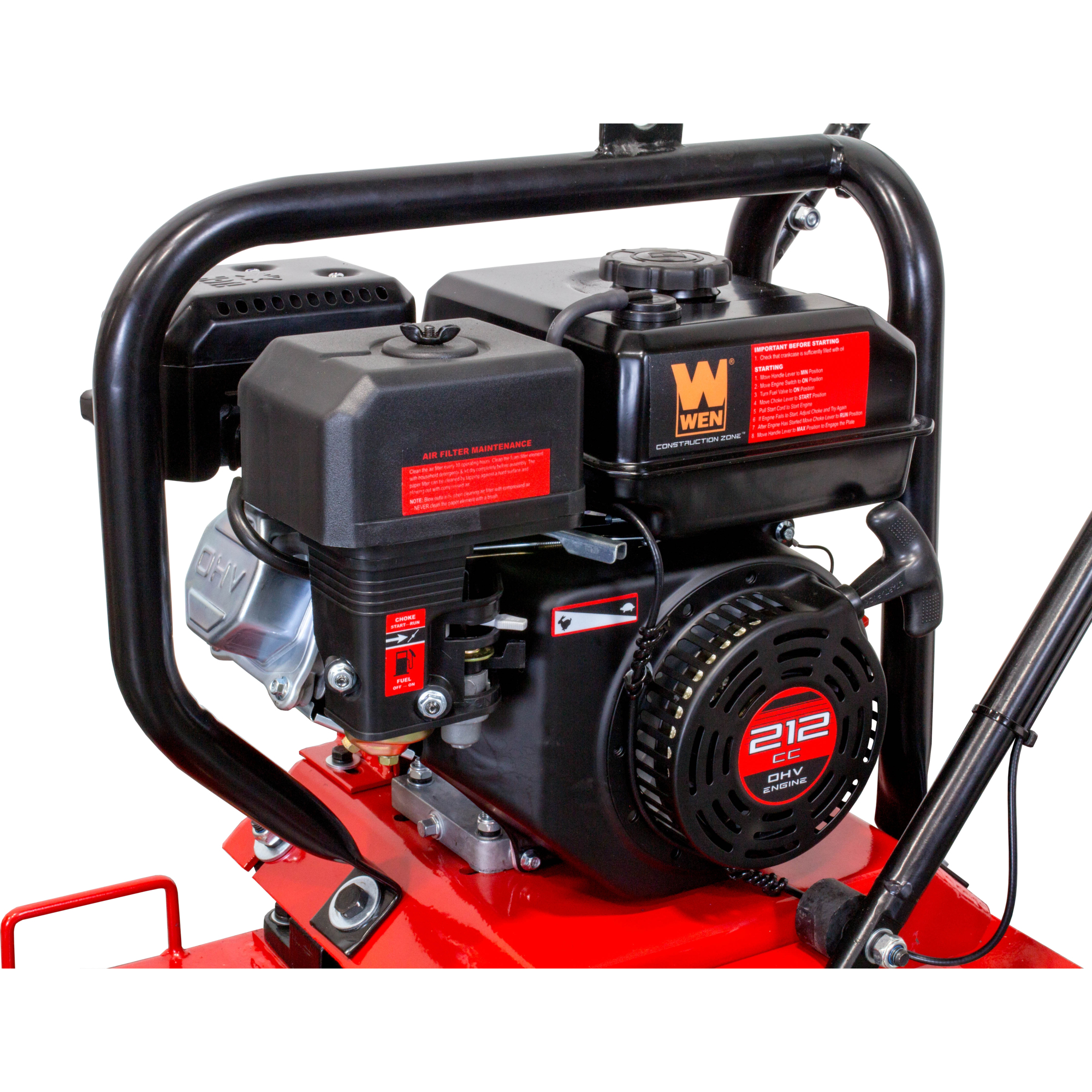

Forget about spending money to rent a plate compactor. With a price this good and equipment this reliable, buying a compactor for the job site has never made more sense. A must have tool for anyone working on walkways, patios, paver installations, landscaping or small asphalt projects. Powerful 212cc /7 HP engine delivers 4 496 lbs. of force at 5 400 blows per minute, increasing the density of loose granular soils, gravel, sand, crushed aggregate and other mediums into a sound, level foundation. This type of foundation extends the life of your project as it reduces water seepage, swelling and expansion. Our unique swing-over handle makes it easy to maneuver around the work area even in narrow, cramped spaces. Our engine features an angled combustion chamber (for more power per displacement), a pull recoil start and a low-oil shutdown to protect the engine. Vibration isolators between the welded steel plate and the engine reduce vibration, extending the engine's life. High density foam in the handles also reduces vibration to the user. 1 Gal. fuel tank provides ample work time. Tough powder-coat finish keeps the product rust-free.

What's Included

    (1) 7 HP 4500-Pound Compaction Force Plate Compactor, CARB Compliant

Features + Benefits

  • Powerful: 212cc engine is larger than most in its class, producing 4, 496lbs of force at 5, 400 blows per minute
  • Maneuverable with our unique swing-over handle and the compact 24 x 17-3/4" Contoured edge plate
  • Fast travel speed = productivity; single direction plate travels up to 82 feet per minute
  • Vibration isolators between the welded Steel plate and the engine reduce vibration extending the engine's life
  • Easily transportable with lift handles at the plate, as well as central lifting/load Bar

Key Specs

AttributeSpecification

item#

5807891

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

231.0 LB

Motor Type

Gas

Fuel Type

Gasoline

Product Type

Plate Compactor

Engine Displacement

212 cc
AttributeSpecification

Plate Length

24 in

Plate Width

17.75 in

Compaction Force

4,496 lb

Vibrations Per Minute

5,400

Travel Speed

82 ft./min.

For Use With

WEN 56035-047 Plate Compactor Pad Set

Product Weight

207.0000 lb

Dimensions L x W x H (in.)

25.0 x 18.5 x 27.5 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. What is the valve lash (clearance) of the engine on a 56035 or 56035 T ?

    1 answer

    1. The intake valve clearance is 0.005-0.007 inches (0.13-0.17 MM). The exhaust valve clearance is 0.007-0.009 inches (0.18-0.22MM).

      Helpful?

  2. What brand motor?

    1 answer

    1. The engine is made by WEN.

      Helpful?
