WEN Heat-Treated Carbide-Tipped Router Bit Set - 3-Piece, 1/4in. Shank, Model# RB500-3

Item# 5806636
3 Pieces
WEN Heat-Treated Carbide-Tipped Router Bit Set - 3-Piece, 1/4in. Shank, Model# RB500-3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN Heat-Treated Carbide-Tipped Router Bit Set - 3-Piece, 1/4in. Shank, Model# RB500-3

Click or Tap image to Zoom

$23.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Professional-grade heat-treated HSS design includes carbide tips for a long-lasting sharp edge

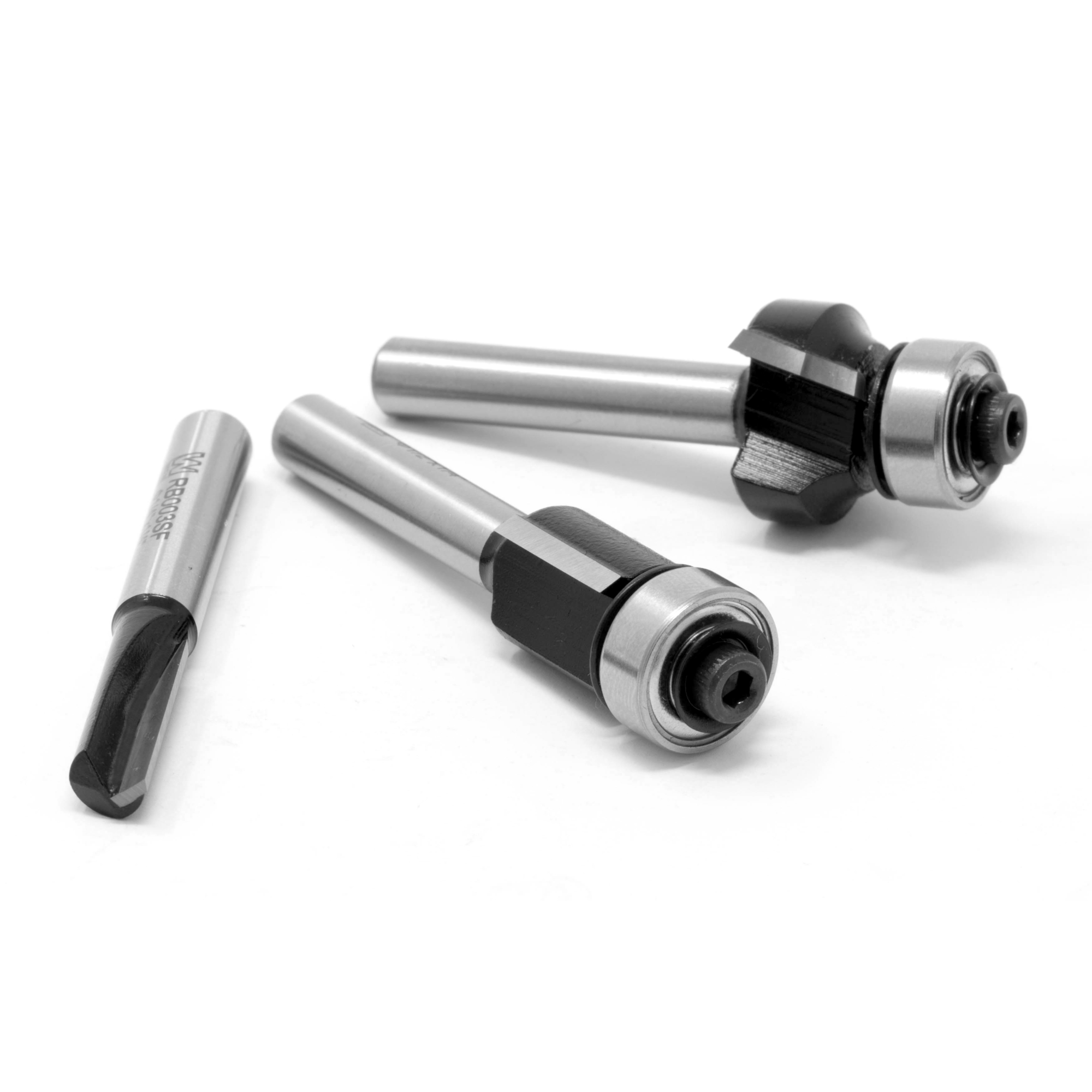

  • Includes one 1/4 in. Straight 1-Flute Carbide-Tipped Router Bit with 1/4 in. Shank (Model RB003SF), 1/2 in. Flush Trim Carbide-Tipped Router Bit with 1/4 in. Shank and 1/2 in. Cutting Length (Model RB403FT), and one 3/4 in. Roundover Carbide-Tipped Router Bit with 1/4 in. Shank (model RB601RD)

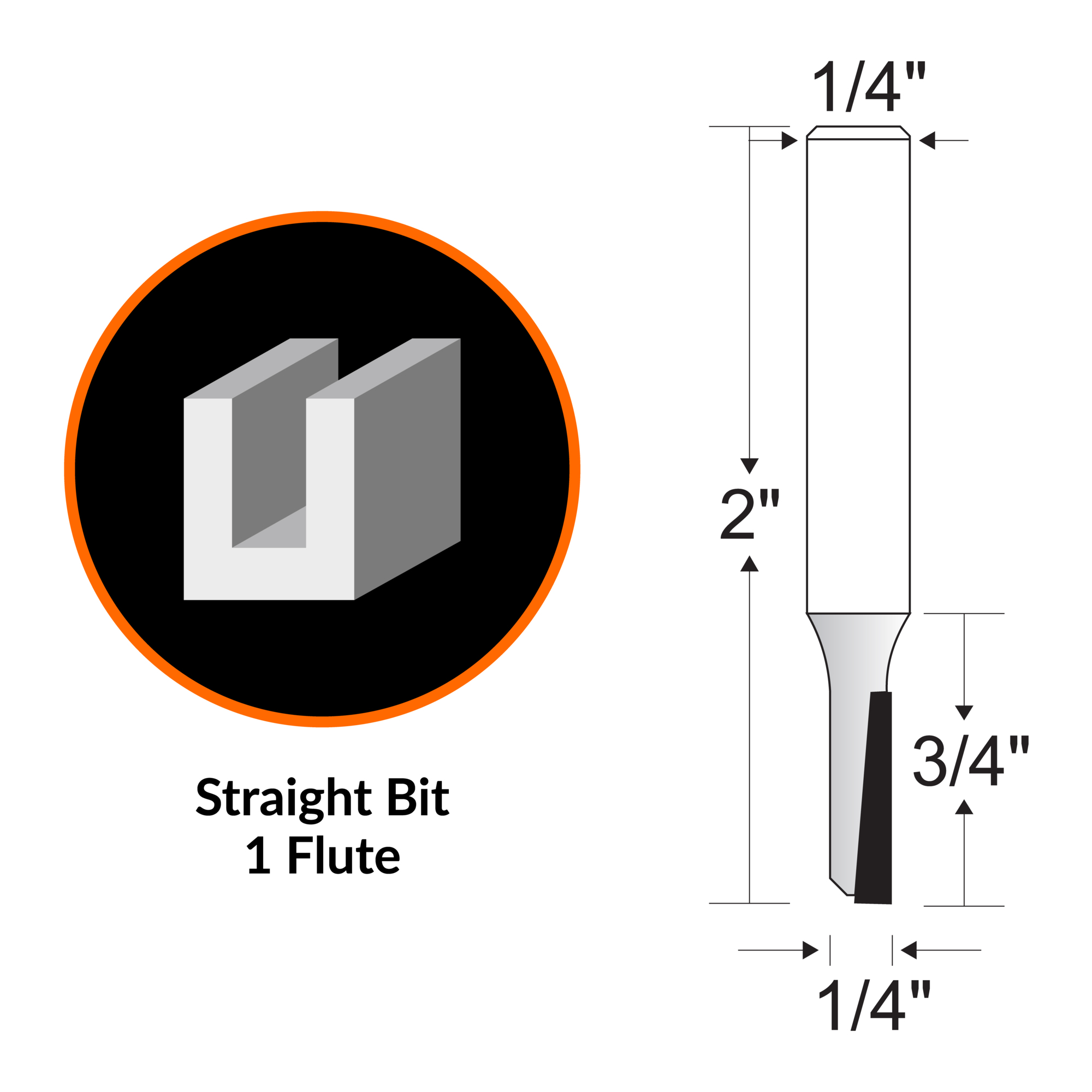

  • Straight one-flute profile makes for perfect grooves and dadoes in your workpiece

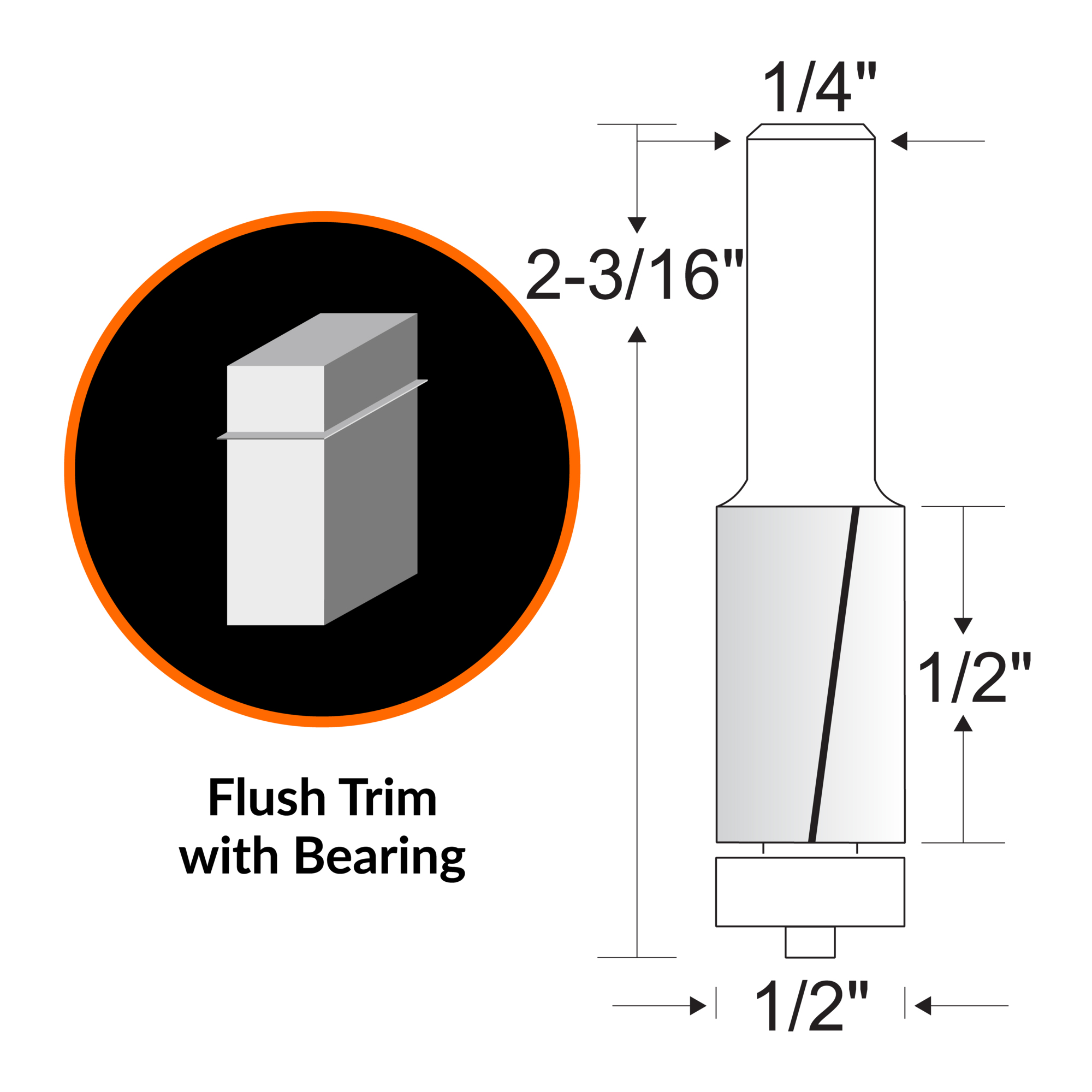

  • Flush trim profile helps replicate complex edges and create flush surfaces

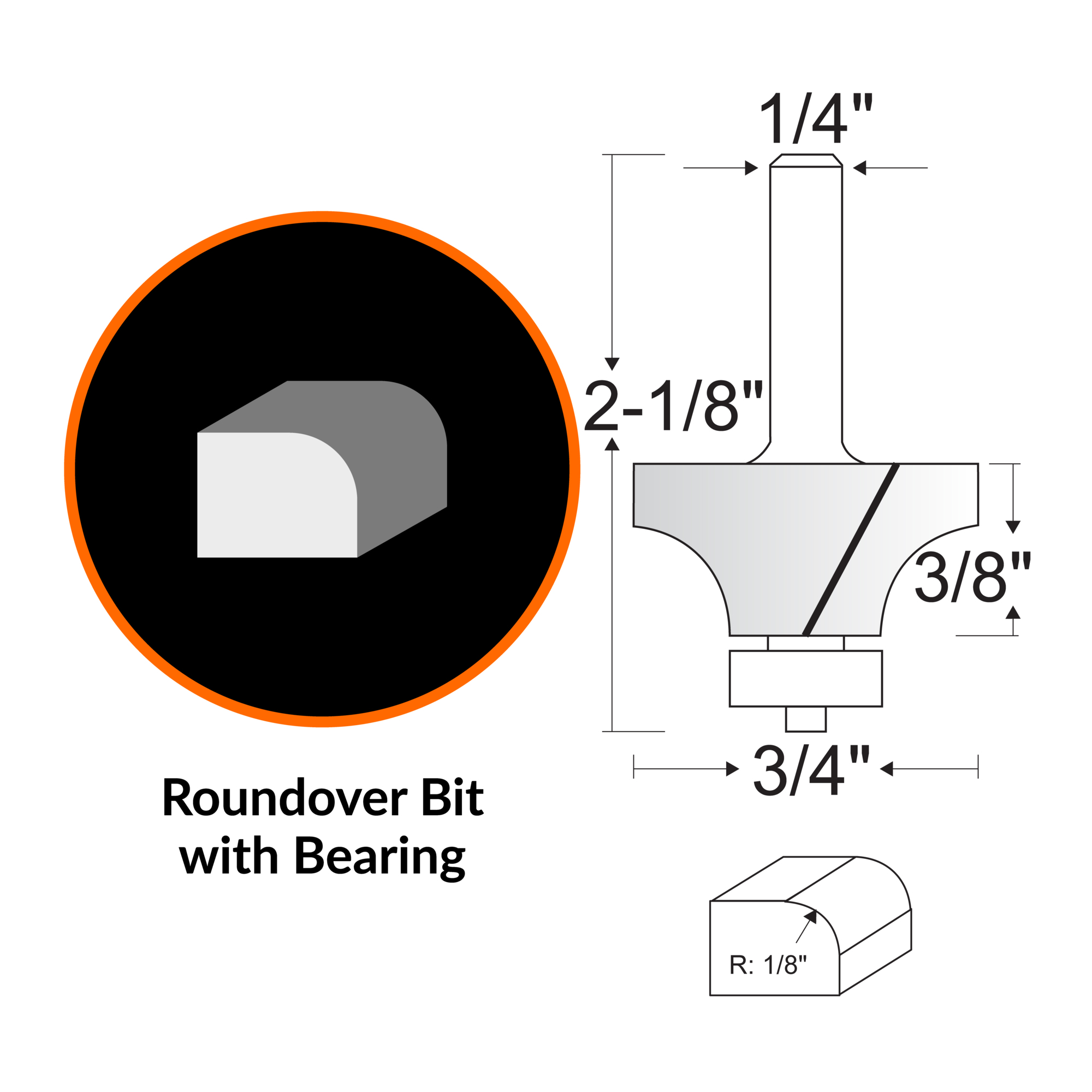

  • Roundover profile creates rounded edges to your workpiece

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Remember when your bits could handle the toughest materials? Add some shape into your edges with the WEN Professional-Grade High Speed Steel Carbide-Tipped Router Bit series. These reliable and durable heat-treated bits feature extremely sharp tungsten carbide blades that slice through even the toughest of woods. This package includes three different router bit profiles for maximum versatility. The included 1-flute profile makes for perfect grooves and dadoes in your workpiece, with a 1/4in. diameter, a 3/4in. cutting length, a 2in. overall length, a 1/4in. diameter shank, and a max RPM of 28,000. Our flush trim profile combined with the onboard bearing help replicate complex edges and make flush surfaces in your workpieces. This bit features a 1/2in. diameter, a 1/2in. cutting length, a 2-3/16in. overall length, a 1/4in. diameter shank, and a max RPM of 28,000. Last but not least is our roundover profile with onboard bearing. This bit helps create perfectly round edges in your workpieces, with a 3/4in. diameter, a 3/8in. cutting length, a 2-1/8in. overall length, a 1/4in. diameter shank, and a max RPM of 24,000. Onboard-bearings guides these bits for maximum support and accuracy during operation. And if these don’t cut it, check out the rest of our line of professional router bits, available in a wide variety of profiles and sizes. With WEN by your side, any job is within reach; from surface trimming to unique cabinetry, simple dados to decorative edges, you’ll be able to handle it all. Remember when you stepped your carpentry up a notch? Remember WEN.

What's Included

    (1) Heat-Treated Multi-Profile Carbide-Tipped Router Bit Set (3-Piece)

Features + Benefits

  • Professional-grade heat-treated HSS design includes carbide tips for a long-lasting sharp edge
  • Includes one 1/4 in. Straight 1-Flute Carbide-Tipped Router Bit with 1/4 in. Shank (Model RB003SF), 1/2 in. Flush Trim Carbide-Tipped Router Bit with 1/4 in. Shank and 1/2 in. Cutting Length (Model RB403FT), and one 3/4 in. Roundover Carbide-Tipped Router Bit with 1/4 in. Shank (model RB601RD)
  • Straight one-flute profile makes for perfect grooves and dadoes in your workpiece
  • Flush trim profile helps replicate complex edges and create flush surfaces
  • Roundover profile creates rounded edges to your workpiece

Key Specs

AttributeSpecification

item#

5806636

Brand

WEN

Manufacturer's Warranty

No limited warranty

Ship Weight

0.21 LB

Shank Size

1/4 in

Bit Diameter

1/4 in

Bit Type

Trim
AttributeSpecification

Cutting Length

3/4 in

Cutting Width

1/2 in

Pieces (qty.)

3

Material

Multiple

Product Weight

0.1663 lb

Dimensions L x W x H (in.)

2.69 x 0.5 x 0.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

No limited warranty
