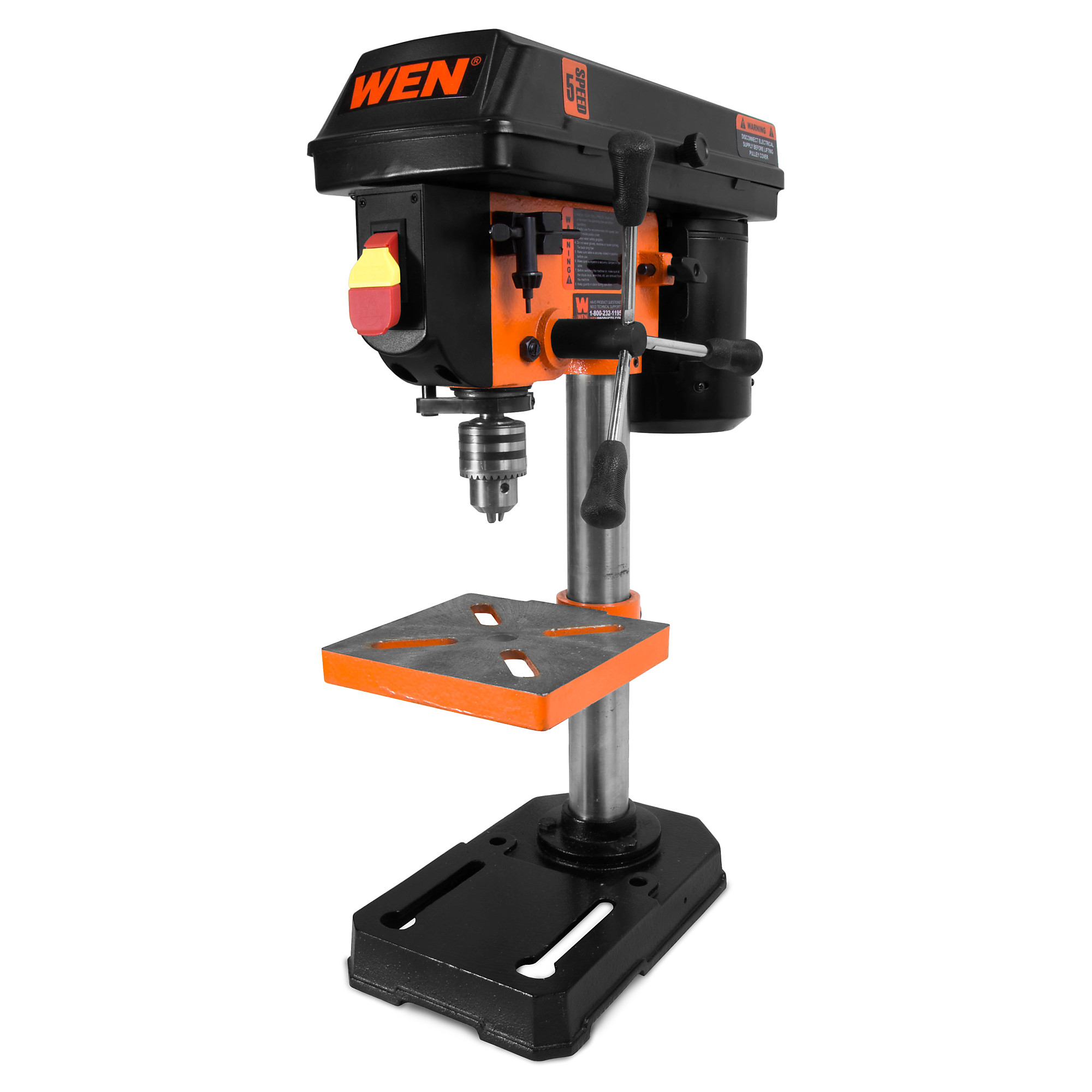

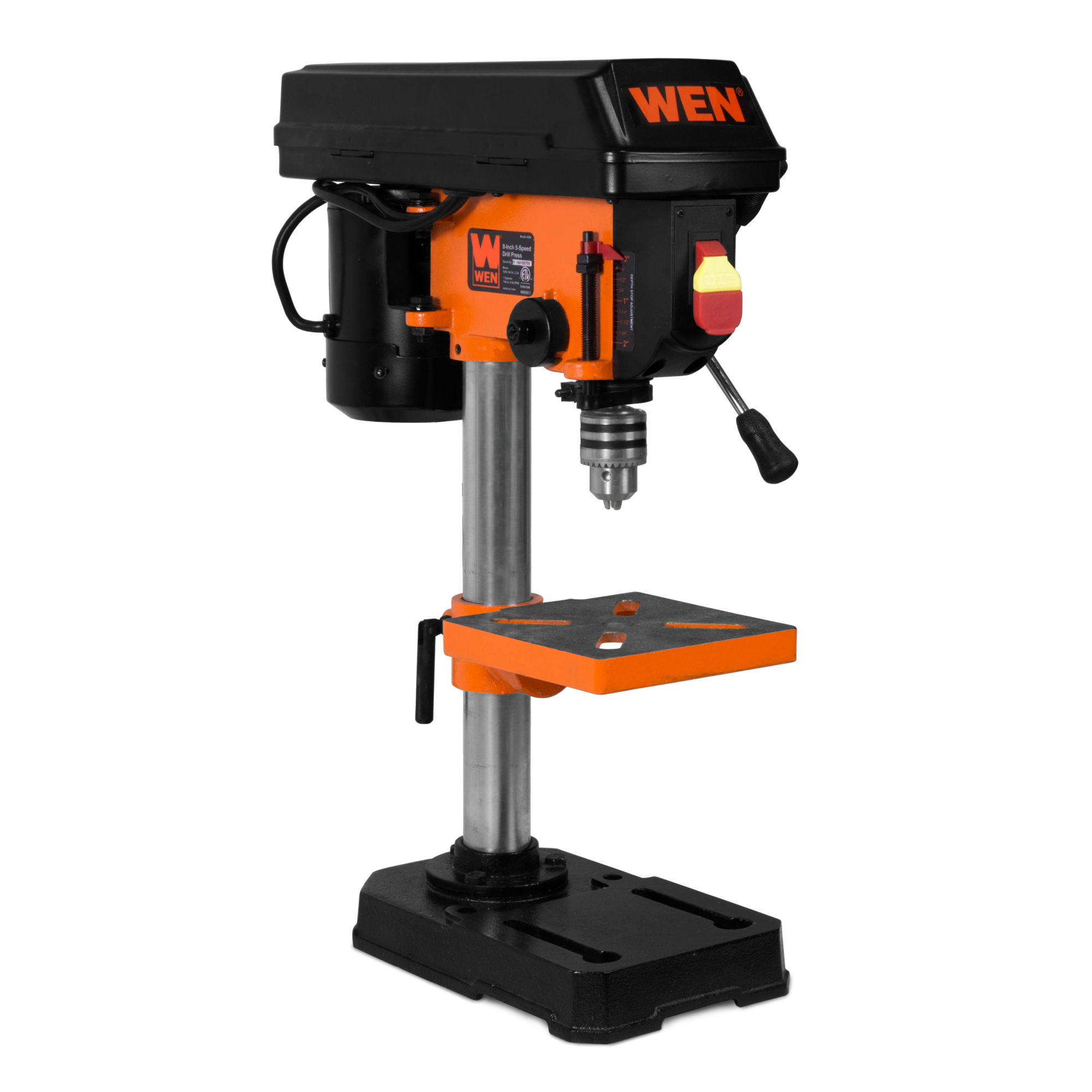

WEN Benchtop Drill Press - 8in., 5-Speed, 0.5in. Chuck, 0.37 HP, Cast Iron, Model# 4208T

Item# 5805764
WEN Benchtop Drill Press - 8in., 5-Speed, 0.5in. Chuck, 0.37 HP, Cast Iron, Model# 4208T

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN Benchtop Drill Press - 8in., 5-Speed, 0.5in. Chuck, 0.37 HP, Cast Iron, Model# 4208T

Click or Tap image to Zoom

  • Features a 2.3A induction motor, an 8-inch swing, and a 2-inch spindle travel

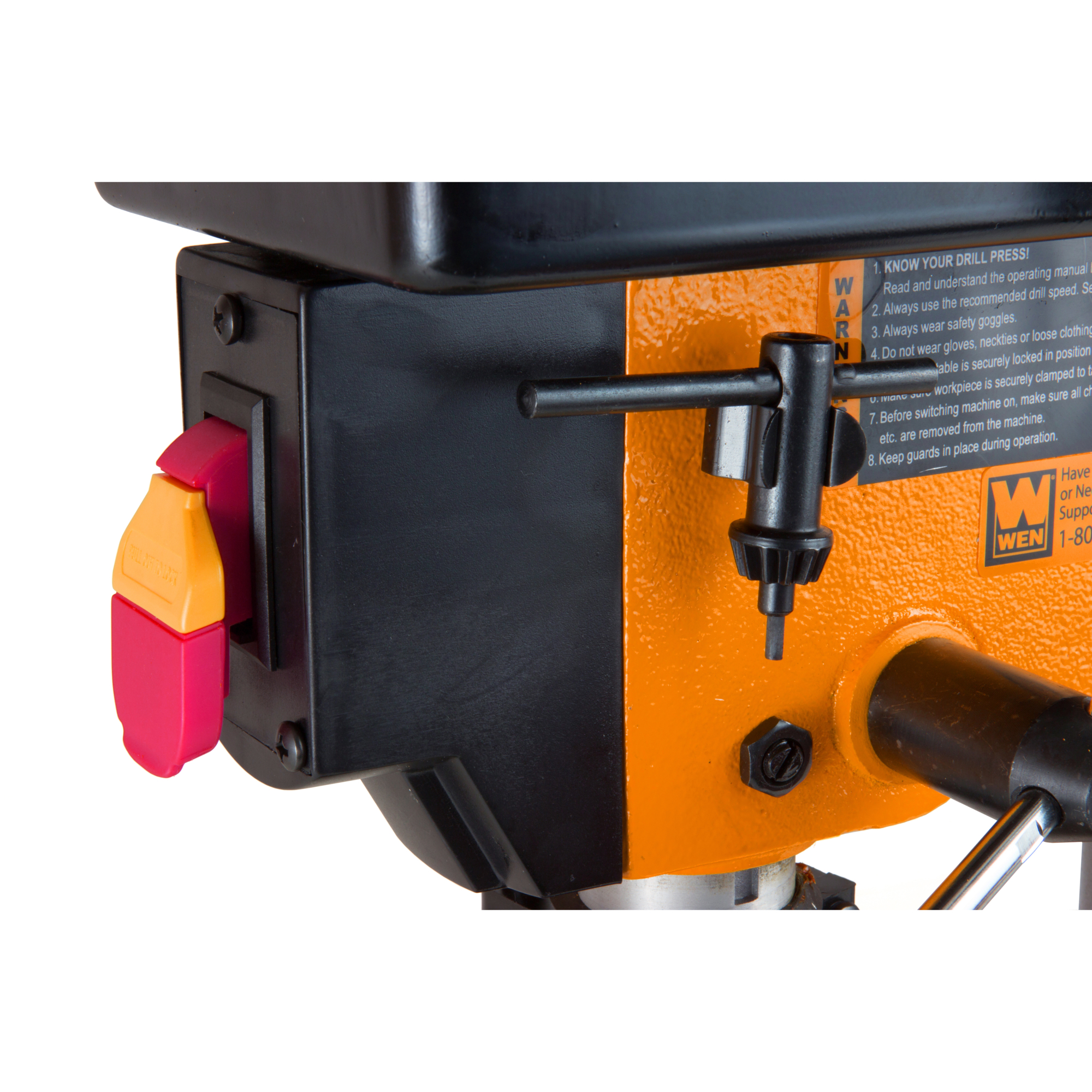

  • Includes a 1/2-inch keyed chuck and onboard key storage
  • Operates at 5 different speeds: 740, 1100, 1530, 2100, or 3140 RPM

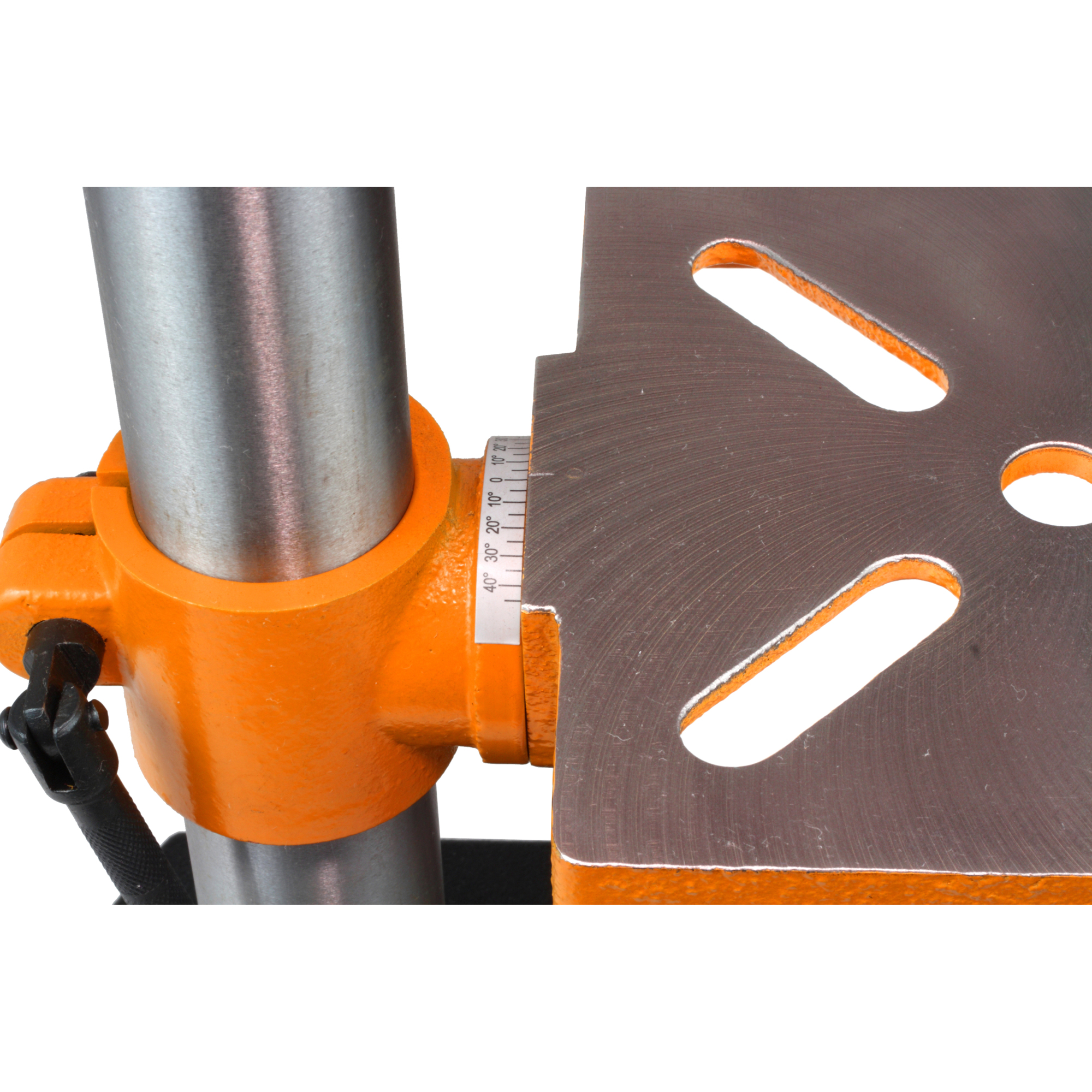

  • 6.5 by 6.5 inch height adjustable worktable bevels up to 45 degrees in each direction
  • Measures in at 23 inches tall with a 7 by 11-inch base

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

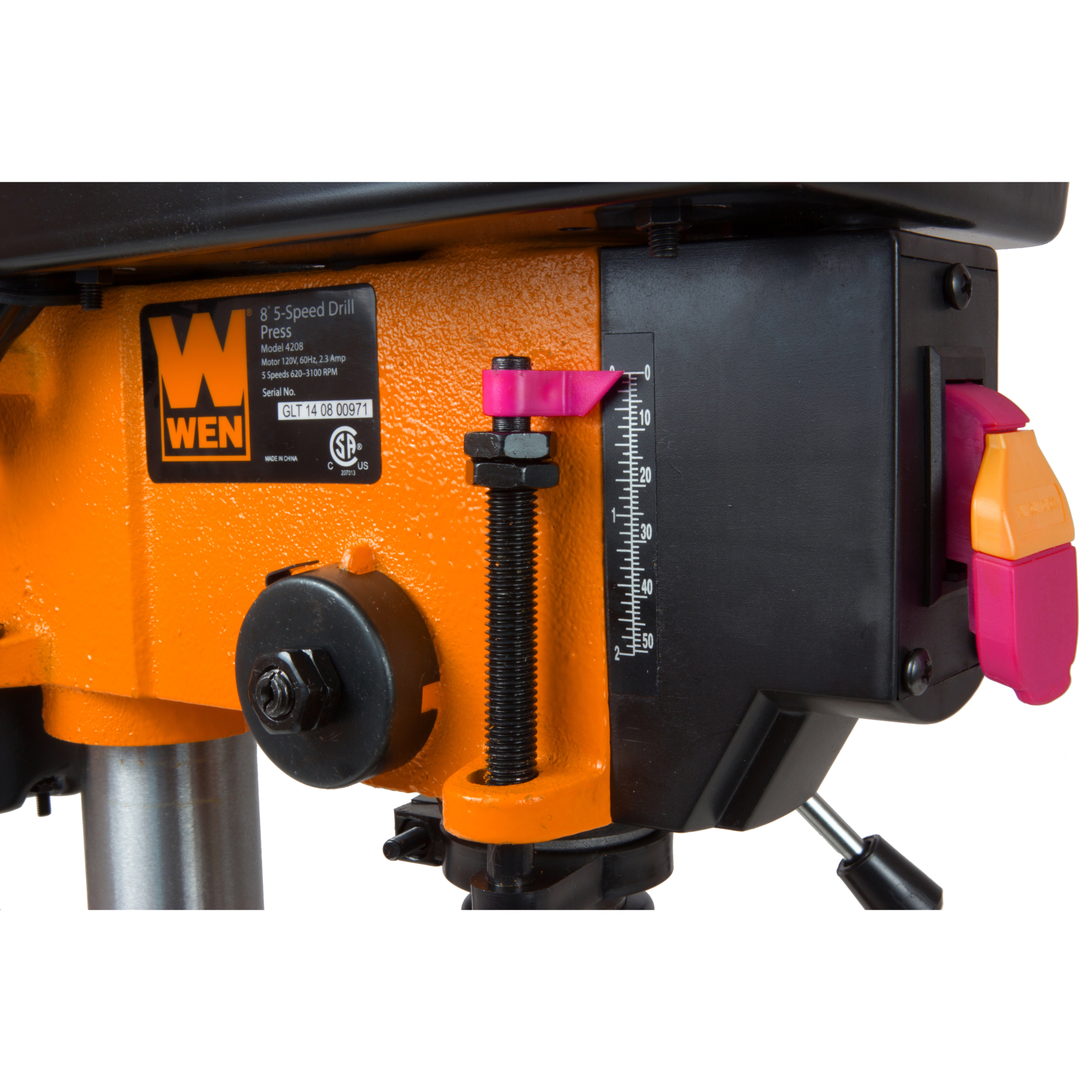

Remember when you could drill with maximum accuracy? Power through metal, wood, plastics, and more with the WEN 8in. 5-Speed Drill Press. Don’t let our compact design fool you. Between the five operating speeds, the two-inch spindle travel, and the sturdy construction, you’ll have way more precision than a standard handheld drill. Our 2.3-amp induction motor features ball bearings for smooth balanced performance even at high speed. Manually set your speed to either 740, 1,100, 1,530, 2,100, or 3140 RPM by adjusting the belt position on the two spindles. The easy-to-read, locking depth stop allows for accurate and repeatable drilling operations. The keyed chuck with JT33 spindle taper accepts bits ranging from 1/20 to 1/2in. in diameter (1.5 to 13 mm). The table bevels 45° left and right for angled drilling. The base is designed with holes for mounting onto a bench or work stand. Clamps and vises are easily mounted to the slotted table, making work-holding safe and effective. And because its a WEN product, your drill press comes backed by a two-year warranty, a stocked inventory of replacement parts, and a helpful customer phone line. Remember when you could drill holes in almost anything? Remember WEN.

What's Included

    (1) 2.3-Amp 8-Inch 5-Speed Cast Iron Benchtop Drill Press

Features + Benefits

  • Features a 2.3A induction motor, an 8-inch swing, and a 2-inch spindle travel
  • Includes a 1/2-inch keyed chuck and onboard key storage
  • Operates at 5 different speeds: 740, 1100, 1530, 2100, or 3140 RPM
  • 6.5 by 6.5 inch height adjustable worktable bevels up to 45 degrees in each direction
  • Measures in at 23 inches tall with a 7 by 11-inch base

Key Specs

AttributeSpecification

item#

5805764

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

35.0 LB

Chuck Size

0.5 in

Horsepower

0.37

Horsepower

0.37

Volts

120

Max. RPM

3,140
AttributeSpecification

Min. RPM

740

Volts

120

Amps

2.3

Product Type

Woodworking Drill Presses

Chuck Size

0.5 in

Product Weight

34.2000 lb

Dimensions L x W x H (in.)

7.5 x 22.9 x 11.0 in

Product Weight

34.2000 lb

Dimensions L x W x H (in.)

7.5 x 22.9 x 11.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
