WEN, 6.2A 33in. 5-Speed Benchtop Radial Arm Drill Press, Chuck Size 0.625 in, Horsepower 0.9 Model# 4233

Item# 6570864
WEN, 6.2A 33in. 5-Speed Benchtop Radial Arm Drill Press, Chuck Size 0.625 in, Horsepower 0.9 Model# 4233

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN, 6.2A 33in. 5-Speed Benchtop Radial Arm Drill Press, Chuck Size 0.625 in, Horsepower 0.9 Model# 4233

Click or Tap image to Zoom

$377.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Features a 6.2-amp induction motor, and a 3-1/8-inch spindle travel
  • Adapts to any job thanks to the adjustable swing (11 – 33 in.) and tilting cast-iron table
  • Operates at 5 different speeds (600, 1100, 1700, 2300, or 3100 RPM)
  • Heavy-duty cast-iron construction measures in at 16 by 38 by 33 inches in size with a weight of 105 pounds
  • Includes a tilting 10-inch cast iron worktable, a 5/8-inch capacity keyed chuck, and a two-year warranty

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

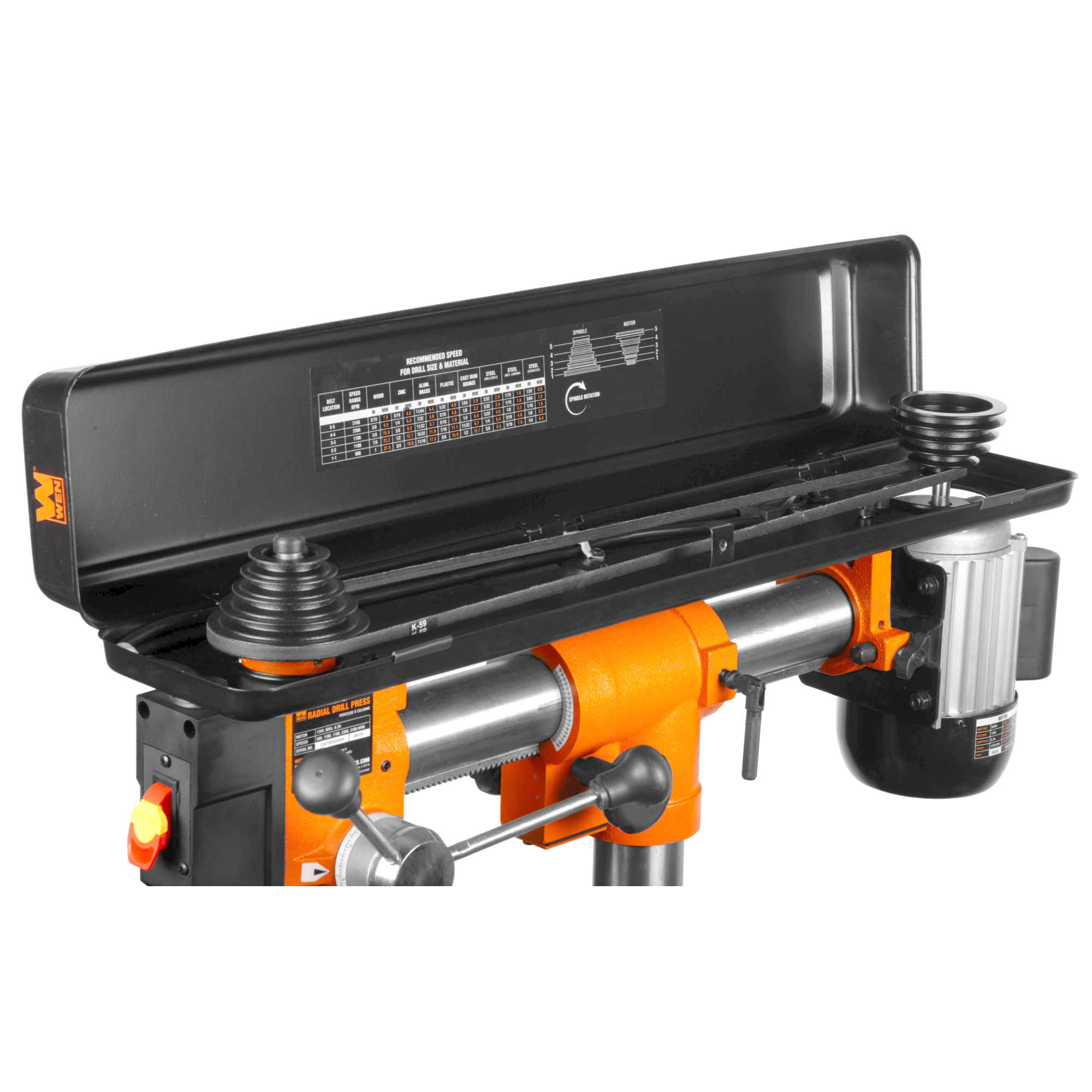

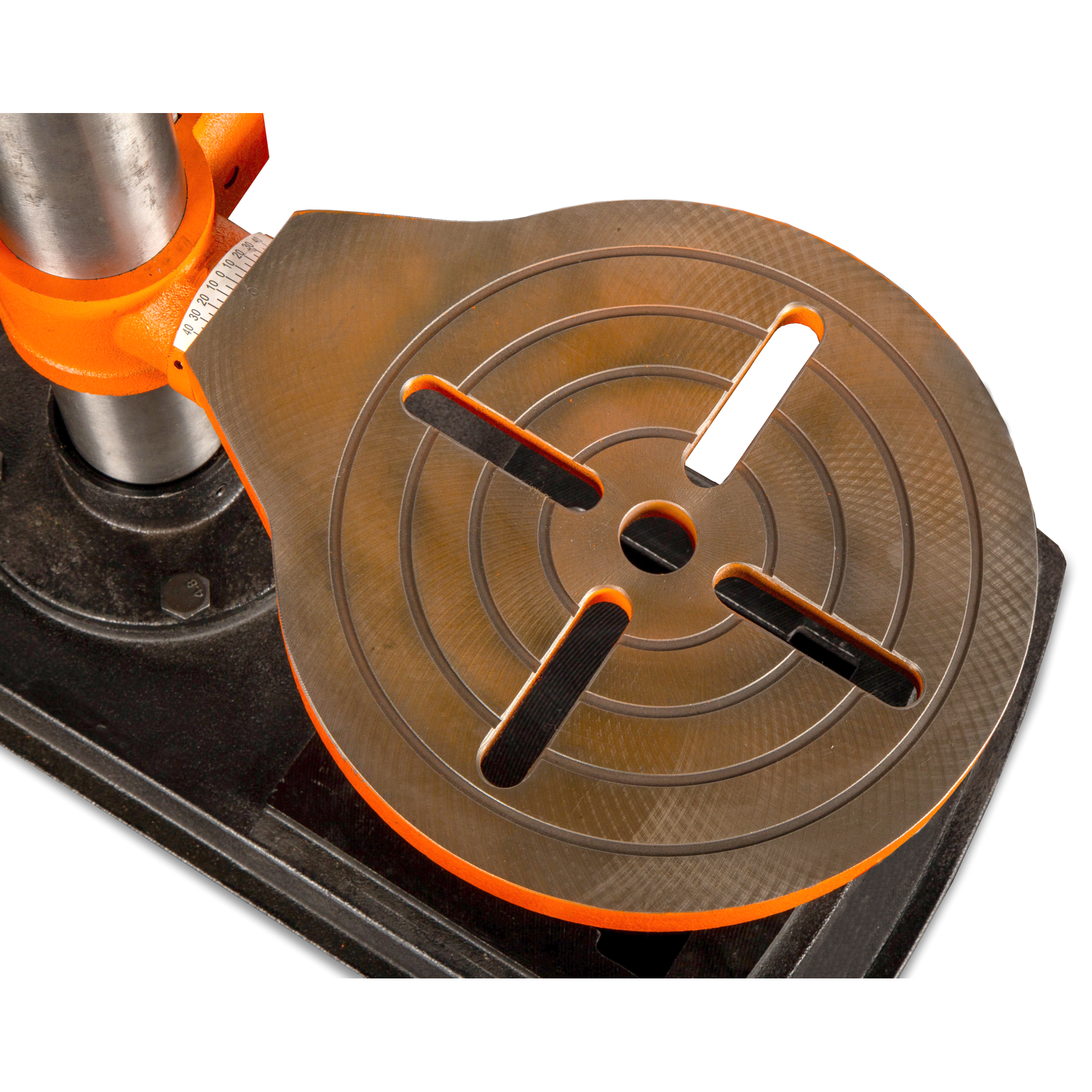

Remember when you could reach the unreachable? With an adjustable swing ranging from 11 to 33in., a swiveling head, and a tilting table, the WEN 5-Speed Benchtop Radial Arm Drill Press is designed to tackle nearly any job you can think of. Powered by a 6.2-amp motor, it effortlessly drills through metal, wood, plastic, and more, with the ability to create holes up to 5/8in. in diameter in heavy-duty, 1in.-thick cast iron. The durable induction motor features ball bearings, ensuring extended life and smooth, balanced performance. Manually set your speed to 600, 1100, 1700, 2300, or 3100 RPM by adjusting the belt position on the pulleys. The easy-to-read, locking depth stop allows for accurate and repeatable drilling operations. The keyed chuck with MT2 spindle taper accepts drill bits ranging from 1/8 to 5/8in. in diameter (3mm – 16mm. The 10in. diameter cast-iron worktable tilts 45 degrees both left and right, allowing for precision in those tricky angled operations, and features slots for easy mounting of clamps or vises. If that weren’t enough, the head also swivels and rotates around the column for maximum versatility. The 15 x 21in. cast-iron base has pre-drilled holes, making it easy to mount the drill press securely to your benchtop or work surface. Whether you're tackling precision tasks or heavy-duty projects, this drill press delivers exceptional accuracy, power, and versatility. And because it's a WEN product, your radial-arm drill press is backed by a fully stocked inventory of replacement parts, a friendly customer support team, and a two-year warranty. Remember when your drill press adapted to your every need? Remember WEN.

What's Included

    (1) Drill Press

Features + Benefits

  • Features a 6.2-amp induction motor, and a 3-1/8-inch spindle travel
  • Adapts to any job thanks to the adjustable swing (11 – 33 in.) and tilting cast-iron table
  • Operates at 5 different speeds (600, 1100, 1700, 2300, or 3100 RPM)
  • Heavy-duty cast-iron construction measures in at 16 by 38 by 33 inches in size with a weight of 105 pounds
  • Includes a tilting 10-inch cast iron worktable, a 5/8-inch capacity keyed chuck, and a two-year warranty

Key Specs

AttributeSpecification

item#

6570864

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

88.0 LB

Horsepower

0.9
AttributeSpecification

Volts

120

Product Type

Woodworking Drill Presses

Chuck Size

0.625 in

Product Weight

80.5000 lb

Dimensions L x W x H (in.)

22.0 x 14.5 x 37.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
