WEN 4-Jaw Self-Centering Lathe Chuck Set - 3.75in., Keyed Scroll, Model# LA4374

Item# 5805692
WEN 4-Jaw Self-Centering Lathe Chuck Set - 3.75in., Keyed Scroll, Model# LA4374

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN 4-Jaw Self-Centering Lathe Chuck Set - 3.75in., Keyed Scroll, Model# LA4374

Click or Tap image to Zoom

$114.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Scroll chuck perfect for holding bowls, spindles, and other unwieldy lathe projects
  • Internal jaws tighten around workpieces varying from 1-1/4 to 2-1/2 inches in size
  • External jaws spread inside of workpieces with pilot holes ranging from 1-3/4 to 3-1/8 inches
  • Keyed tightening mechanism provides additional grip strength to the workpiece
  • Features a 1” x 8 TPI thread for compatibility with the majority of wood lathes on the market

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

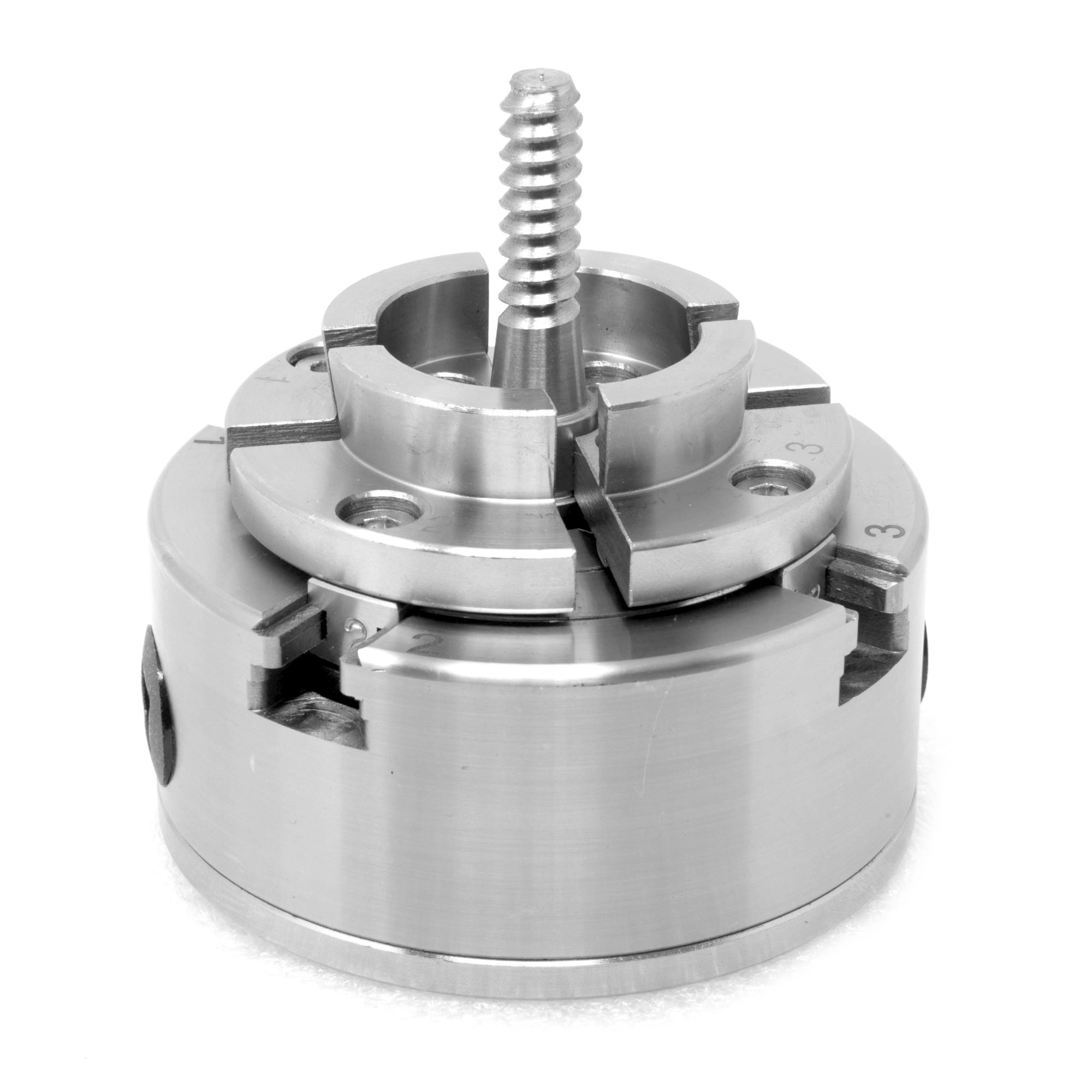

Remember when you had maximum versatility with your wood lathe? Take on projects of all shapes and sizes with the WEN 3.75in. 4-Jaw Self-Centering Keyed Scroll Chuck. This versatile chuck features dovetailed jaws, allowing you to grip the outside of stock between 1-1/4 to 2-1/2in. in size, or to hold internal pilot holes ranging from 1-3/4 to 3-1/8in. in diameter. The keyed tightening mechanism prevents the chuck from opening during high RPM operation, providing maximum clamping power to your workpiece. If that’s not enough, you can also install the included screw depending on the task at hand. Indexed backplate indicates 24 different positions while the included tools make for easy adjustments to the chuck. The 1” x 8TPI mounting thread fits a wide variety of wood lathes, including the WEN 3,420, 3420T, 3,421, 3,424, 3424T, 34,018, 3,427, 34,018, 34,027 and 34,034. NOTE: max recommended workpiece size for 3,420, 3420T, and 3421 is 4in.

What's Included

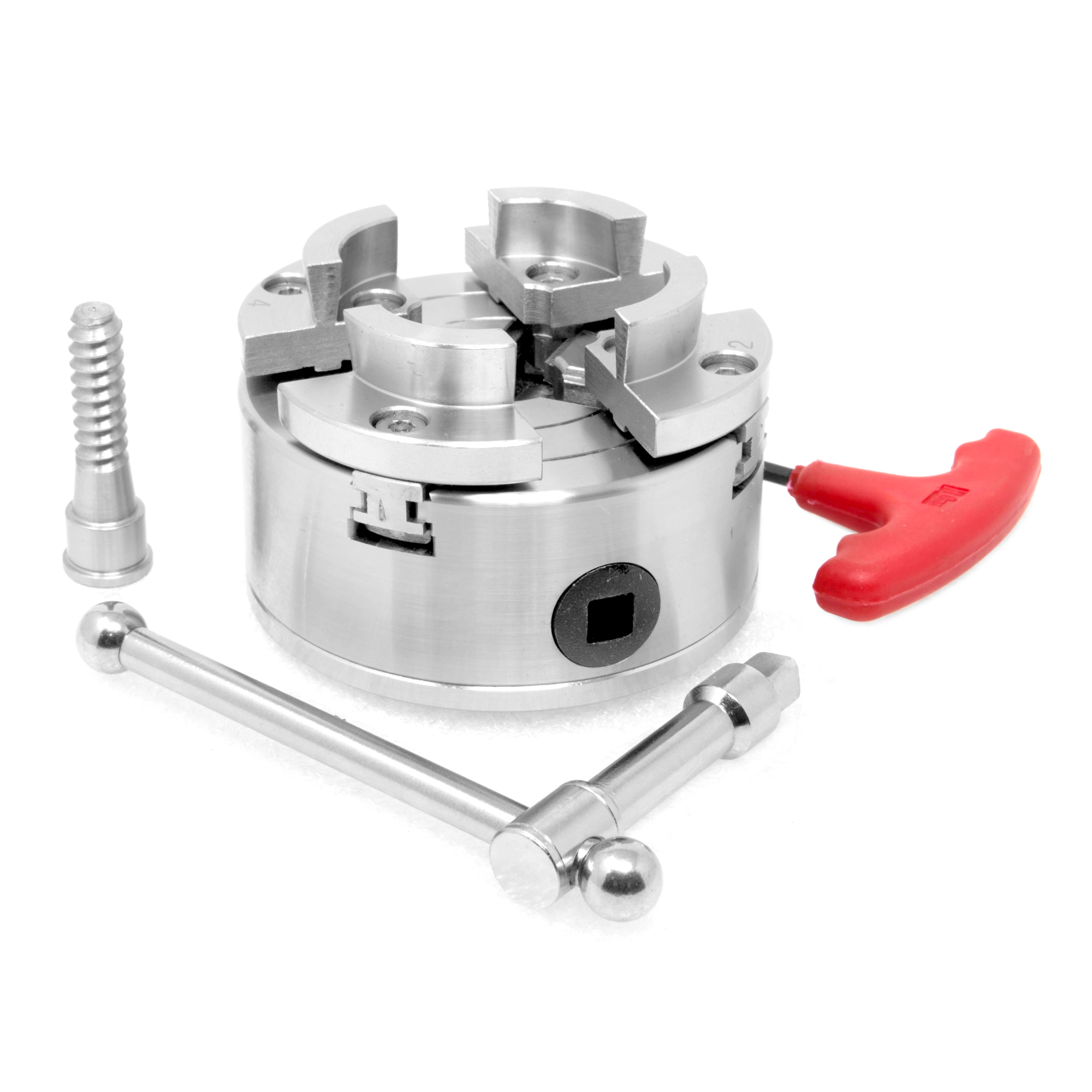

    (1) 3.75-Inch 4-Jaw Self-Centering Lathe Chuck Set with 1-Inch x 8TPI Thread

Features + Benefits

  • Scroll chuck perfect for holding bowls, spindles, and other unwieldy lathe projects
  • Internal jaws tighten around workpieces varying from 1-1/4 to 2-1/2 inches in size
  • External jaws spread inside of workpieces with pilot holes ranging from 1-3/4 to 3-1/8 inches
  • Keyed tightening mechanism provides additional grip strength to the workpiece
  • Features a 1” x 8 TPI thread for compatibility with the majority of wood lathes on the market

Key Specs

AttributeSpecification

item#

5805692

Brand

WEN

Manufacturer's Warranty

No limited warranty

Ship Weight

5.0 LB

Max. RPM

0

Product Type

Lathe Accessories
AttributeSpecification

Volts

Multi

Amps

0

Phase

Single-phase

Product Weight

4.5000 lb

Dimensions L x W x H (in.)

5.5 x 0.0004 x 5.5 in
