WEN Cordless Track Saw - 20V Max, 6.5in. Blade, Brushless, Variable Speed, 2 x 4.0Ah Batteries, Model# 20691

Item# 5801587

Click or Tap image to Zoom

Product Summary

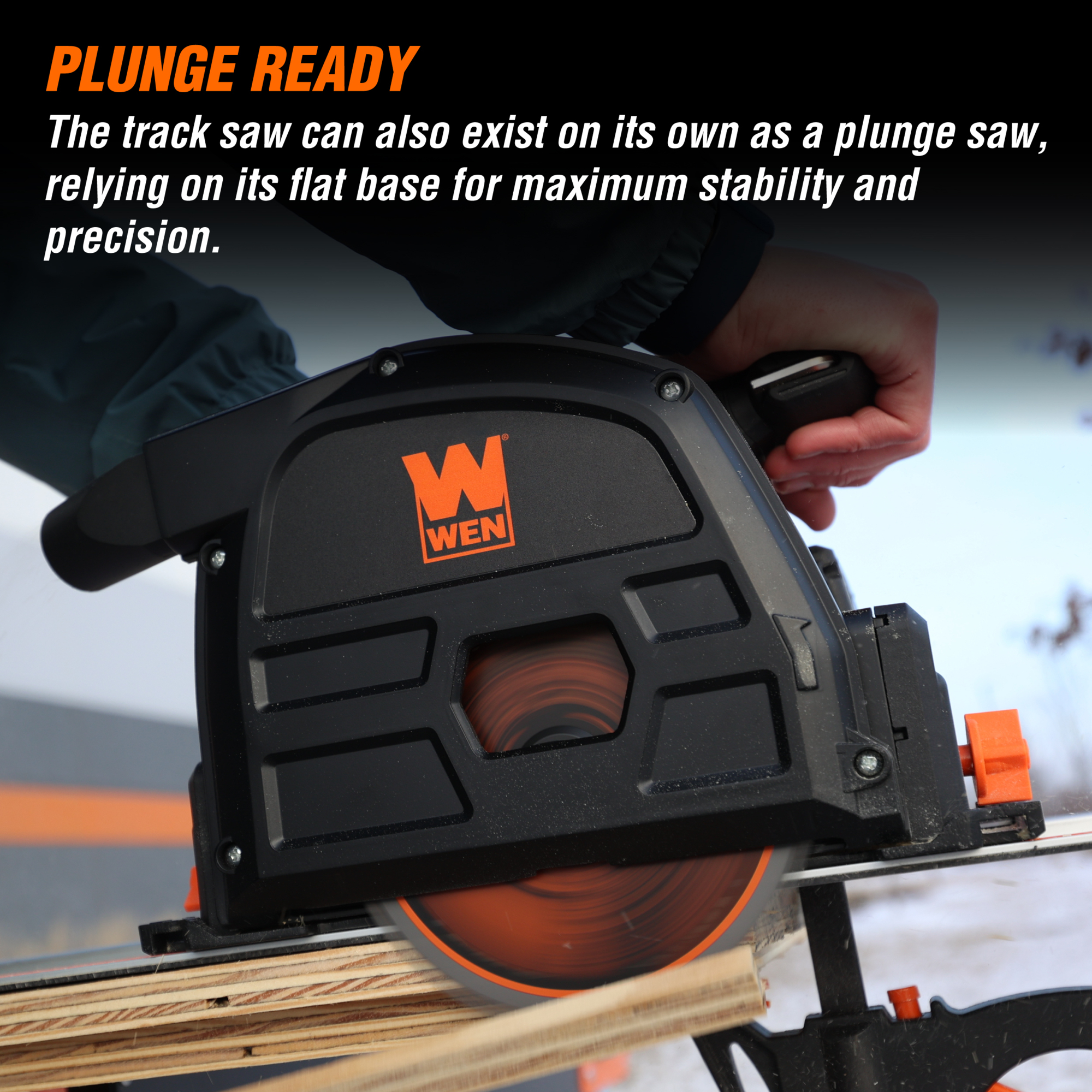

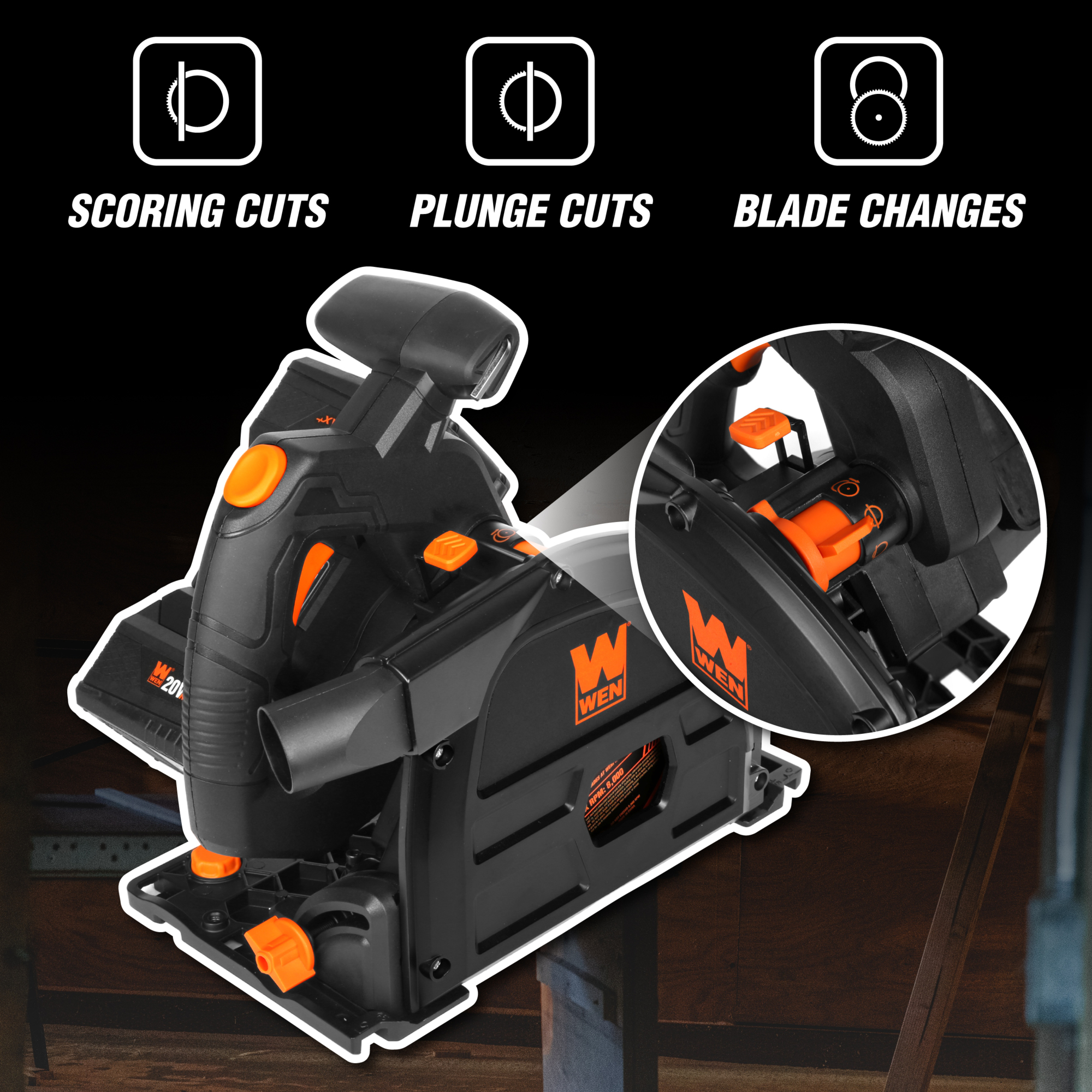

Remember when your saw stayed on the right track? Keep your cuts on the straight and narrow with the WEN 20V Max Cordless Track Saw. The WEN Track Saw provides users the same results as a table or panel saw in a compact and portable package. Simply lay the track (not included – models CT9,502, CT9110) along the desired surface for a clean and smooth cut. The WEN Track Saw is the perfect companion for ripping plywood, trimming doors, building furniture, and any other application needing long, precise cuts. Our powerful variable-speed motor rotates the 6.5in. blade from 2000 to 5500 times per minute, letting you power through even the hardest of woods. Bevel the saw anywhere from -1 to 47 degrees depending on the needs of the task at hand. Set the depth gauge anywhere from 0 to 2.1in. to control how deep the saw plunges. The 12 x 6.75in. base features precision grooves that let the saw glide smoothly along the track. However, the saw can also exist on its own as a plunge saw, relying on its flat base for maximum stability and precision. Easily switch between three different blade settings: one for scoring cuts that go 1/8in. deep, one for full plunge cuts, and one to simplify blade changes. The back-mounted dust port allows for attachment to your favorite dust collection system to control sawdust and limit cleanup. Simply attach your dust collection device of choice and start sawing. The dust port adapter allows the unit to still stay flush against walls, making this an ideal saw for flooring trim cuts. The two included 4.0 amp-hour lithium-ion batteries deliver consistently powerful performance at any level of charge, feature onboard LED charge gauges, and are cross-compatible with the entire WEN 20V Max Cordless Lithium-Ion Power Tool line. And, because it’s a WEN product, your WEN 10-Amp Plunge Cut Circular Track Saw comes backed by a two-year warranty, a nationwide network of skilled service technicians, and a friendly customer helpline, all to make sure you remember WEN. A minimum of two 4Ah batteries is recommended.

What's Included

(1) 20V Max 6.5-Inch Cordless Brushless Plunge Cut Variable Speed Track Saw with Two 4.0 Ah Batteries and Charger

Features + Benefits

Ditch the table saw: rip boards up to 2.25 inches thick or create 45-degree bevel cuts in boards up to 1.65 inches thick
Compatible with the WEN CT9502 and CT9110 Track and the WEN CT992F Track Saw Clamps

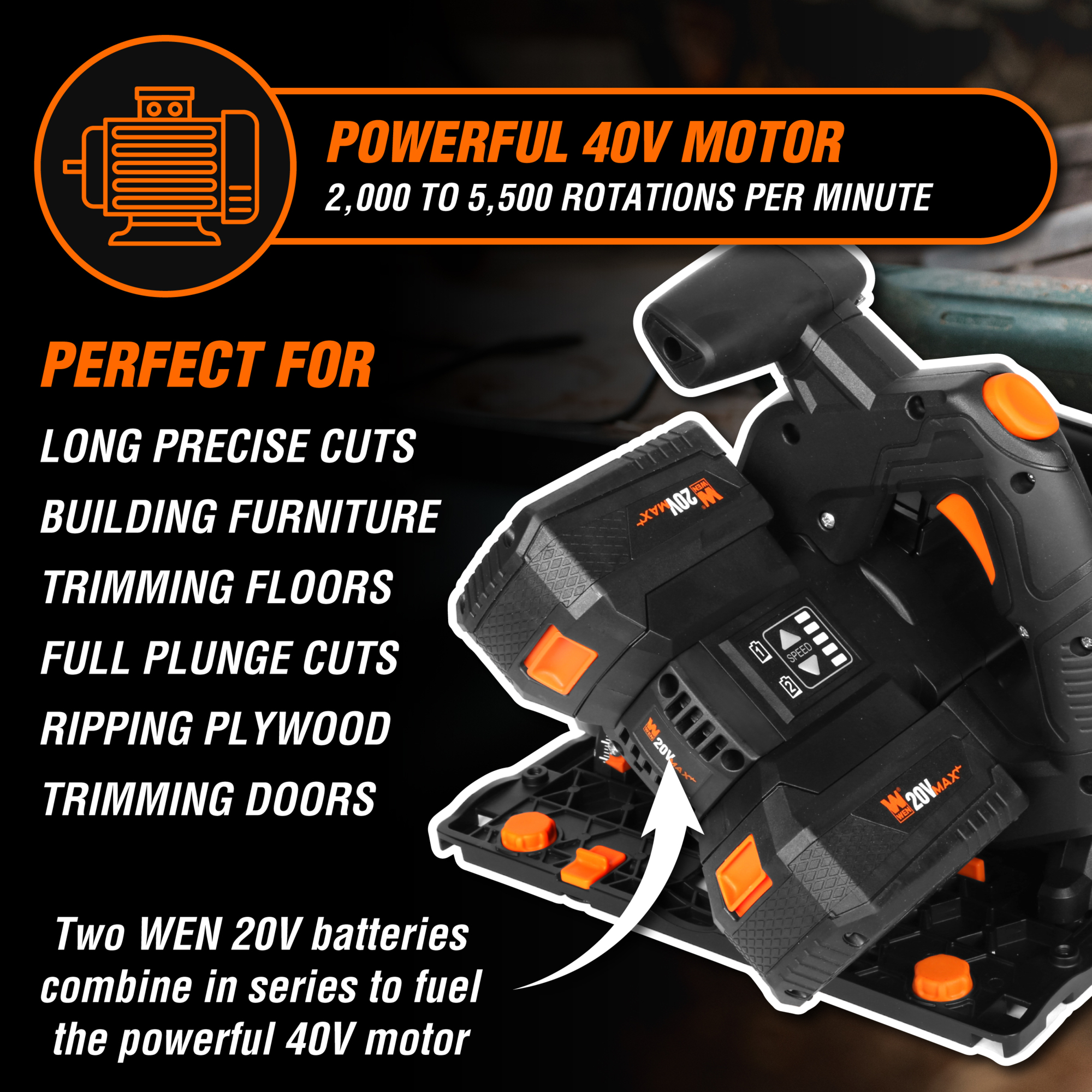

Dual 20V max battery ports provide cordless and reliable power to the brushless motor with variable speed operation from 2000 to 5500 RPM
Two 4.0 amp-hour lithium-ion batteries with onboard LED charge gauges deliver consistent power at any charge level, and are compatible with the entire WEN 20V Max Cordless Power Tool series

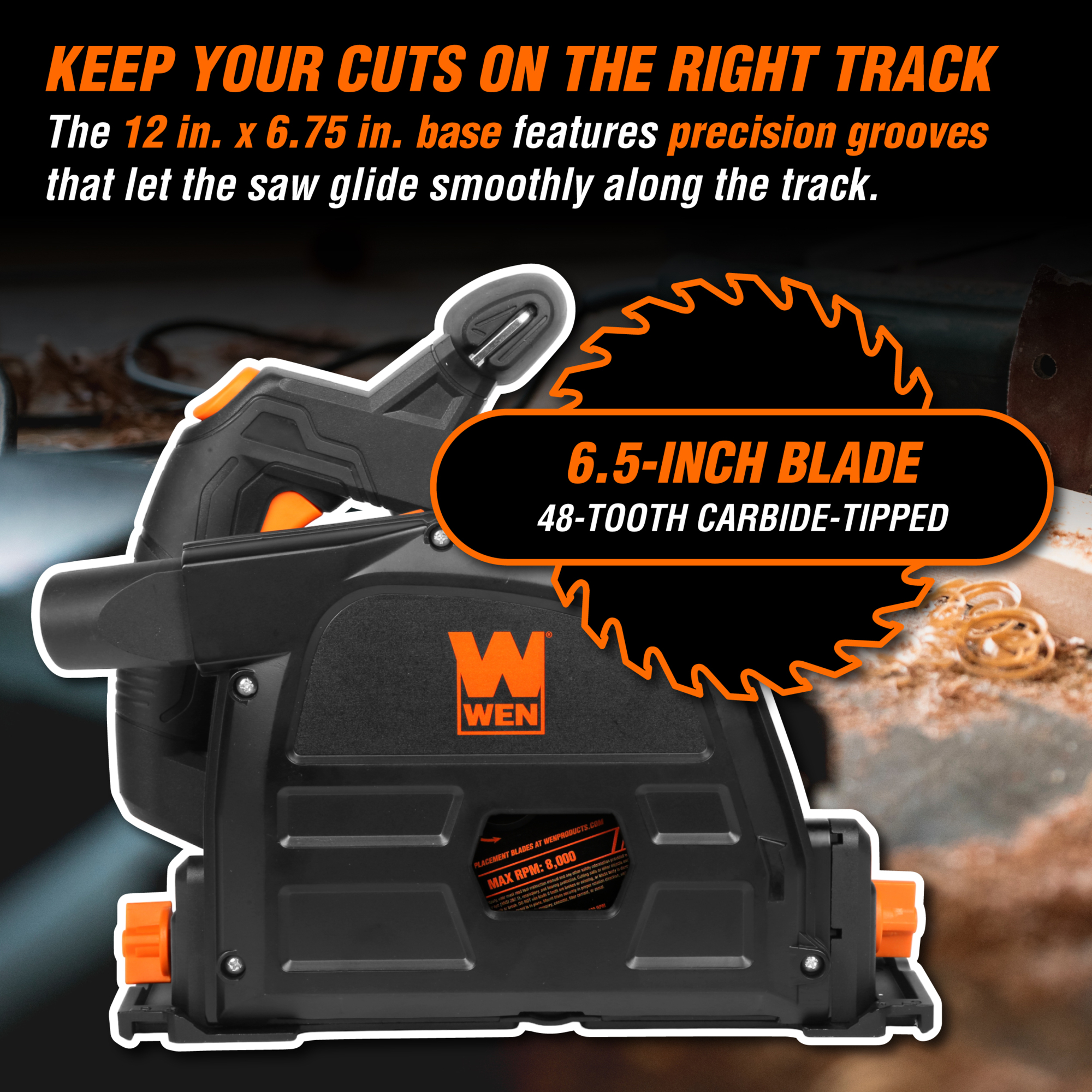

Includes a 6.5-inch 48-tooth carbide-tipped blade (165 mm) with a 20 mm arbor, track-alignment cam, a dust port adapter, two 4.0Ah batteries, a charger, and a two-year warranty

Key Specs

Attribute	Specification
item#	5801587
Brand	WEN
Manufacturer's Warranty	2 year limited warranty
Blade Diameter	6.5 in
Volts	20
Max. Speed	5,500 rpm
Cordless	Yes
Cuts Through	Wood
Saw Drive Type	Sidewinder
Bevel Capacity	47 °

Attribute	Specification
Battery Type	Lithium-ion
Arbor Size	25/32 in
Blade Location	Right
Blade Included	Yes
Max. Cut Depth at 90 Degrees	2.28 in
Max. Cut Depth at 45 Degrees	1.65 in
Tool Weight	9.42 lb
Product Weight	11.9100 lb
Dimensions L x W x H (in.)	12.99 x 9.84 x 9.84 in
