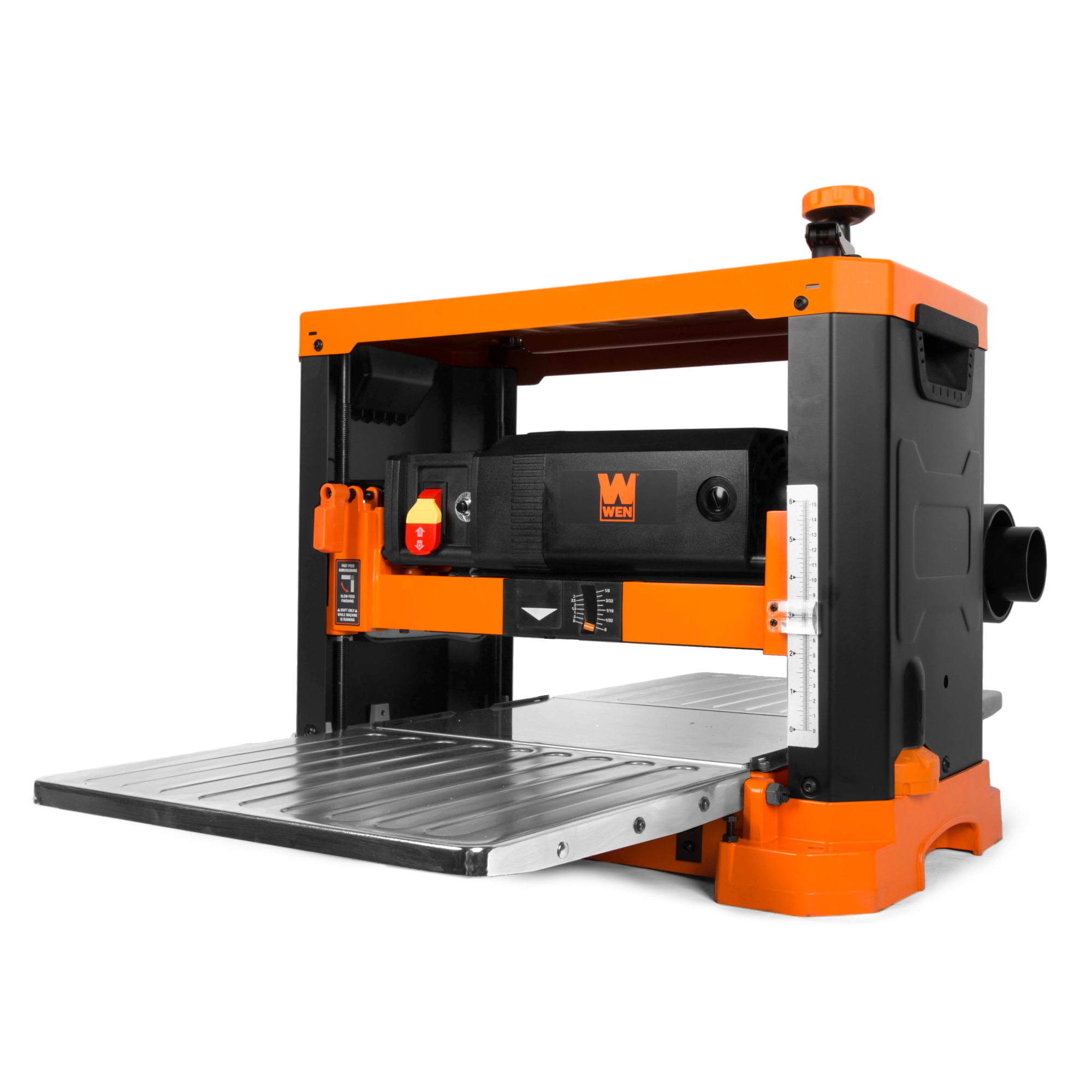

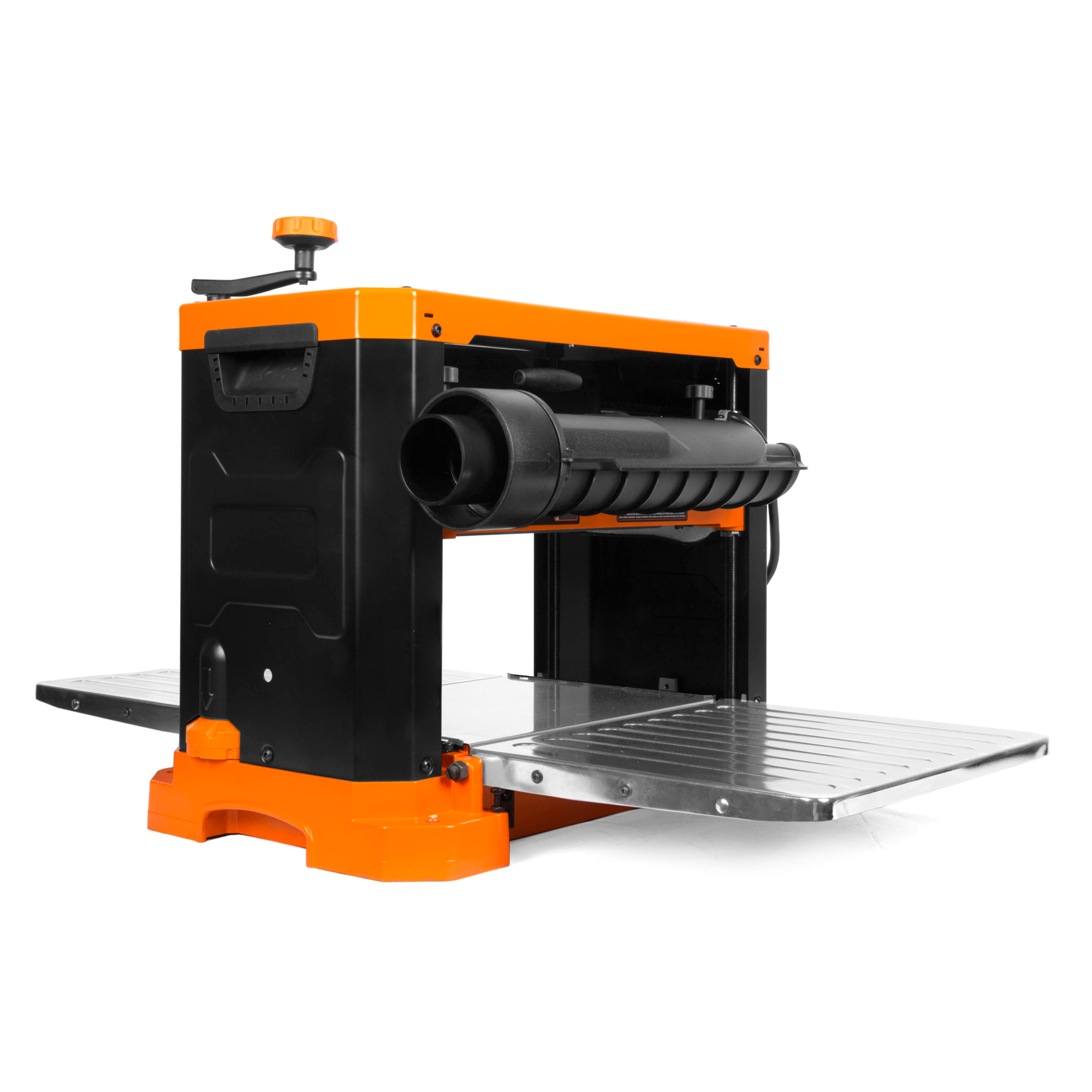

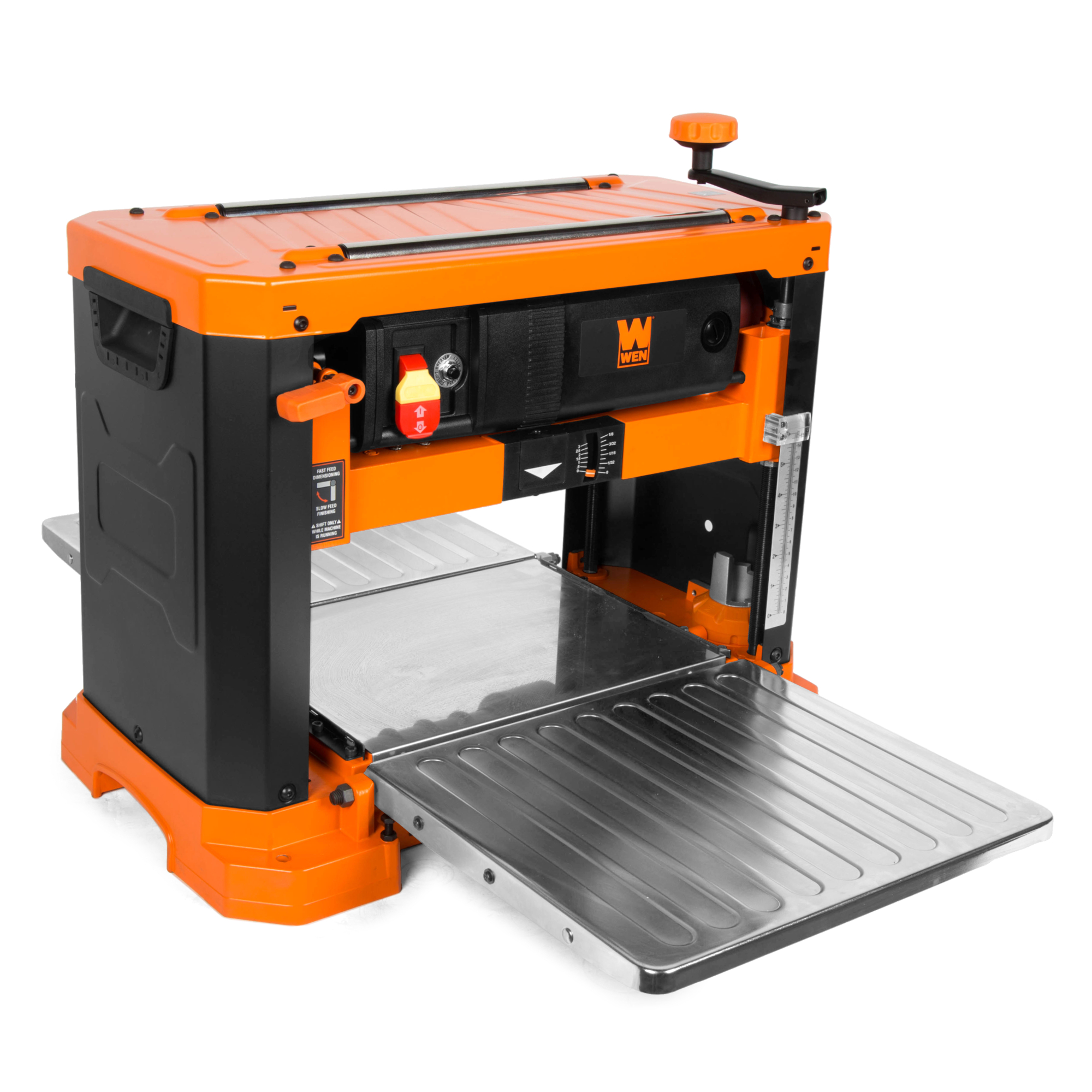

WEN Spiral Blade Two-Speed Thickness Planer - 13in., 15 Amp, 10,000 RPM, Model# PL1337

Item# 5804948
"WEN Spiral Blade Two-Speed Thickness Planer - 13in., 15 Amp, 10,000 RPM, Model# PL1337"
WEN Spiral Blade Two-Speed Thickness Planer - 13in., 15 Amp, 10,000 RPM, Model# PL1337

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN Spiral Blade Two-Speed Thickness Planer - 13in., 15 Amp, 10,000 RPM, Model# PL1337

Click or Tap image to Zoom

$629.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

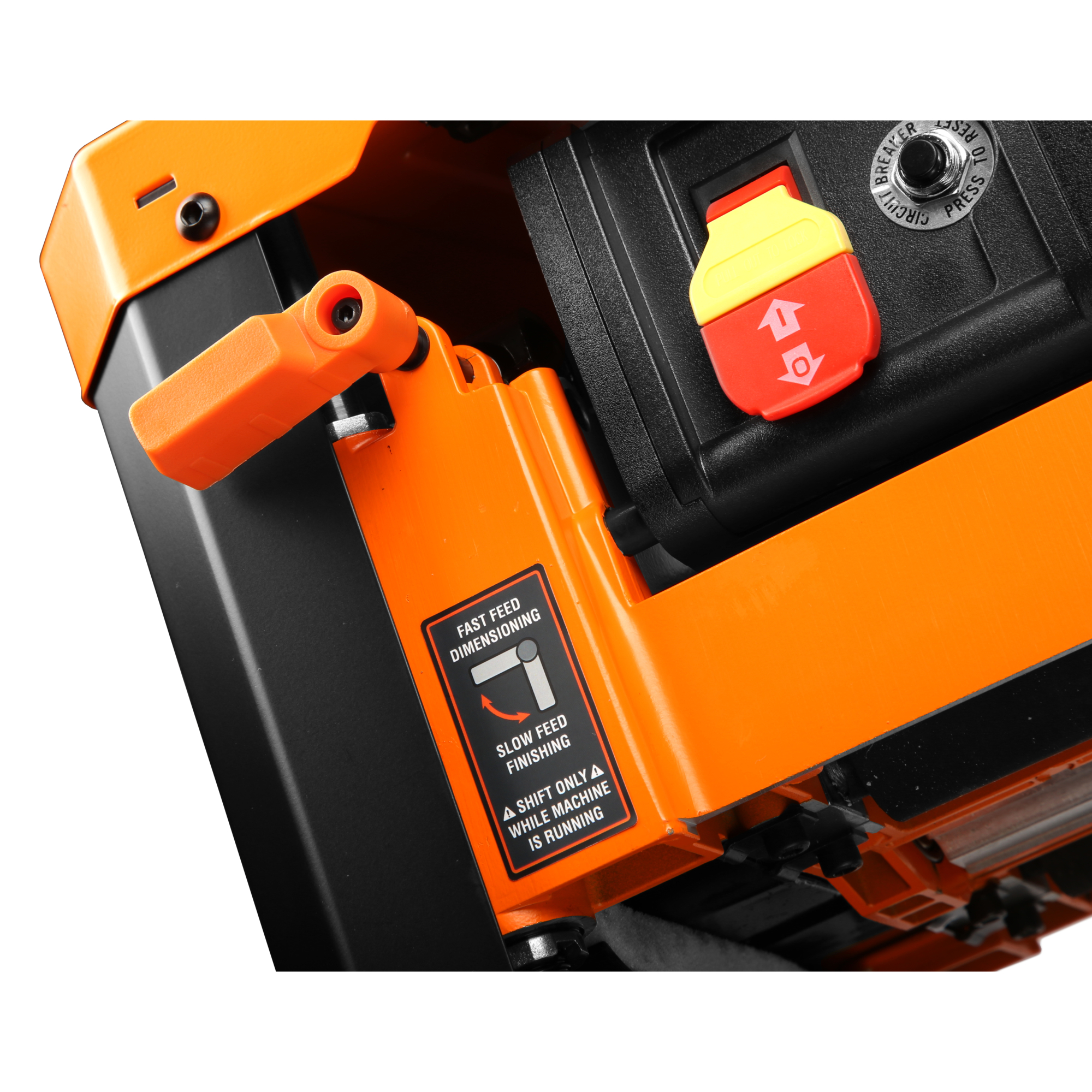

  • Two-speed operation provides a 26 FPM feed rate for quick dimensioning and a 16 FPM feed rate for perfect finishes
  • Spiral cutterhead utilizes 26 staggered and rotatable HSS blades for a clean, smooth finish
  • Plane boards up to 6 inches thick and 13 inches wide
  • 15-amp motor generates 10,000 cutterhead rotations per minute and up to 1354 cuts per inch
  • Includes a depth stop, an onboard material removal gauge, a combination 2-1/2-inch and 4-inch dust port, onboard wrench storage, workpiece return rollers, and a two-year warranty

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

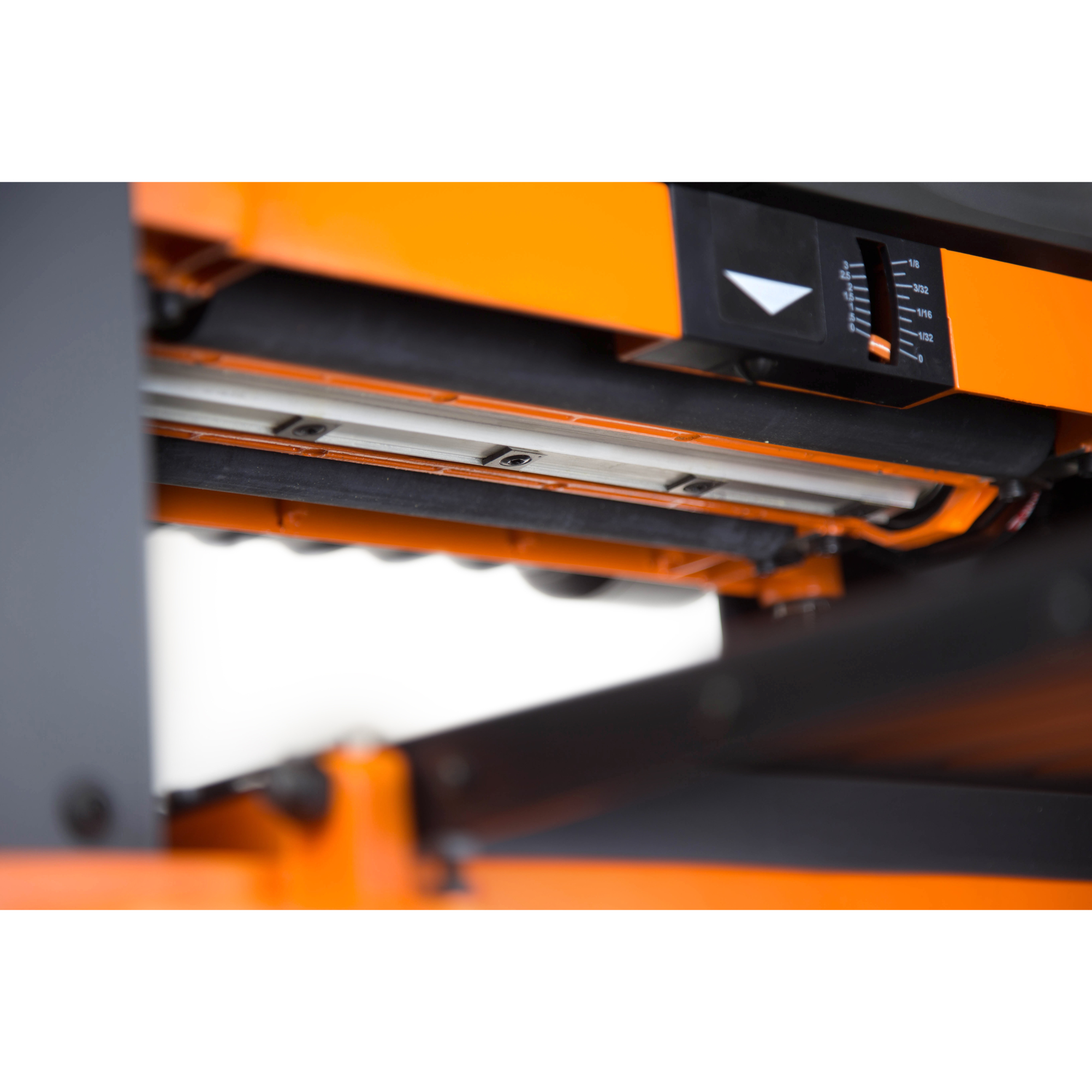

Remember when you brought those old jagged boards back to life? The WEN 13in. Benchtop Thickness Planer repurposes rough and worn wood to give it an exceptionally smooth finish. Our spiral cutterhead utilizes 26 staggered HSS blades to provide a perfect finish to hard and soft woods alike. The powerful 15-amp motor rotates the cutterhead at up to 10,000 RPM. Two-speed operation gives maximum control; choose the 26ft.-per-minute feed rate for quick dimensioning and 833 cuts per inch, or switch to the slower 16ft.-per-minute 1354 CPI option for perfect finishes every time. Plane boards up to 13in. wide and 6in. thick with ease. The onboard planing gauge helps inform users about the amount of material being removed during each pass. Combine that with the heavy-duty base for a sturdy planer that does not walk or wobble during operation. The handy depth adjustment knob makes it easy to take off anywhere from 0 to 1/8 of an inch per pass. The adjustable dust port removes chips and sawdust from the workpiece and blasts them out of the way. The onboard depth stop allows users to achieve an exact workpiece thickness with maximum precision. This package also includes height-adjustable infeed and outfeed tables to limit snipe while providing extra support to your workpiece during planing. Easily mount the planer to a work surface or stand (such as the WEN MSA658T Planer Stand) using the predrilled base holes. Compatible with the WEN BP510H Replacement Spiral Blades. And because it’s a WEN product, this planer comes backed by a nationwide network of skilled service technicians, a helpful customer support line and a two-year warranty. Remember when your planer could handle even the hardest of woods? Remember WEN.

What's Included

    (1) Thickness Planer, Two Speed, 13-Inch Spiral Blade, Benchtop

Features + Benefits

  • Two-speed operation provides a 26 FPM feed rate for quick dimensioning and a 16 FPM feed rate for perfect finishes
  • Spiral cutterhead utilizes 26 staggered and rotatable HSS blades for a clean, smooth finish
  • Plane boards up to 6 inches thick and 13 inches wide
  • 15-amp motor generates 10,000 cutterhead rotations per minute and up to 1354 cuts per inch
  • Includes a depth stop, an onboard material removal gauge, a combination 2-1/2-inch and 4-inch dust port, onboard wrench storage, workpiece return rollers, and a two-year warranty

Key Specs

AttributeSpecification

item#

5804948

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

78.2 LB
AttributeSpecification

Product Type

Planers

Product Weight

68.7800 lb

Dimensions L x W x H (in.)

21.46 x 34.25 x 16.93 in
