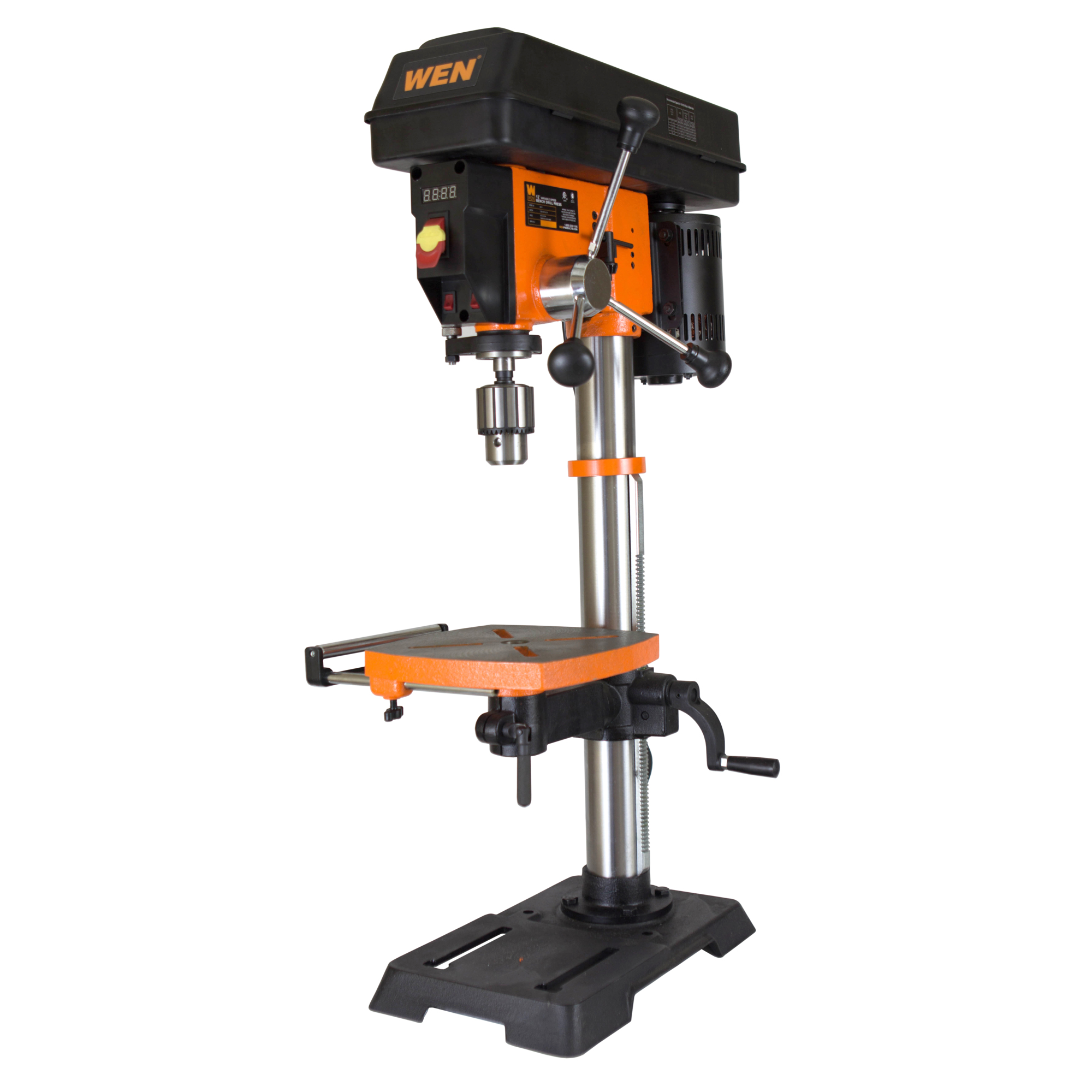

WEN Variable Speed Cast Iron Benchtop Drill Press - 12in., 0.625in. Chuck, 0.8 HP, Model# 4214T

Item# 5805481
WEN Variable Speed Cast Iron Benchtop Drill Press - 12in., 0.625in. Chuck, 0.8 HP, Model# 4214T

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN Variable Speed Cast Iron Benchtop Drill Press - 12in., 0.625in. Chuck, 0.8 HP, Model# 4214T

Click or Tap image to Zoom

$399.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Features a 5-amp induction motor, a 12-inch swing, and a 3-1/8-inch spindle travel
  • Adjust the mechanical variable speed anywhere from 580 to 3200 RPM
  • Digital speed readout displays current RPM of the machine for maximum precision

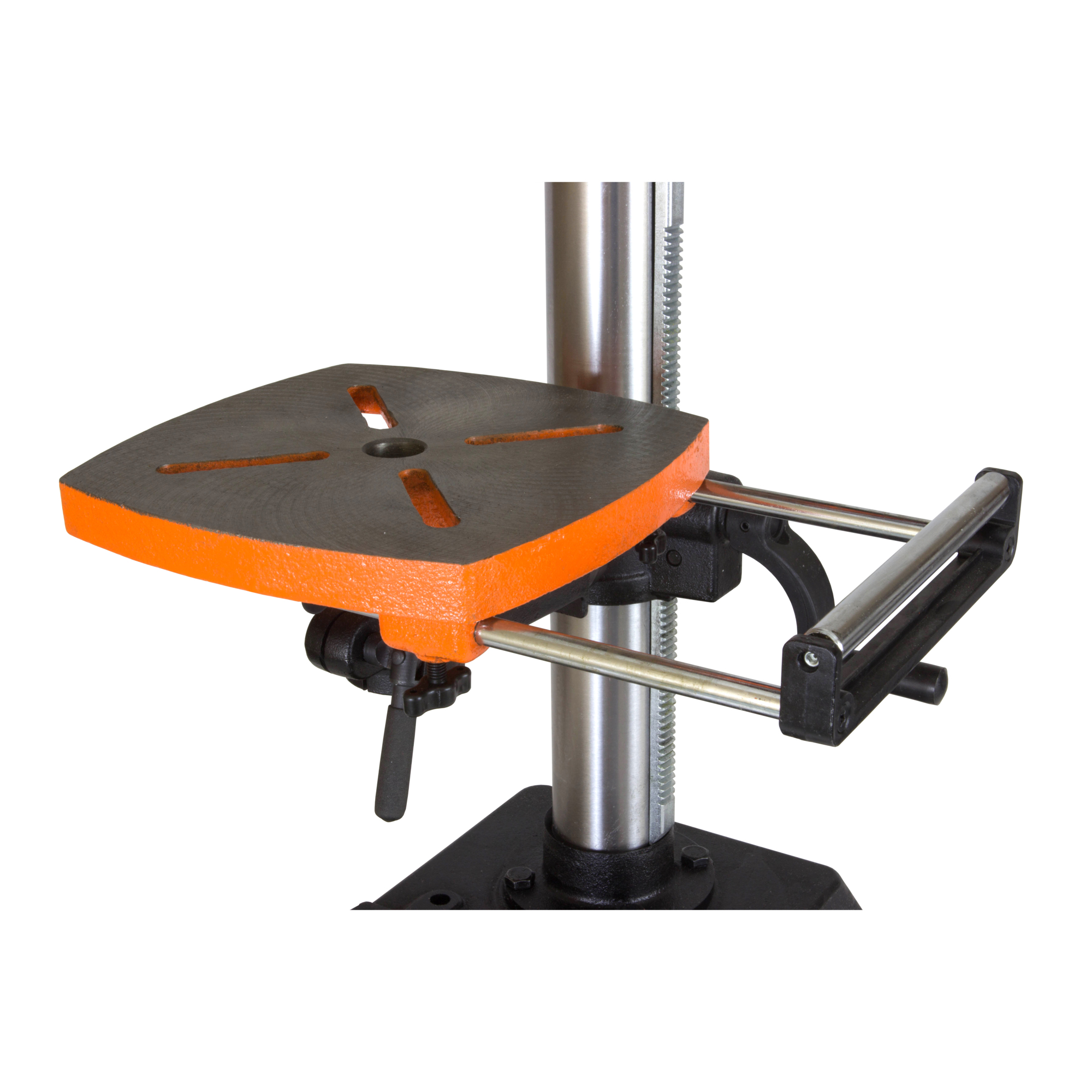

  • Includes a Class IIIA 2.5mW laser, overhead light, adjustable depth stop, table roller extension, beveling 9-1/2 by 9-1/2-inch work table, 5/8-inch capacity keyed chuck, a chuck key with onboard storage, and a two-year warranty
  • Measures in at 16.8 by 13.5 by 36.6 inches in size with a weight of 85 pounds

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Remember when power tools were actually powerful? WEN’s 12in. swing, variable speed drill press with laser centering device, is a powerhouse for your shop. Packed with features that you’ll find in larger more industrial type drill presses. This bench-top, cast iron drill press has the power to drill through metal, wood and other materials. Max drill capacity is 5/8” in 1” thick cast iron. The variable speed feature allows you to target in the exact speed (infinitely from 580-3200 RPM) that works for your project. While you are working you simply move a lever and adjust the speed as needed. No pulleys and belts to change! Our design uses a mechanical variable speed which allows for the same power and torque through the entire speed range. A digital readout powered by LED’s displays the running speed. Constructed with a rigid frame consisting of cast iron: head, table, and base, ensures accurate holes. Its powerful induction motor features ball bearings for an extended life and it all comes together with smooth and balanced performance even at high speeds. The 5/8” chuck with MT2 spindle taper gives you versatility with a variety of bits and features on-board chuck key storage, so you never have to hunt around for it. Worktable bevels 45° left and right for those tricky operations for the perfect right angles consistently. Base has predrilled holes for mounting onto a bench or work stand. Slotted table allows for mounting clamps and vises for effective mounting. The X-pattern laser locks-on to your drill points saving on guesswork and sparing expensive materials. A versatile and valuable tool for any shop especially when you expand its range of use with optional accessories such as mortising attachments, drum sanders, circle cutters, etc. Since 1,951, WEN has proudly produced innovative powered tools focused on value delivering meaningful features that will help you complete and enjoy the work as much as the project. Remember when you could drill with laser-precision? Remember WEN.

What's Included

    (1) 5-Amp 12-Inch Variable Speed Cast Iron Benchtop Drill Press with Laser and Work Light

Features + Benefits

  • Features a 5-amp induction motor, a 12-inch swing, and a 3-1/8-inch spindle travel
  • Adjust the mechanical variable speed anywhere from 580 to 3200 RPM
  • Digital speed readout displays current RPM of the machine for maximum precision
  • Includes a Class IIIA 2.5mW laser, overhead light, adjustable depth stop, table roller extension, beveling 9-1/2 by 9-1/2-inch work table, 5/8-inch capacity keyed chuck, a chuck key with onboard storage, and a two-year warranty
  • Measures in at 16.8 by 13.5 by 36.6 inches in size with a weight of 85 pounds

Key Specs

AttributeSpecification

item#

5805481

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

87.74 LB

Chuck Size

0.625 in

Horsepower

0.8

Horsepower

0.8

Volts

120

Max. RPM

3,200
AttributeSpecification

Min. RPM

580

Volts

120

Amps

5

Product Type

Woodworking Drill Presses

Chuck Size

0.625 in

Product Weight

85.0000 lb

Dimensions L x W x H (in.)

36.6 x 13.5 x 16.8 in

Product Weight

85.0000 lb

Dimensions L x W x H (in.)

36.6 x 13.5 x 16.8 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. Where is it made

    1 answer

    1. The Wen benchtop drill press is made in China.

      Helpful?

  2. what is the quill size on this model?

    1 answer

    1. The quill size on this drill press is 40mm (1.57") in diameter.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
