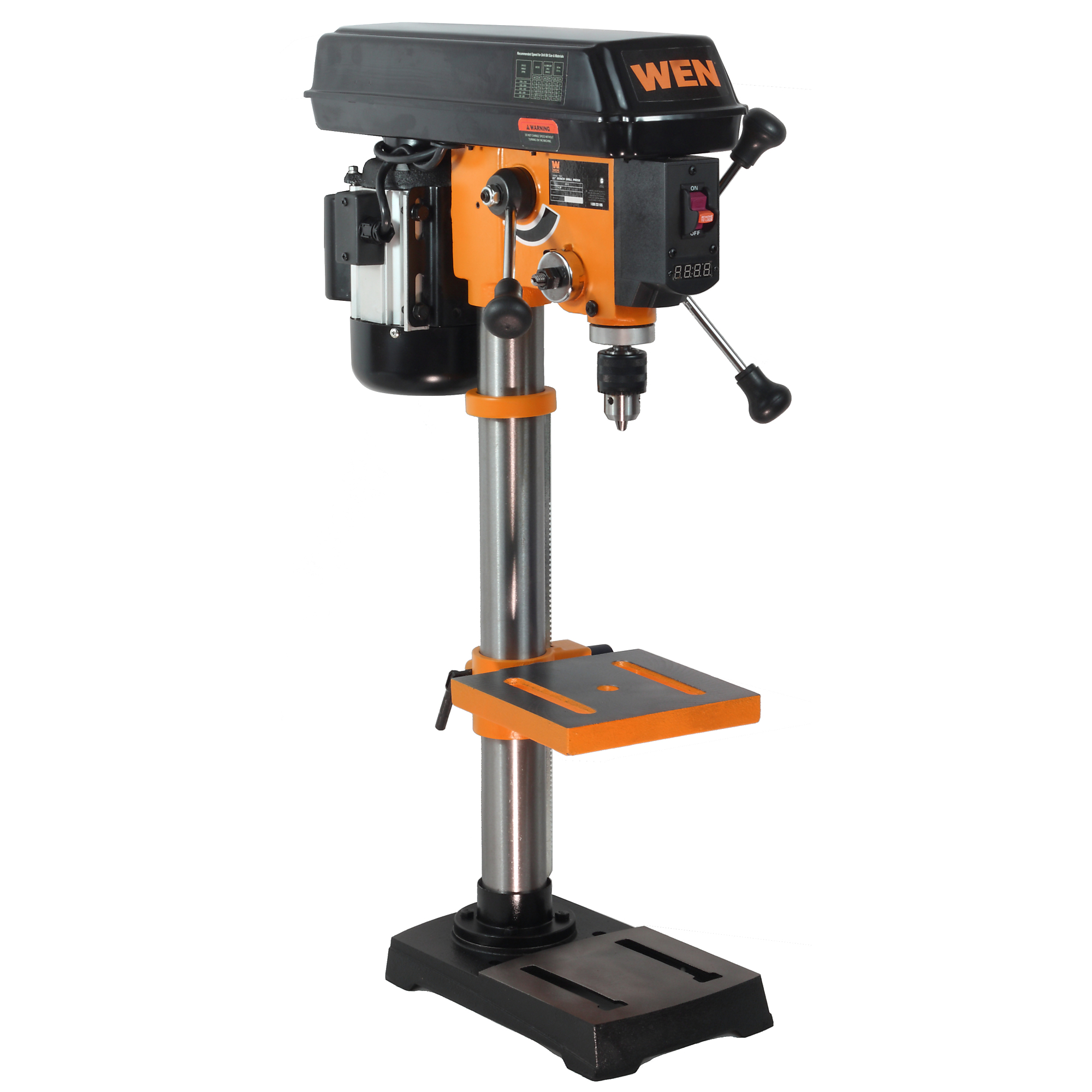

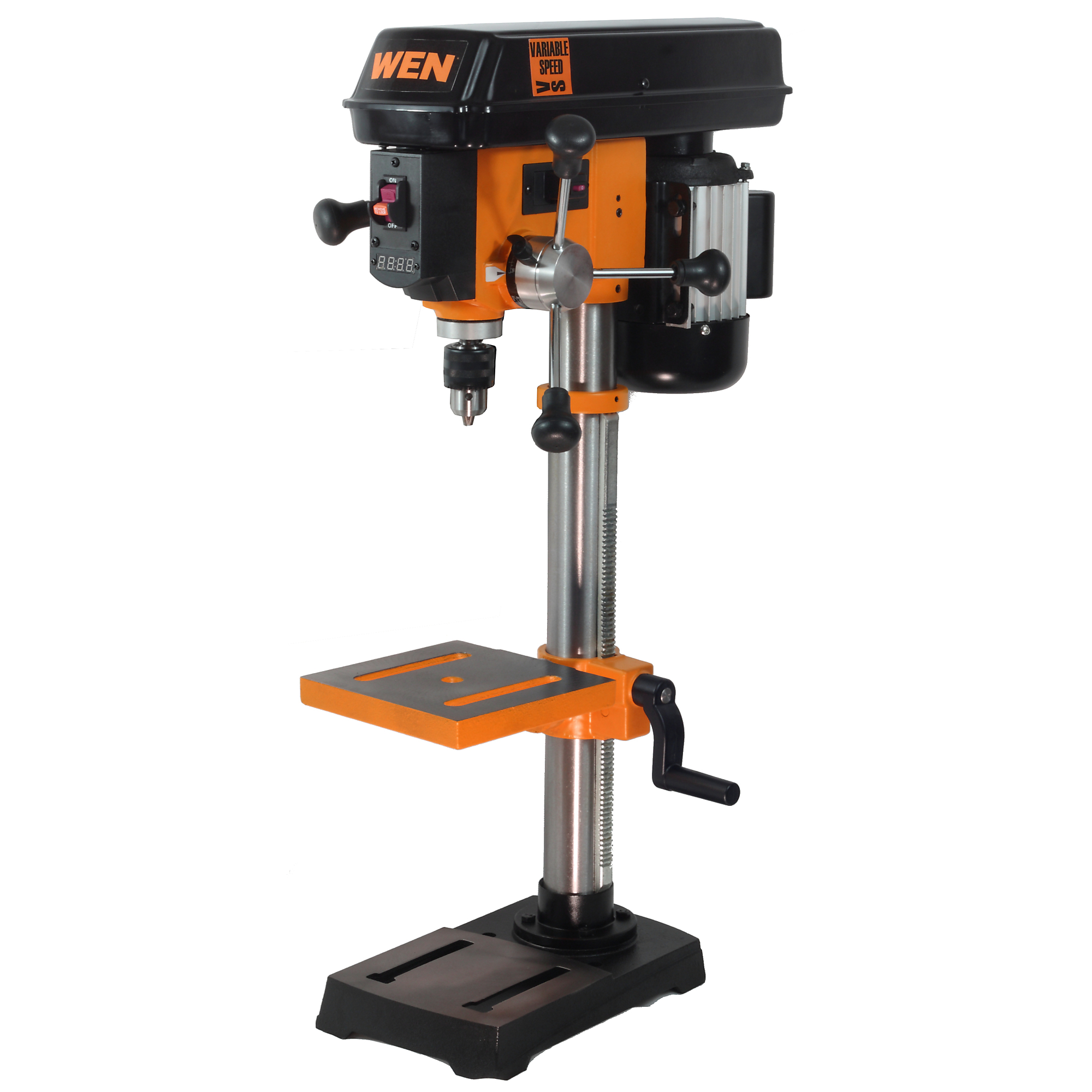

WEN Variable Speed Cast Iron Benchtop Drill Press - 10in., 0.8 HP, 0.5in. Chuck, Model# 4212T

Item# 5805502
WEN Variable Speed Cast Iron Benchtop Drill Press - 10in., 0.8 HP, 0.5in. Chuck, Model# 4212T

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN Variable Speed Cast Iron Benchtop Drill Press - 10in., 0.8 HP, 0.5in. Chuck, Model# 4212T

Click or Tap image to Zoom

$249.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Features a 5-amp induction motor, a 10-inch swing, and a 2-inch spindle travel

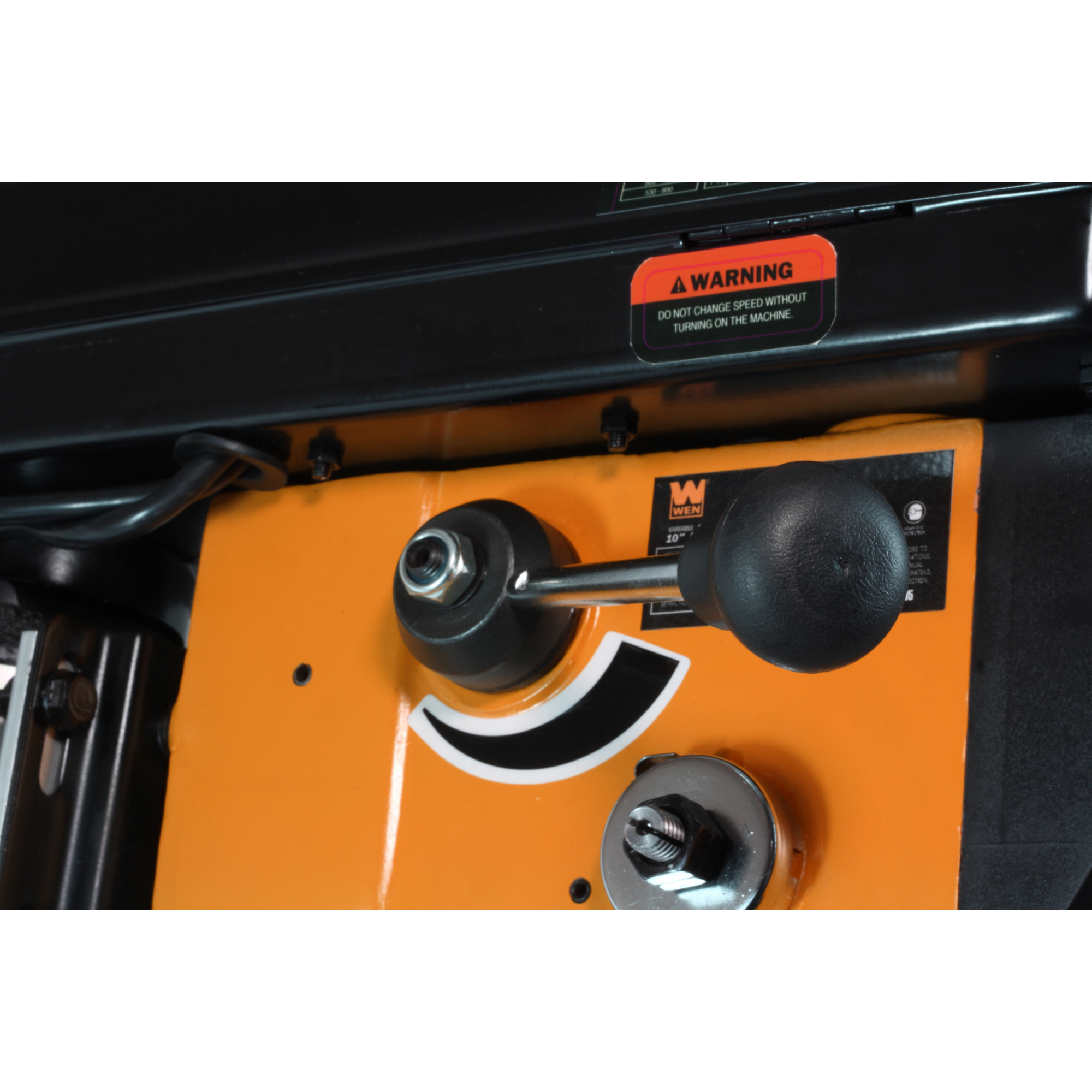

  • Adjust the mechanical variable speed anywhere from 530 to 3100 RPM

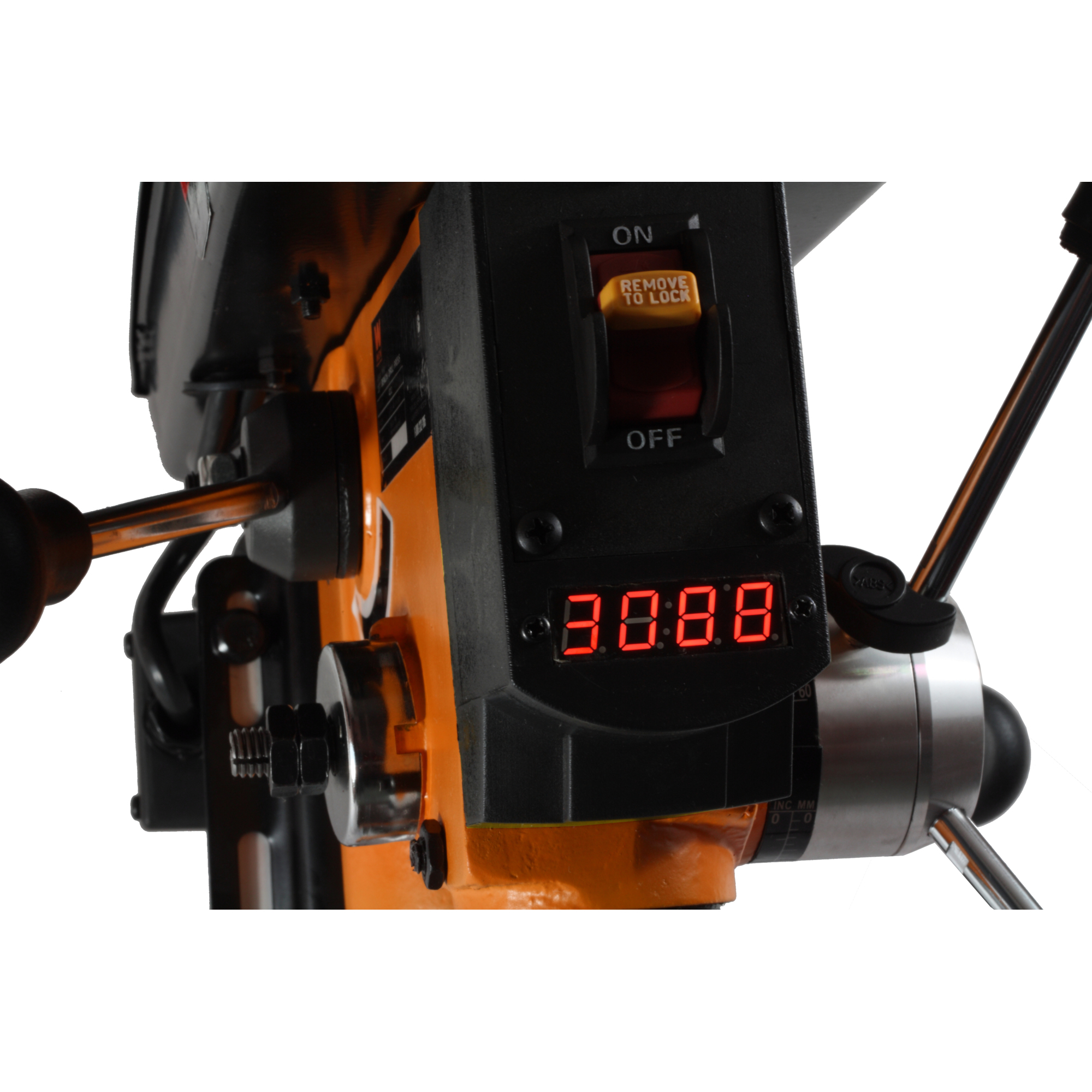

  • Digital speed readout displays current RPM of the machine for maximum precision
  • Includes a laser, adjustable depth stop, beveling 8 by 7.5-inch work table, 1/2-inch capacity keyed chuck, a chuck key with onboard storage, and a two-year warranty
  • Measures in at 13.2 by 19.3 by 33.9 inches in size with a weight of 57 pounds

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Remember when power tools were actually powerful? The WEN 12in. Variable Speed Drill Press powers through metal, wood, plastic and more, with the ability to drill up to a 1/2in. hole through heavy-duty, 1in.-thick cast iron. The mechanical variable speed allows you to dial in the exact RPM (from 530 to 3100) for your project with the simple turn of a lever while the digital LED readout displays the current speed. The powerful induction motor features ball bearings for an extended life and balanced performance. The 1/2in. chuck with JT33 spindle taper gives you versatility with a variety of bits, with on-board chuck key storage for easy organization. The 8 by 7.5in. cast-iron worktable bevels 45° left and right for those tricky operations. The X-pattern of the Class IIIA 2.5mW laser shows your drill’s center points, saving on guesswork and sparing expensive materials. The 8 by 12.5in. cast iron base features predrilled holes for easy mounting to the benchtop or work surface of your choice. And because it’s a WEN product, your drill press comes backed by a two-year warranty, a friendly customer support line, and a stocked inventory of replacement parts. Remember when you could drill with laser precision? Remember WEN.

What's Included

    (1) 5-Amp 10-Inch Variable Speed Cast Iron Benchtop Drill Press with Laser

Features + Benefits

  • Features a 5-amp induction motor, a 10-inch swing, and a 2-inch spindle travel
  • Adjust the mechanical variable speed anywhere from 530 to 3100 RPM
  • Digital speed readout displays current RPM of the machine for maximum precision
  • Includes a laser, adjustable depth stop, beveling 8 by 7.5-inch work table, 1/2-inch capacity keyed chuck, a chuck key with onboard storage, and a two-year warranty
  • Measures in at 13.2 by 19.3 by 33.9 inches in size with a weight of 57 pounds

Key Specs

AttributeSpecification

item#

5805502

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

65.0 LB

Chuck Size

0.5 in

Horsepower

0.8

Horsepower

0.8

Volts

120

Max. RPM

3,100
AttributeSpecification

Min. RPM

530

Volts

120

Amps

5

Product Type

Woodworking Drill Presses

Chuck Size

0.5 in

Product Weight

57.0000 lb

Dimensions L x W x H (in.)

33.9 x 13.5 x 11.0 in

Product Weight

57.0000 lb

Dimensions L x W x H (in.)

33.9 x 13.5 x 11.0 in

Reviews

Questions & Answers

Questions

  1. The description doesn’t state how far the spindle throws? Who does this kindergartners?

    1 answer

    1. The spindle on this drill press will throw 2".

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
