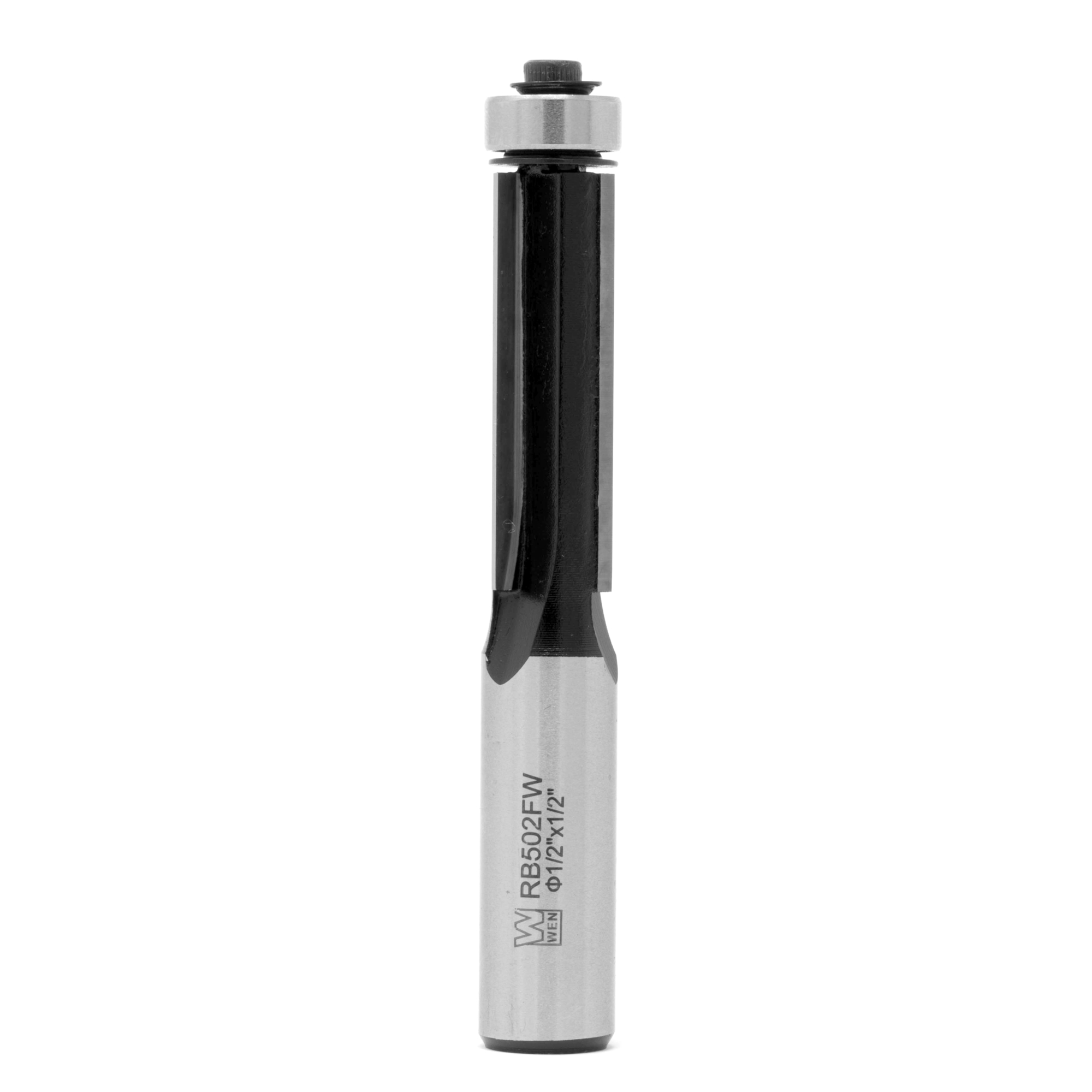

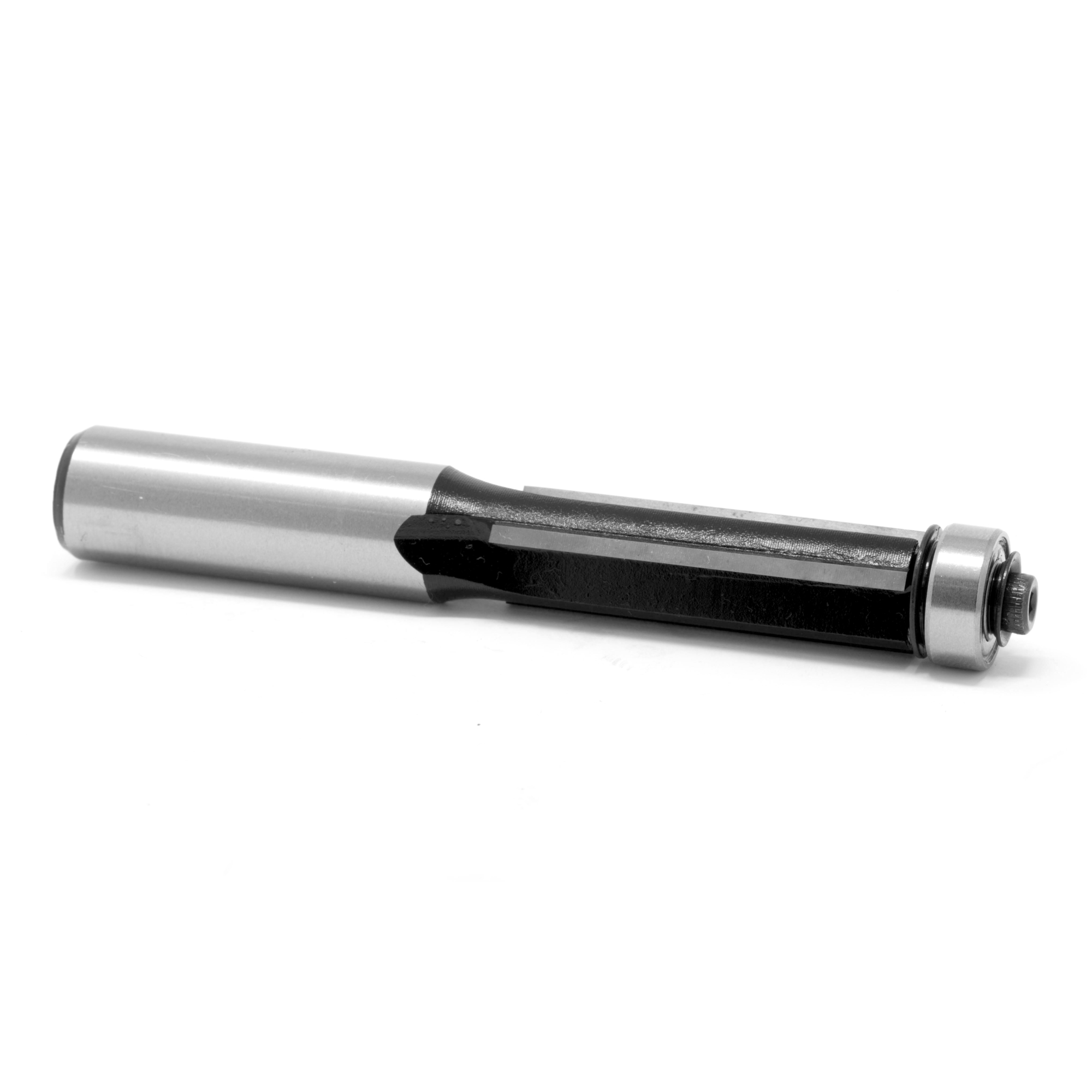

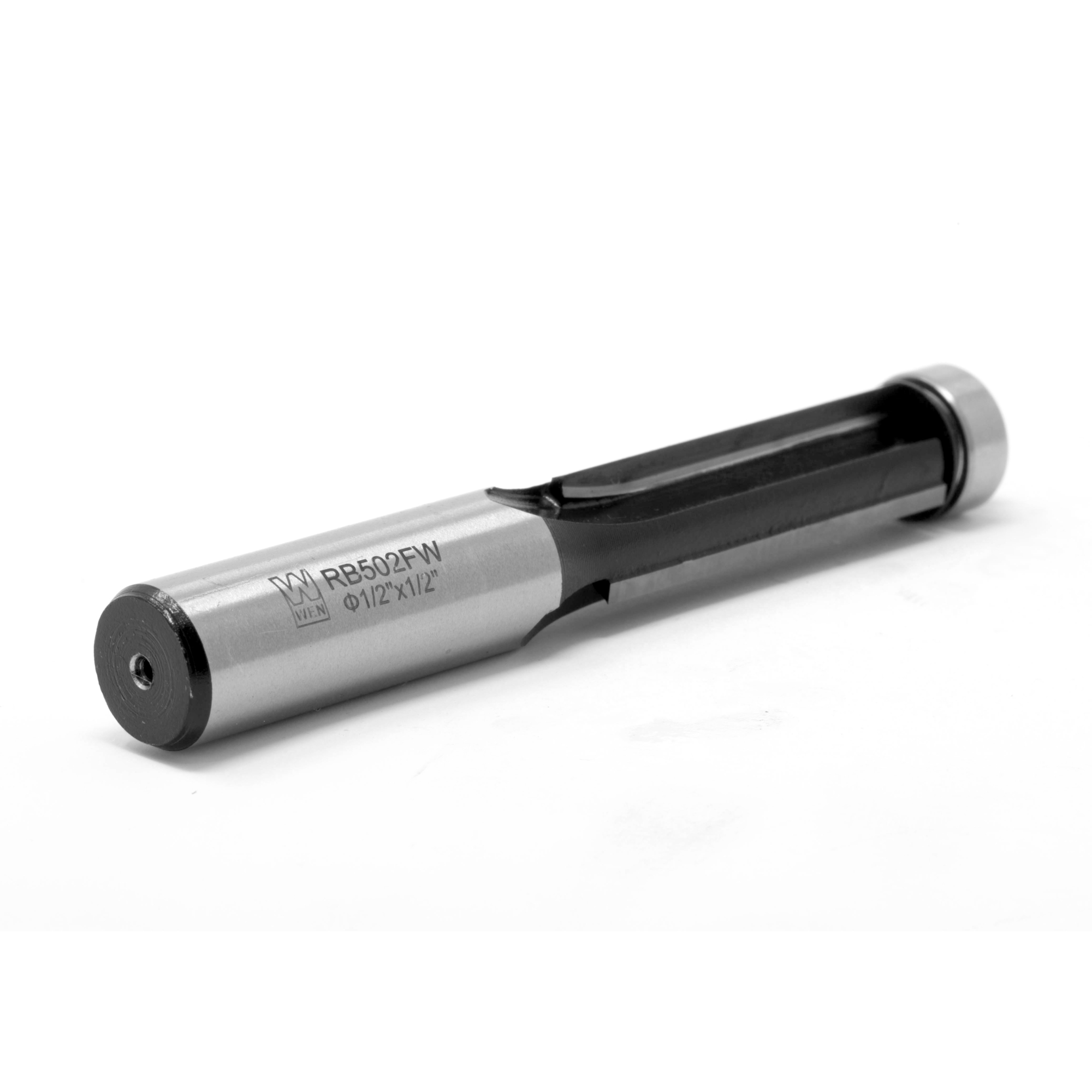

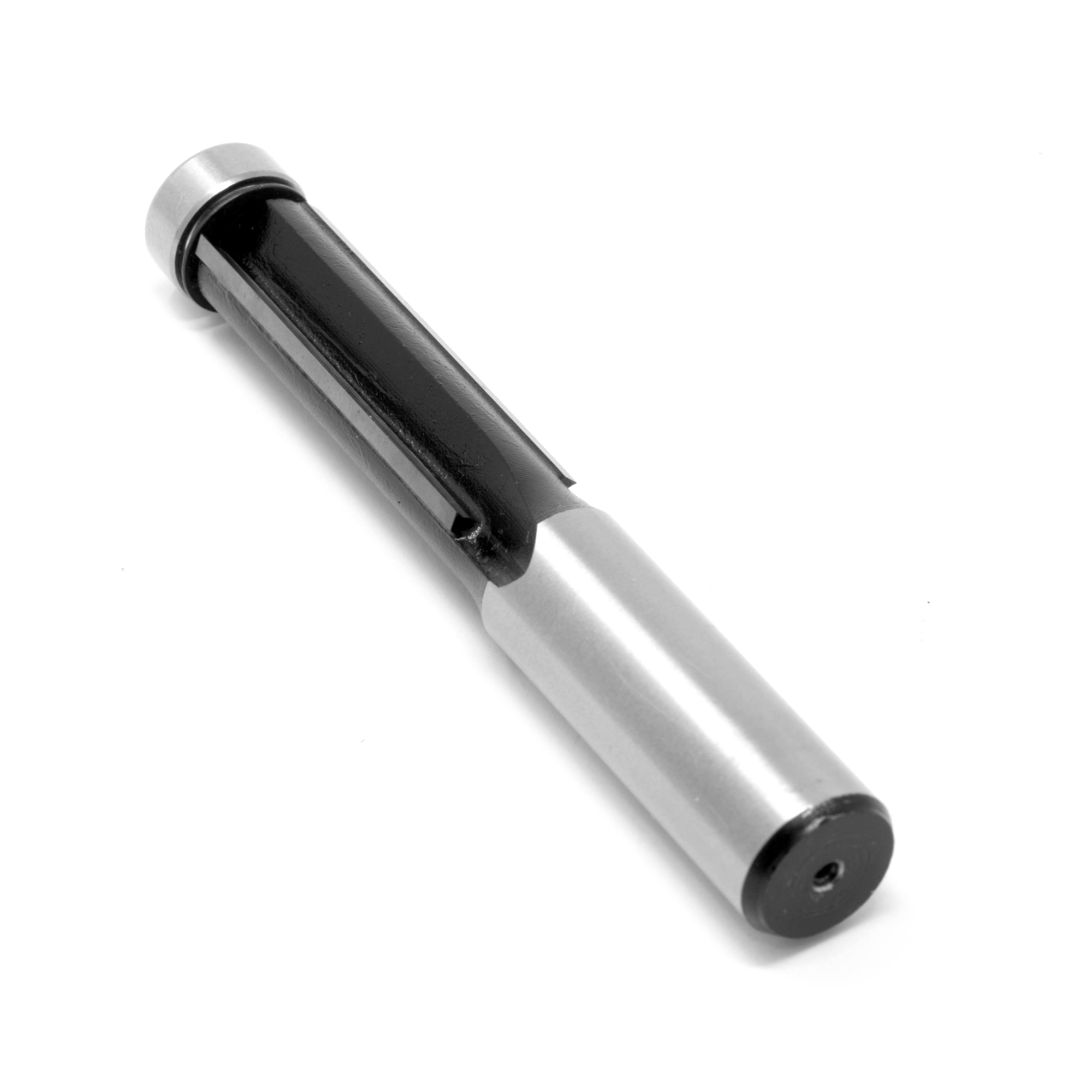

WEN Flush Trim Router Bit - 1/2in. Diameter, 1/2in. Shank, Carbide-Tipped, 3-Wing, Model# RB502FW

Item# 5806601
1 Pieces
WEN Flush Trim Router Bit - 1/2in. Diameter, 1/2in. Shank, Carbide-Tipped, 3-Wing, Model# RB502FW

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN Flush Trim Router Bit - 1/2in. Diameter, 1/2in. Shank, Carbide-Tipped, 3-Wing, Model# RB502FW

Click or Tap image to Zoom

$22.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Professional-grade heat-treated HSS design includes carbide tips for a long-lasting sharp edge
  • Features a 1/2-inch diameter, a 1-1/2-inch cutting length, a 3-19/32-inch overall length, a 1/2-inch diameter shank, and a max RPM of 24000
  • Flush trim profile helps replicate complex edges and create flush surfaces
  • Part of the WEN Professional-Grade High Speed Steel Carbide-Tipped Router Bit series
  • Three-wing design maximizes chip clearance for jobs requiring faster cuts

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Remember when your bits could handle the toughest materials? Add some shape into your edges with the WEN Professional-Grade High Speed Steel Carbide-Tipped Router Bit series. These reliable and durable heat-treated bits feature extremely sharp tungsten carbide blades that slice through even the toughest of woods. Our flush trim profile combined with the three-wing design replicate complex edges and make flush surfaces in your workpieces. Features a 1/2in. diameter, a 1-1/2in. cutting length, a 3-19/32in. overall length, a 1/2in. diameter shank, and a max RPM of 24,000. And if this bit doesn’t cut it, check out the rest of our line of professional router bits, available in a wide variety of profiles and sizes. With WEN by your side, any job is within reach; from surface trimming to unique cabinetry, simple dados to decorative edges, you’ll be able to handle it all. Remember when you stepped your carpentry up a notch? Remember WEN.

What's Included

    (1) 1/2 in. Flush Trim 3-Wing Carbide-Tipped Router Bit with 1/2 in. Shank

Features + Benefits

  • Professional-grade heat-treated HSS design includes carbide tips for a long-lasting sharp edge
  • Features a 1/2-inch diameter, a 1-1/2-inch cutting length, a 3-19/32-inch overall length, a 1/2-inch diameter shank, and a max RPM of 24000
  • Flush trim profile helps replicate complex edges and create flush surfaces
  • Part of the WEN Professional-Grade High Speed Steel Carbide-Tipped Router Bit series
  • Three-wing design maximizes chip clearance for jobs requiring faster cuts

Key Specs

AttributeSpecification

item#

5806601

Brand

WEN

Manufacturer's Warranty

No limited warranty

Ship Weight

0.2 LB

Shank Size

1/2 in

Bit Diameter

1/2 in

Bit Type

Trim
AttributeSpecification

Cutting Length

1-1/2 in

Cutting Width

1/2 in

Pieces (qty.)

1

Material

Multiple

Product Weight

0.1533 lb

Dimensions L x W x H (in.)

2.13 x 0.75 x 0.75 in

Reviews

Questions & Answers

Questions

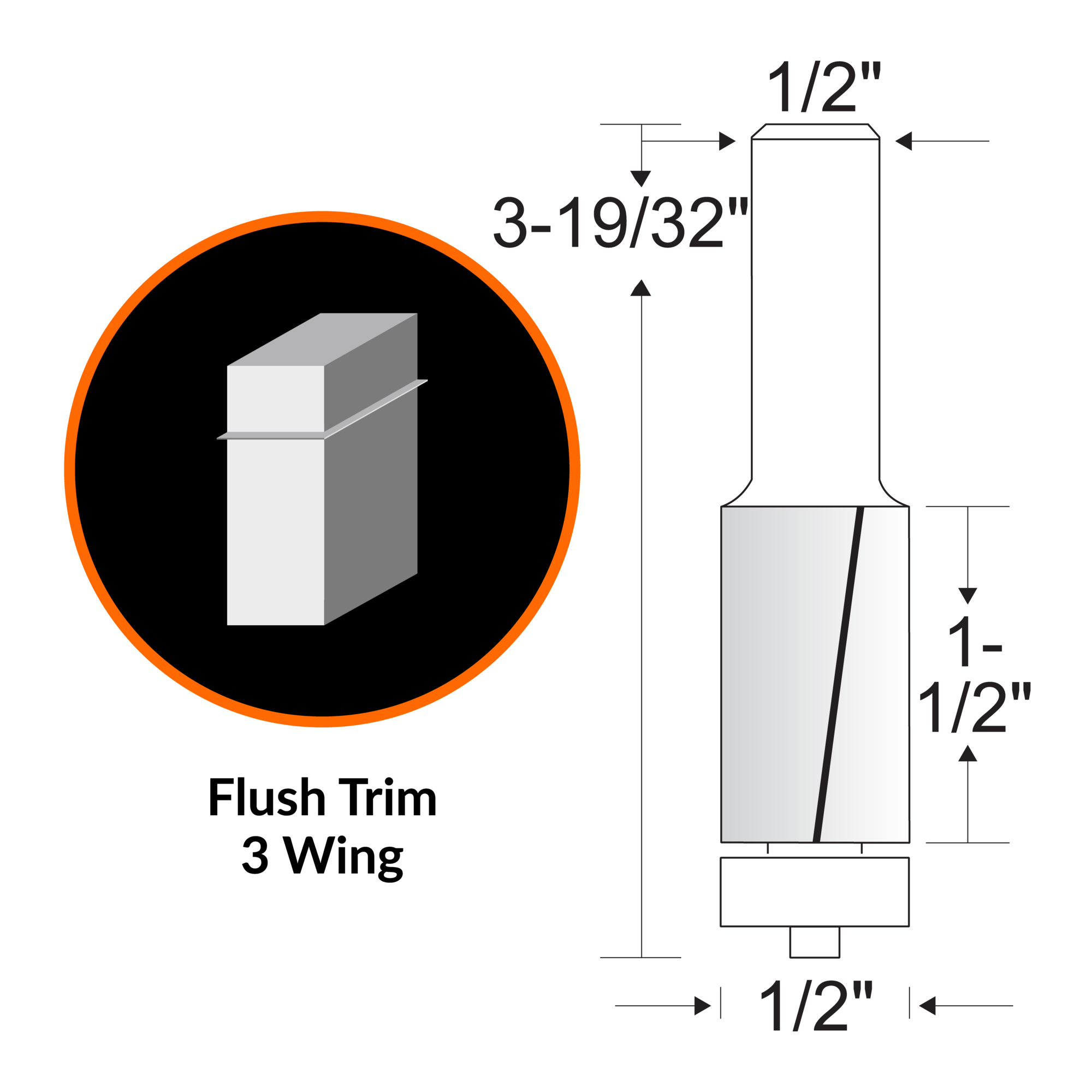

  1. The title says 1/4" shank, the drawing dimensions show 1/2" shank.

    1 answer

    1. The router bit, model RB502FW would have a 1/2" shank.

      Helpful?

Warranty

Manufacturer's Warranty

No limited warranty
